Richelieu WEBKIT1242899 RO 27 Sliding Door System InstructionsRichelieu WEBKIT1242899 RO 27 Sliding Door System is engineered for seamless functionality in both residential and commercial applications. Designed to accommodate wood cabinet doors weighing up to 44 lb (20 kg) each, this system ensures stable and reliable operation. The hardware is cleverly recess-mounted, providing a clean aesthetic by hiding the components behind the doors. Capable of supporting wood doors with a thickness ranging from 5/8 in (15 mm) to 1 in (25 mm), the RO 27 system offers two track options: the recessed Type RM 026 for both upper and lower tracks or the surface mount Type RM 022, which accommodates a maximum thickness of 3/4 in (20 mm). Installation is straightforward, making it a flexible choice for various settings, including storage units, office furniture, bookshelves, and entertainment units. For optimal performance, it is essential to ensure that the door dimensions are balanced, adhering to a maximum 1:3 width-to-height ratio. This system supports door heights from 12 to 70 7/8 in and widths from 12 to 19 5/8 in, providing versatility for your design needs. Finished in sleek silver, the Richelieu RO 27 Sliding Door System merges durability and style, making it an excellent choice for your next project.
RO 27 Sliding Door System
The RO 27 Sliding Door System for bypassing wood cabinet doors weighing up to 44 lb (20 kg) each. The hardware is recess mounted and concealed in the back of the doors by drilling a 1 3/8 in (35 mm) diameter hole x 1/2 in (12 mm) deep. Provides excellent, durable support for the door. Operation by bottom running wheels and upper guide wheels for stability.
Features:
- For wood doors 5/8 in (15 mm) to 1 in (25 mm) thick
- Select from two types of tracks:
a) Type RM 026 recessed upper and lower track
b) Type RM 022 surface mount dual track, max. thickness of 3/4 in (20 mm)
- Simple and flexible installation
IMPORTANT: For optimal performance, make sure the dimensions of the door are balanced. It is suggested to build the door height 3 times or less than the width of the door (max. 1:3 width-to-height ratio).

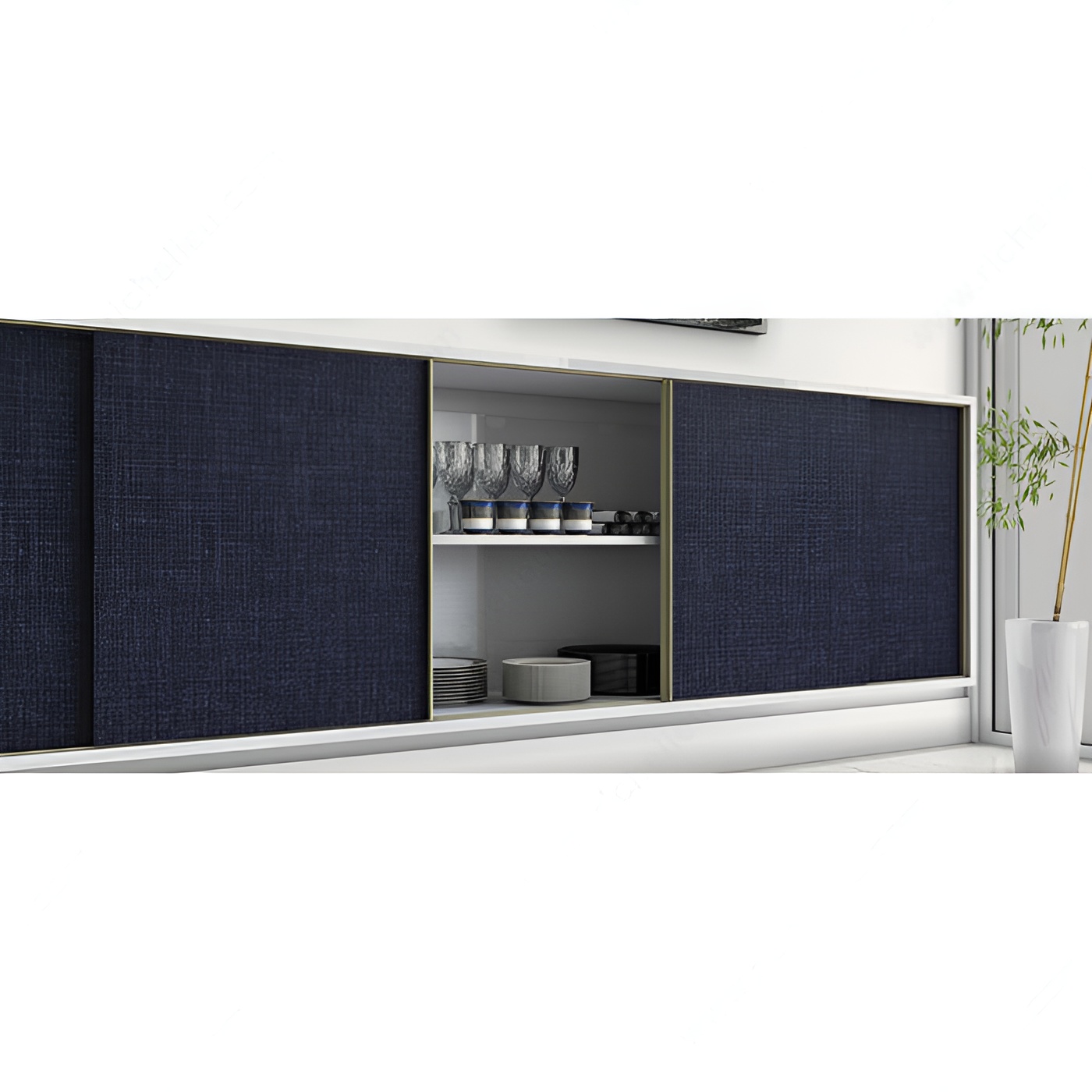

Ideal for residential and commercial applications for small to medium size cabinet doors for storage units, office furniture, bookshelves, and entertainment units.
Attributes
Application: Furniture, Cabinet, Storage
Detailed Door Movement: Bypassing
Displayed in These Showrooms: Toronto
Door Height: 305 to 1 500 mm
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 15 mm
Door Width: 305 mm
Finish: Silver
Length - Overall Dimensions: 39 3/8 in*
Load Capacity: 11 to 44.1 lb*
Number of Doors: 2
Overall Length: Max. 1 000 mm
Product #: WEBKIT1242899
Product number: WEBKIT1242899
Product №: WEBKIT1242899
Track Finish: Silver
Track Mounting: Recessed
Weight Capacity per Door: 20 kg
