Richelieu WEBKIT1242932 Scorri 10KG Sliding Door System

Richelieu WEBKIT1242932 Scorri 10KG Sliding Door System

Richelieu WEBKIT1242932 Scorri 10KG Sliding Door System offers an elegant solution for sliding wood cabinet doors, accommodating weights up to 22 lb (10 kg). This top-hung system is designed specifically for inset applications, ensuring a seamless integration into your cabinetry. The Scorri system features a rear-mounted concealed suspension housing, complete with a height adjustment pin, allowing for precise alignment. It is compatible with wood doors ranging from 5/8 in (16 mm) to 7/8 in (22 mm) thick and supports a straightforward recessed installation process. The concealed track stoppers enhance aesthetics while maintaining functionality, and you can choose from a variety of single and double track options for added versatility. Installation is simplified with clear instructions, emphasizing the importance of metric measurements for accuracy. To achieve optimal performance, ensure to cut a 10 mm by 9 mm groove at the bottom of the door for the bottom guide and follow specific drilling guidelines to avoid interactions with concealed hinges. This system is ideal for both residential and commercial applications, making it perfect for office furniture, bookcases, and storage units. With its sleek silver finish, the Richelieu Scorri system not only enhances functionality but also elevates the overall design of any space.

Scorri 10KG Sliding Door System

The SCORRI 10KG sliding door system is designed for a wood cabinet door with a weight capacity of 22 lb (10 kg).

Features:
- Top hung running sliding system for inset applications
- Rear mount concealed suspension housing with height adjustment pin
- Recess mount hardware for wood doors 5/8 in (16 mm) to 7/8 in (22 mm) thick
- Concealed track stoppers with retaining device
- Choose from a selection of single and double tracks with options to recess or surface mount
- Simple and flexible installation

IMPORTANT: Use metric dimensions for greater accuracy during installation. Cut a groove 10 mm by 9 mm at the bottom of the door for bottom guide. Drill 35 mm by 11 mm deep without going through a European style concealed hinge, offset as per the instructions.

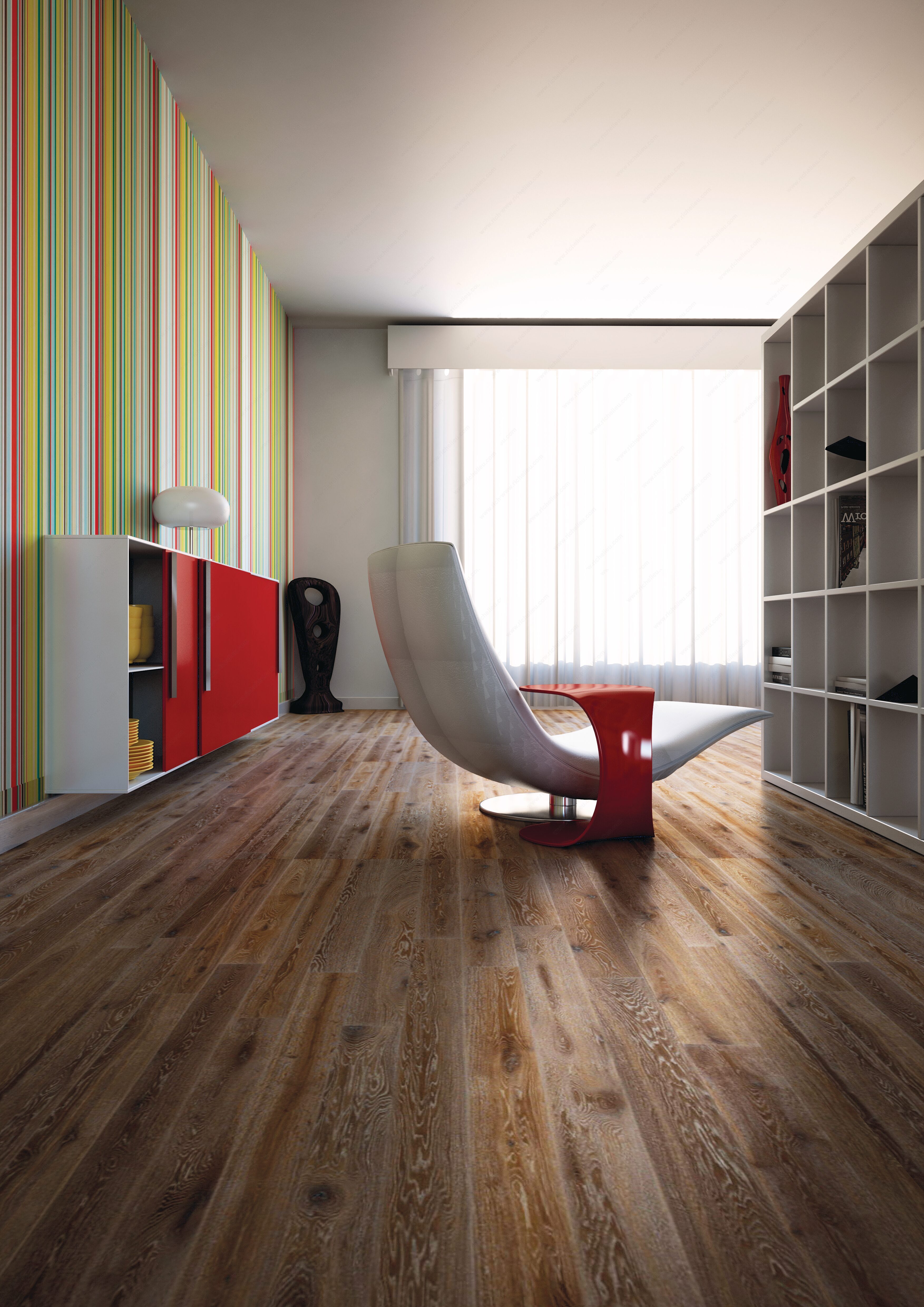

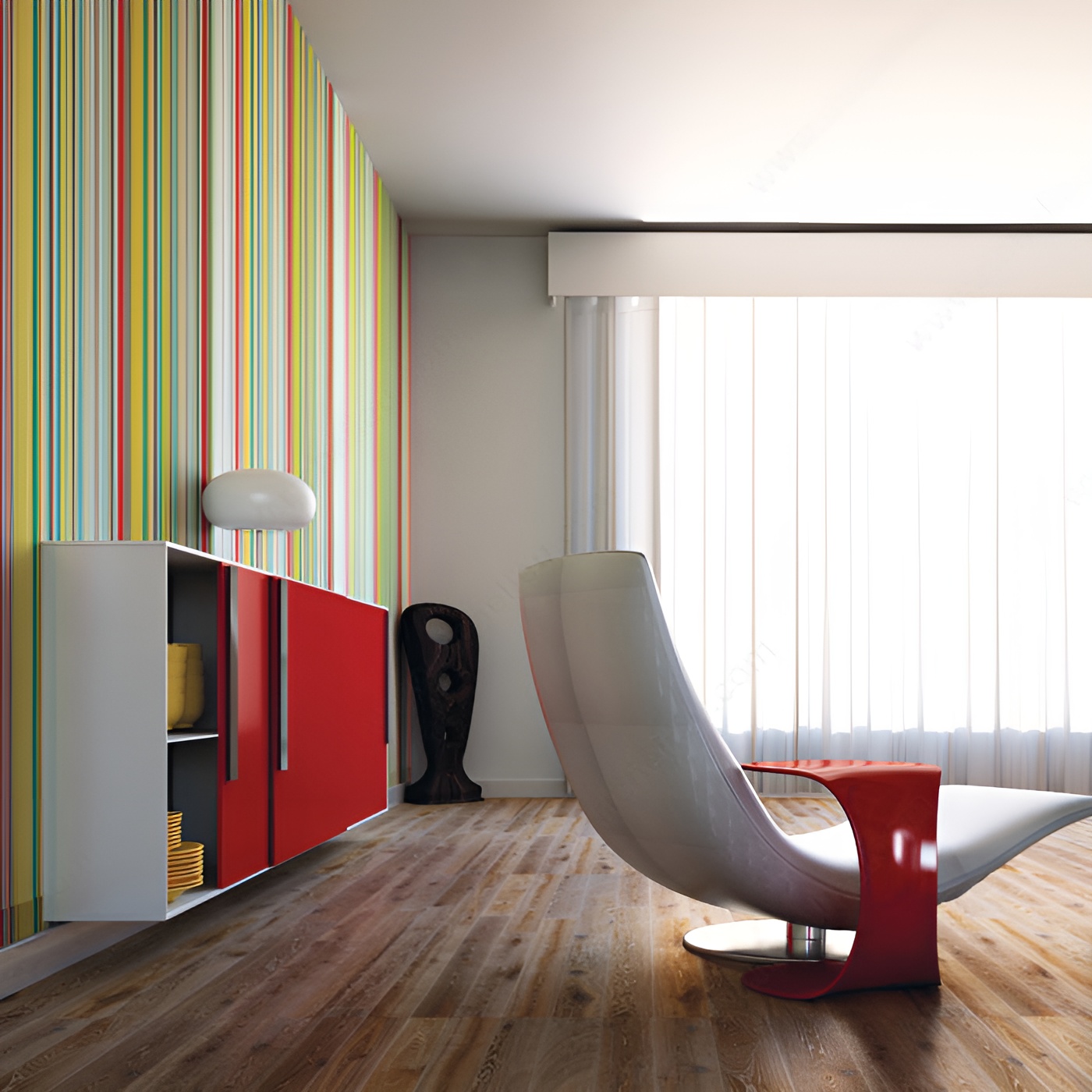

Ideal solution for residential and commercial cabinets for office furniture, bookcases, and storage units.

Important information

- IMPORTANT: Cut a groove 10 mm by 9 mm at the bottom of the door for bottom guide. Drill 35 mm by 11 mm deep without going through a European style concealed hinge, offset as per the instructions.
- Please make sure to read the entirety of the installation manual before proceeding with the installation.
- Use metric dimensions for greater accuracy during installation.
- Wear safety gear such as gloves, safety glasses, safety shoes, and ear protection.
- Every fastener used to attach the track to the wall must be fastened securely into a structural surface.
- Always remove debris/dust/residues (sawdust and/or aluminum) from all tracks and guide channels using a dry cloth during installation and before operating the system.
- Never spray lubricant on this product.
- Do not exceed stated limitations and parameters. This will cause early wear and performance failure, and will void the warranty.

Resources

• Instructions
• Line art
