Richelieu WEBKIT1243281 HAWA PORTA H/HC Sliding System InstructionsRichelieu WEBKIT1243281 HAWA PORTA H/HC Sliding Systems offer a versatile solution for both ceiling and wall mount applications, accommodating sliding wood doors weighing up to 100 kg. This system is ideal for residential and commercial settings, enhancing standard doorways, walk-in closets, and office entrances. Featuring a surface-mount suspension plate, the HAWA PORTA ensures a seamless installation process. Choose from three system types: System H for ceiling mount, System HC for wall mount with options for aluminum or wood fascia, and System SYNCHRO for synchronized bi-parting doors. The adjustable track stoppers come equipped with a retaining device, while soft-close mechanisms (sold separately) cater to various door weights. This system supports doors with heights ranging from 59 to 106 inches and thicknesses between 1 3/32 to 1 9/16 inches, providing flexibility in design. It allows for telescopic operation for up to two doors with a stacking set, eliminating the need for a bottom guide track. For optimal performance, ensure to cut a groove measuring 12 mm x 16 mm at the bottom of the door. The minimum door width for bi-parting applications is 840 mm. Elevate your space with the refined functionality of the Richelieu HAWA PORTA H/HC Sliding Systems.
HAWA PORTA H/HC Sliding Systems
The HAWA PORTA H/HC Sliding Systems are designed for ceiling and wall mount applications for sliding wood doors weighing up to 60 kg or 100 kg each.
Features:
- Surface-mount suspension plate
- Track stoppers with adjustable retaining device
- Choose from three system types for diverse applications:
1) System H for ceiling mount
2) System HC for wall mount (barn door style) with aluminum fascia or clips for wood fascia
3) System SYNCHRO for bi-parting doors synchronized with a pulley system
- Soft-close mechanisms available for doors 40 kg to 60 kg, and 60 kg to 100 kg, sold separately
- Simple and flexible installation
- Telescopic operation possible for up to two doors with stacking set without bottom guide track, accessories sold separately
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Cut a groove 12 mm x 16 mm at the bottom of the door for bottom guide.
Minimum door width for two doors is 840 mm.
Soft-close mechanism not recommended for SYNCHRO system.

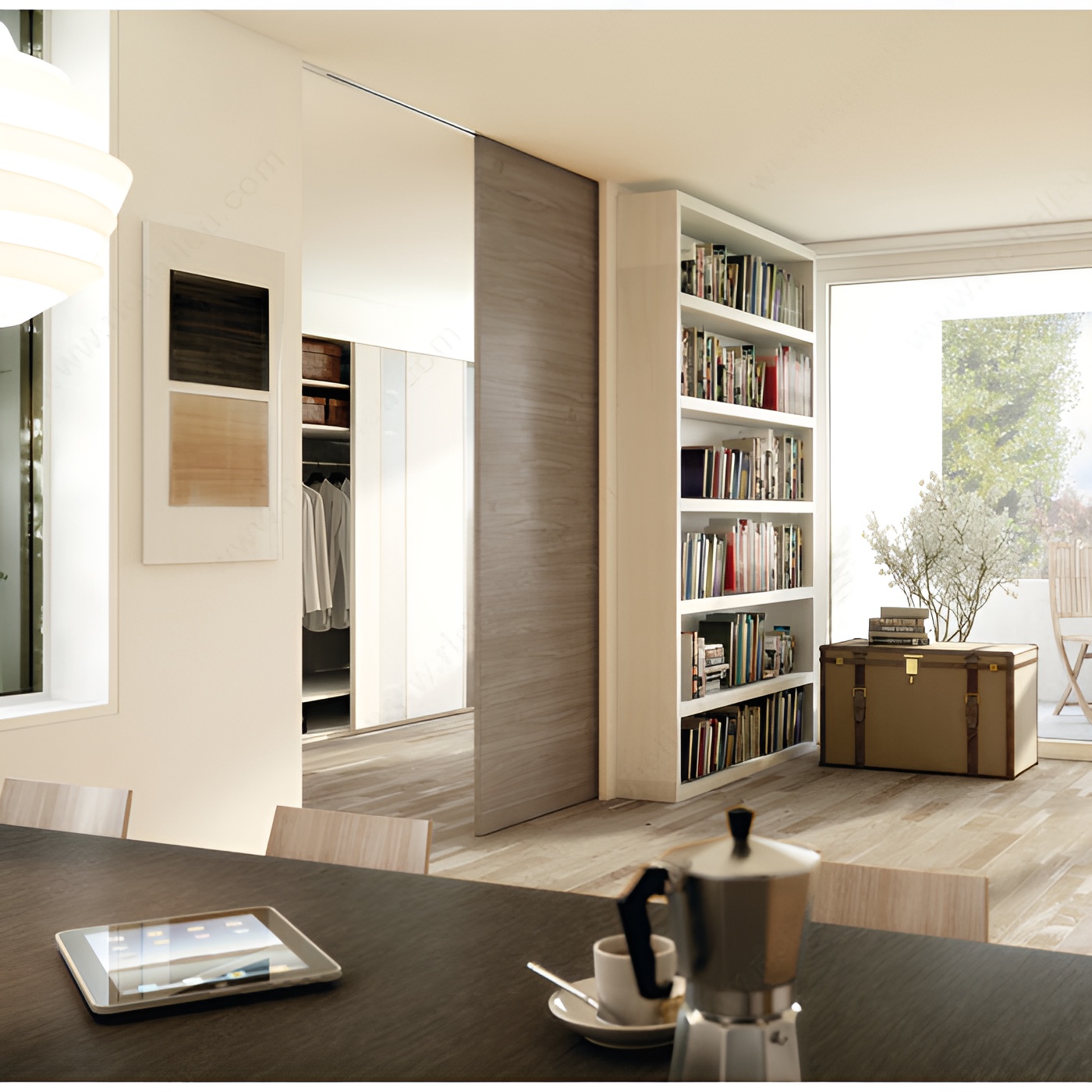

Ideal solution for residential and commercial applications for standard doorways, walk-in closets, and office entrance doors.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Closet and Walk-In Closet, Standard Access Door, Barn Door
Brand: Porta
Brand Model: Hawa Porta
Detailed Door Movement: Single sliding
Door Height: 1 500 to 2 700 mm
Door Installation: Top Hung
Door Material: Wood
Door Thickness: 30 to 80 mm
Door Width: 600 to 1 200 mm
Finish: Anodized aluminum
Groove Depth: 16 mm
Groove Width at the Bottom of Door: 12 mm
Length - Overall Dimensions: 98 3/8 in*
Load Capacity: 68.3 to 132 lb*
Number of Doors: 1
Opening: Left arm, Right arm
Overall Length: 2 500 mm
Product #: WEBKIT1243281
Product number: WEBKIT1243281
Product №: WEBKIT1243281
Roller Type: Ball Bearing
Running Track Fixing: Surface Mount
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Finish: Anodized
Track Mounting: Ceiling Mount / Recessed
Track type: Box Track
Weight Capacity per Door: 31 to 60 kg
