Richelieu WEBKIT1243411 Terno Eclectica 80 FluidRichelieu WEBKIT1243411 TERNO ECLETTICA 80 FLUID is a versatile straight-sliding wood door system designed to support doors weighing up to 80 kg. This system is perfect for both residential and commercial use, ensuring seamless access between rooms. One of its standout features is the automatic clip-on suspension bracket that allows for quick, toolless installation, significantly reducing setup time on-site. The TERNO ECLETTICA 80 FLUID offers flexibility with hardware options, including either one soft close mechanism combined with a shock absorber or two soft close mechanisms for enhanced control. Its ADA and Barrier-Free compliance, with a low pull force of just 2.1 kg, makes it accessible for everyone. This system accommodates door heights from 70 7/8 to 118 inches and thicknesses ranging from 1 3/16 to 1 25/32 inches. The track can be mounted on the wall, and an anodized aluminum fascia enhances both durability and aesthetics. A groove is required at the bottom of the door for proper function, or an optional two-part floor guide can be purchased separately to eliminate cutting a groove. With a load capacity between 112 to 176 lbs, the TERNO ECLETTICA 80 FLUID is an ideal choice for high-volume projects needing stylish and functional sliding doors.
TERNO ECLETTICA 80 FLUID
TERNO ECLETTICA 80 FLUID Series is a standard straight-sliding door system for wood doors weighing up to 80 kg (176 lbs).
Features:

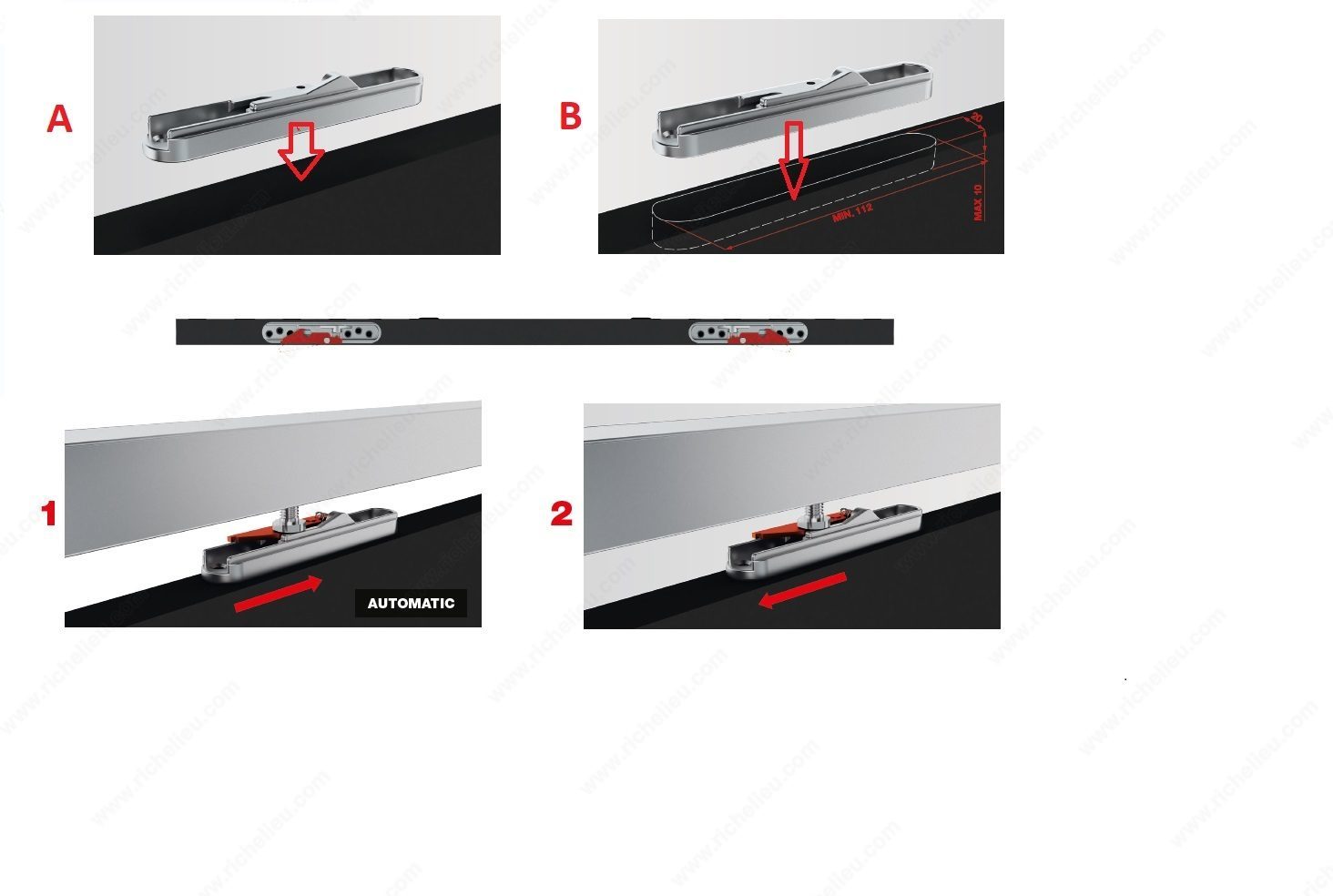

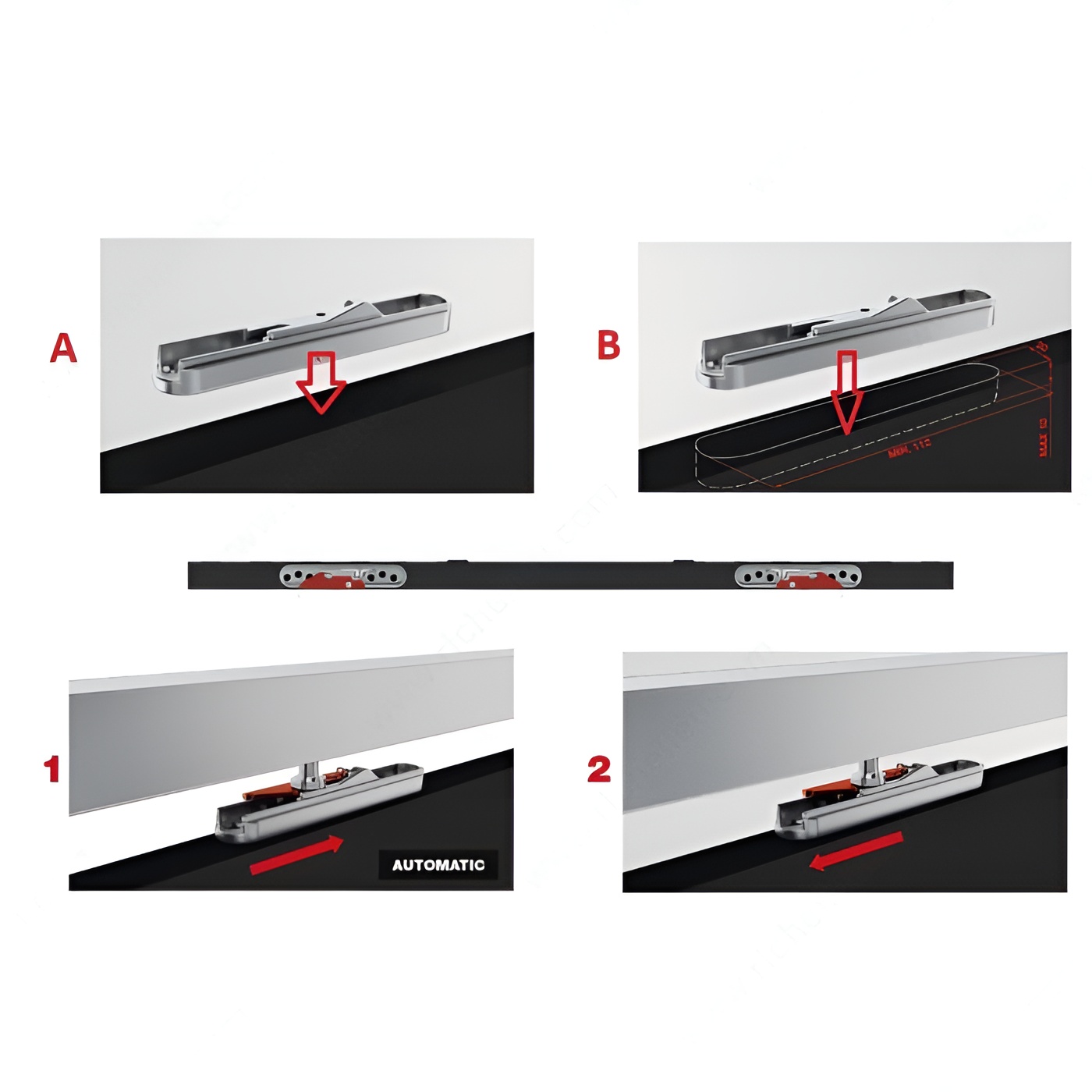

- Automatic clip-on suspension bracket for quick, toolless door installation
- 2 soft close mechanisms
- ADA/Barrier-Free compliant with a low pull force of 2.1 kg
- Track options for ceiling mount and wall mount
- Clip-on anodized aluminum fascia for 35 mm or 45 mm thick doors
- Optional clips for wood fascia supplied by the contractor
The TERNO ECLETTICA 80 FLUID Series is an ideal solution for access doors between rooms for high-volume residential and commercial projects.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required at the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchased separately to avoid the need to cut a groove in the door.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Eclettica
Brand Model: Terno Eclettica
Detailed Door Movement: Single sliding
Door Height: 1 800 to 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 45 mm
Door Width: 740 to 1 000 mm
Groove Depth: 14 mm
Groove Width at the Bottom of Door: 6 mm
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 112 to 176 lb*
Manufacturing Material: Aluminum
Number of Doors: 1
Overall Length: 2 000 mm
Product #: WEBKIT1243411
Product №: WEBKIT1243411
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: Two Soft-close
Soft- Closing: Yes
Track Material: Anodized Aluminum
Track Mounting: Wall Mount
Weight Capacity per Door: 51 to 80 kg
