Richelieu WEBKIT1243420 Terno Eclectica 120 FluidRichelieu WEBKIT1243420 TERNO ECLETTICA 120 FLUID offers a robust straight-sliding wood door system, designed to accommodate doors weighing up to 120 kg. This series stands out with its automatic clip-on suspension bracket, enabling quick, tool-free installation, perfect for busy professionals and contractors. The TERNO ECLETTICA system is available with versatile hardware options, including a single soft-close mechanism paired with a shock absorber or two soft-close mechanisms for smoother operation. ADA and Barrier-Free compliant, it ensures accessibility with a low pull force of just 3.7 kg. Adaptable track options are offered for both ceiling and wall mounting, while the clip-on anodized aluminum fascia accommodates doors with thicknesses of 35 mm or 45 mm. With a door height range from 70 7/8 to 118 inches and a width from 31 1/2 to 49 1/4 inches, this system caters to various project requirements. Important installation notes include the necessity of a groove at the bottom of the door, with an optional two-part floor guide available for those preferring to avoid cutting. The TERNO ECLETTICA 120 FLUID is an ideal choice for both residential and commercial high-volume applications, ensuring durability and style.
TERNO ECLETTICA 120 FLUID
TERNO ECLETTICA 120 FLUID Series is a standard straight-sliding door system for wood doors weighing up to 120 kg (264.5 lbs).
Features:

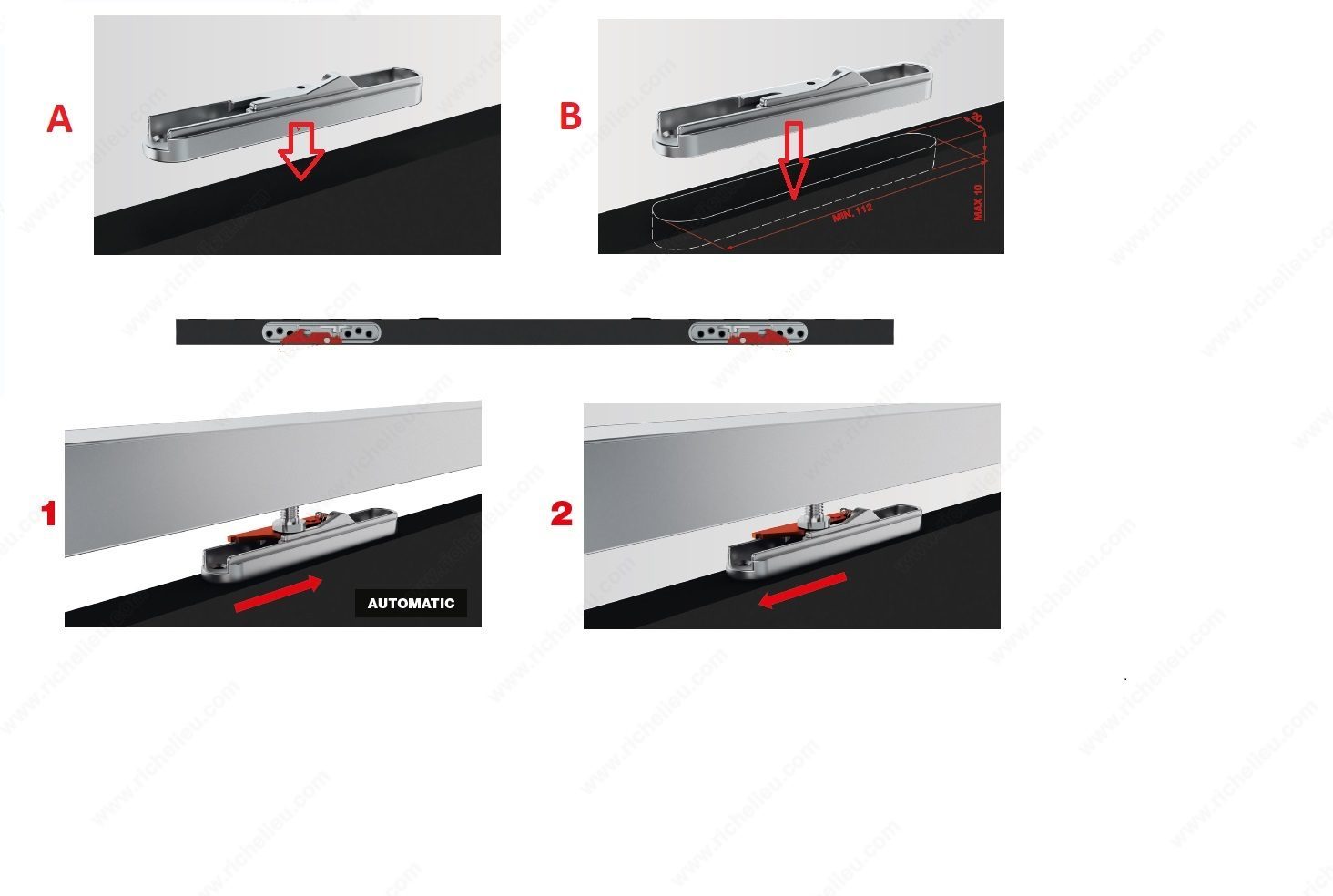

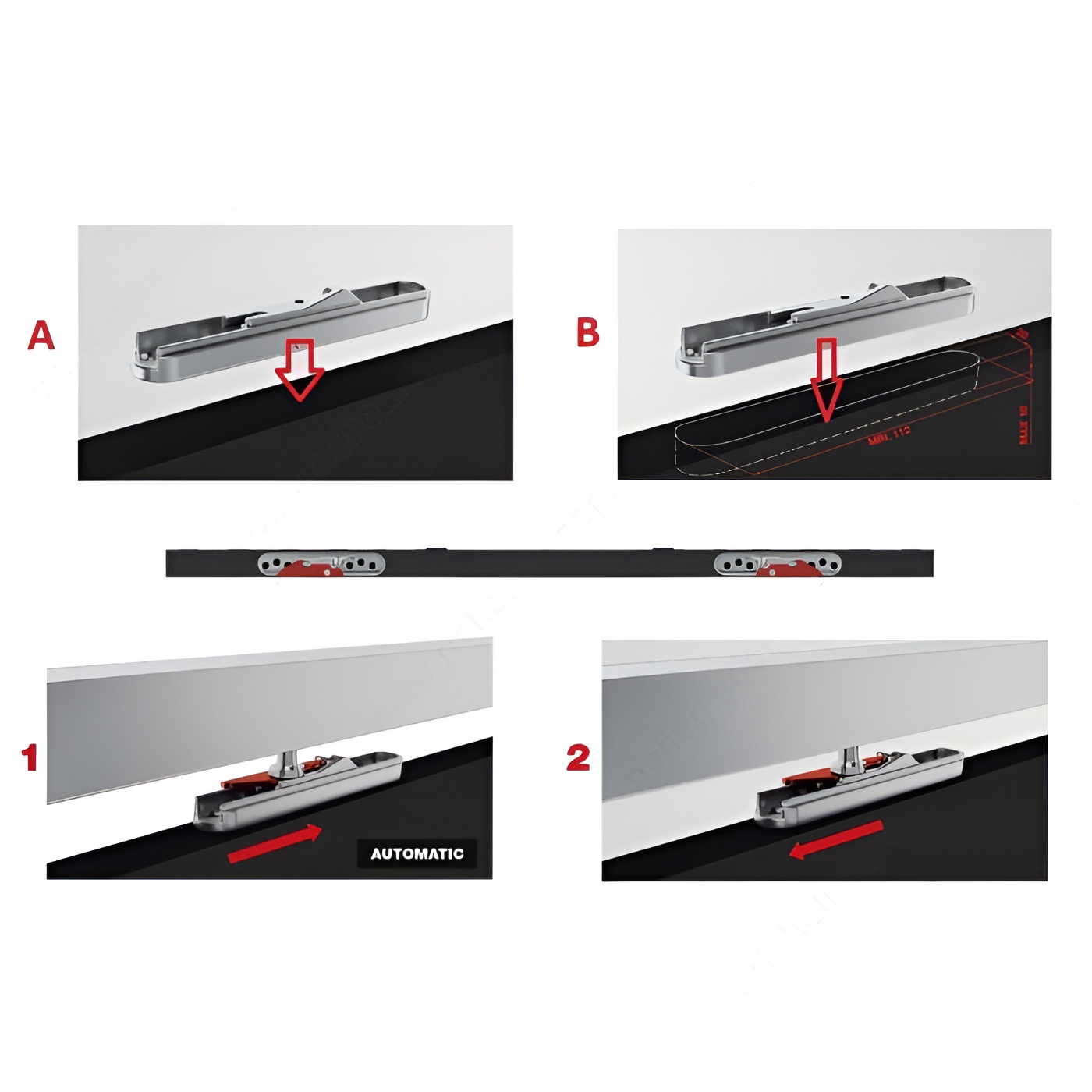

- Automatic clip-on suspension bracket for quick, toolless door installation
- 2 soft close mechanisms with a low pull force of 3.7 kg
- Track options for ceiling mount and wall mount
- Clip-on anodized aluminum fascia for 35 mm or 55 mm thick doors
- Optional clips for wood fascia supplied by the contractor
The TERNO ECLETTICA 120 FLUID Series is an ideal solution for access doors between rooms for high-volume residential and commercial projects.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required at the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchased separately to avoid the need to cut a groove in the door.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Brand: Eclettica
Brand Model: Terno Eclettica
Detailed Door Movement: Single sliding
Door Height: 1 800 to 3 000 mm
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 30 to 55 mm
Door Width: 800 to 1 250 mm
Function: Sliding Door
Groove Depth: 14 mm
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 6 mm
Length - Overall Dimensions: 98 3/8 in*
Load Capacity: 265 lb*
Number of Doors: 1
Overall Length: 2 500 mm
Product #: WEBKIT1243420
Product №: WEBKIT1243420
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: Two Soft-close
Soft- Closing: Yes
Track Mounting: Ceiling Mount
Weight Capacity per Door: 120 kg
