Richelieu WEBKIT1243490 TERNO VETRO 40 Fluid for Glass CareRichelieu WEBKIT1243490 TERNO VETRO 40 FLUID for Glass offers a sophisticated solution for sliding glass door systems, accommodating door weights of up to 80 kg and 120 kg. This system features an innovative automatic clip-on suspension bracket, enabling quick and tool-free installation, making it ideal for busy environments. The clamping shoes eliminate the need for adhesive or glass drilling, ensuring a seamless setup. Designed with versatility in mind, the TERNO VETRO 40 FLUID caters to various applications, including barrier-free access in commercial, residential, and institutional settings. It includes clip-on covers for glass thicknesses of 10 mm and 12.7 mm, enhancing its adaptability. The system is equipped with two soft-close mechanisms utilizing FLUID technology, significantly reducing pull force to 2.1 kg for 80 kg doors and 3.7 kg for 120 kg doors. With track options available for both ceiling and wall mounting, the sliding door system can be customized to fit specific installation requirements. Its anodized silver finish adds a touch of elegance, while the upper ball-bearing roller position guarantees smooth operation. Suitable for door heights ranging from 47 1/4 to 108 inches, the TERNO VETRO 40 FLUID is the perfect choice for creating elegant, functional spaces.
TERNO VETRO 40 FLUID for Glass
TERNO VETRO 40 FLUID is a straight sliding door system for glass doors weighing up to 176 lb (80 kg) and 264 lb (120 kg) each.
Features:
- Automatic clip-on suspension bracket for quick tool-less door installation

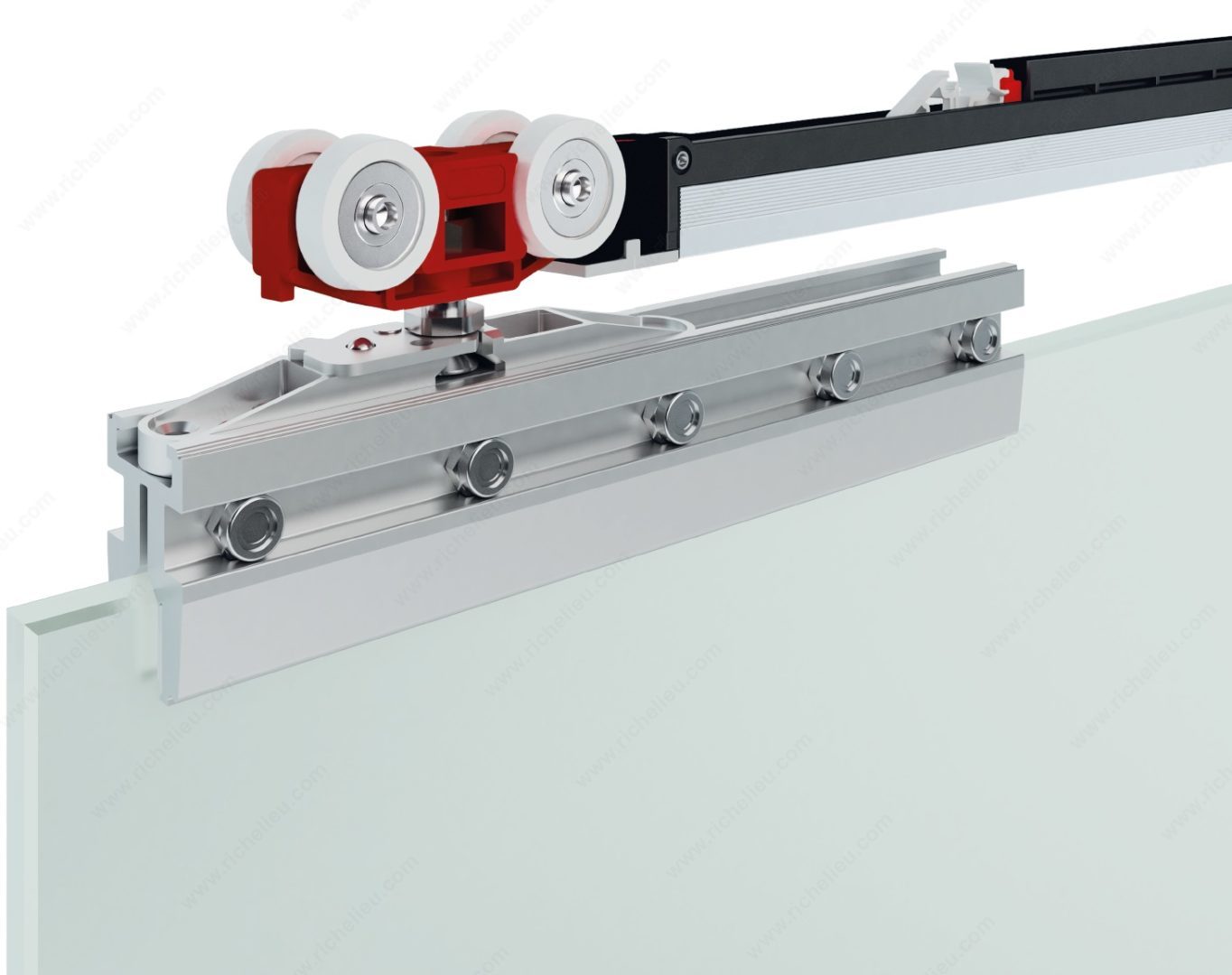

- Clamping shoes do not require adhesive, nor drilling the glass
- Clamping shoe kits include clip-on covers for glass thicknesses of 10 mm and 12.7 mm
- Two soft-close mechanisms with FLUID technology for low pull force:
a) 80 kg = 2.1 kg pull force
b) 120 kg = 3.7 kg pull force
- Various track options available for ceiling mount and wall mount tracks

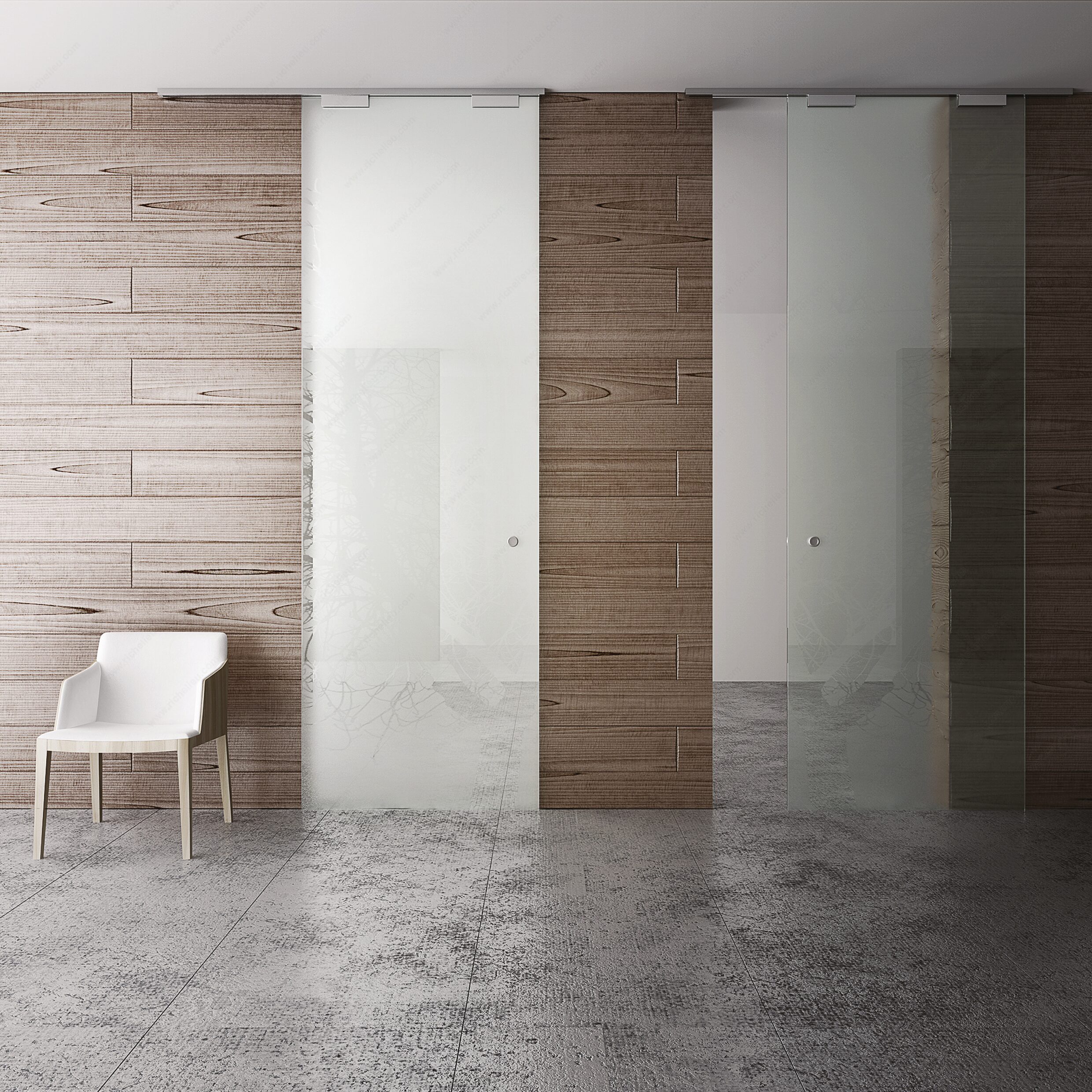

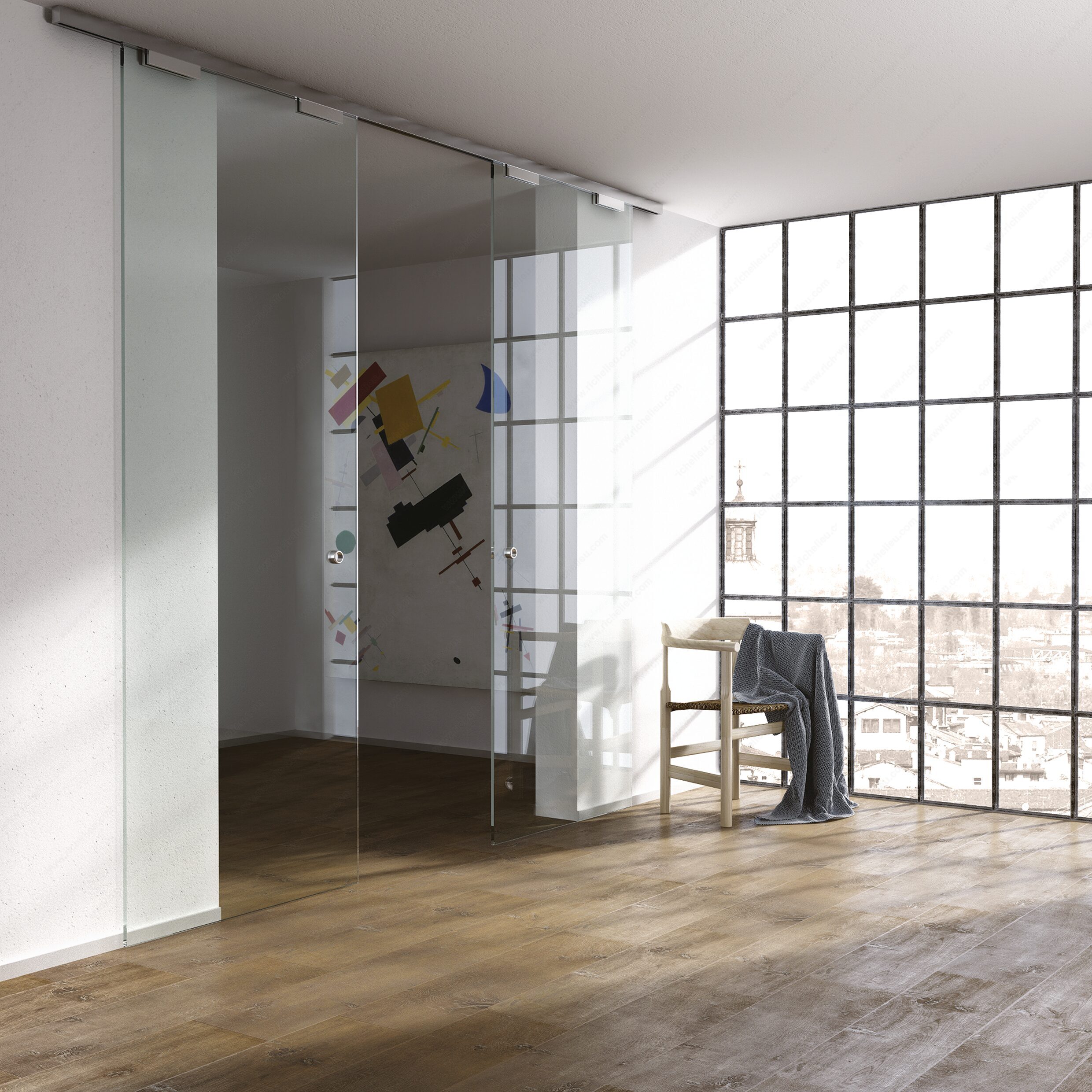

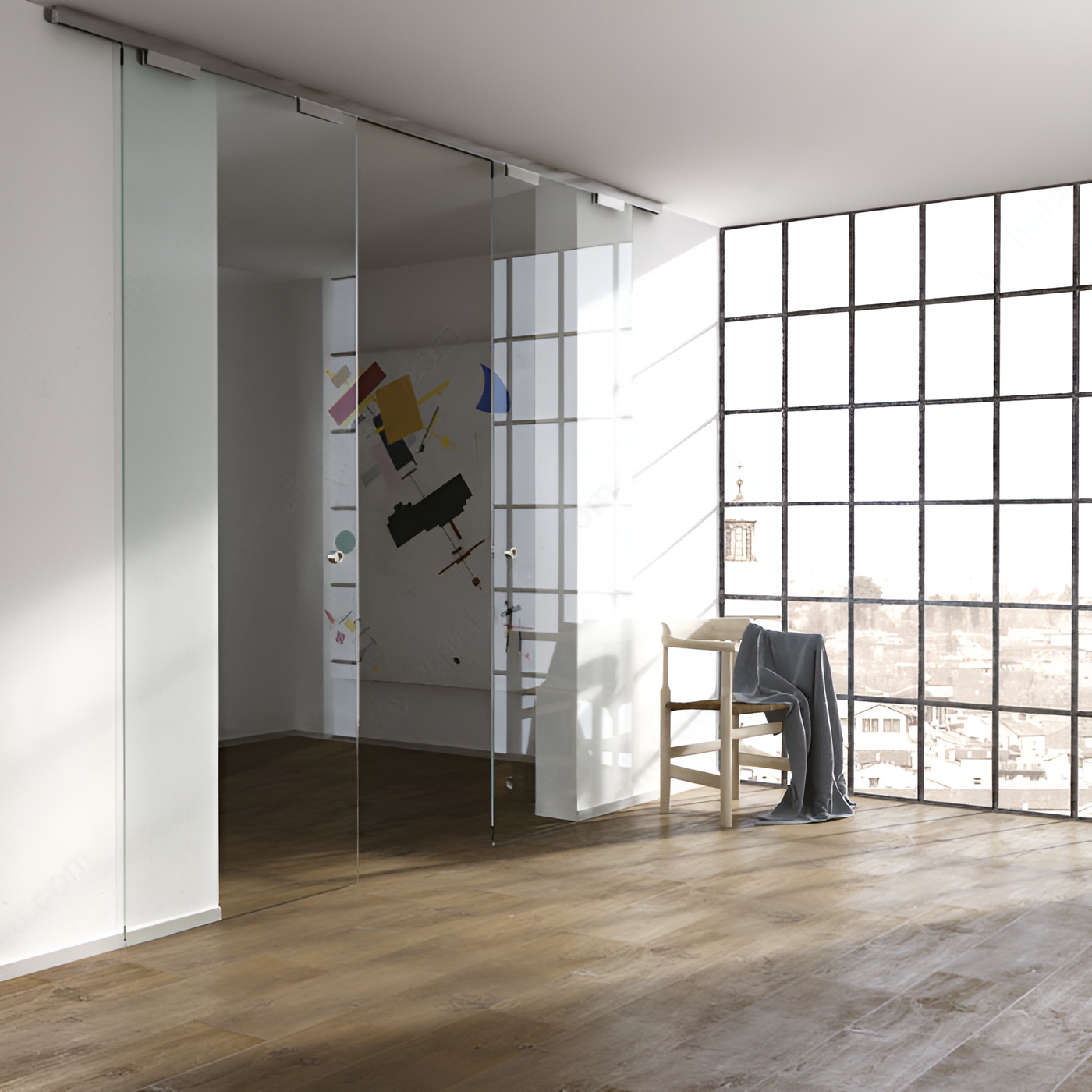

The TERNO VETRO 40 FLUID is an ideal solution for barrier-free applications in institutions, commercial and residential dwellings, including access doors, office entrance doors, and room dividers.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
End caps for fascia may need to be cut/trimmed during installation.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Standard Access Door
Brand: VETRO FLUID
Brand Model: Terno Vetro Fluid
Detailed Door Movement: Single sliding
Door Height: 47 1/4 to 108 in*
Door Installation: Top Hung
Door Material: Glass
Door Movement: Straight Sliding
Door Thickness: 12 to 12.7 mm
Door Width: 780 to 1 000 mm
Finish: Anodized Silver
Function: Sliding Door
Length - Overall Dimensions: 78 3/4 in*
Load Capacity: 110 to 176 lb*
Number of Doors: 1
Overall Length: 2 000 mm
Product #: WEBKIT1243490
Product №: WEBKIT1243490
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: FLUID
Soft- Closing: Yes
Track Mounting: Ceiling Mount
Track type: Single Running
Weight Capacity per Door: 50 to 80 kg
