HAWA VARIOTEC 150H Multi-Door Sliding Partition System

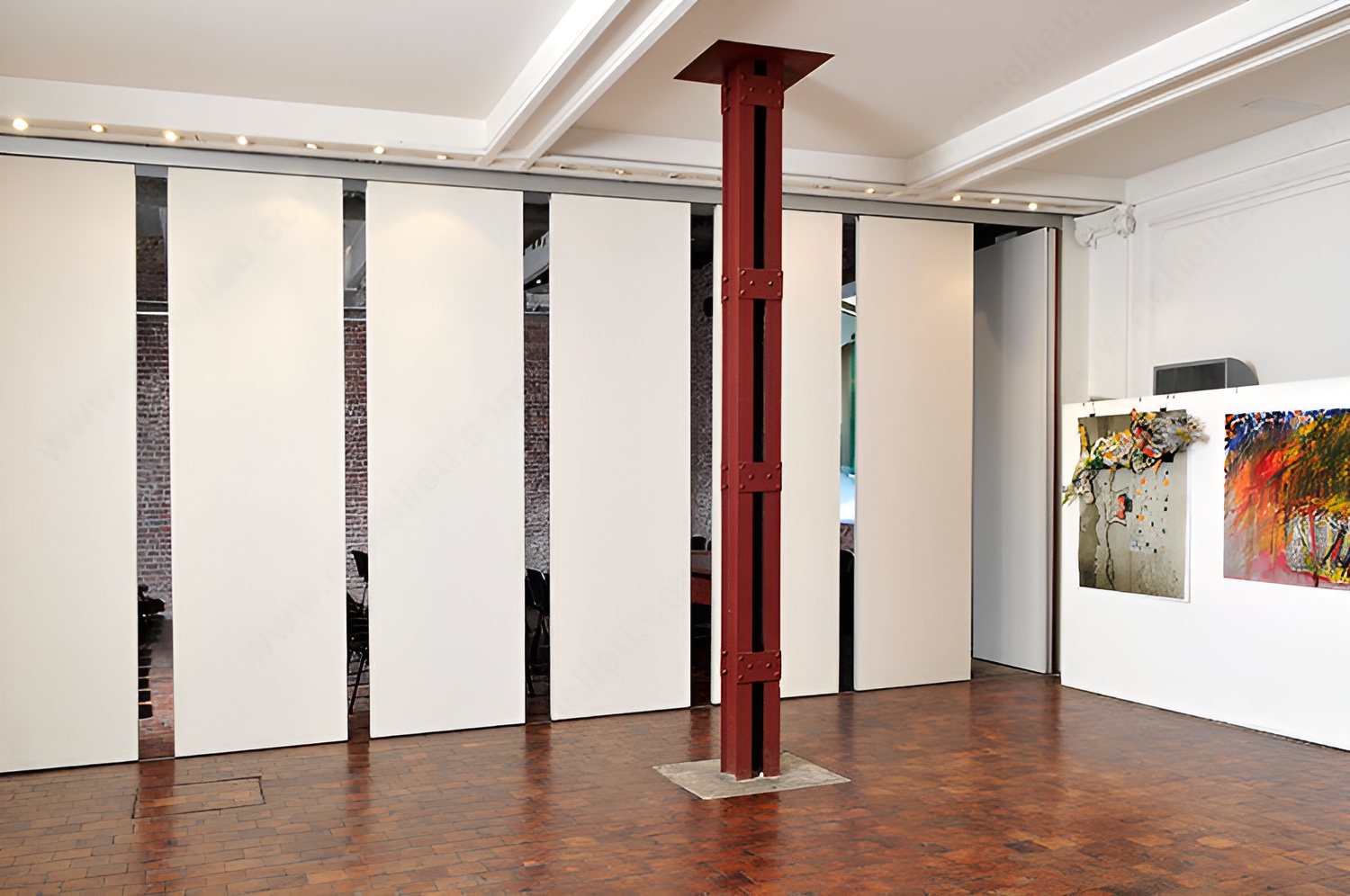

The HAWA VARIOTEC 150H is a multi-door sliding partition system for wood doors weighing up to 150 kg (330 lbs) each.
Features:
- All tracks and guide channels have a durable anodized finish

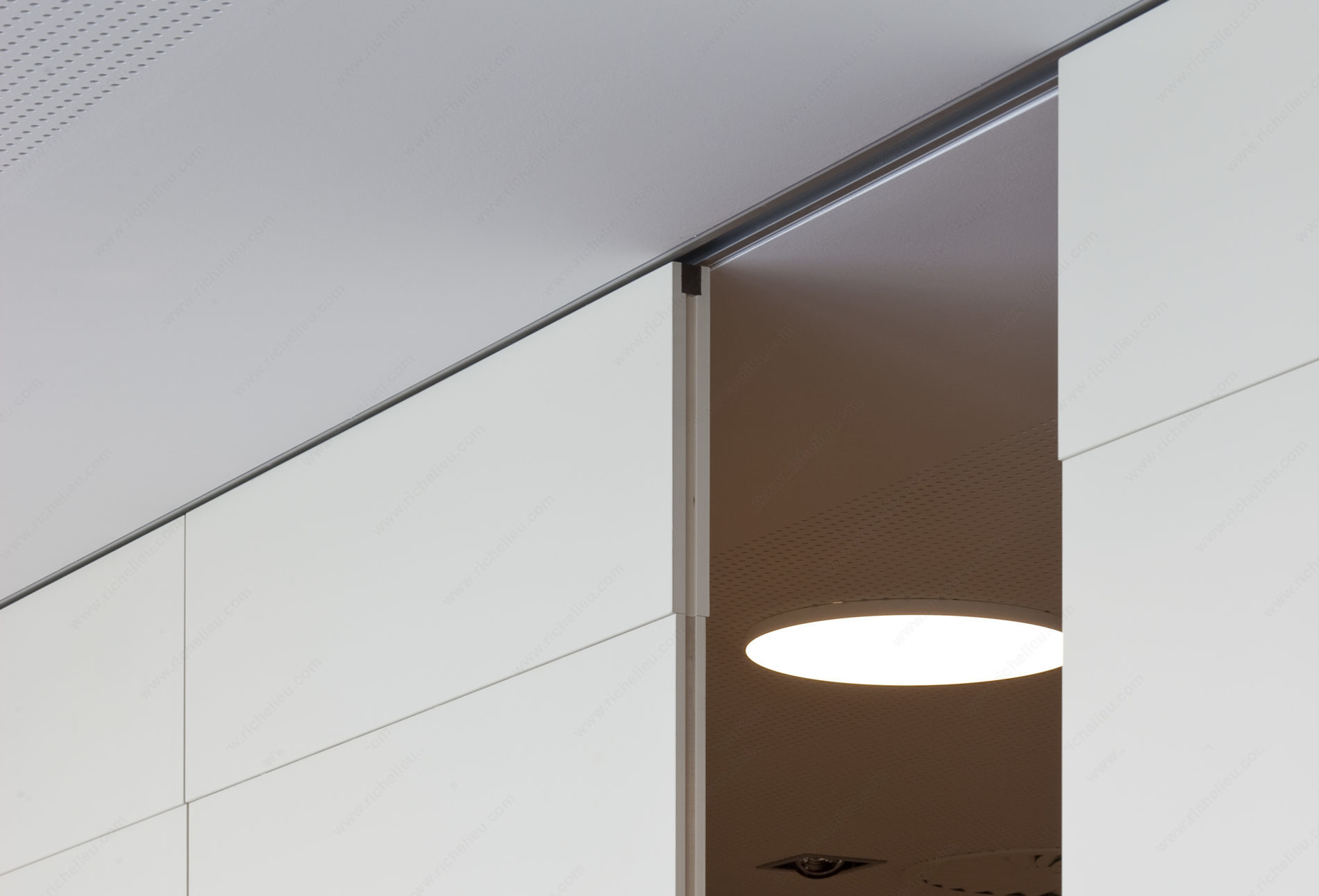

- Tracks can be surface and recess mounted
- Tracks can be cut and joined with standard couplers to create custom parking areas to stack doors and to extend track lengths for a smooth transition for upper trolleys

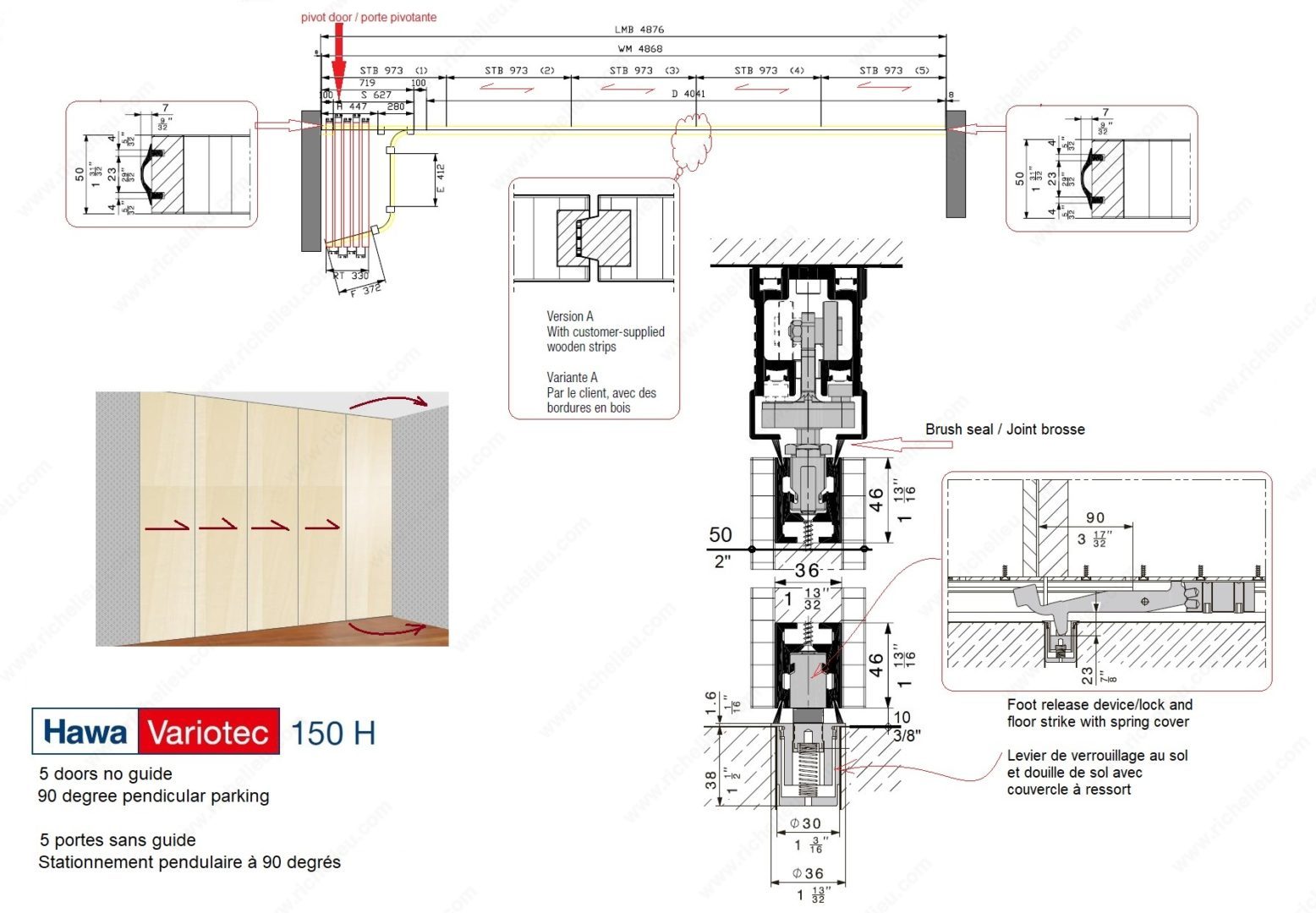

- Flexible modular track system with track segments makes a wide variety of parking configurations possible, from 90 degree/perpendicular to parallel, angled and even corner-turning configurations
- Service Unit track end pieces allow for simple installation of load trolleys and other components
- Adaptable to applications with or without bottom guide channels
- Upper tracks are mounted using adjustable fixing plates so that the track be fastened to the best structural support
- Optional curved track segments available via special order for changes in direction
- Locking options: non-keyed and keyed deadbolts, foot release levers
- Brush and rubber seals available
- Technical support available via email for calculating parking areas:
Canada:
[email protected] USA:
[email protected] IMPORTANT: You must individually add the number of Sliding Door and Pivot Door hardware sets needed for your project.

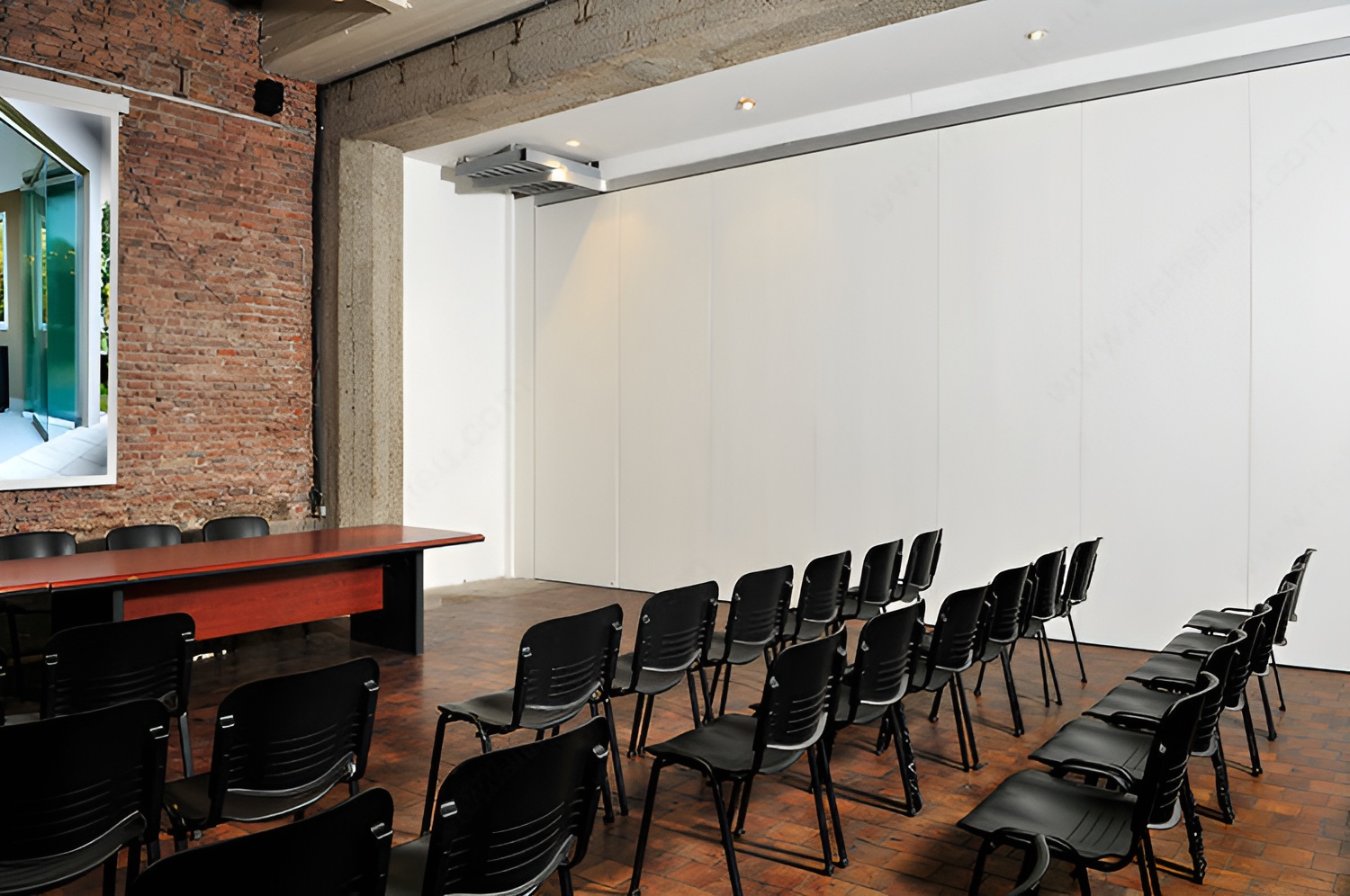

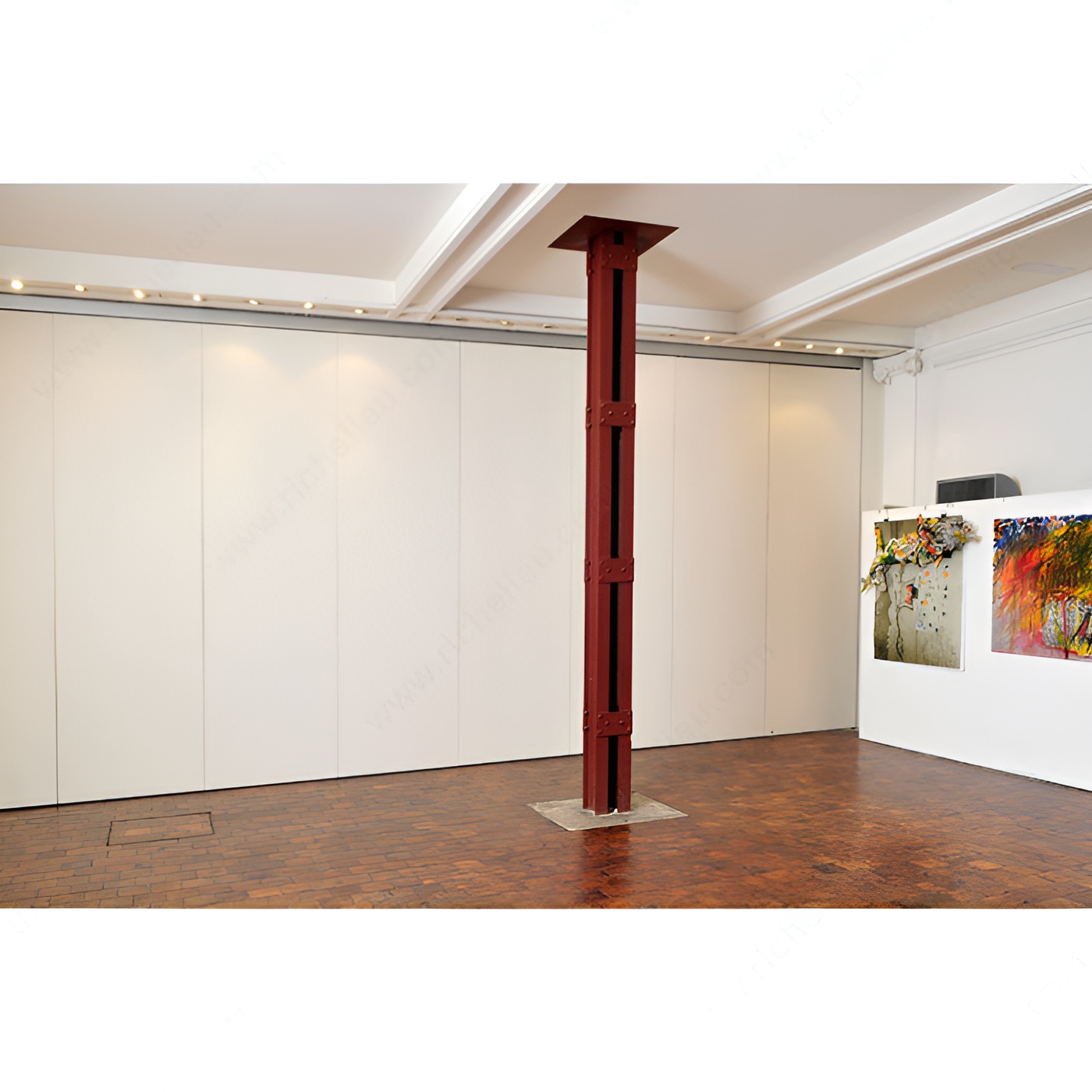

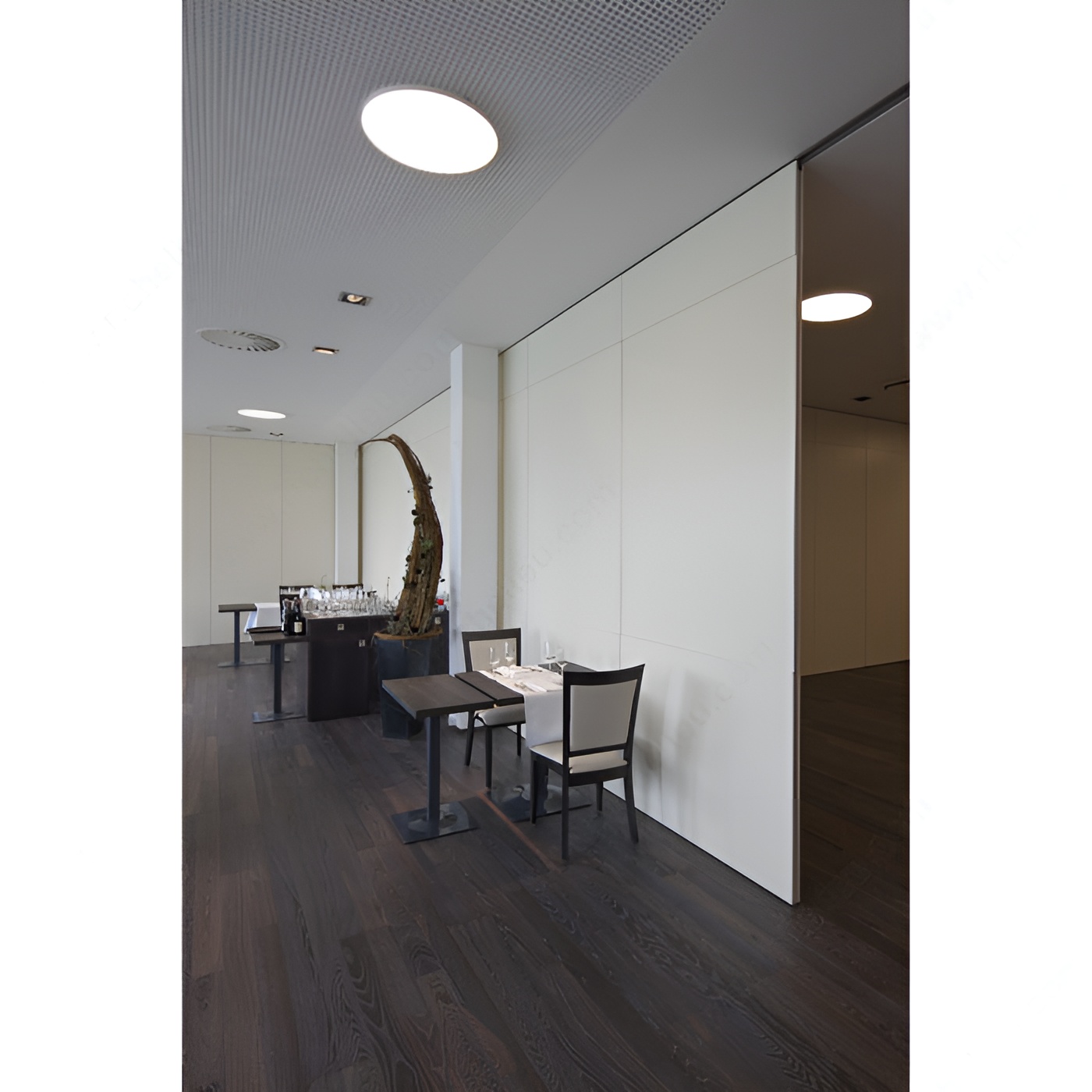

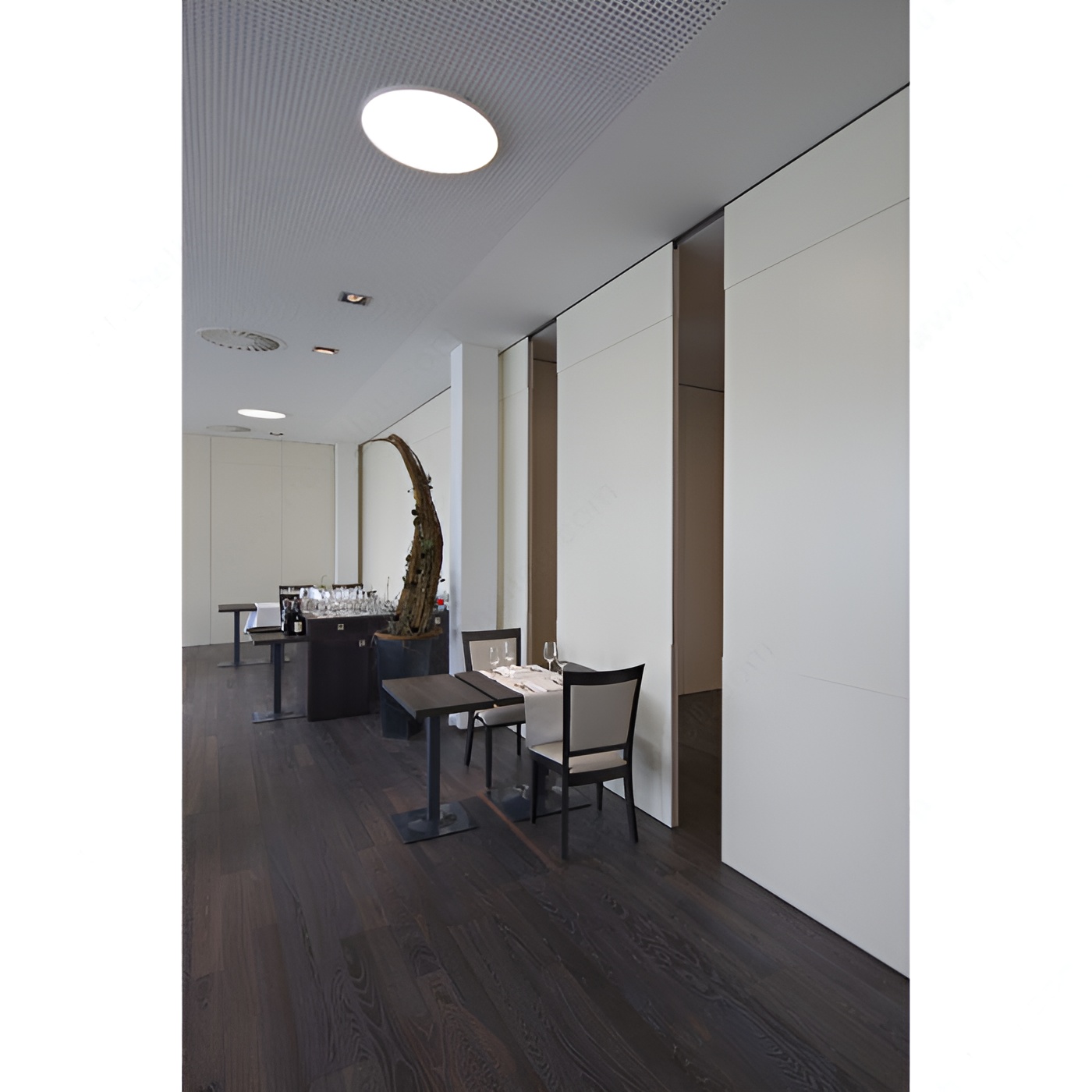

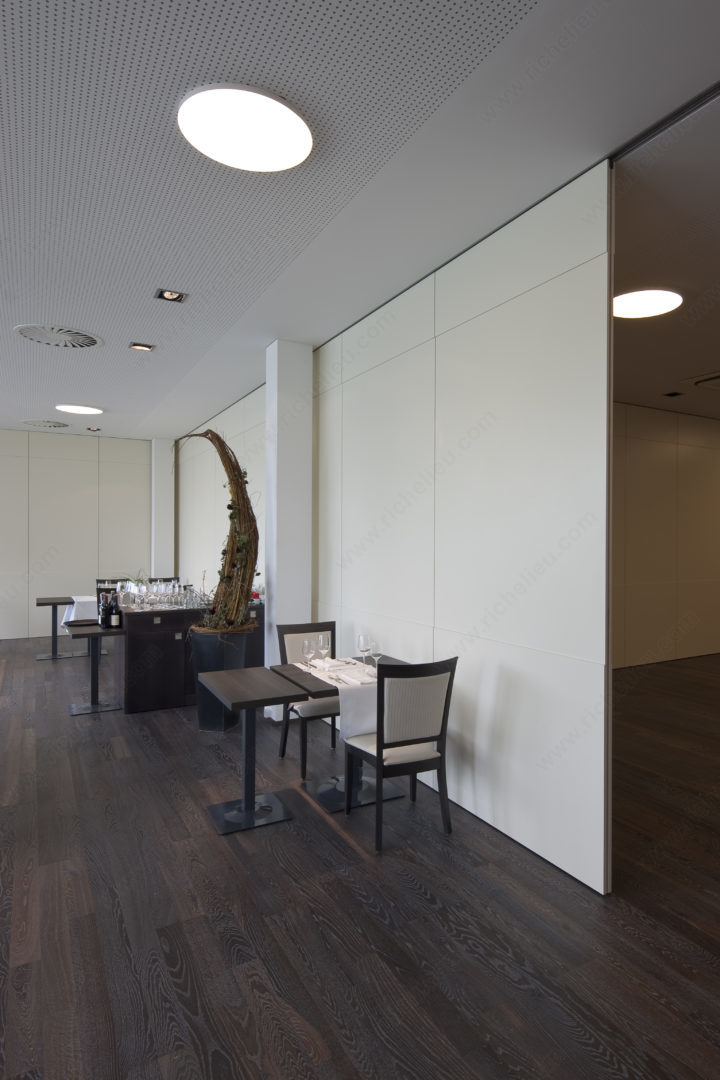

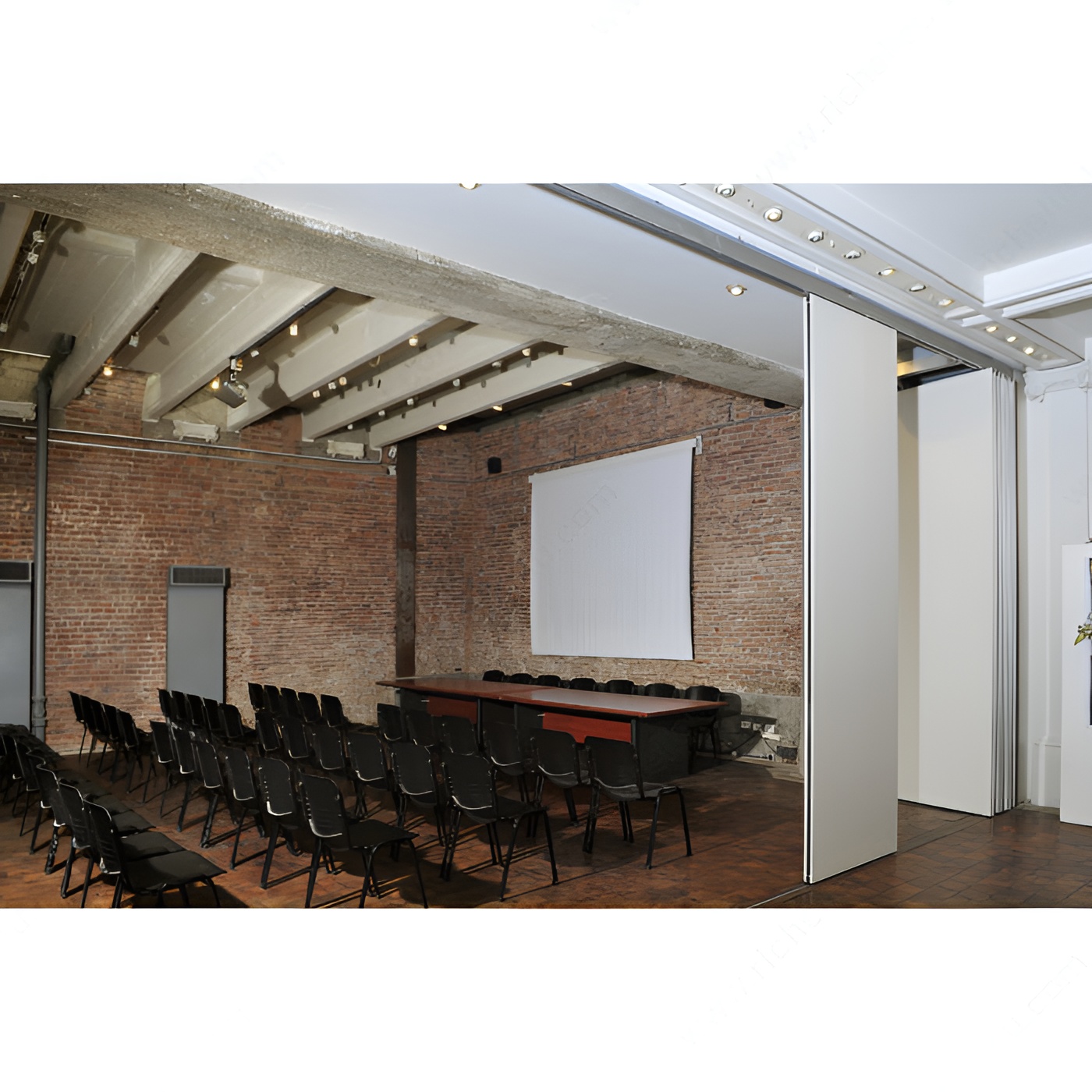

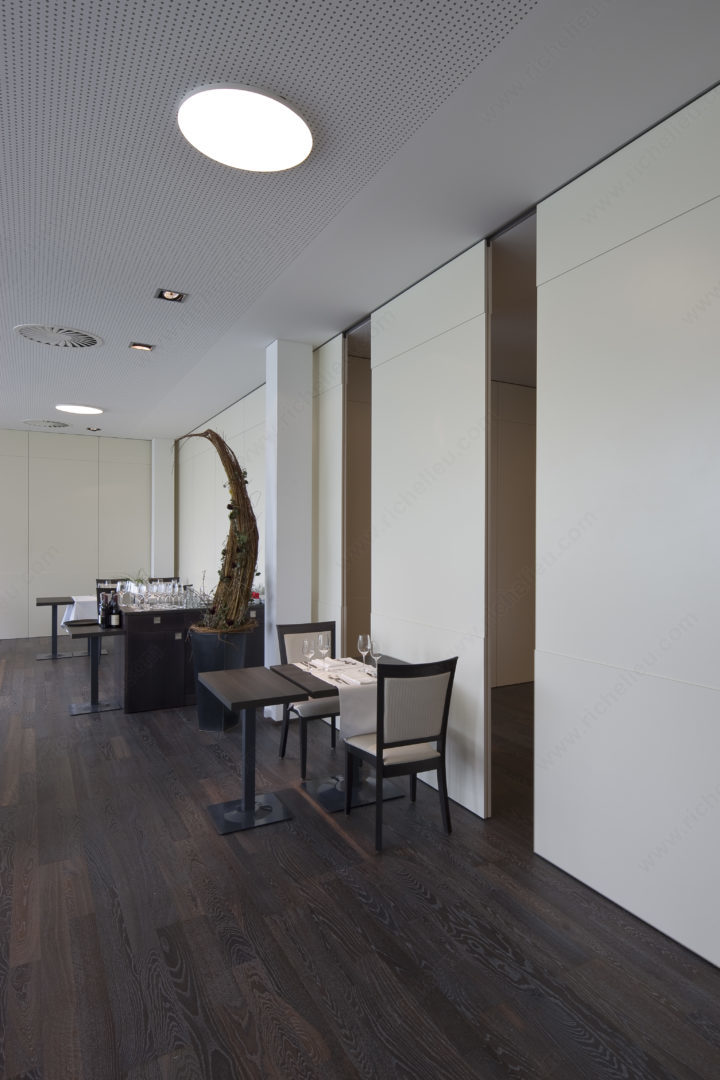

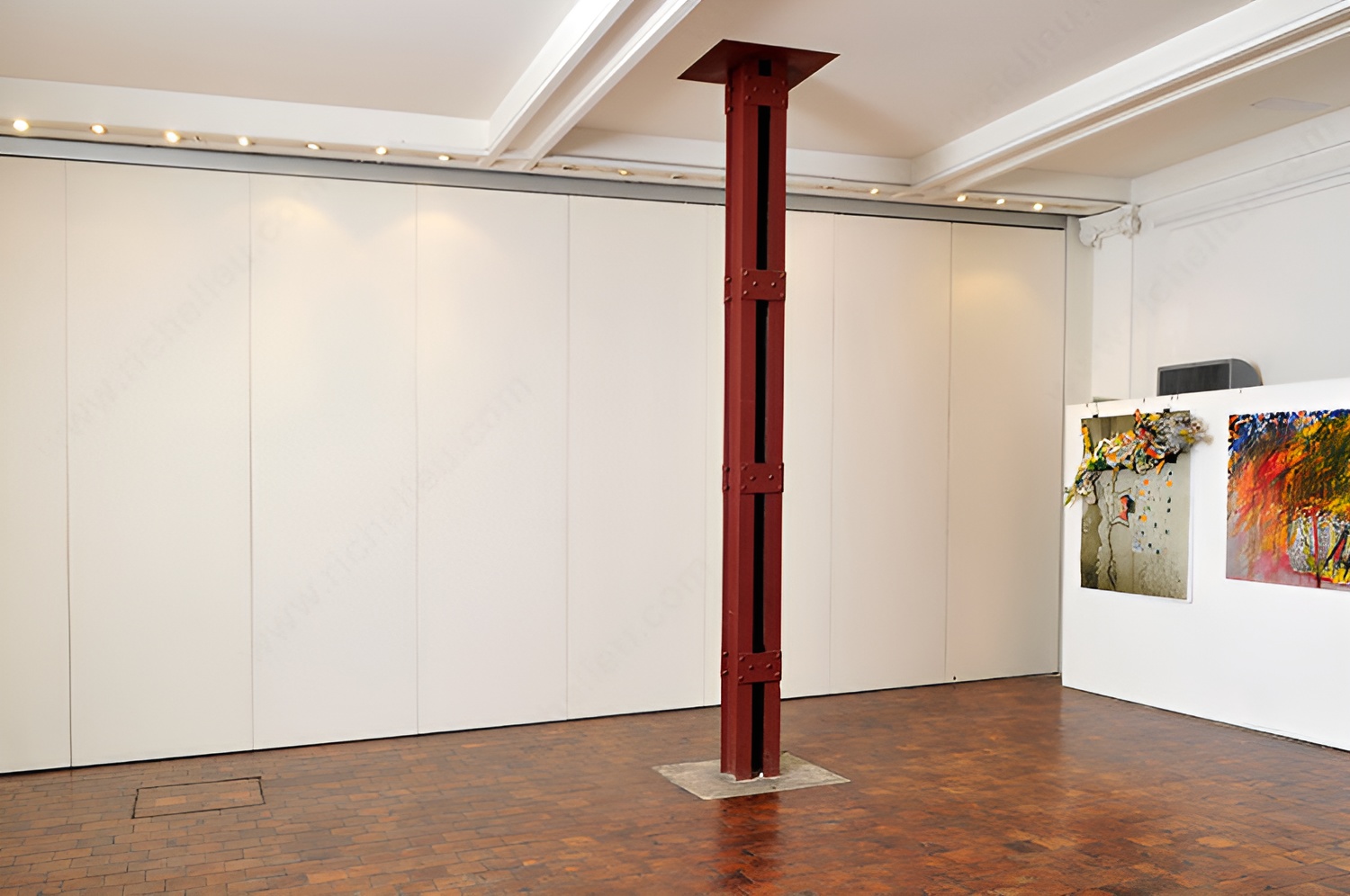

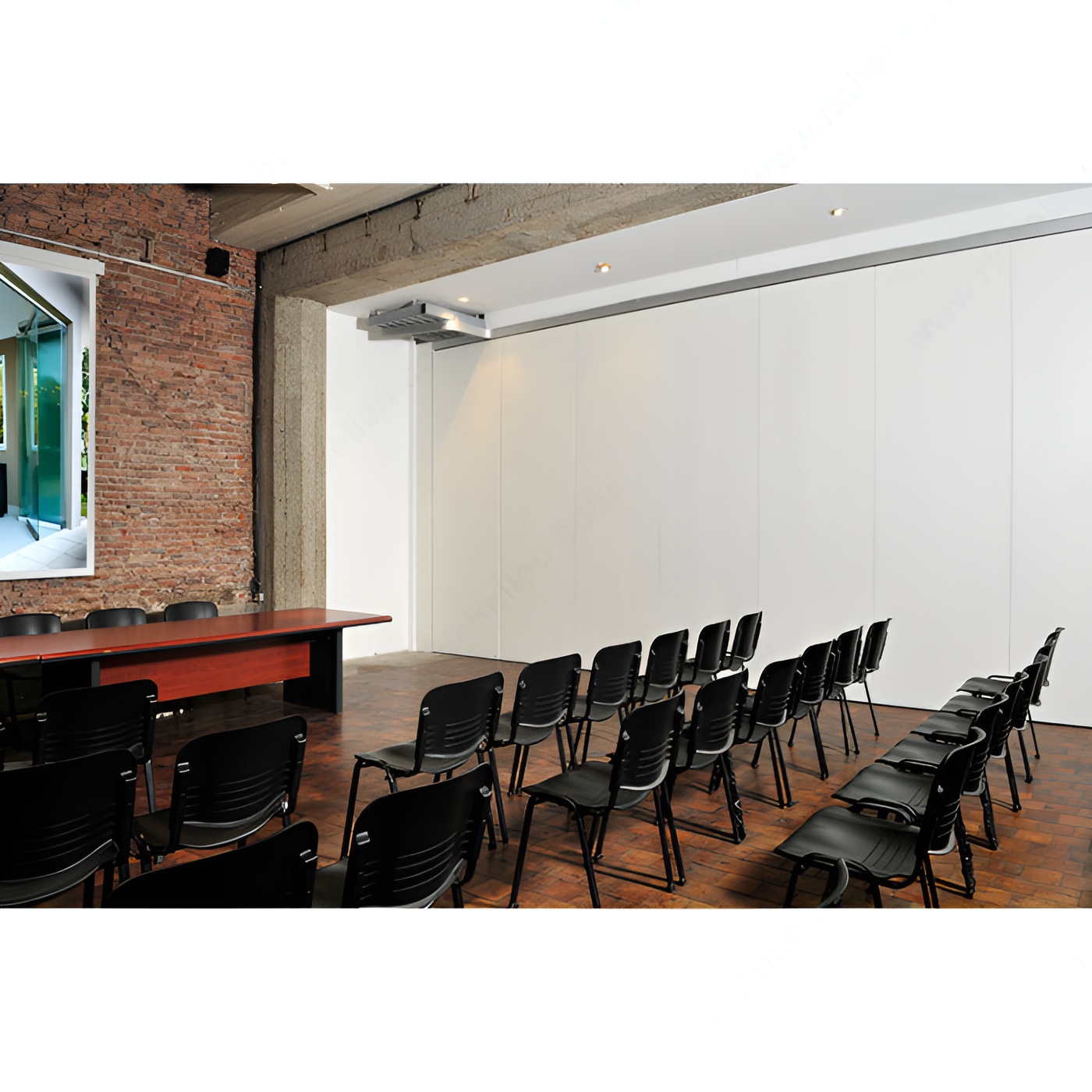

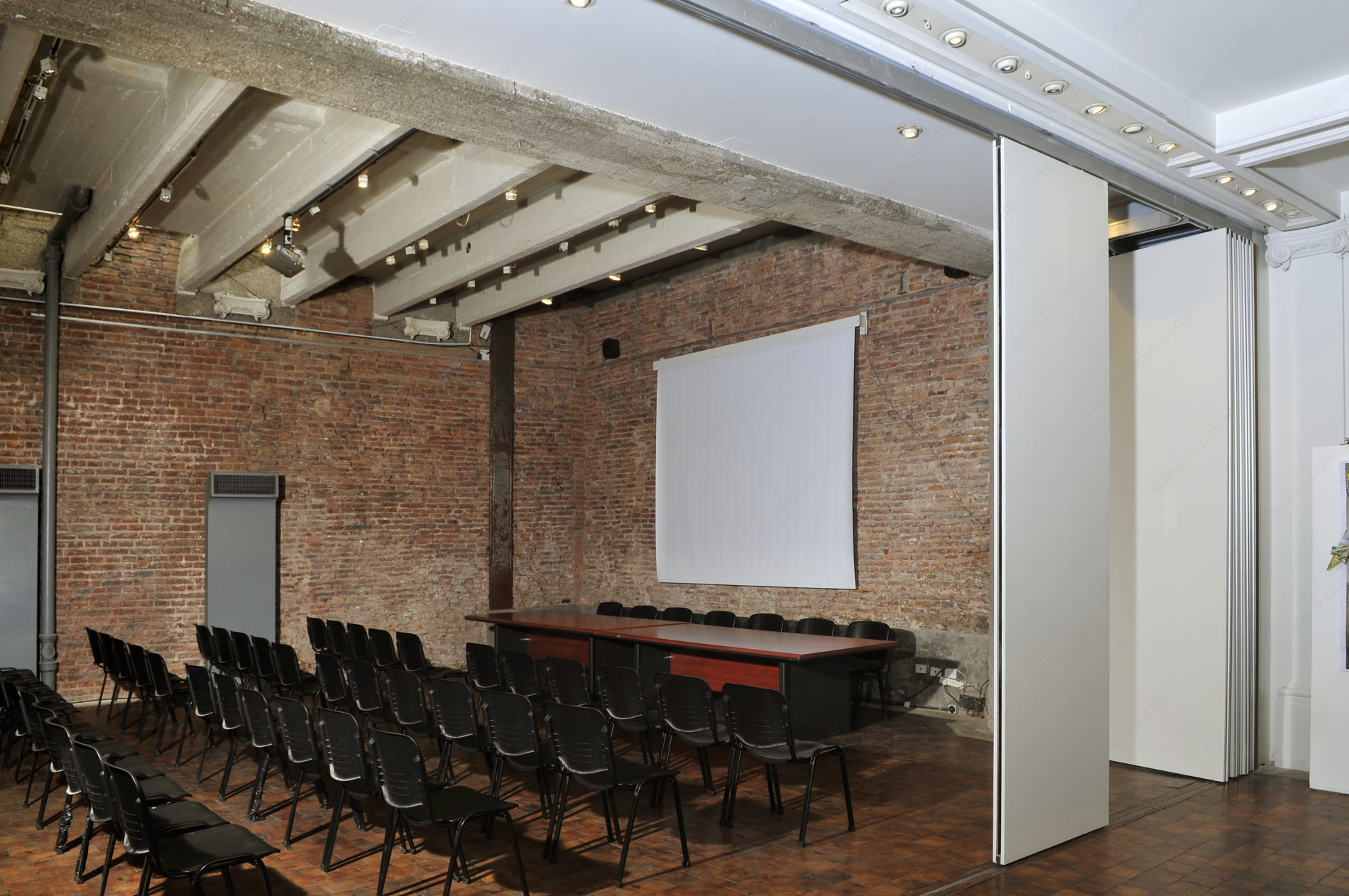

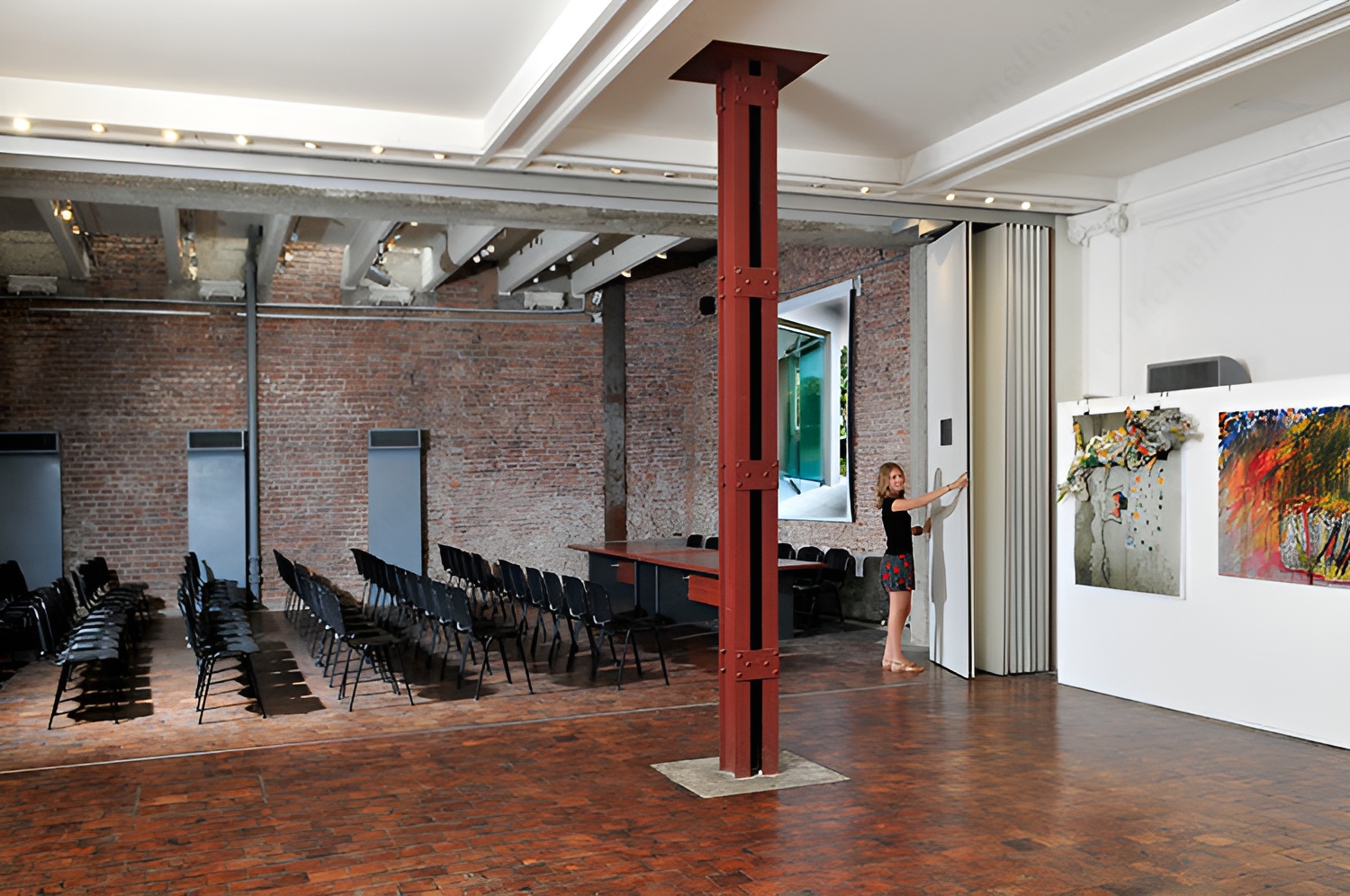

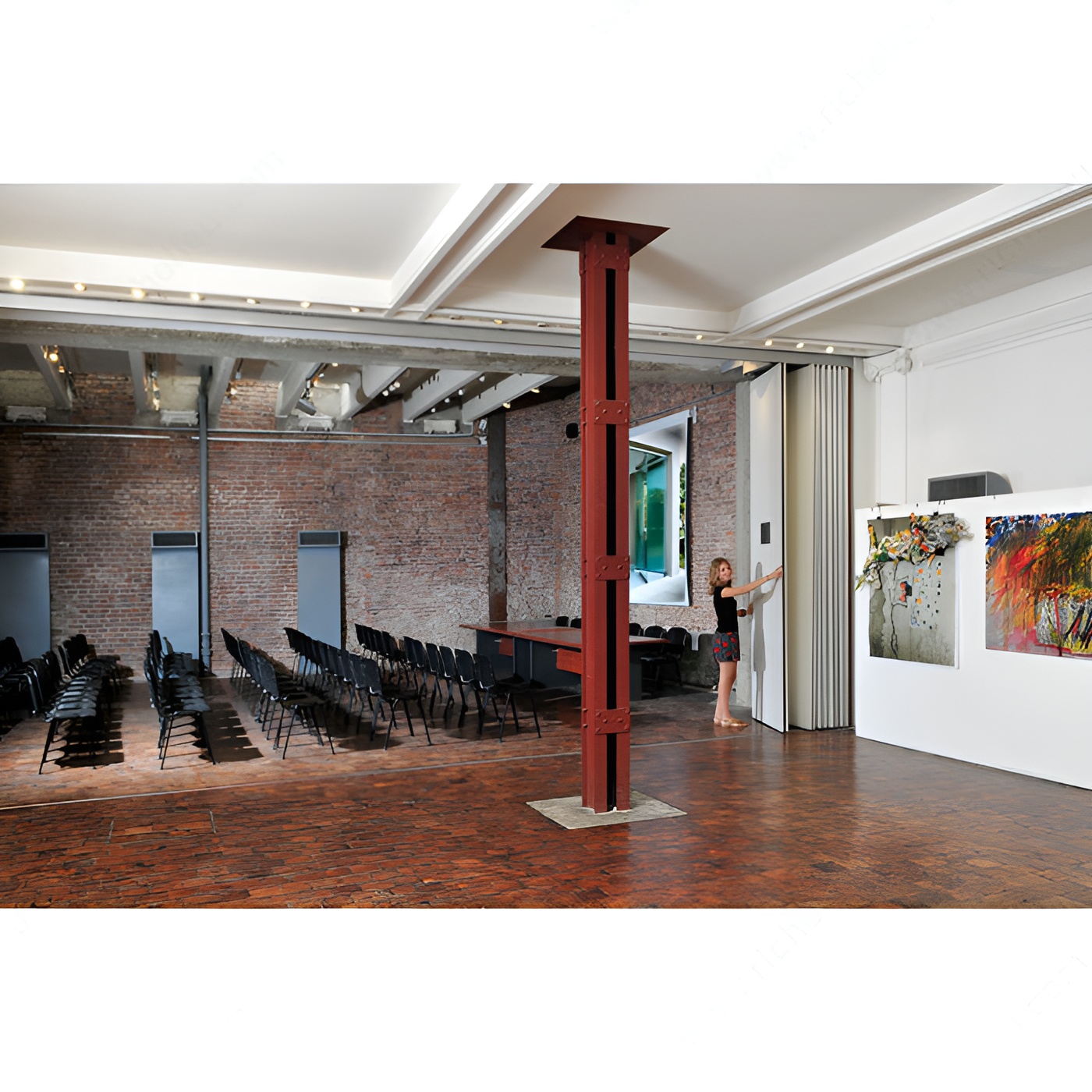

The HAWA VARIOTEC 150H Multi-Door Sliding Partition System is an ideal solution for multifunctional spaces in commercial and residential environments including board/meeting rooms, banks, store fronts, restaurants, banquet halls, and more.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Sliding Wall
Bottom Guide: No
Brand: Variotec
Brand Model: Hawa Variotec
Compatible with: Hawa Variotec
Detailed Door Movement: Stacking

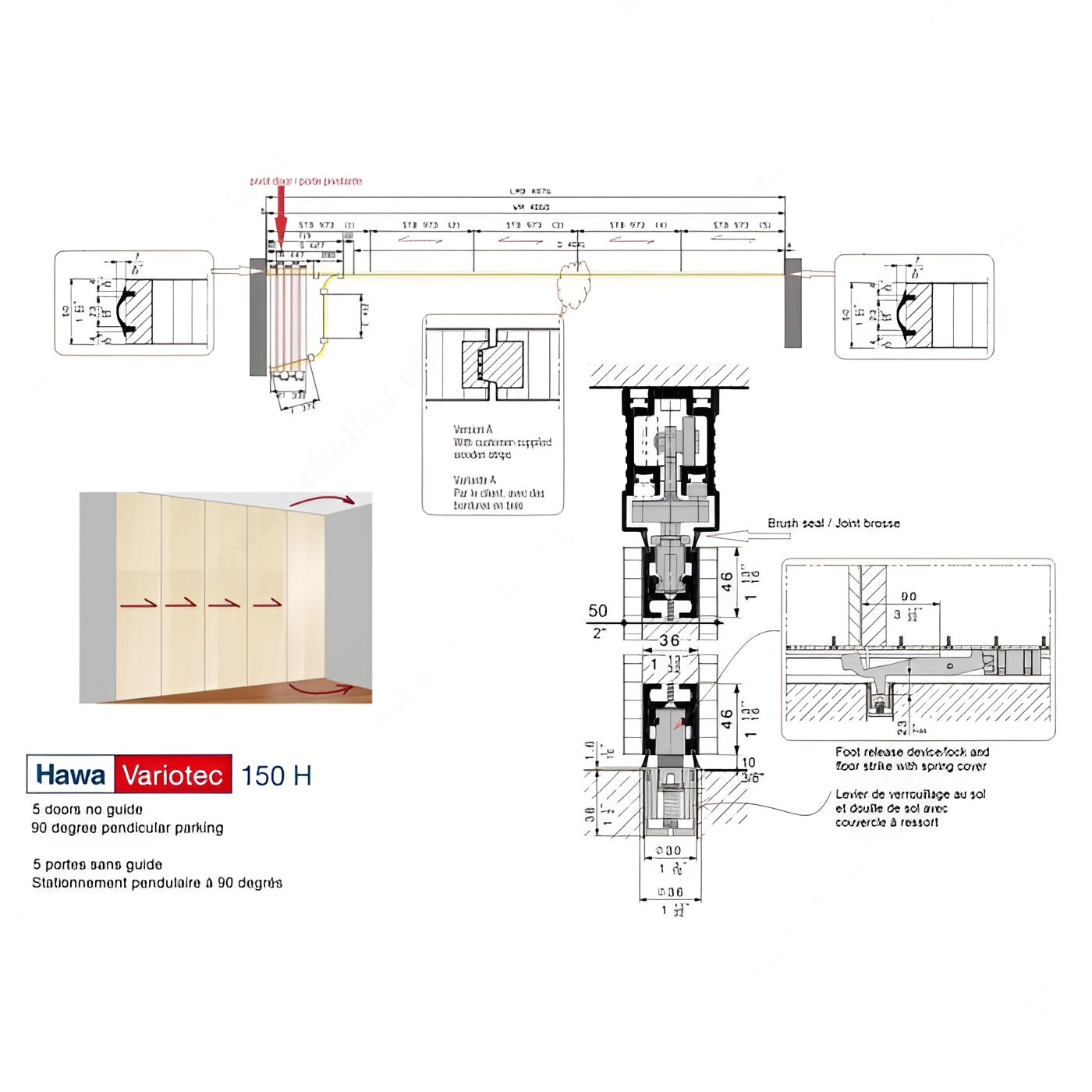

Door Configurations: Perpendicular (90 degree) to upper track
Door Height: 59 to 157 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Movable Wall
Door Thickness: 1 3/8 to 2 11/16 in*
Door Width: 970 to 973 mm
Finish: Anodized Aluminum
Length - Overall Dimensions: 15 ft 11 in*
Load Capacity: 88.2 to 331 lb*
Minimum Door Width: 33 1/2 to 59 in*
Number of Doors: 5
Overall Length: 4 876 mm
Product #: WEBKIT1243955
Product №: WEBKIT1243955
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
