Richelieu WEBKIT1245605 Cinetto B-MOVED PS48 Motorized Sliding Door SystemRichelieu WEBKIT1245605 Cinetto B-MOVED + PS48 Motorized Sliding Door System offers an innovative solution for modern living spaces, accommodating both two and three-door configurations. This motorized bypass sliding door system enables hands-free door operation through various methods, including push activation, remote control, and the optional WAVE proximity sensor, providing convenience for any user. Designed for compatibility with Smart Home devices and voice control systems, the Cinetto B-MOVED system simplifies installation with a bolt-on motion transmission bar that connects seamlessly to the PS48 sliding door system. The control unit is powered by a UL Listed power supply, ensuring reliability in standard North American 120-volt outlets. This system is ideal for wardrobes, kitchen pantries, TV and entertainment units, and storage spaces, promoting barrier-free access. The door installation supports both left and right-hand configurations, accommodating doors made of wood with a thickness of 3/4 to 29/32 inches and a width range of 35 3/8 to 48 inches. With a load capacity of 66.1 to 176 pounds and an overall length of 15 feet 4 inches, the Cinetto B-MOVED system delivers both functionality and style for any contemporary interior.
Cinetto B-MOVED + PS48 Motorized Sliding Door System

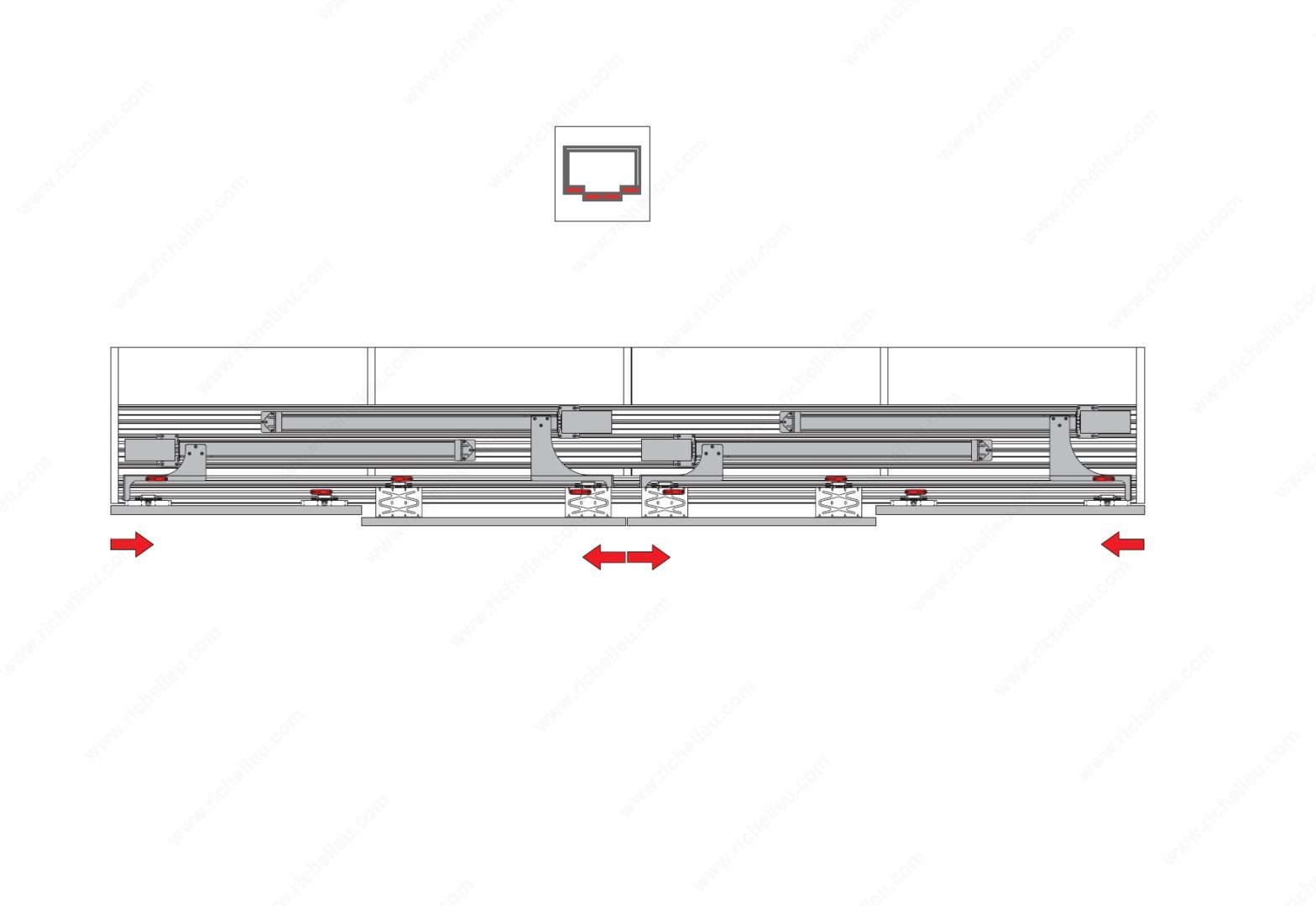

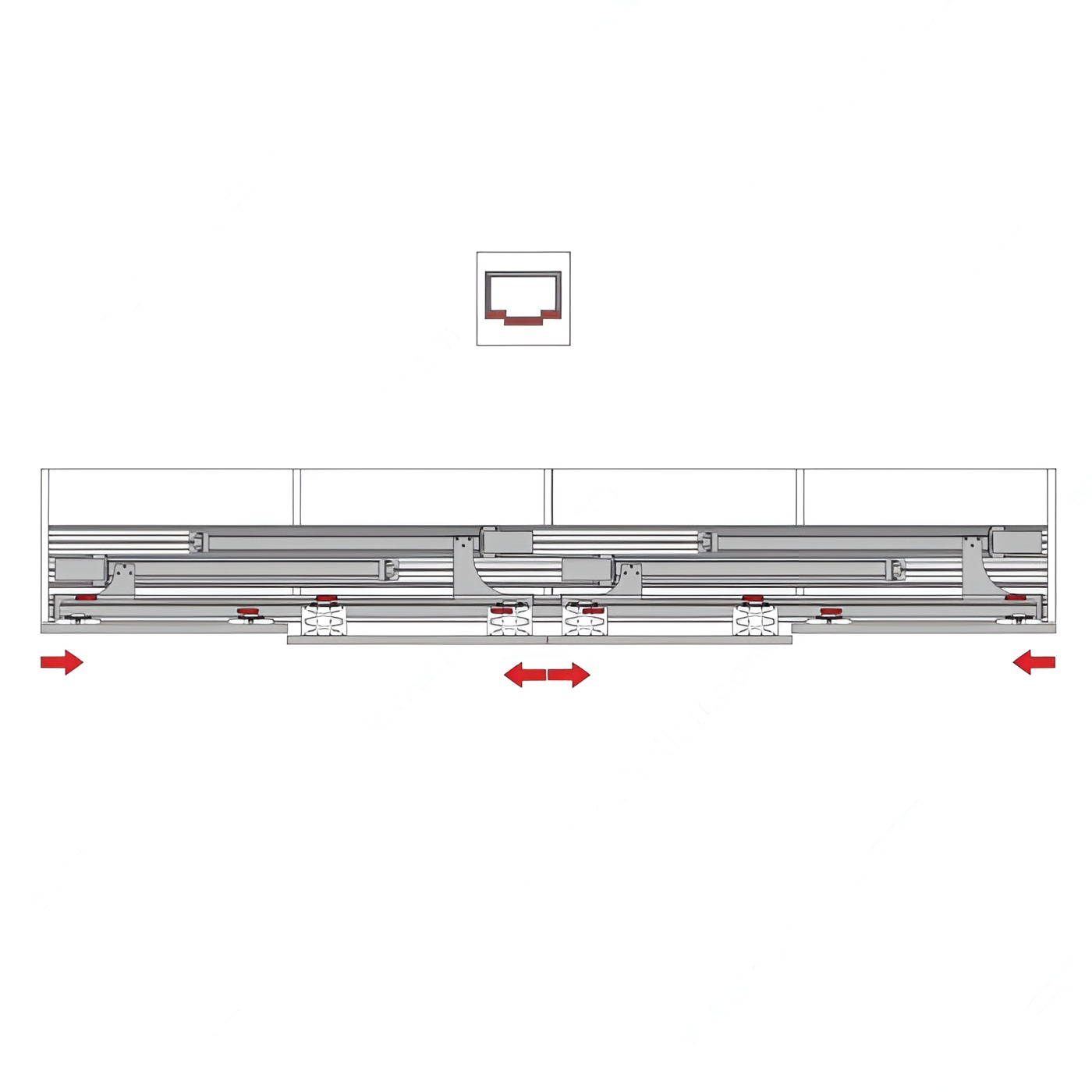

The Cinetto B-MOVED + PS48 Motorized bypass sliding door System is designed for two and three-door configurations.
The doors can be moved and controlled hands-free in several ways: push to the door; remote; WAVE proximity sensor (sold separately).
Compatible with Smart Home devices, cellphone AP's, and Voice Control devices (consult a certified electrician). Installation is simple, with a bolt-on motion transmission bar behind the standard PS48 sliding door system.
Three types of bracket sets to link the motion transmission bar to the upper running gear. The control unit is powered by a UL Listed power supply with a standard 3-prong plug for use in a typical North American 120-volt wall outlet.
IMPORTANT: Select the correct motion transmission bar type for the proper door width range. Locate the WAVE sensor within 10 meters (32'-0") from the receiver and sensors. WAVE sensors read through a maximum 10 mm (3/8") thick wood, glass or stone material .
Use metric dimensions for greater accuracy during installation.
Ideal solution for hands-free and barrier-free applications for wardrobes, kitchen pantries, TV & Entertainment Units, and Storage units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Wardrobe, Pantry, Storage
Brand: PS48, B-moved
Brand Model: Cinetto PS48, Cinetto B-Moved
Detailed Door Movement: Bypassing, Electric Motor
Door Installation: Left and right hand
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 19 to 23 mm
Door Width: 900 to 1 219 mm
Length - Overall Dimensions: 15 ft 4 in*
Load Capacity: 66.1 to 176 lb*
Number of Doors: 4
Opening: Wave Sensor
Overall Length: 4 692 mm
Product #: WEBKIT1245605
Product №: WEBKIT1245605
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Weight Capacity per Door: 66.1 to 176 lb*
