Richelieu WEBKIT1245608 Cinetto B-MOVED PS48 Motorized Sliding Door SystemRichelieu WEBKIT1245608 Cinetto B-MOVED + PS48 Motorized Sliding Door System offers a seamless solution for modern spaces requiring hands-free access. Designed for two or three-door configurations, this motorized bypass sliding door system allows for effortless operation via push activation, remote control, or the optional WAVE proximity sensor, enhancing convenience and accessibility. Compatible with Smart Home devices and voice control systems, this system ensures that your doors can be integrated into your existing tech ecosystem. Installation is straightforward, featuring a bolt-on motion transmission bar that connects to the PS48 sliding door system. Choose from three types of bracket sets to ensure a secure link between the transmission bar and upper running gear. The Cinetto B-MOVED accommodates doors with a thickness of 15/16" to 1 5/16" and a width range of up to 60", supporting a load capacity between 66.1 and 176 lbs. Ideal for wardrobes, kitchen pantries, TV and entertainment units, and storage solutions, this system enhances both functionality and aesthetics in any room. Remember to select the appropriate motion transmission bar type based on your door width for optimal performance. Experience the future of sliding door systems with Richelieu’s innovative design and advanced capabilities.
Cinetto B-MOVED + PS48 Motorized Sliding Door System
The Cinetto B-MOVED + PS48 Motorized bypass sliding door System is designed for two and three-door configurations.

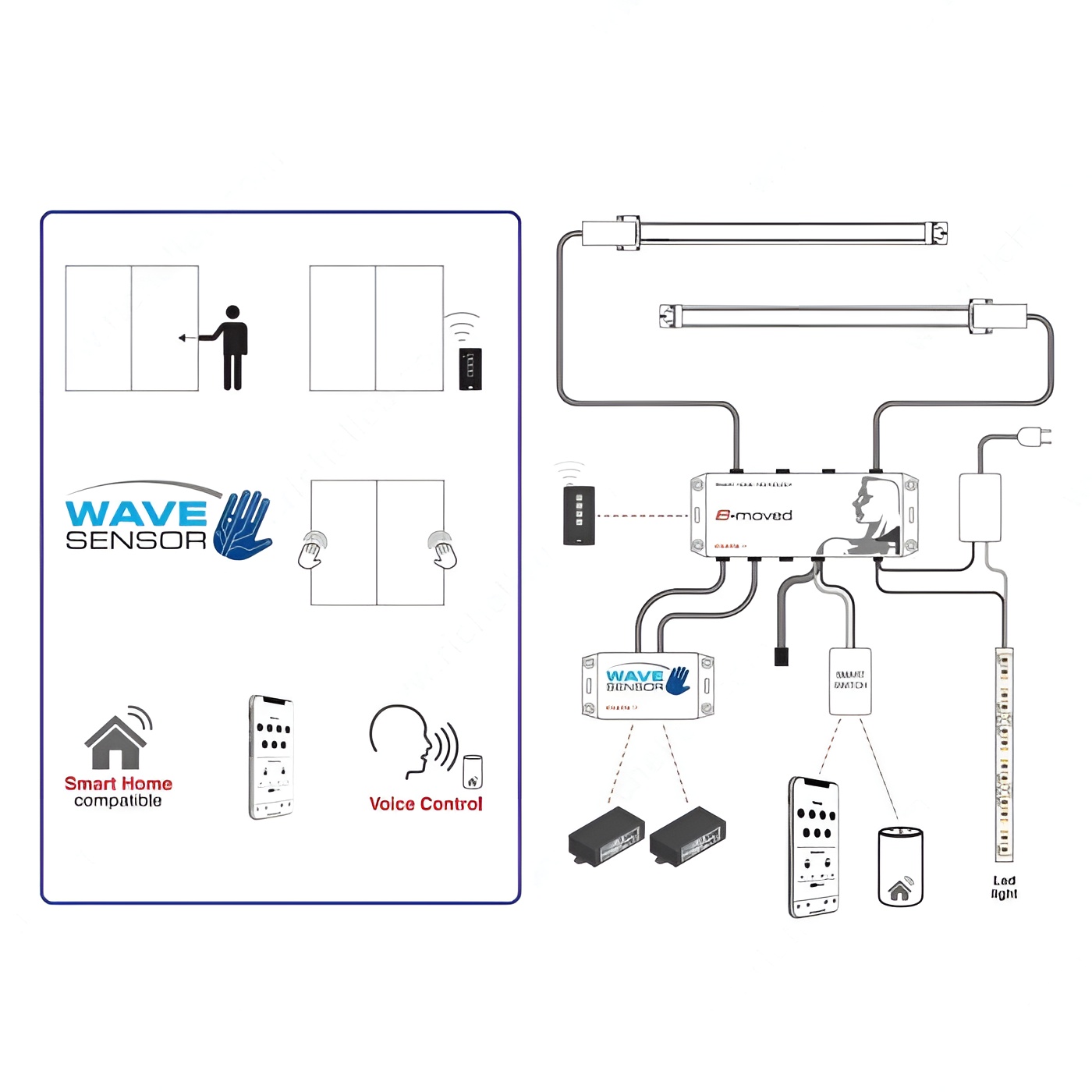

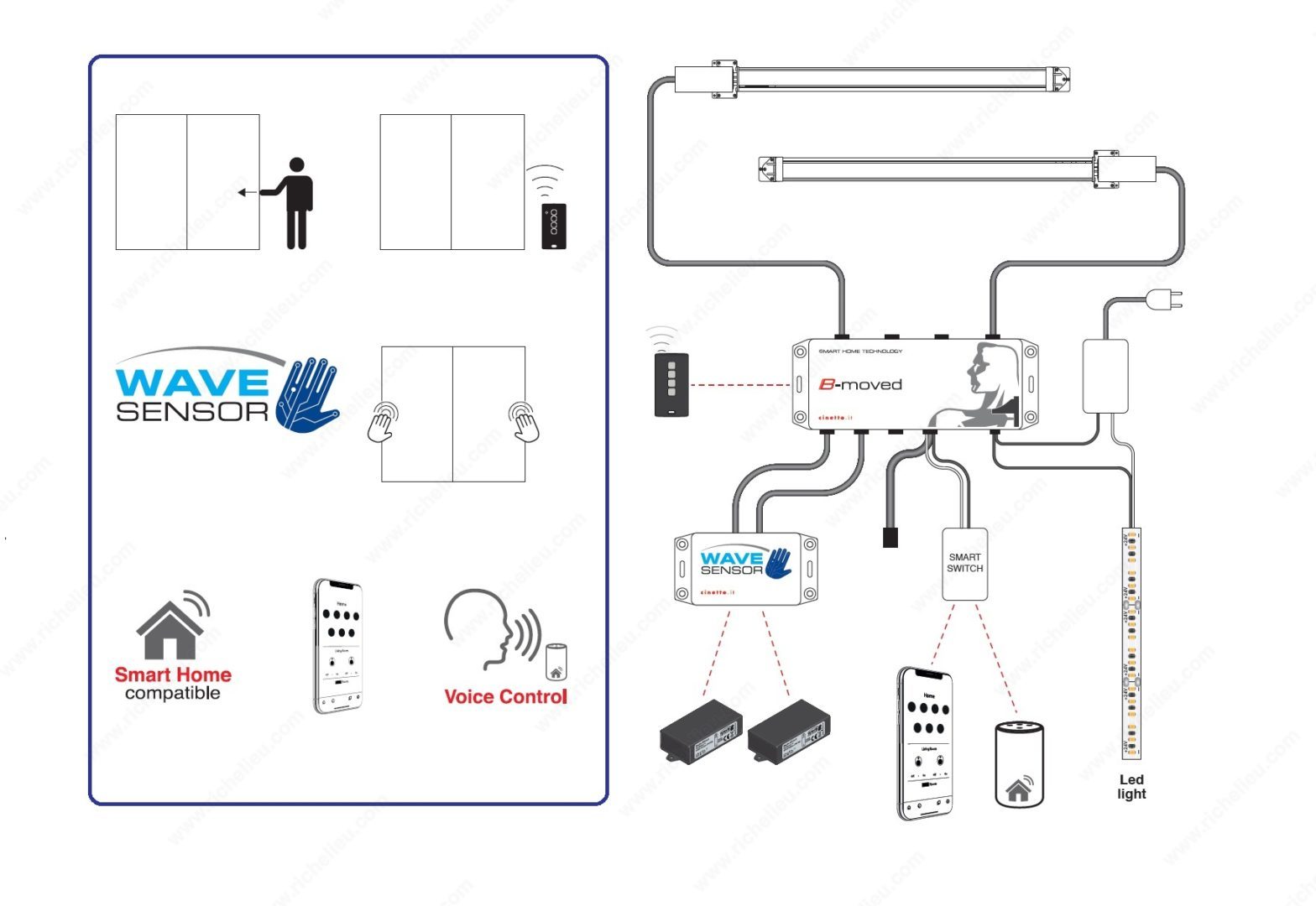

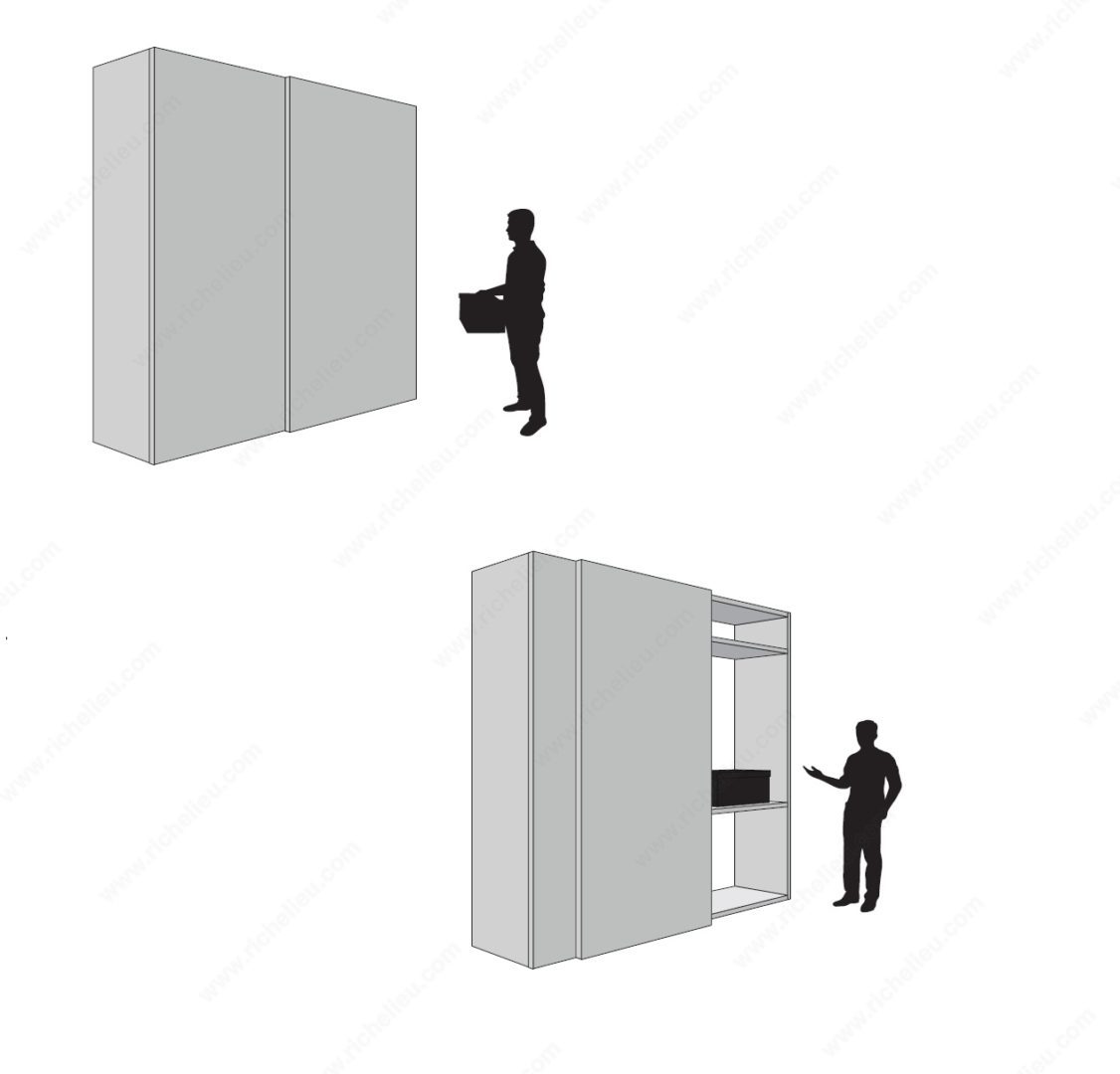

The doors can be moved and controlled hands-free in several ways: push to the door; remote; WAVE proximity sensor (sold separately).

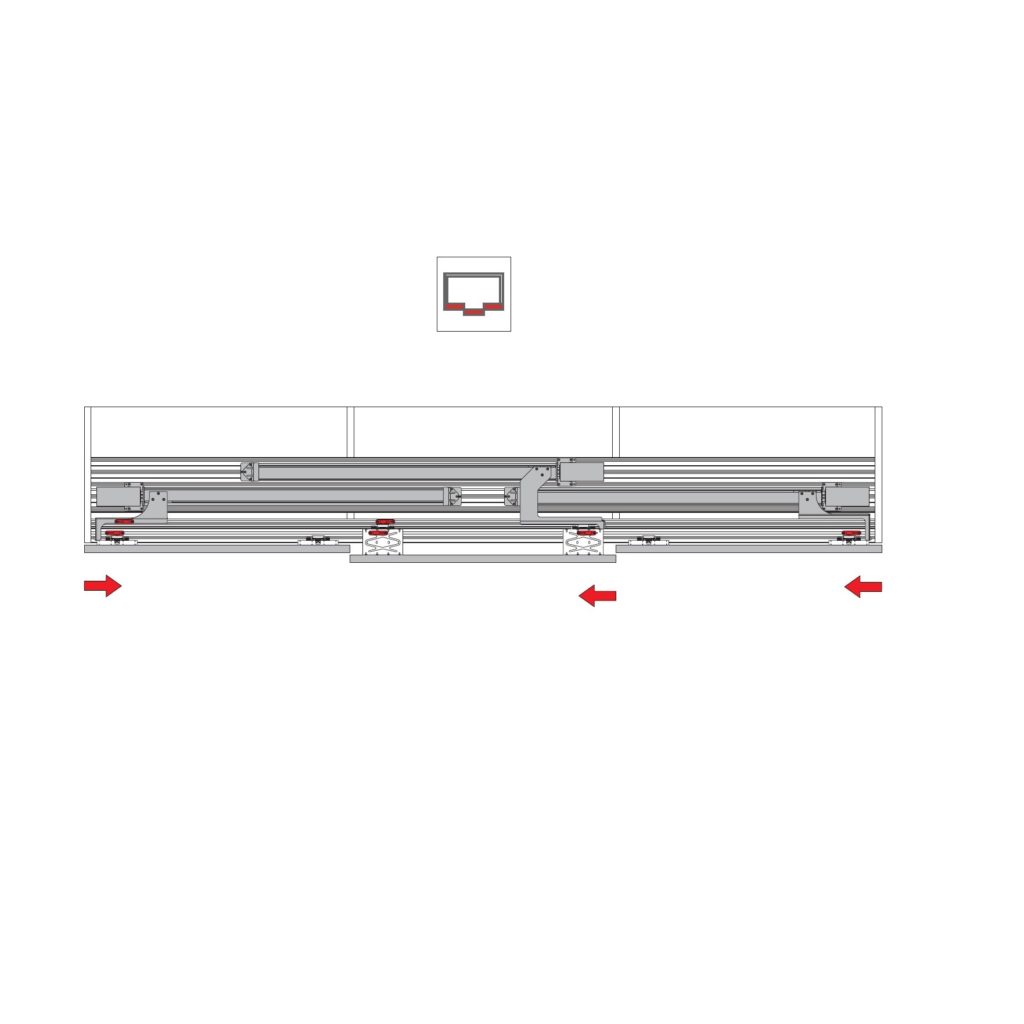

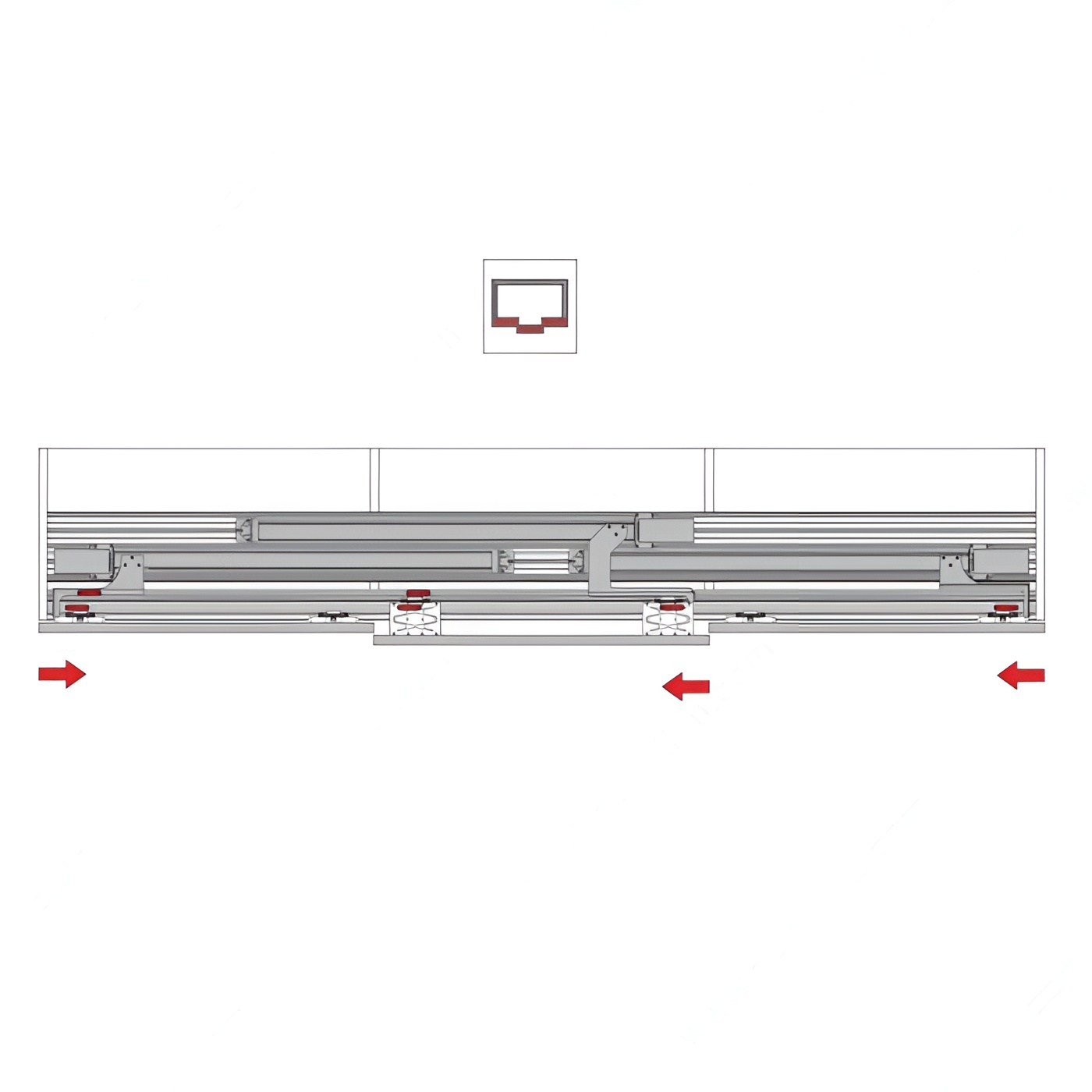

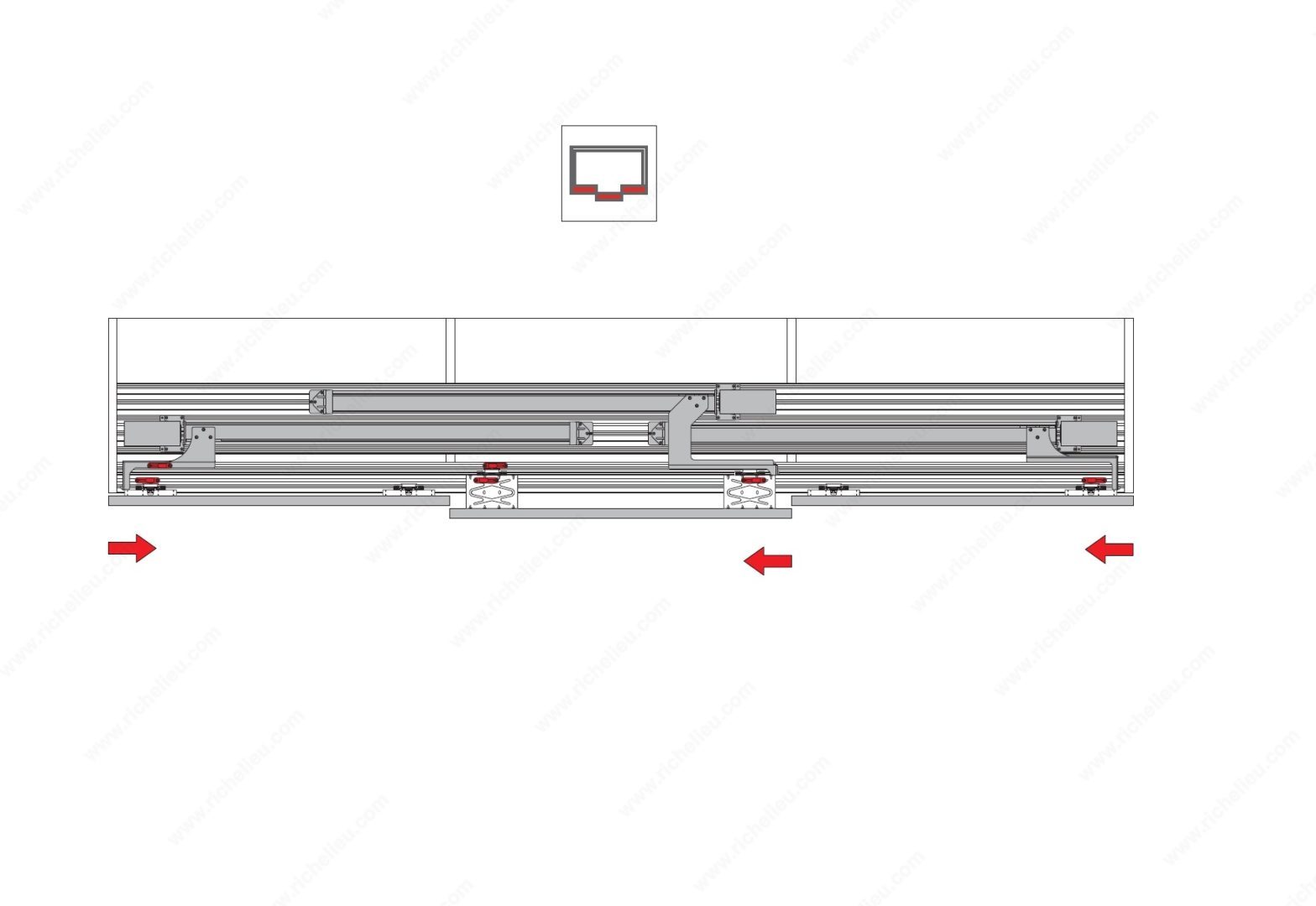

Compatible with Smart Home devices, cellphone AP's, and Voice Control devices (consult a certified electrician). Installation is simple, with a bolt-on motion transmission bar behind the standard PS48 sliding door system.

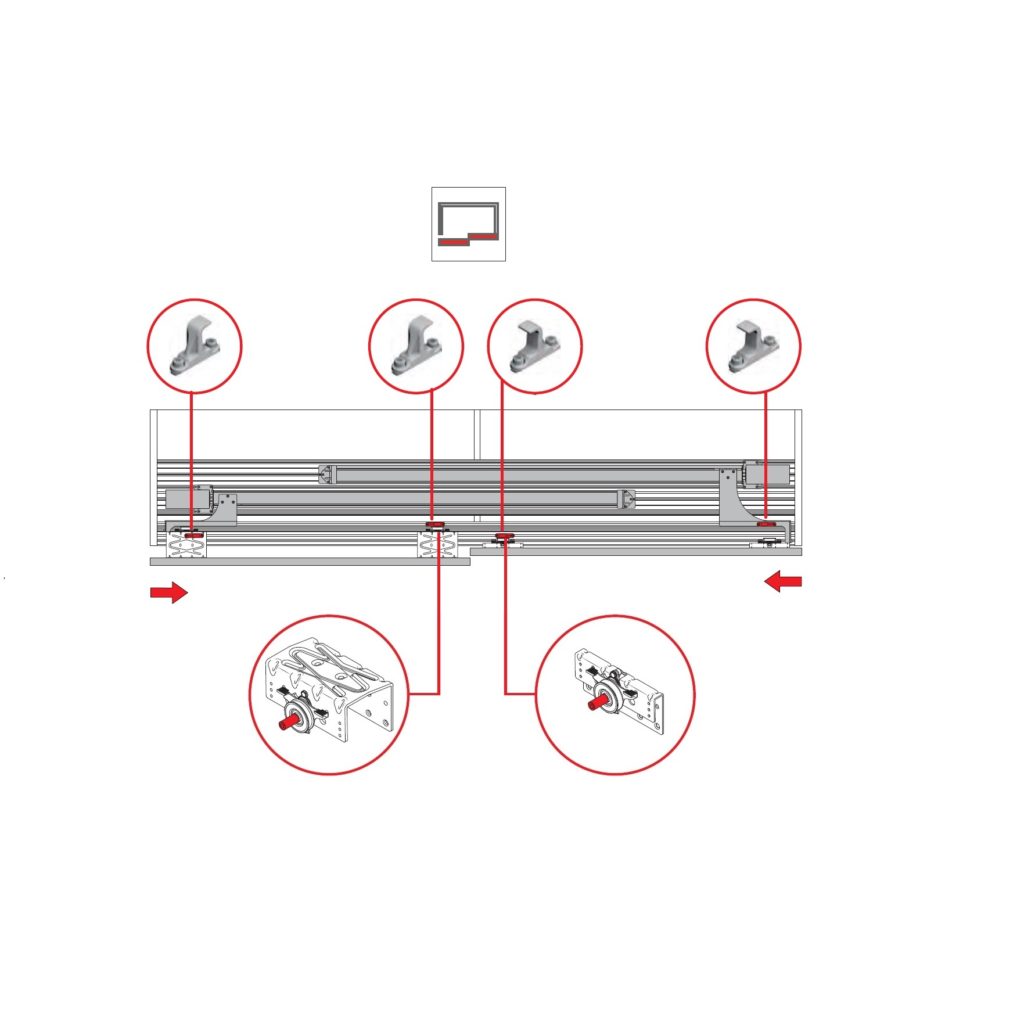

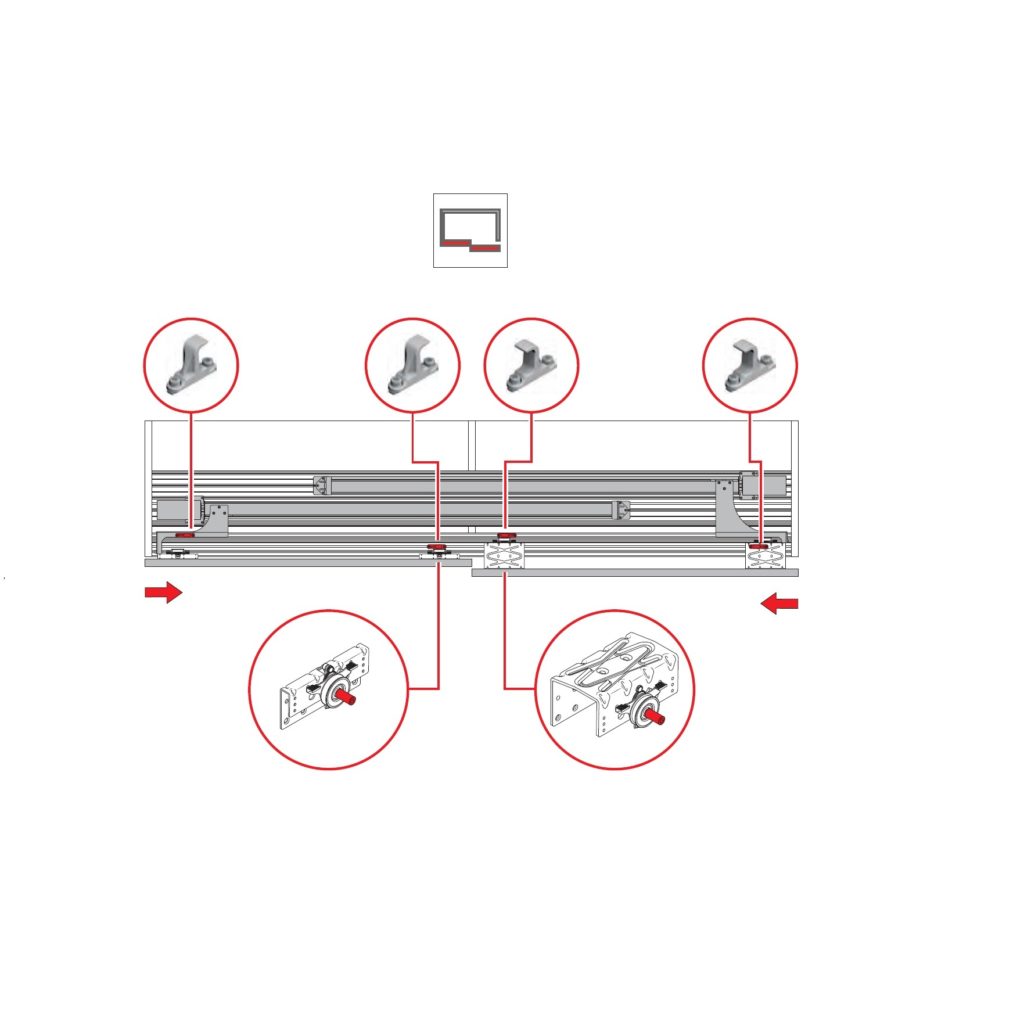

Three types of bracket sets to link the motion transmission bar to the upper running gear. The control unit is powered by a UL Listed power supply with a standard 3-prong plug for use in a typical North American 120-volt wall outlet.
IMPORTANT: Select the correct motion transmission bar type for the proper door width range. Locate the WAVE sensor within 10 meters (32'-0") from the receiver and sensors. WAVE sensors read through a maximum 10 mm (3/8") thick wood, glass or stone material .
Use metric dimensions for greater accuracy during installation.

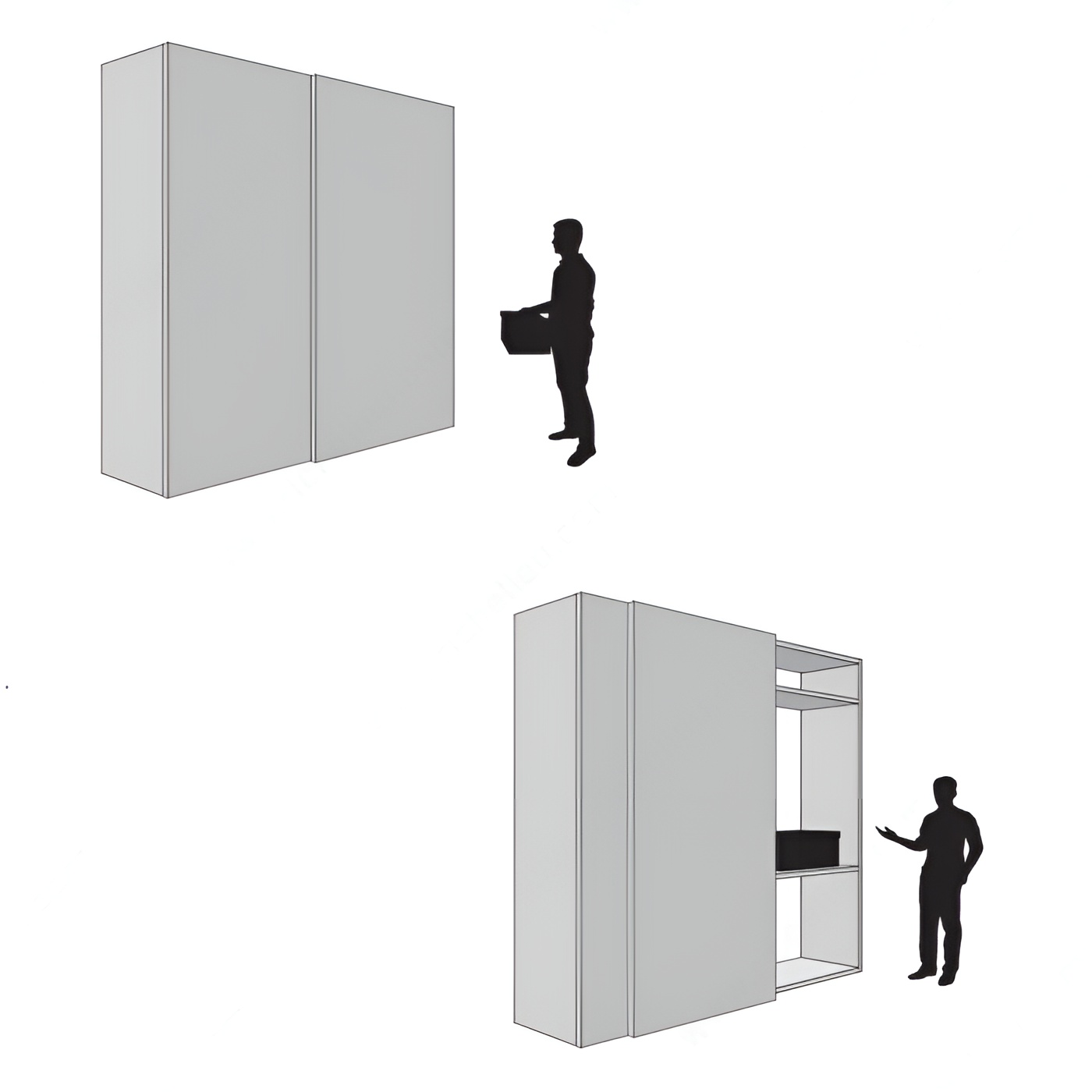

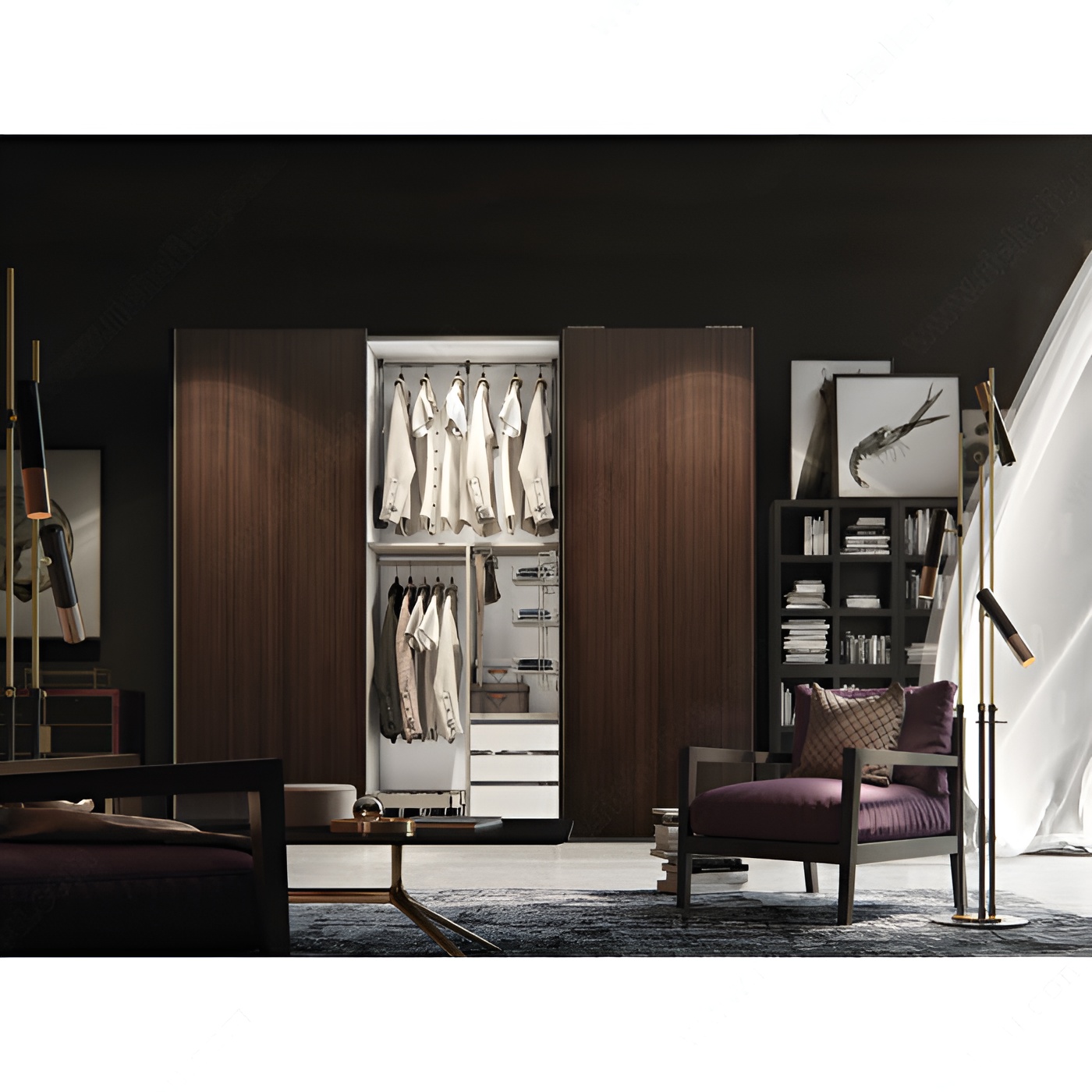

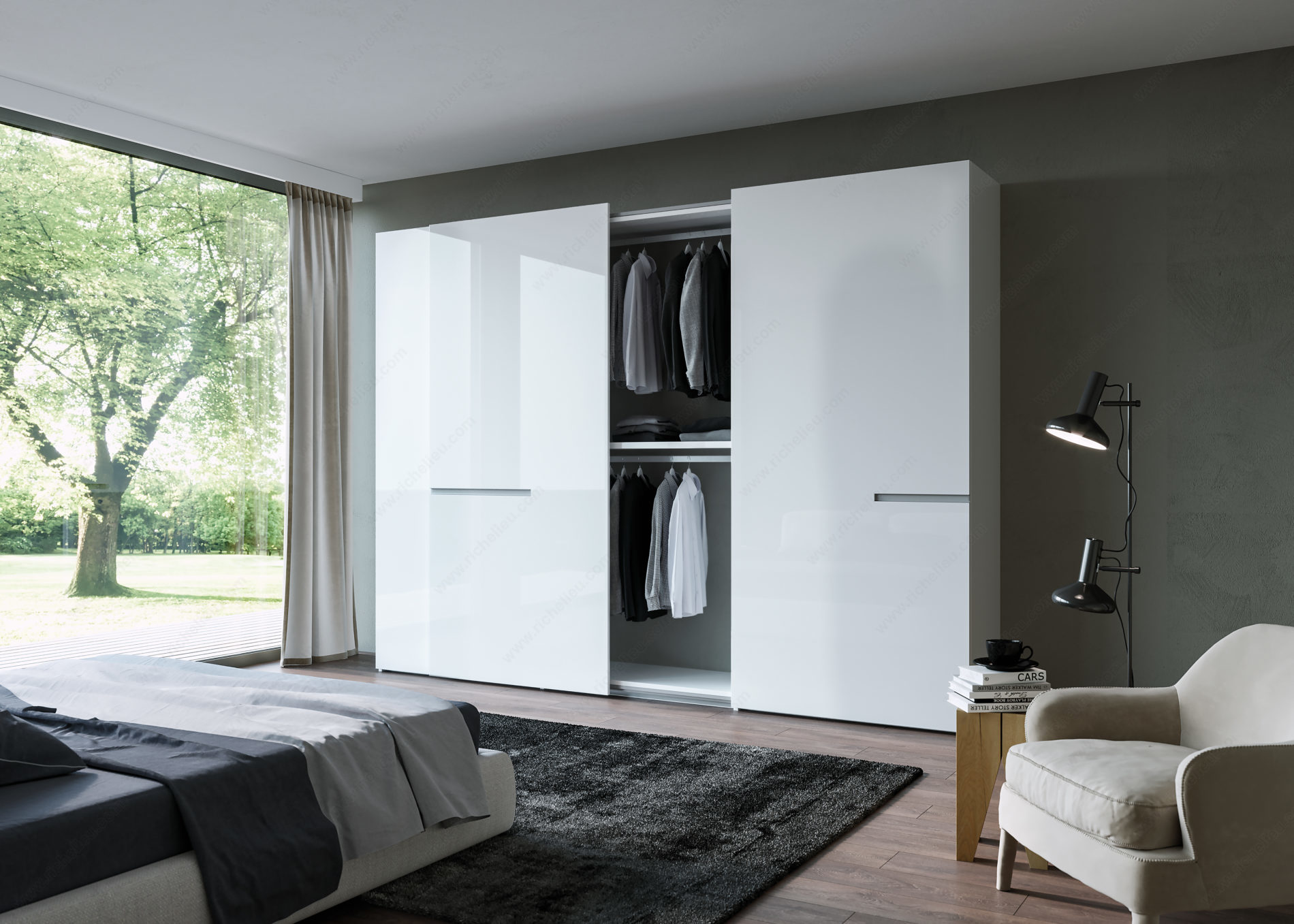

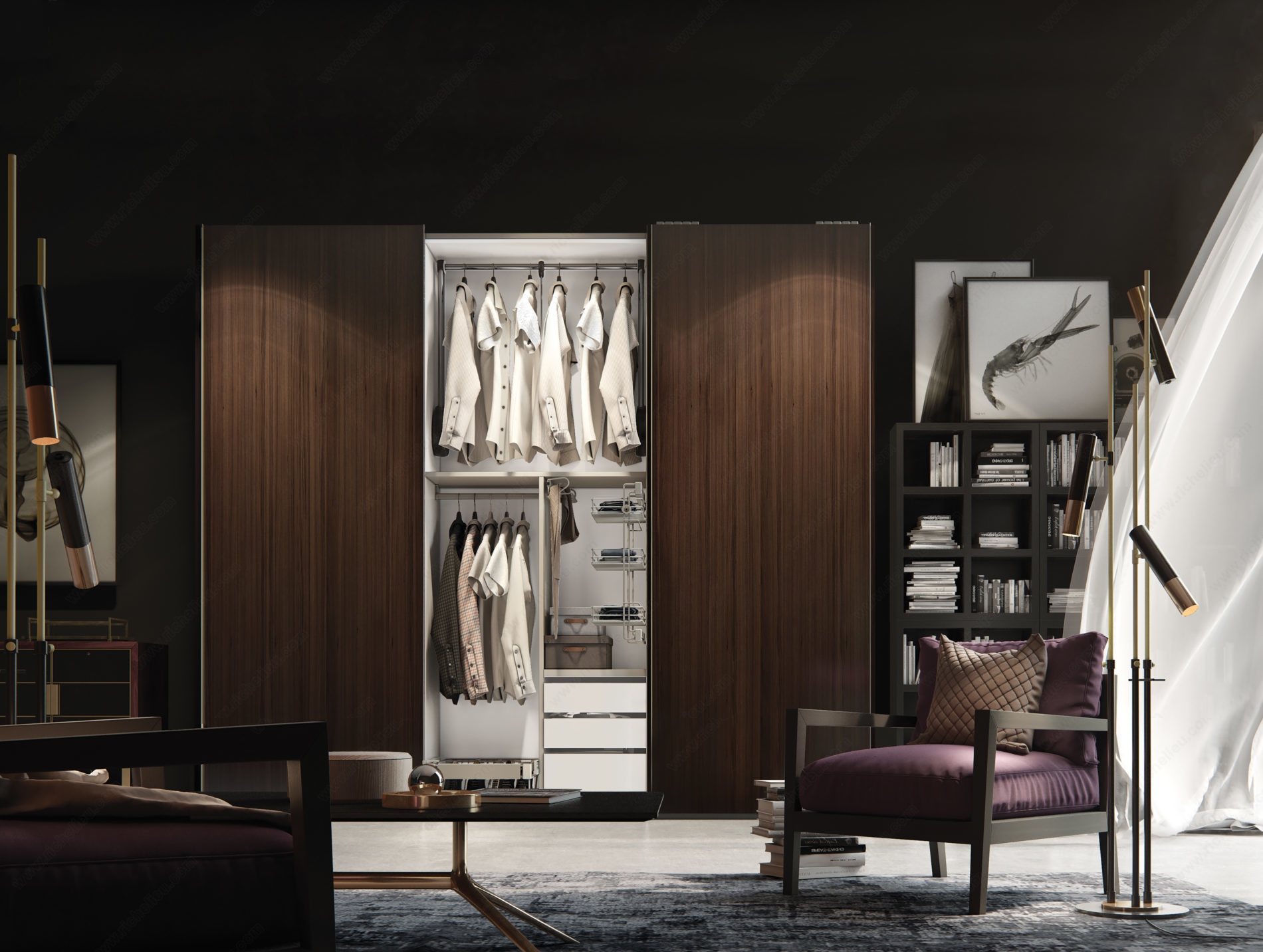

Ideal solution for hands-free and barrier-free applications for wardrobes, kitchen pantries, TV & Entertainment Units, and Storage units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Wardrobe, Pantry, Storage
Brand: PS48, B-moved
Brand Model: Cinetto PS48, Cinetto B-Moved
Detailed Door Movement: Bypassing, Electric Motor
Door Installation: Left and right hand
Door Material: Wood
Door Movement: Straight Sliding
Door Position: Full Overlay
Door Thickness: 24 to 33 mm
Door Width: 1 523 to 1 525 mm
Length - Overall Dimensions: 14 ft 6 in*
Load Capacity: 66.1 to 176 lb*
Number of Doors: 3
Opening: Remote
Overall Length: 4 434 mm
Product #: WEBKIT1245608
Product №: WEBKIT1245608
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Weight Capacity per Door: 66.1 to 176 lb*
