Richelieu WEBKIT1245613 CINETTO B-MOVED PS40 Motorized Coplanar SystemRichelieu WEBKIT1245613 Cinetto B-MOVED + PS40 Motorized Coplanar System offers a sophisticated solution for modern living spaces with its innovative design for two-door configurations, enabling seamless bypassing or biparting movement. This system allows hands-free operation through various methods, including a simple push, remote control, or a WAVE proximity sensor (sold separately). Its compatibility with Smart Home devices and voice control enhances convenience, making it a cutting-edge addition to any home. Installation is straightforward, featuring a bolt-on motion transmission bar that integrates effortlessly with standard PS40.1 or PS40.2 systems. The robust control unit is powered by a UL Listed power supply, ensuring reliability in typical North American 120-volt outlets. Designed for full overlay door positions, this system accommodates a door thickness of 3/4 to 1 11/16 inches and a width range of 35 to 48 inches, supporting door heights from 47 1/4 inches up to 118 inches. With a load capacity of 66.1 to 132 pounds and soft-closing features, the Cinetto B-MOVED + PS40 is perfect for wardrobe, pantry, and entertainment units, providing a stylish and barrier-free experience for any space.
CINETTO B-MOVED + PS40 Motorized Coplanar System

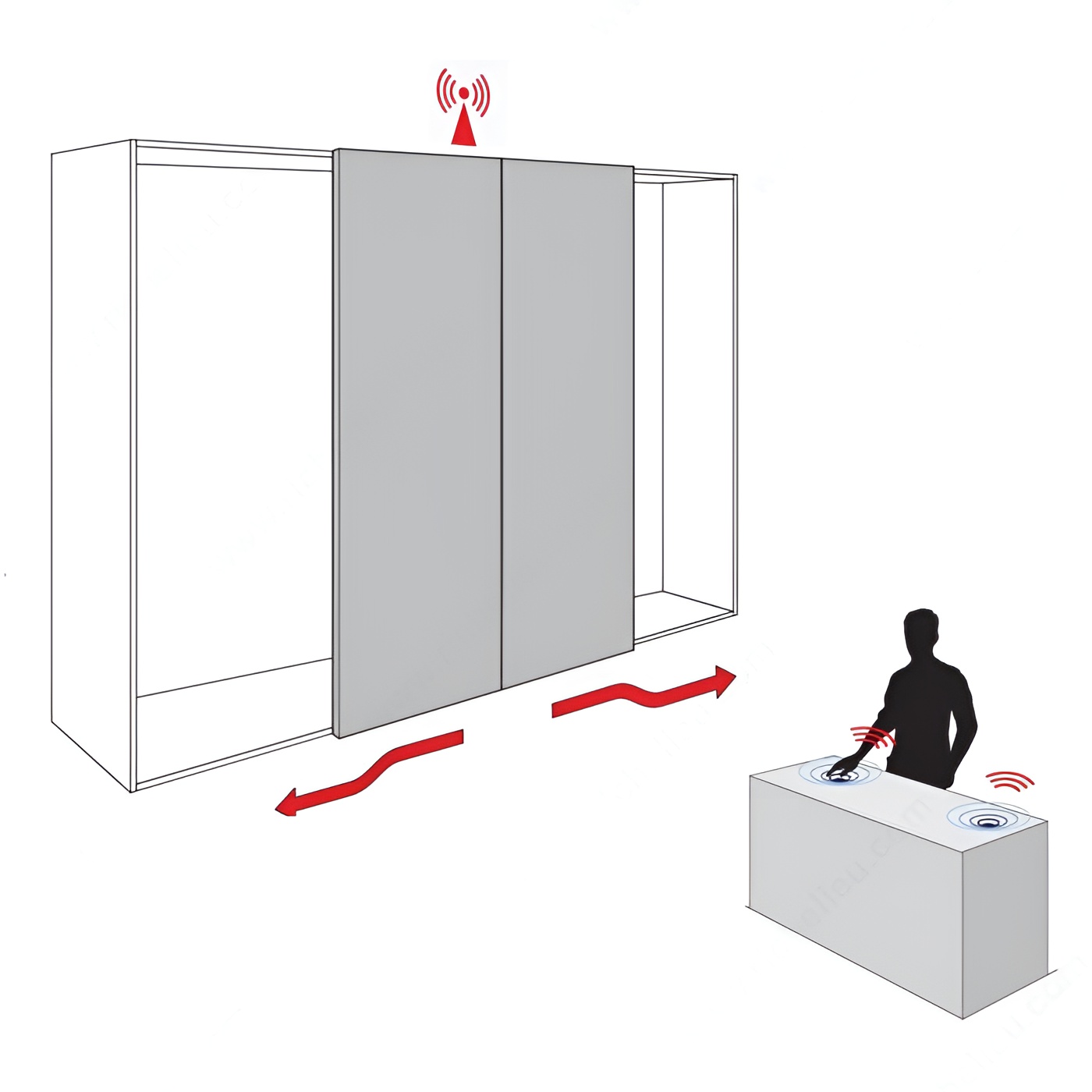

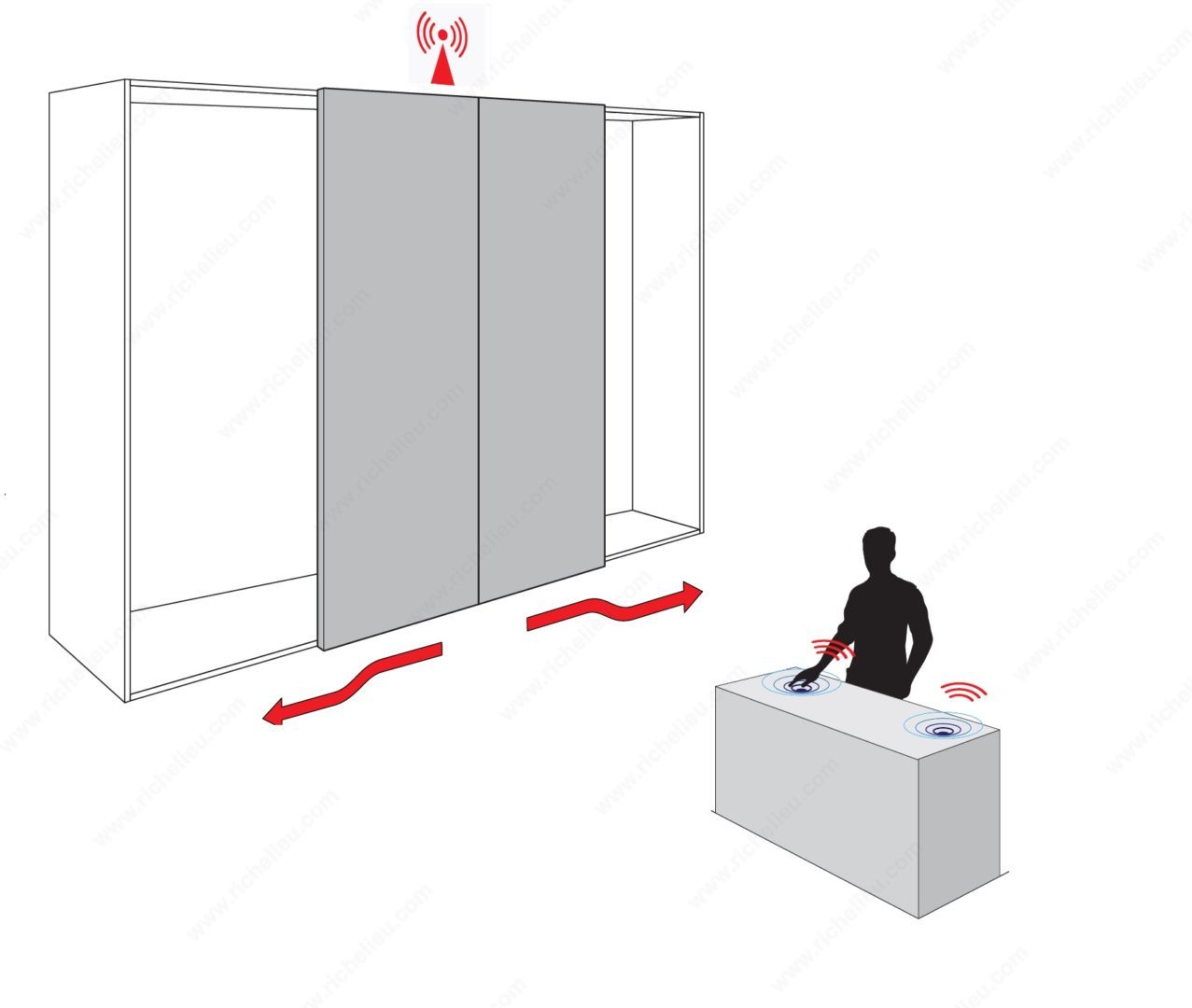

The Cinetto B-MOVED + PS40 Motorized coplanar sliding door System is designed for two-door configurations bypassing or biparting.
The doors can be moved and controlled hands-free several in ways: push to the door; remote; WAVE proximity sensor (sold separately).
Compatible with Smart Home devices, cellphone AP's, and Voice Control devices (refer to a certified electrician). Installation is simple, with a bolt-on motion transmission bar behind the standard PS40.1 or PS40.2 sliding door systems.
Two door brackets set to links the motion transmission bar to the upper running carriage unit. The control unit is powered by a UL Listed power supply with a standard 3-prong plug for use in a typical North American 120-volt wall outlet.
IMPORTANT: Select the correct motion transmission bar type for the correct door width range. WAVE sensor must be located within 10 meters (32'-0") from the receiver and sensors. WAVE sensors read through a maximum 10 mm (3/8") thick wood, glass, or stone material.
Use metric dimensions for greater accuracy during installation.
Door width range per transmission bar:
Typ A: 888 - 1296 mm Typ B: 1164 - 1800 mm
Ideal solution for hands-free and barrier-free applications for wardrobes, kitchen pantries, TV & Entertainment Units, Storage units.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Wardrobe, Pantry, Storage
Brand: B-moved, PS40
Brand Model: Cinetto PS40, Cinetto B-Moved
Detailed Door Movement: Biparting
Door Height: 47 1/4 to 118 in*
Door Material: Wood
Door Movement: Coplanar
Door Position: Full Overlay
Door Thickness: 3/4 to 1 11/16 in*
Door Width: 888 to 1 219 mm
Length - Overall Dimensions: 16 ft*
Load Capacity: 66.1 to 132 lb*
Number of Doors: 2
Opening: Wave Sensor
Overall Length: 4 900 mm
Product #: WEBKIT1245613
Product №: WEBKIT1245613
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Track Mounting: Surface - Outside the Cabinet
Weight Capacity per Door: 66.1 to 132 lb*
