Richelieu WEBKIT1245622 TERNO Accordion End-Fold Door SystemTERNO ACCORDION End Fold Door System
The TERNO ACCORDION End Fold Door System for multiple wood doors weighing up to 40 kg (88 lb ) each.
Features:
- Versatile folding door system for 2 to 6 door panels
- First panel is anchored securely by an upper pivot mounted in the track and a lower pivot mounted to the door jamb
- Hardware can be surface mounted to the door
- Top and bottom surface mount scissor-type hinges
- No bottom guide channel necessary for 2 folding panels less than 610 mm (24") wide each
- Use a floor guide channel for door panel widths greater than 610 mm (24")
- For extra wide door panels 752 to 914 mm (30" to 36"), use concealed 3D or SOSS hinges (do not use the standard scissor-type hinges)
- Simple to install and easy to adjust
An ideal solution for residential and commercial applications. Perfect for dividing a room or closing a large opening. For meeting rooms, office spaces, classrooms, multi-purpose rooms, common areas/foyers in condominiums, restaurants and kitchens and dining rooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
There will be extra unused parts for some end-folding door configurations.
Bottom guide is required when folding 3 or more panels to one side.
Do not use scissor type hinges when folding 3 panels or more.
Attributes
Ship via: No UPS - Common Carrier Only
Bottom Guide: No
Brand: ACCORDION
Brand Model: Terno Accordion
Detailed Door Movement: Multi-Folding
Door Height: 39 3/8 to 106 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Folding
Door Thickness: 1 3/16 to 1 25/32 in*
Door Width: 305 to 610 mm
Length - Overall Dimensions: 96 in*
Load Capacity: 88.2 lb*

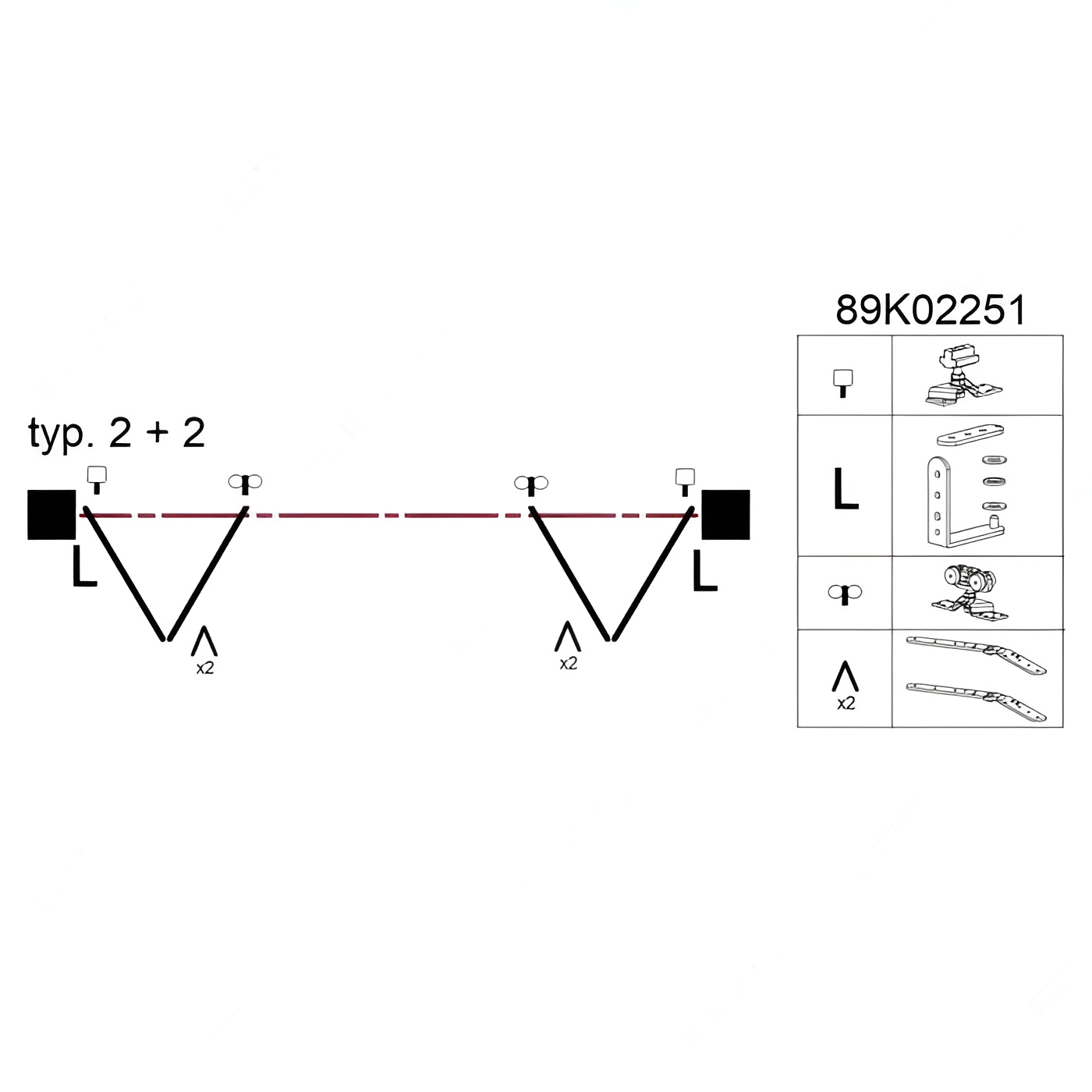

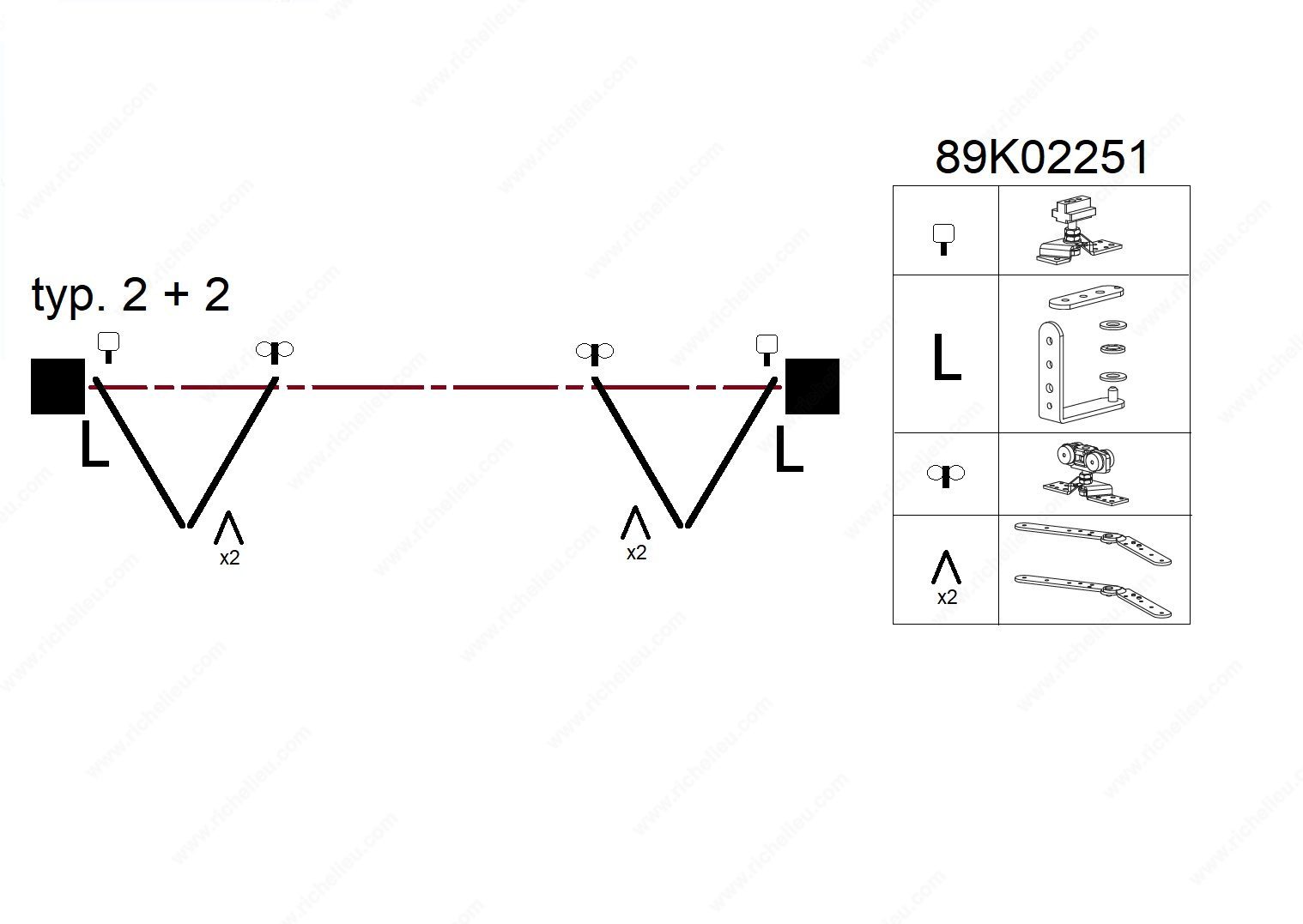

Number of Doors: 2 + 2
Overall Length: 2 438 mm
Product #: WEBKIT1245622
Product №: WEBKIT1245622
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
Weight Capacity per Door: 88.2 lb*
