Richelieu WEBKIT1245625 TERNO Accordion End-Fold Door SystemRichelieu WEBKIT1245625 TERNO ACCORDION End Fold Door System offers a versatile solution for efficiently managing space with multiple wood doors, each weighing up to 40 kg (88 lb). This innovative folding door system accommodates 2 to 6 door panels, making it ideal for both residential and commercial applications. The first panel is securely anchored by an upper pivot mounted in the track and a lower pivot attached to the door jamb, ensuring stability during use. Surface-mounted hardware simplifies installation, while the top and bottom scissor-type hinges allow for smooth operation. Notably, for configurations with two folding panels less than 610 mm (24") wide, no bottom guide channel is necessary, streamlining the setup process. For wider door panels measuring between 752 to 914 mm (30" to 36"), concealed 3D or SOSS hinges are recommended, enhancing functionality without compromising aesthetics. This system is perfect for a range of environments, including meeting rooms, classrooms, and dining areas. With a height range of 39 3/8 to 106 in and accommodating door thicknesses from 1 3/16 to 1 25/32 in, the TERNO ACCORDION system is designed for flexibility and ease. To ensure a successful installation, metric dimensions are advised for accuracy.
TERNO ACCORDION End Fold Door System
The TERNO ACCORDION End Fold Door System for multiple wood doors weighing up to 40 kg (88 lb ) each.
Features:

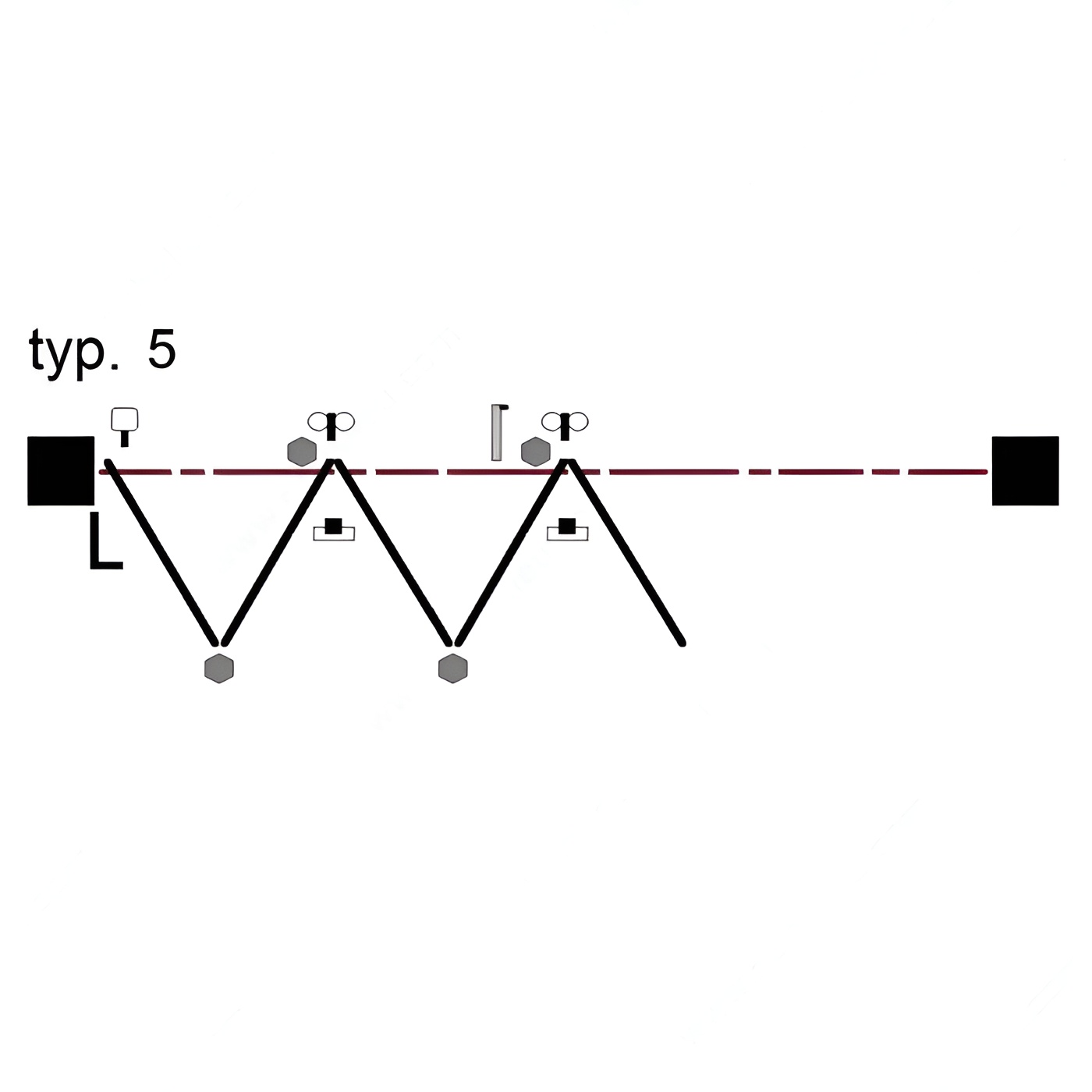

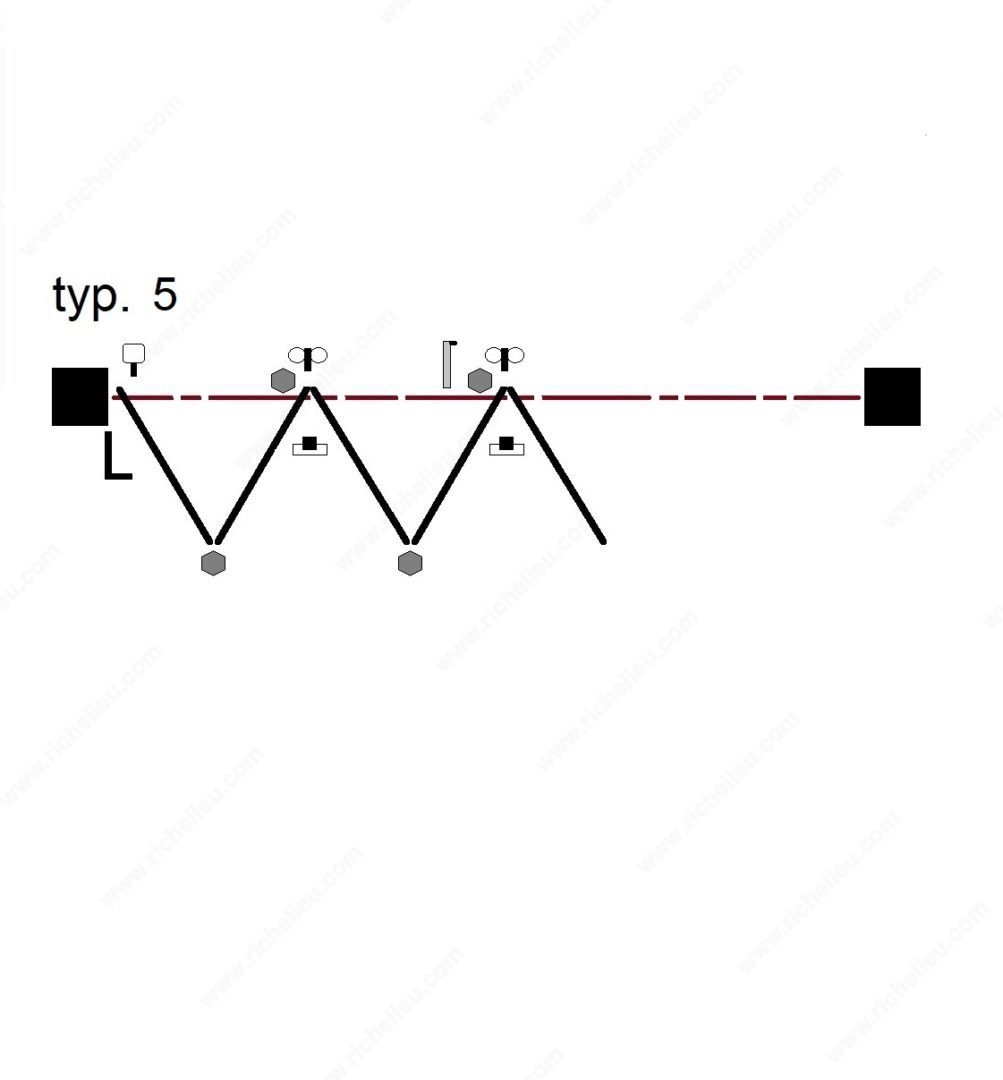

- Versatile folding door system for 2 to 6 door panels
- First panel is anchored securely by an upper pivot mounted in the track and a lower pivot mounted to the door jamb
- Hardware can be surface mounted to the door
- Top and bottom surface mount scissor-type hinges
- No bottom guide channel necessary for 2 folding panels less than 610 mm (24") wide each
- Use a floor guide channel for door panel widths greater than 610 mm (24")
- For extra wide door panels 752 to 914 mm (30" to 36"), use concealed 3D or SOSS hinges (do not use the standard scissor-type hinges)
- Simple to install and easy to adjust
An ideal solution for residential and commercial applications. Perfect for dividing a room or closing a large opening. For meeting rooms, office spaces, classrooms, multi-purpose rooms, common areas/foyers in condominiums, restaurants and kitchens and dining rooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
There will be extra unused parts for some end-folding door configurations.
Bottom guide is required when folding 3 or more panels to one side.
Do not use scissor type hinges when folding 3 panels or more.
Attributes
Ship via: No UPS - Common Carrier Only
Bottom Guide: Yes
Brand: ACCORDION
Brand Model: Terno Accordion
Detailed Door Movement: Multi-Folding
Door Height: 39 3/8 to 106 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Folding
Door Thickness: 1 3/16 to 1 25/32 in*
Door Width: 305 to 752 mm
Length - Overall Dimensions: 12 ft 4 in*
Load Capacity: 88.2 lb*
Number of Doors: 5
Overall Length: 3 765 mm
Product #: WEBKIT1245625
Product №: WEBKIT1245625
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Track Mounting: Ceiling Mount
Weight Capacity per Door: 88.2 lb*
