Richelieu WEBKIT1245639 HAWA JUNIOR 100 B ACOUSTICS System offers a sophisticated solution for sliding wood doors, accommodating weights up to 100 kg (220 lbs). This system features low-profile hardware and automatic retractable seals that enhance sound attenuation, with benefits of up to 41 dB for pocket doors and 35 dB for wall-mounted doors. The horizontal seals, activated by a top stopper and a floor guide, effectively block drafts, odors, and light, ensuring a comfortable environment. Designed for versatility, this system is suitable for a range of applications, including residential spaces, offices, medical clinics, meeting rooms, and sound-sensitive areas like studios and phone booths. It accommodates door thicknesses from 44 to 50 mm (1-3/4 to 2 in) and supports both pocket and straight sliding door configurations. The removable upper track simplifies installation, while the spring-loaded stopper allows for easy release of concealed pocket doors. With options for eight different seal kits tailored to door widths and sliding directions, customization is straightforward. For optimal results, precise metric measurements should be used during installation to ensure proper sound attenuation and functionality. Enhance your spaces with the Richelieu HAWA JUNIOR 100 B ACOUSTICS System, where practicality meets performance.

HAWA JUNIOR 100 B ACOUSTICS System

HAWA JUNIOR 100 B ACOUSTICS System with low profile hardware and retractable seals for one wood door weighing up to 100 kg (220 lbs). Automatic retractable seals mount horizontally to the top and bottom of the door, providing sound attenuation and resisting unwanted drafts, odors, and light. The seals are triggered by a stopper at the top and a floor guide at the bottom. The bottom seal includes an aluminum channel for a concealed floor mounted guide.

Features:

- For pocket door and wall mount sliding door applications
- Sound attenuation effect of up to 35 dB for wall mount doors
- Sound attenuation effect of up to 41 dB for pocket doors
- Vertical press fit seals for the perimeter of the door
- Suitable for door thicknesses of 44 to 50 mm (1-3/4 to 2 in)
- Compatible with the Hawa Junior 100 B and the Porta 60/100 HMD & HMT series
- Removeable upper track for pocket door applications for simple installation
- Spring loaded stopper releases pocket doors that are fully concealed in the pocket area
- Select from 8 different seal kits based on the door width and sliding direction (left or right)
- Bottom seal is flexible and conforms to the shape of the floor

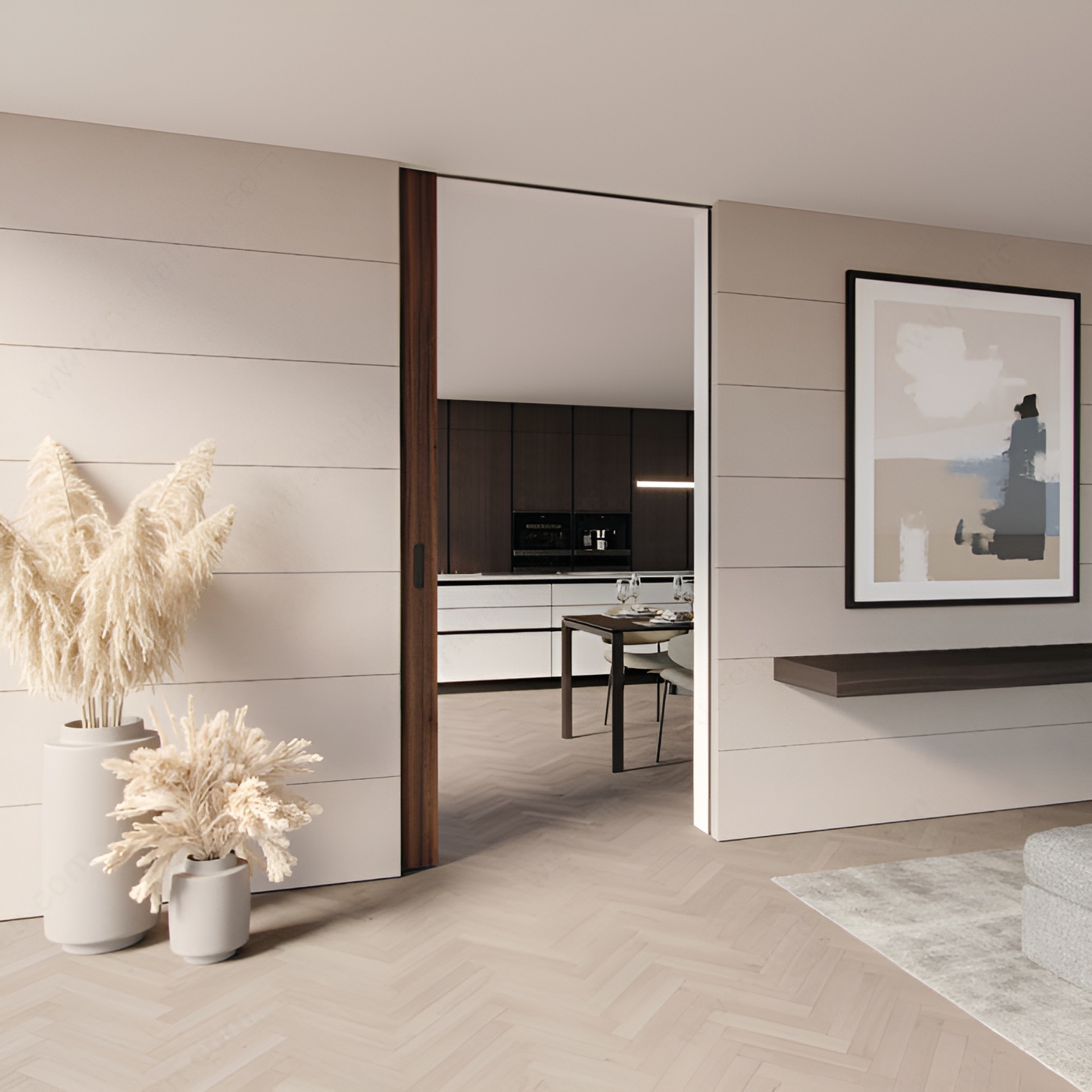

An ideal solution for residential, commercial, and institutional projects and applications including kitchens, offices, examination/consultation rooms in medical clinics, meeting rooms, phone booths/pods and studios.

IMPORTANT: Use metric dimensions for greater accuracy during installation. The level of sound attenuation depends upon the use of vertical seals and the construction of the door and walls. Cut a groove 23 mm (29/32 in) x 30 mm (1-3/16 in) in the bottom of the door and 31 mm (1-7/32 in) x 30 mm (1-3/6 in) in the top of the door. To remove track, its length must be 80 mm (3 5/32) shorter than the diagonal clearance from the top right corner of the door opening to bottom left corner. Refer to the mounting instructions for more information.
