Richelieu WEBKIT1246003 HAWA JUNIOR 100 GP System

Richelieu WEBKIT1246003 HAWA JUNIOR 100 GP System Instructions

Richelieu WEBKIT1246003 HAWA JUNIOR 100 GP System offers a robust sliding solution for glass doors weighing up to 100 kg (220 lb). Designed for versatility, this top-running system accommodates glass thicknesses from 8 to 12.7 mm (5/16 in to 1/2 in) and features a secure clamp-patch fitting. Users can choose between a standard hardware set with SoftStop dampers or upgrade to the SoftMove magnetic soft close mechanism, which ensures effortless operation with low opening forces of less than 22 N. The system includes various track configurations, such as surface or recessed anodized ceiling tracks, wall mount options with angle profiles, and removable tracks suitable for pocket door applications. The SoftStop track stopper helps prevent door bounce back, enhancing safety and usability. Available cover caps for the clamp patch fitting come in stylish finishes like Satin Silver, Brushed Stainless Steel Look, and Chrome Plated. With a minimum door width of 800 mm (31 1/2 in) for soft closing in both directions, this system is perfect for residential, commercial, and institutional projects, including kitchens, offices, and medical facilities. Backed by a 15-year performance guarantee for residential use, the HAWA JUNIOR 100 GP System combines durability and elegance for any sliding glass door application.

HAWA JUNIOR 100 GP System

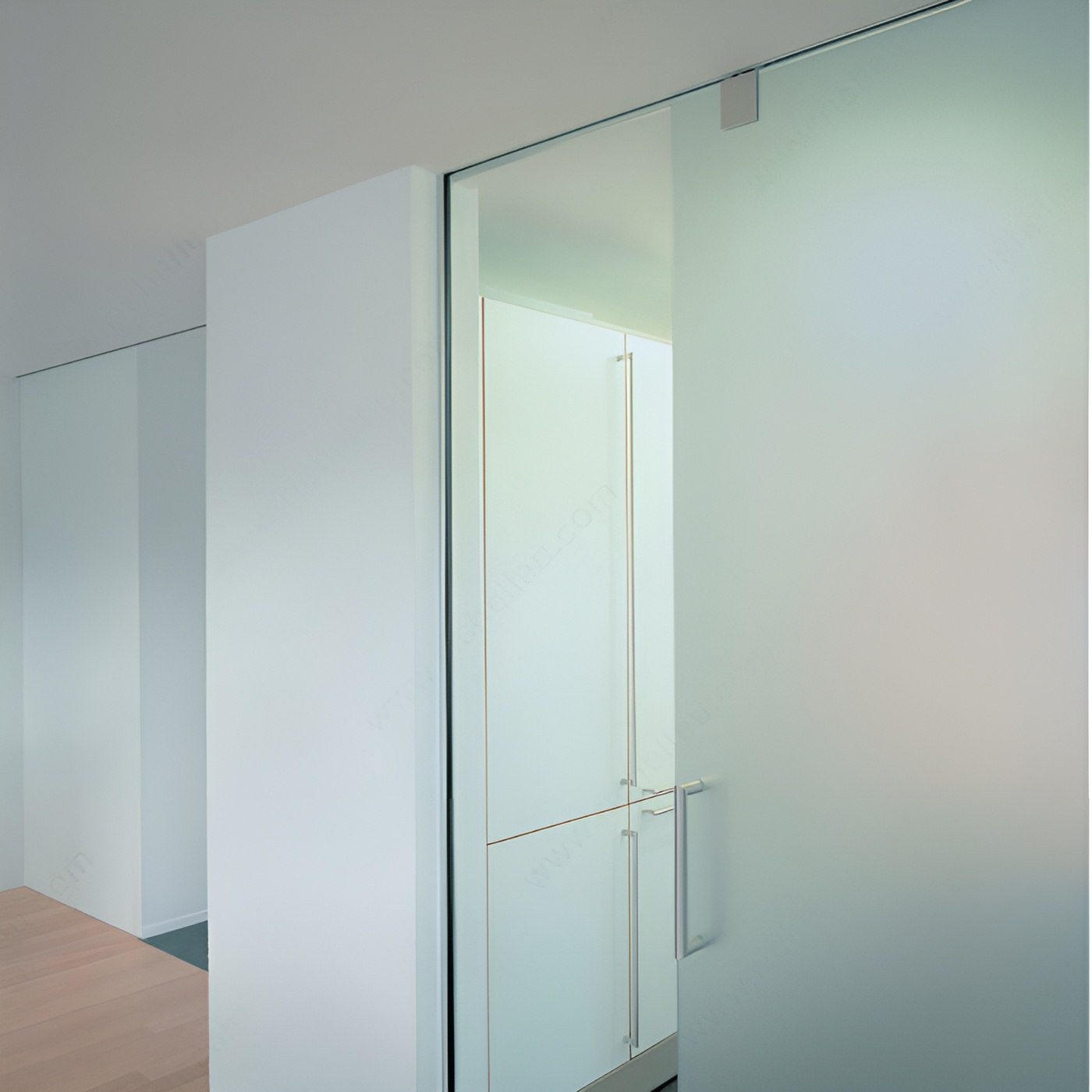

The HAWA JUNIOR 100 GP System is for sliding glass doors weighing up to 100 kg (220 lb) each. This is a top-running sliding system equipped with a secure clamp-patch fitting for solid or multi-layer glass up to 12.7 mm (1/2 in) thick. Select the standard hardware set with SoftStop dampers or upgrade to the innovative SoftMove magnetic soft close mechanism with low opening forces of less than 22 N.

Features:
- For glass thickness of 8 to 12.7 mm (5/16 in to 1/2 in)

Track options:
- Surface or recessed anodized ceiling track
- Wall mount with angle profile
- Removeable track for pocket door applications
- Single track with pocket for stationary glass

Round or square cover caps for clamp patch fitting are available in Satin Silver, Brushed Stainless Steel Look, and Chrome Plated finishes.

SoftStop track stopper with damper and adjustable retention spring resists door bounce back

SoftMove magnetic soft close mechanism with less than 22 N pull force is available.

Minimum door width: 800 mm (31 1/2 in) for soft close in both directions; can be used for pocket doors.

Covered by a factory performance guarantee of 15 years for private residential use and 7 years for commercial use (reference terms and conditions for more information).

Optional spring-loaded stopper is available to push open pocket doors.

An ideal solution for residential, commercial, and institutional projects, suitable for for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms and washrooms.

IMPORTANT: Use metric dimensions for greater accuracy during installation.
Glass must be drilled as per instructions for clamp patch fitting.
