Richelieu WEBKIT1246052 HAWA JUNIOR 100 GP System

Richelieu WEBKIT1246052 HAWA JUNIOR 100 GP System Instructions

Richelieu WEBKIT1246052 HAWA JUNIOR 100 GP System offers a robust solution for sliding glass doors, accommodating weights up to 100 kg (220 lb). Designed for versatility, this top-running sliding system supports glass thicknesses ranging from 8 mm to 12.7 mm (5/16 in to 1/2 in) and features a secure clamp-patch fitting. Choose between standard hardware with SoftStop dampers or elevate the experience with the SoftMove magnetic soft close mechanism, ensuring a gentle glide with pull forces of less than 22 N. The system includes various track options, including surface or recessed anodized ceiling tracks and wall mounts with angle profiles. It even provides a removable track for pocket door applications, making it ideal for both residential and commercial settings such as kitchens, offices, and medical clinics. With a minimum door width of 800 mm (31 1/2 in) for optimal soft close functionality, the HAWA JUNIOR 100 GP System guarantees a seamless integration of style and efficiency. Available finishes like Satin Silver, Brushed Stainless Steel Look, and Chrome Plated add a touch of elegance. The system is backed by a 15-year factory performance guarantee for residential use, ensuring long-lasting reliability. For precise installation, metric dimensions are recommended, and specific drilling instructions must be followed for the clamp patch fitting.

HAWA JUNIOR 100 GP System

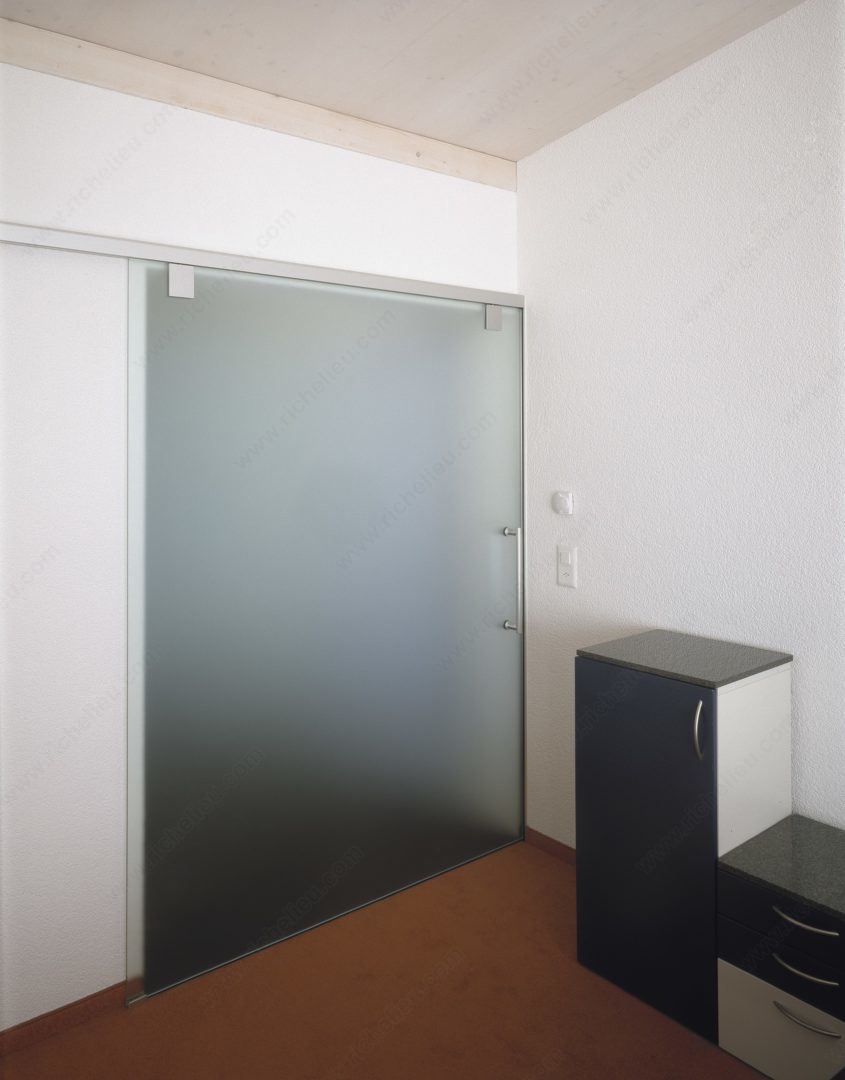

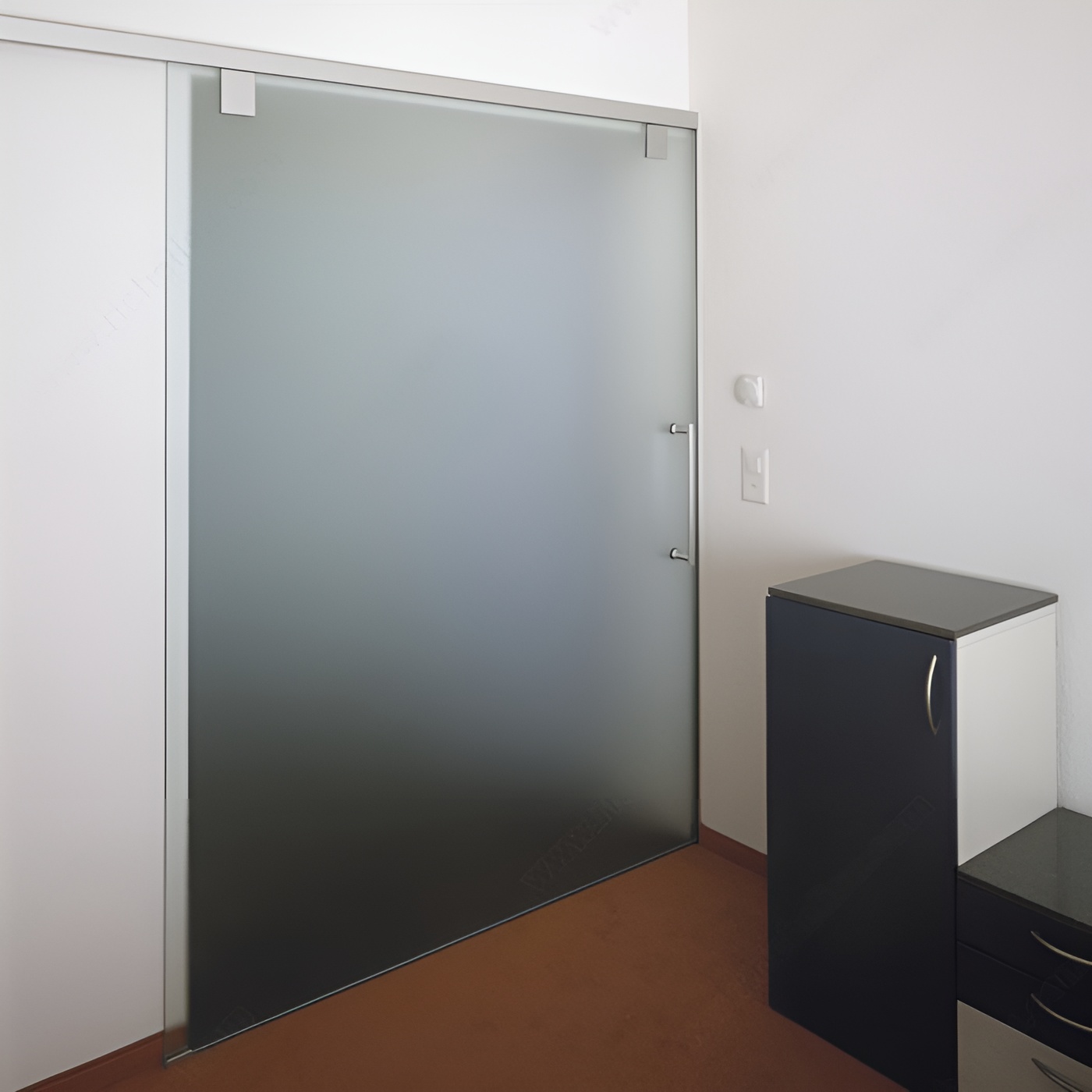

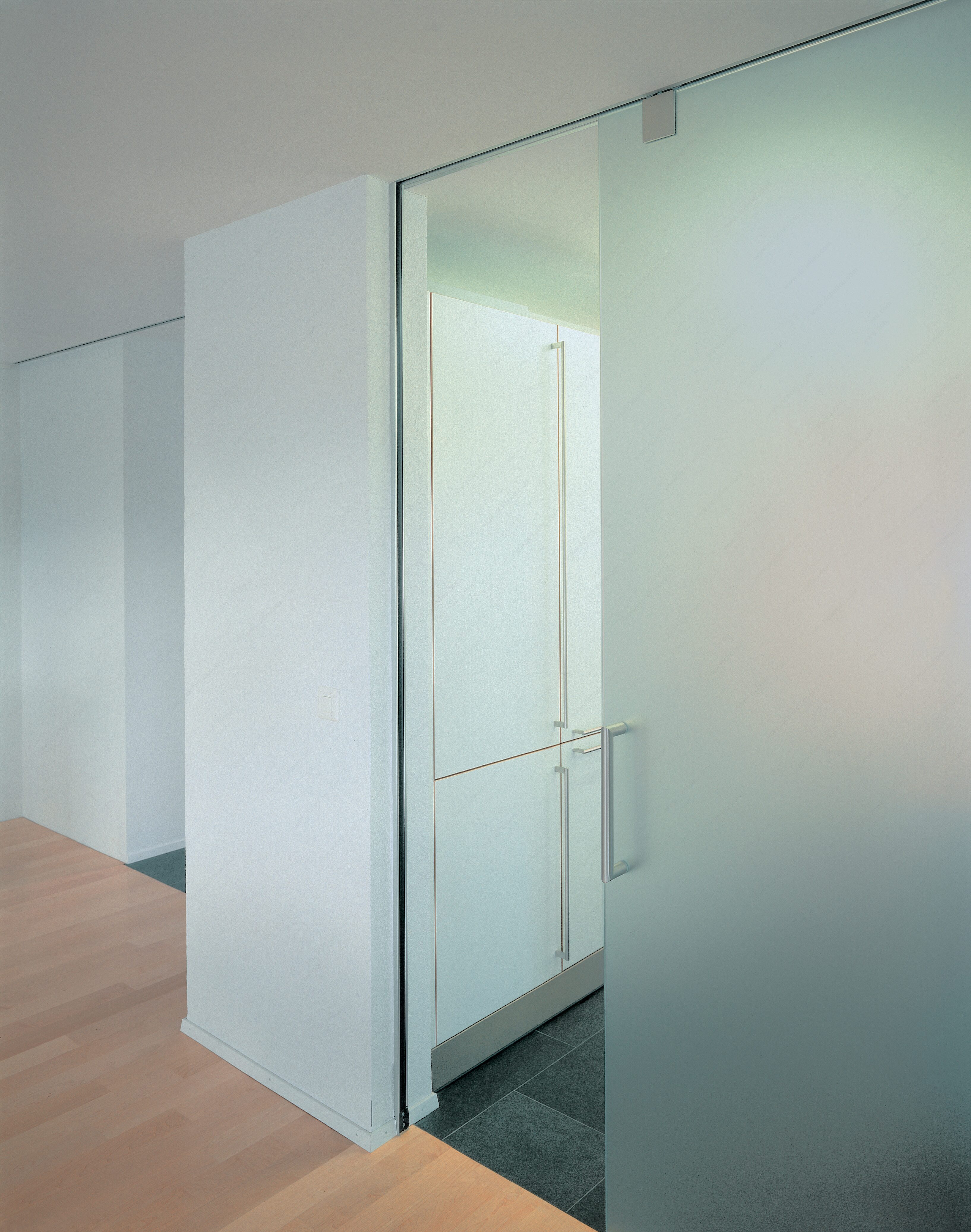

The HAWA JUNIOR 100 GP System is for sliding glass doors weighing up to 100 kg (220 lb) each. This is a top-running sliding system equipped with a secure clamp-patch fitting for solid or multi-layer glass up to 12.7 mm (1/2 in) thick. Select the standard hardware set with SoftStop dampers or upgrade to the innovative SoftMove magnetic soft close mechanism with low opening forces of less than 22 N.

Features:
- For glass thickness of 8 to 12.7 mm (5/16 in to 1/2 in)

Track options:
- Surface or recessed anodized ceiling track
- Wall mount with angle profile
- Removeable track for pocket door applications
- Single track with pocket for stationary glass

Round or square cover caps for clamp patch fitting are available in Satin Silver, Brushed Stainless Steel Look, and Chrome Plated finishes.

SoftStop track stopper with damper and adjustable retention spring resists door bounce back

SoftMove magnetic soft close mechanism with less than 22 N pull force is available.

Minimum door width: 800 mm (31 1/2 in) for soft close in both directions; can be used for pocket doors.

Covered by a factory performance guarantee of 15 years for private residential use and 7 years for commercial use (reference terms and conditions for more information).

Optional spring-loaded stopper is available to push open pocket doors.

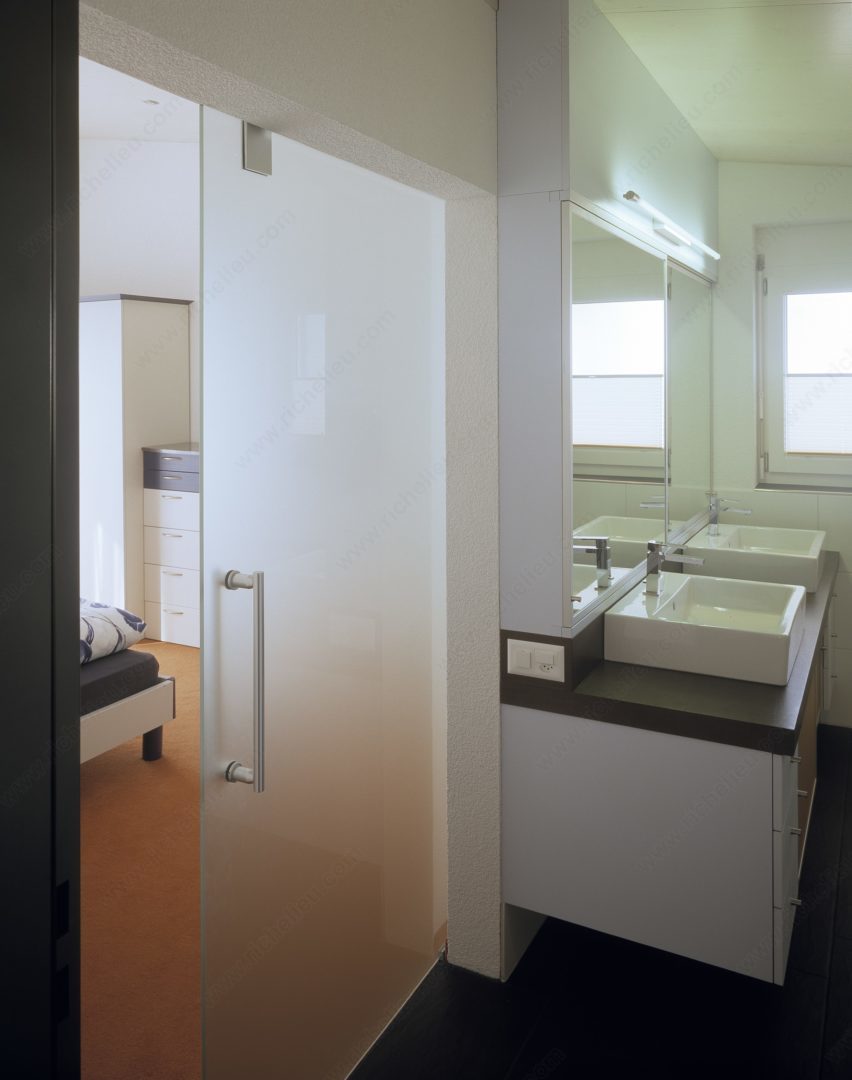

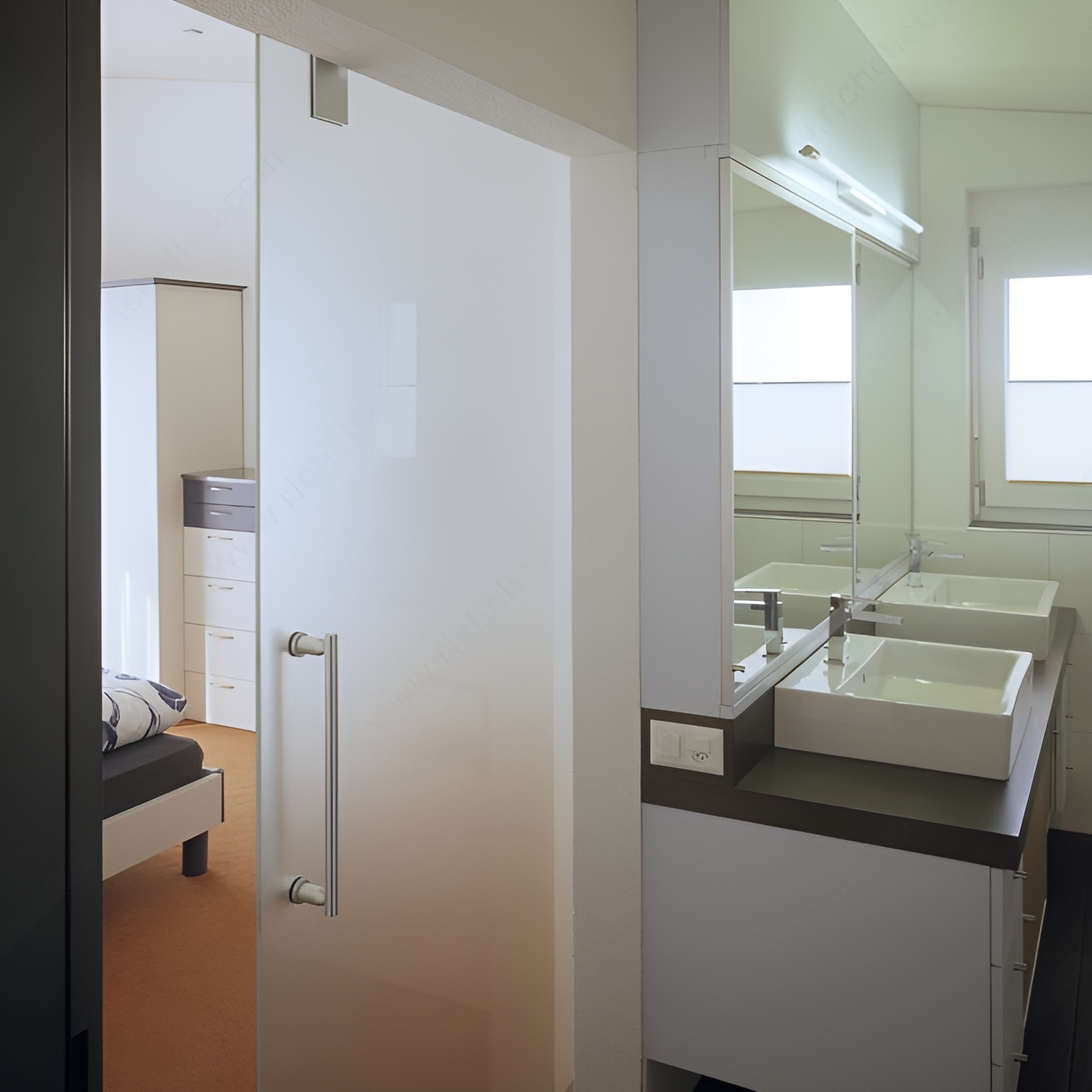

An ideal solution for residential, commercial, and institutional projects, suitable for for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms and washrooms.

IMPORTANT: Use metric dimensions for greater accuracy during installation.
Glass must be drilled as per instructions for clamp patch fitting.
