Richelieu WEBKIT1248545 HAWA JUNIOR 100 Z System is designed for effortless sliding of wood doors weighing up to 100 kg (220 lb). This top-hung system features a surface-mounted two-way suspension plate, allowing for smooth operation and minimal effort. You can choose between a standard hardware set with stoppers or enhance functionality with the innovative SoftMove magnetic soft-close mechanism, which requires a gentle pull force of less than 22 N. Accommodating door thicknesses from 35 to 80 mm (1-3/8" to 3-1/8"), the system offers flexible track options, including recessed ceiling tracks, surface ceiling mounts with clip-on fascia, and wall mounts with spacers. For pocket door applications, the removable track profile ensures versatility. The track also includes a stopper with a damper and an adjustable retention spring to prevent bounce-back. Ideal for residential, commercial, and institutional environments, this system enhances spaces such as kitchens, offices, and clinics. It supports door widths from 800 mm (31 1/2 in) and allows for a range of heights, making it suitable for various installations. With a robust 15-year guarantee for residential use, the HAWA JUNIOR 100 Z System combines reliability and elegance, ensuring your sliding door installations are both functional and stylish.

HAWA JUNIOR 100 Z System

Designed for sliding wood doors weighing up to 100 kg (220 lb) each, the HAWA JUNIOR 100 Z System is a top-hung sliding system equipped with a surface-mounted two-way suspension plate at the top of the door. Opt for the standard hardware set with stoppers or upgrade to the innovative SoftMove magnetic soft-close mechanism with low opening forces of less than 22 N.

Features:
- For door thickness of 35 to 80 mm (1-3/8" to 3-1/8")

Track options:
- Recessed ceiling track
- Surface ceiling mount with clip-on fascia
- Wall mount with spacer and clip-on fascia

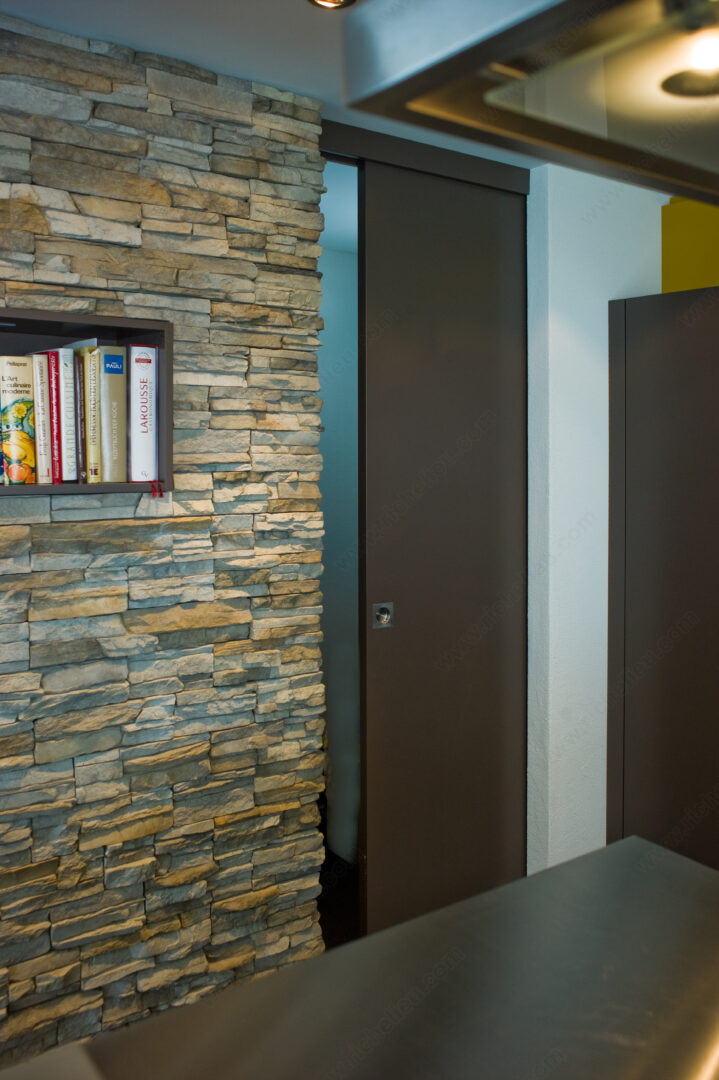

- Removable track profile for pocket door applications

Optional clip for wood fascia/cover panel

Track stopper with damper and adjustable retention spring resists door bounce-back

SoftMove magnetic soft close mechanism with less than 22 N pull force is available.

Minimum door width: 800 mm (31 1/2 in) for soft close in both directions; can be used for pocket doors.

Covered by a factory performance guarantee of 15 years for private residential use and 7 years for commercial use (reference terms and conditions for more information).

A spring-loaded stopper is available to push open pocket doors without soft close.

This is an ideal solution for residential, commercial, and institutional projects. It is suitable for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms, and washrooms.

IMPORTANT: Use metric dimensions for greater accuracy during installation.
A groove must be machined into the bottom of the door for a rattle-free floor guide.
