Richelieu WEBKIT1248881 HAWA Concepta III 25/35 Series InstructionsRichelieu WEBKIT1248881 HAWA Concepta III 25/35 Series offers an innovative solution for pivot and slide-in pocket door systems, accommodating single doors weighing up to 55 lb (25 kg) or 77 lb (35 kg). This versatile system features two opening options: the Push-to-Open mechanism allows doors to retract completely into the pocket with a simple push, eliminating the need for handles. Alternatively, the Pull-to-Open option retracts the door partially, providing space for a decorative pull-handle. Designed for doors with a thickness ranging from 3/4 to 1 in (18 to 25.4 mm), the HAWA Concepta III incorporates a concealed adjustable hinge with integrated dampeners for smooth operation. Its compact mechanism retracts into a small parking area, ensuring a sleek appearance while maintaining functionality. Installation is straightforward, with simple adjustments possible from the front of the cabinet. Ideal for both commercial and residential applications, this system suits kitchens, pantries, closets, and meeting rooms. Additional accessories, such as Connector Brackets and Bridge Connector Brackets, are available separately to enhance versatility. To ensure proper installation, follow the provided instructions carefully and utilize the online configurator for precise drilling points. Enjoy the seamless integration of style and function with Richelieu's HAWA Concepta III Series.
HAWA Concepta III 25/35 Series
The HAWA Concepta III 25/35 Series for pivot and slide-in pocket door systems for single doors weighing up to 55 lb (25) or 77 lb (35 kg) each.
Features:
- Select from two versions:
1) Push-to-Open: Retract the door completely into the pocket without handles. Push onto the door edge, and a device moves the door out of the pocket.
2) Pull-to-Open: Retracts the door partially to make room for a decorative pull-handle
- Concealed adjustable hinge with damper
- For doors 3/4 to 1 in (18 to 25.4 mm) thick
- The mechanism retracts into a small parking area
- Equipped with integrated dampeners for smooth operation
- Accessories for Connector Brackets to support external cover panel and Bridge Connector Brackets between two cabinets, sold separately
- Simple to adjust in multiple directions from the front of the cabinet
- Installed in a few simple steps by hand or pre-drilled on CNC
An online configurator is available to calculate drilling points.
IMPORTANT: Follow instructions step by step and in sequence. Do not remove braces holding mechanism before installation.

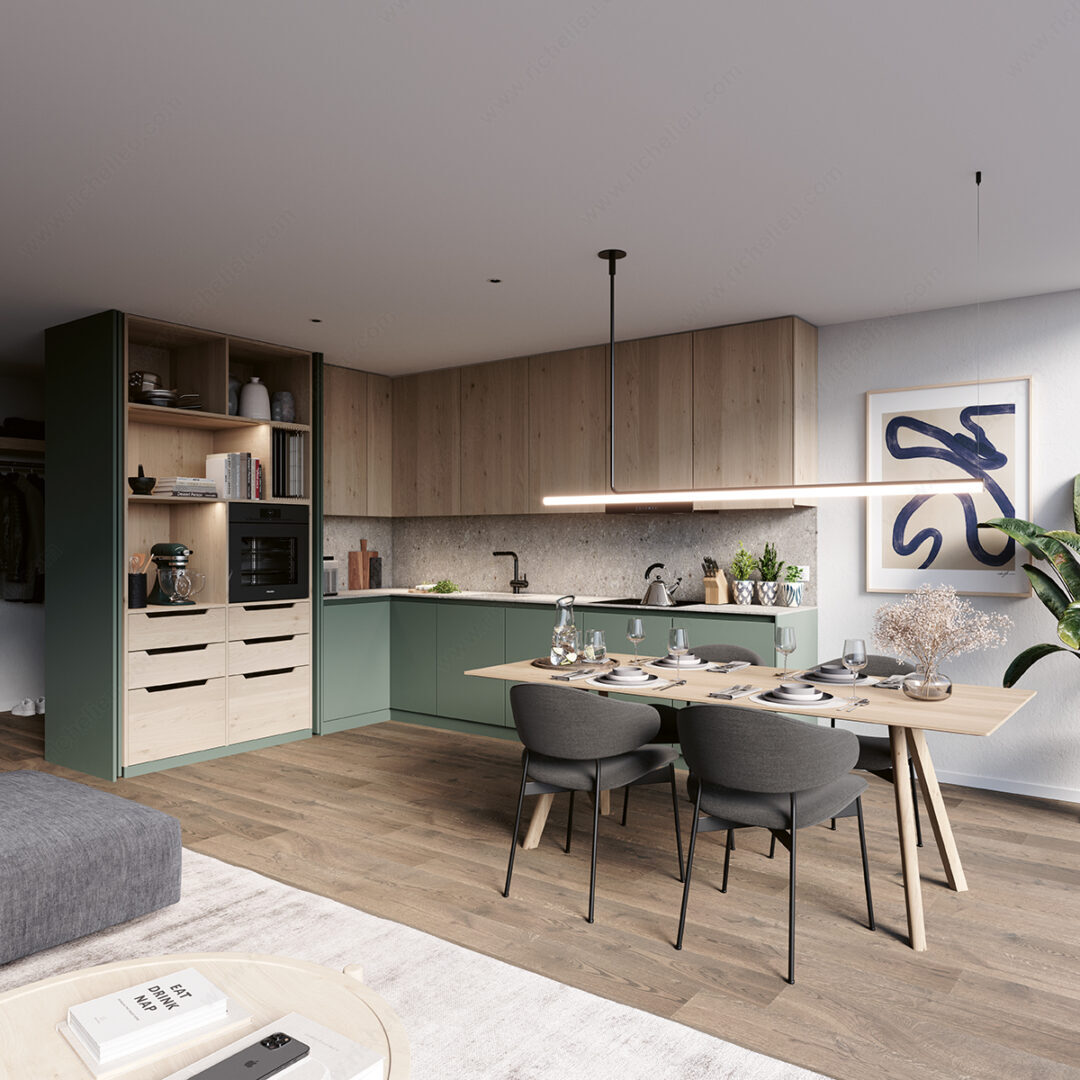

The HAWA-Concepta Series is suitable for commercial and residential kitchens, pantries, closets, laundry rooms, meeting rooms, food and beverage centers, and equipment storage.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Closet and Walk-In Closet, Pantry, Storage
Brand: Hawa
Brand Model: Concepta 35 Push
Detailed Door Movement: Pocket door
Displayed in These Showrooms: Montreal, Mississauga
Door Height: 74 3/4 to 106 in*
Door Installation: Left hand
Door Material: Wood
Door Movement: Pivot and Slide
Door Thickness: 23/32 to 1 1/32 in*
Door Weight: 22 to 77.2 lb*
Door Width: 17 3/8 to 29 1/2 in*
Number of Doors: 1
Product #: WEBKIT1248881
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
