Richelieu WEBKIT1249212 HAWA Folding Concepta III 20/25 Push System

Richelieu WEBKIT1249212 HAWA Folding Concepta III 20/25 Push System

Richelieu HAWA Folding Concepta III 20/25 Push offers a sophisticated bifold and slide-in pocket door system designed to enhance both functionality and aesthetics in various spaces. With the ability to accommodate wood door panels weighing up to 55 lbs (25 kg) each, this system is perfect for a range of applications, including kitchen pantries, laundry rooms, and closets. One of the standout features of this system is its push-to-open functionality, allowing doors to retract fully into the pocket area without handles. A gentle push is all it takes for the doors to slide out or unfold, making it incredibly user-friendly. The concealed hinge incorporates a soft-close mechanism, ensuring smooth and quiet operation every time. Installation is straightforward, requiring minimal effort with only a few screw points, and the hardware can be easily cut to accommodate various door heights. With options for different finishes-Plain or Black Anodized-and a flexible selection of door configurations for 2, 3, or 4-panel setups, it caters to diverse design preferences. This system also features simple front adjustments and is packaged for easy inventory management, making it ideal for volume projects. Elevate your space with the HAWA Folding Concepta III and experience the perfect blend of style and practicality.

HAWA FOLDING CONCEPTA III 20/25 PUSH

The Hawa Folding Concepta III 20/25 Push system is a bifold and slide-in pocket door system for two leaves with a push-to-open feature. For wood door panels weighing up to 44 lbs (20 kg) or 55 lbs (25kg) each. For a pair of doors, maximum weight capacity is 88 lbs (40 kg) or 110 lbs (50 kg).

Features:
- Two types of mechanisms based on door weight and height
- Concealed hinge with soft-close mechanism
- Soft close mechanism for soft damping
- Requires minimal effort to operate thanks to an open and close assist mechanism
- The PUSH version can retract the doors fully into the pocket area without handles and with a gentle push the door will slide out of the pocket
- The PUSH device will unfold the doors with a gentle push, too
- Two choices of finish: Plain and Black Anodized
- Flexible installation: the hardware can easily be cut for a wide range of door heights
- Adjustments are simple from the front and outside of the pocket area
- Good selection of door configurations for 2, 3 or 4 panel/door applications
- Requires a small 3-3/4 in x 4-11/32 in (95 mm x 110 mm) space inside the pocket area to retract the mechanism
- Packaged well and simple to inventory for volume projects-- no special order required

IMPORTANT:
- Can be easily installed by hand drilling and has very few screw points. CNC not required.
- The HAWA Configurator is simple to use to calculate drilling patterns for the cabinet and the door:

Attributes

Ship via: No UPS - Common Carrier Only

Adjustable: Yes

Application: Wardrobe, Pantry, Furniture, Storage

Brand: Folding Concepta

Detailed Door Movement: Push

Door Height: 74 3/4 to 106 in*

Door Installation: Left hand

Door Material: Wood

Door Movement: Folding, Pocket Door, Pivot and Slide

Door Thickness: 23/32 to 1 1/32 in*

Door Weight: 22 to 55.1 lb*

Door Width: 17 3/8 to 29 1/2 in*

Finish: Black

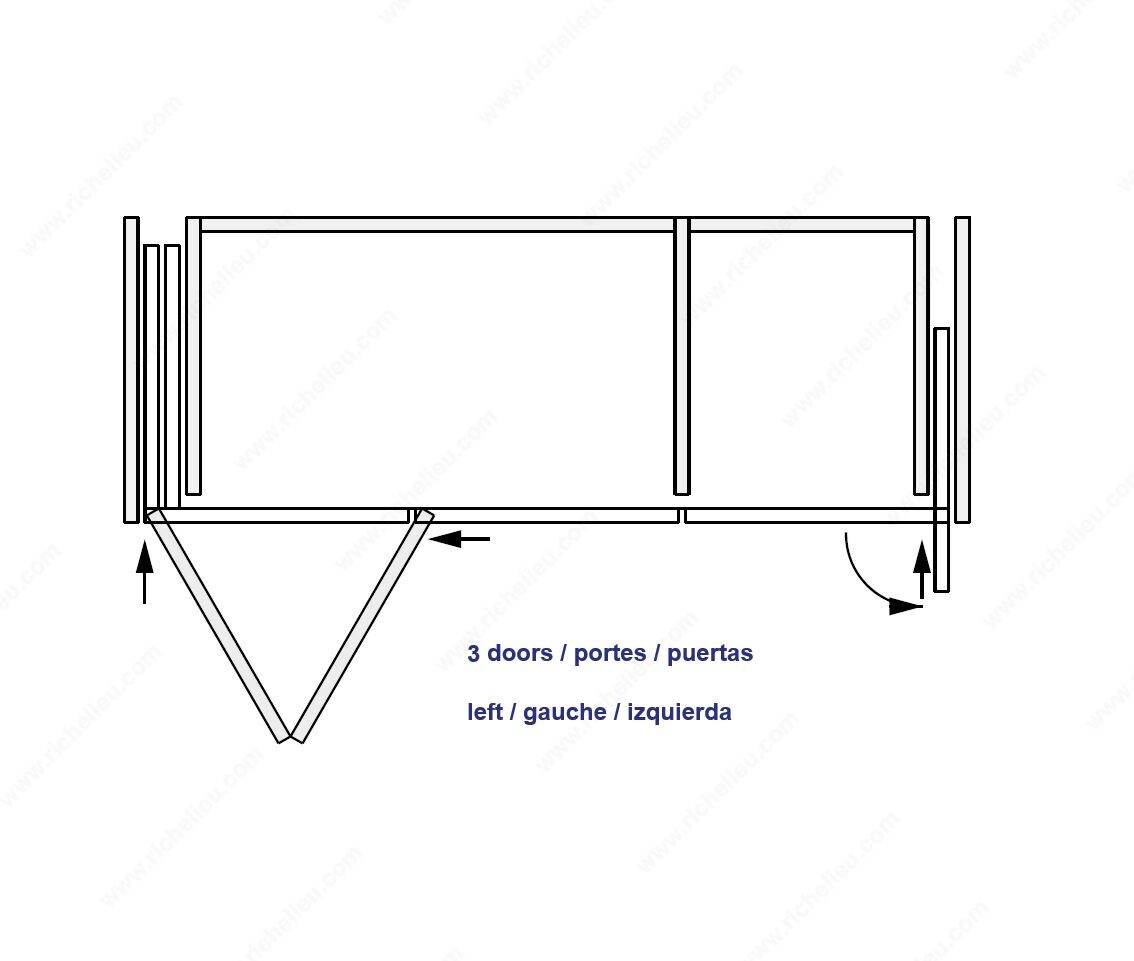

Number of Doors: 3

Product #: WEBKIT1249212

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
