Richelieu WEBKIT1249579 Terno Eclettica 160 FluidRichelieu WEBKIT1249579 TERNO ECLETTICA 160 FLUID offers a sophisticated solution for sliding wood doors, accommodating weights up to 160 kg (352 lb). This standard straight-sliding system is ideal for both residential and commercial applications, seamlessly connecting spaces with style and efficiency. One of the standout features is its automatic clip-on suspension bracket, allowing for quick and tool-free door installation. The system includes two soft-close mechanisms, ensuring a smooth and quiet operation every time. It is compatible with doors that are either 35 mm or 55 mm thick (1-3/8 in or 2-1/8 in) and comes with a clip-on anodized aluminum fascia, enhancing durability and aesthetics. Designed for biparting door movement, the TERNO ECLETTICA accommodates door heights ranging from 70 7/8 to 120 inches, with widths between 34 and 39 3/8 inches. The upper roller position and ball bearing roller type ensure reliable performance, while the optional two-part floor guide allows for installation without the need for a groove in the door. Important installation details emphasize using metric dimensions for accuracy, and a groove is required at the bottom of the door. Overall, the Richelieu TERNO ECLETTICA 160 FLUID series is the perfect choice for high-volume projects requiring functionality without compromising on style.
TERNO ECLETTICA 160 FLUID
TERNO ECLETTICA 160 FLUID Series is a standard straight-sliding wood door system for wood doors weighing up to 160 kg (352 lb).
Features:

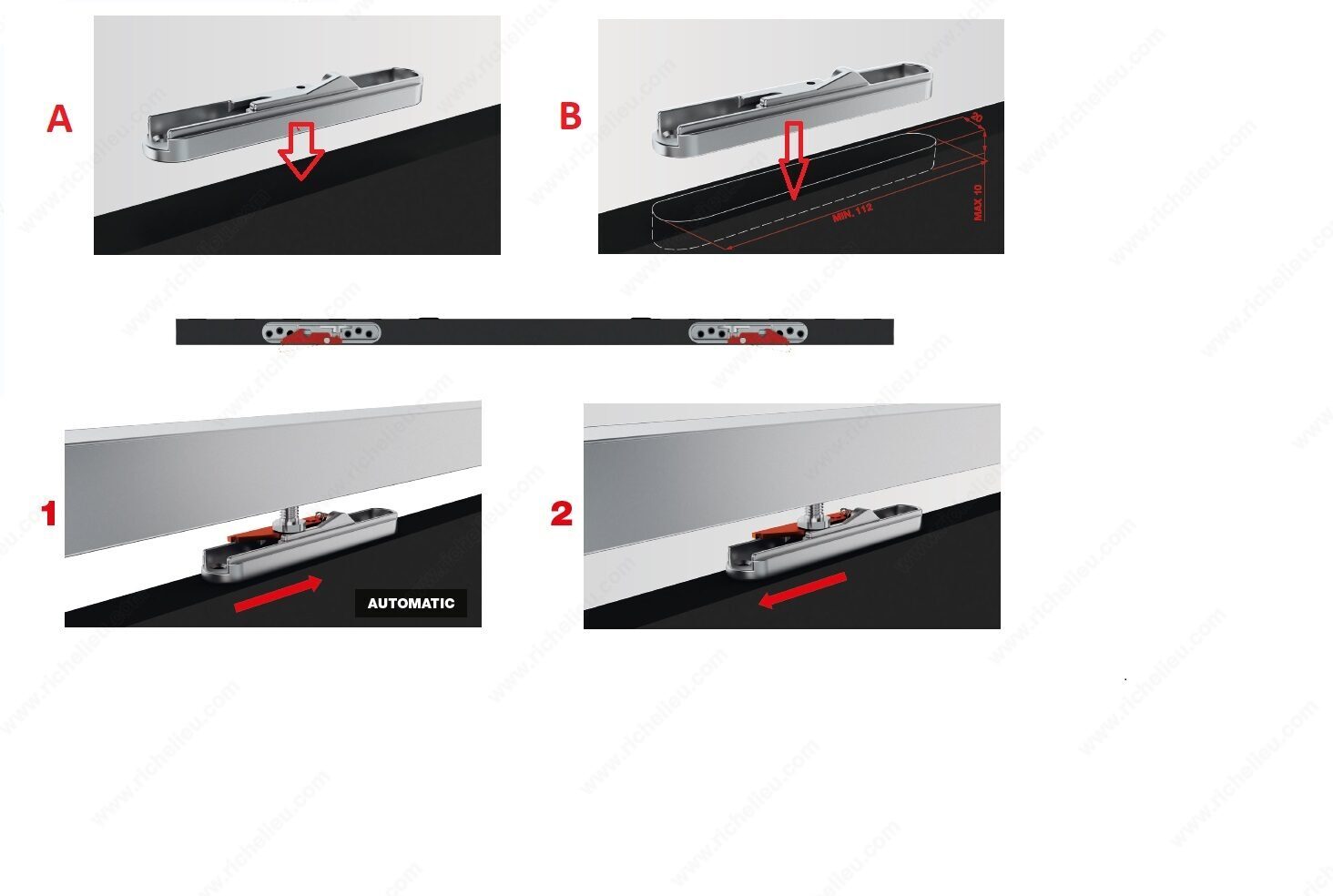

- Automatic clip-on suspension bracket for quick toolless door installation
- 2 soft close mechanisms
- Clip-on anodized aluminum fascia for 35 mm or 55 mm thick doors (1-3/8 in or 2-1/8 in)
- Optional clips for wood fascia supplied by the contractor

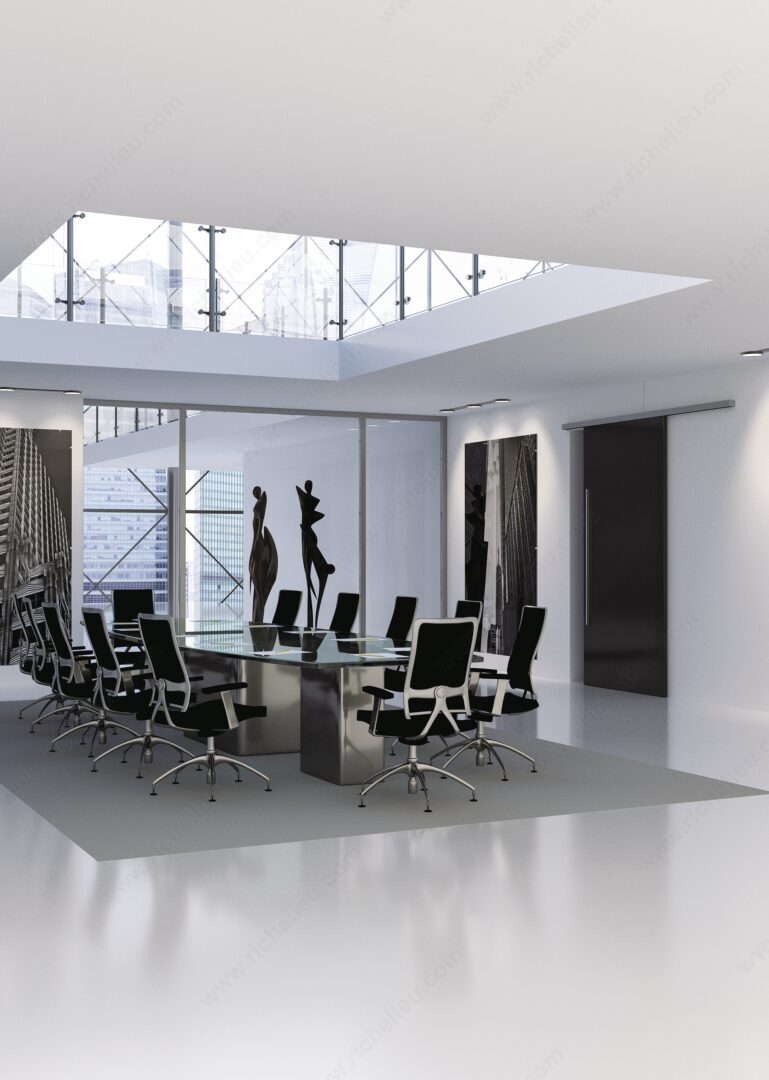

The TERNO ECLETTICA 160 FLUID Series is an ideal solution for high-volume residential and commercial projects as access doors between rooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
Groove is required at the bottom of the door, see mounting instructions for details.
Optional two-part floor guide can be purchased separately to avoid the need to cut a groove in the door.
Attributes
Ship via: No UPS - Common Carrier Only
Application: Sliding Wall
Detailed Door Movement: Biparting
Door Height: 70 7/8 to 120 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 2 5/32 in*
Door Width: 34 to 39 3/8 in*
Groove Needed for Guiding System: Yes
Minimum Door Width: 34 in*
Number of Doors: 2
Overall Length: 13 ft 1 in*
Product #: WEBKIT1249579
Roller Position: Upper
Roller Type: Ball Bearing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Close Type: FLUID, 2 Soft Close
Soft- Closing: Yes
Track Mounting: Ceiling Mount
