Richelieu WEBKIT1249692 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249692 kits AVENTOS HS top offers a compact and efficient solution tailored for large, single-piece facades. This innovative system ensures a smooth and effortless opening, allowing the door to tilt gently above the cabinet, creating a weightless sensation and enhancing freedom of movement in your space. Designed for cabinets with heights ranging from 350 mm (13 3/4 in) to 800 mm (31 1/2 in) and widths up to 1,800 mm (70 7/8 in), the AVENTOS HS top is perfect for accommodating larger door sizes while maintaining minimal resistance forces. Its integrated BLUMOTION damper adjustment provides a soft-close feature, while the continuous stop and symmetrical force reservoirs ensure stability and reliability. This product maximizes storage capacity without the need for a cross stabilizer, seamlessly integrating into your designs for optimized space and ergonomics. The tool-free assembly and two types of force reservoir mounting simplify installation, and the 3-dimensional face adjustment allows for precise alignment. Constructed for wood doors and wide aluminum-framed doors, the AVENTOS HS top is finished in pale grey, providing a modern aesthetic. For thin facades, the compatible 20S42T1 front attachment is available among the suggested products. Experience the ultimate in functionality and design with Richelieu’s AVENTOS HS top.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

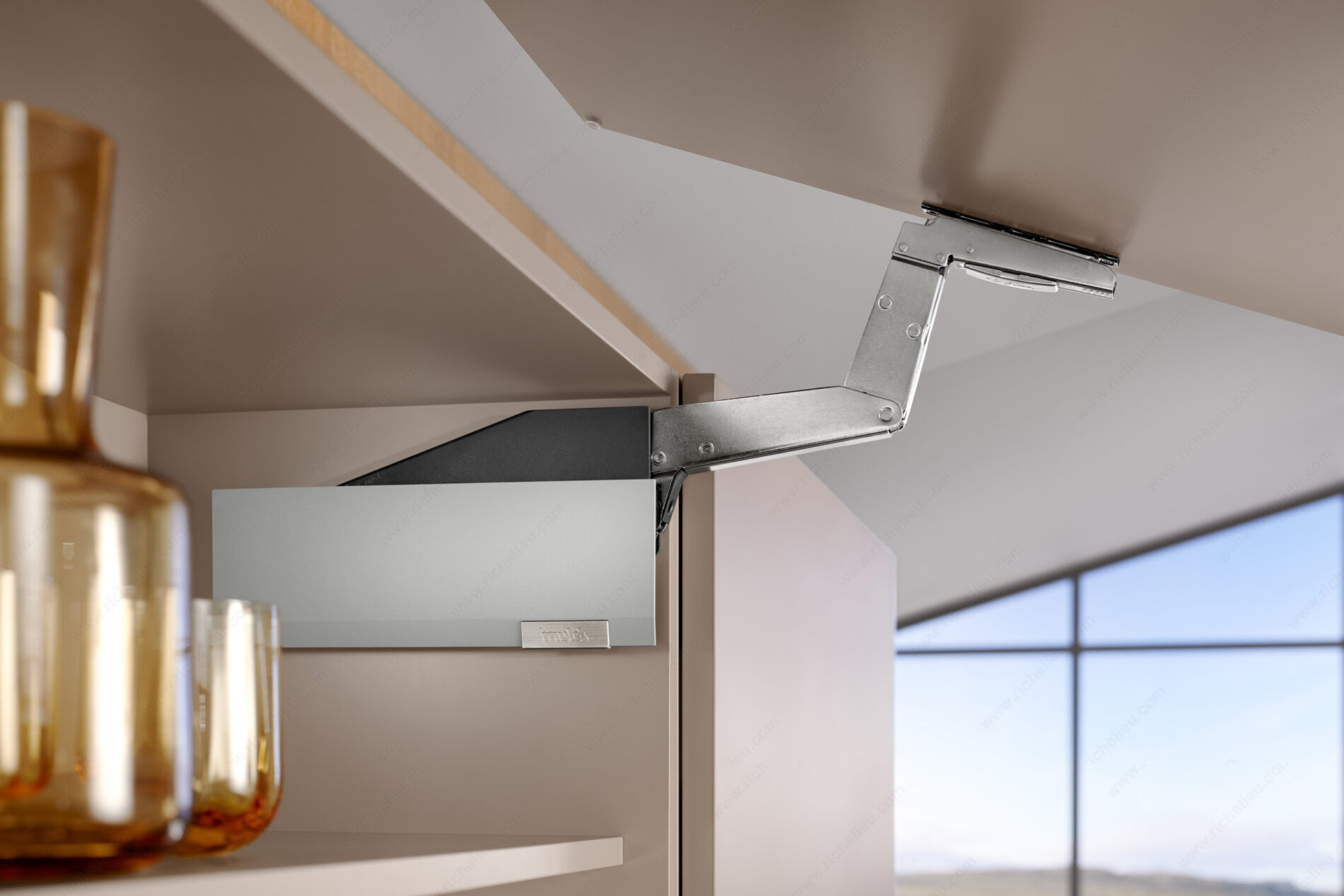

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 13 3/4 to 17 3/4 in*
Door Length: Max. 70 7/8 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 4.41 to 25.4 lb*
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249692
Screw/ Nail: Wood Screw (Included)
