Richelieu WEBKIT1249702 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249702 kits AVENTOS HS top offers a compact and highly functional solution for large, single-piece facades. Engineered for cabinet heights ranging from 350 to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), this system ensures smooth and effortless opening, allowing doors to tilt gently above the cabinet for an almost weightless operation. The integrated BLUMOTION damper adjustment minimizes resistance forces, enhancing the user experience with its continuous stop feature. This design maximizes storage capacity without the need for a cross stabilizer, allowing for complete access to the cabinet's interior without obstructing the workspace. Equipped with symmetrical force reservoirs and arms, the AVENTOS HS top includes a tool-free assembly process and two types of force reservoir mounting for added convenience. The 3-dimensional face adjustment ensures precision installation, making it an ideal choice for both professional builders and discerning homeowners. For installations with thin facades, consider using the compatible 20S42T1 front attachment for optimal integration into your design. With a sleek silk white finish, this product not only enhances functionality but also complements modern aesthetics in any space.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

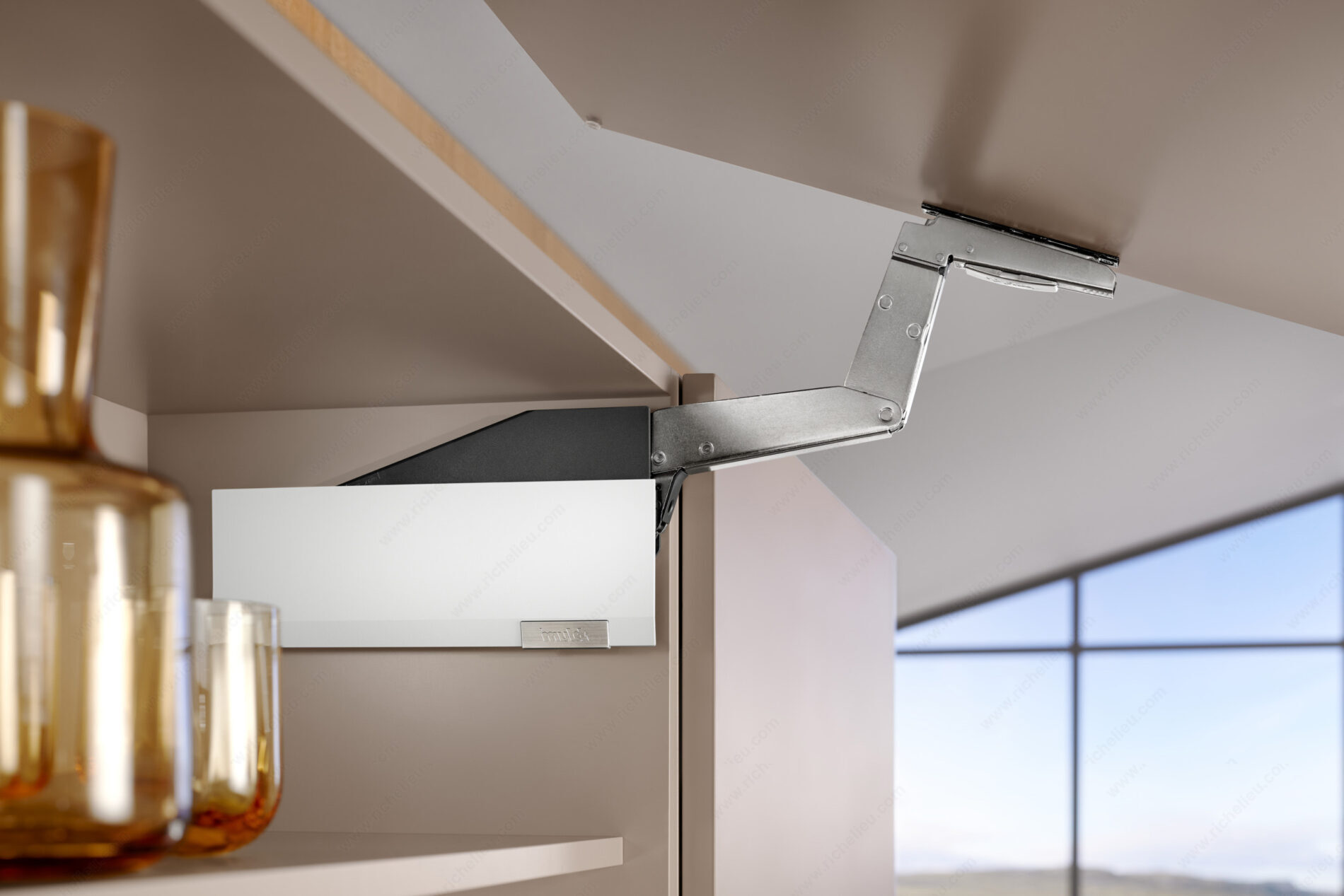

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 18 7/8 to 26 in*
Door Length: Max. 70 7/8 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 6.06 to 33.6 lb*
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249702
Screw/ Nail: Wood Screw (Included)
