Richelieu WEBKIT1249709 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249709 kits AVENTOS HS top -Canad offers a compact and functional solution for large doors, specifically designed for single-piece facades. This innovative system ensures smooth and effortless opening, allowing the door to tilt gently above the cabinet, creating a weightless sensation and optimal freedom of movement. Ideal for cabinet heights ranging from 350 to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), the AVENTOS HS top provides minimal resistance forces and a continuous stop for enhanced usability. The integrated BLUMOTION damper adjustment further contributes to its seamless operation, while the tool-free assembly and two types of force reservoir mounting simplify installation. With a minimum internal depth requirement of 264 mm (10 3/8 in), this system maximizes storage capacity without encroaching on workspace, thanks to its exterior opening movement. The symmetrical force reservoirs and arms ensure stability and balance, while the 3-dimensional face adjustment allows for precise alignment. For thin facades, the compatible 20S42T1 front attachment is recommended. Elevate your cabinetry with the Richelieu AVENTOS HS top for an ergonomic and space-efficient design.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

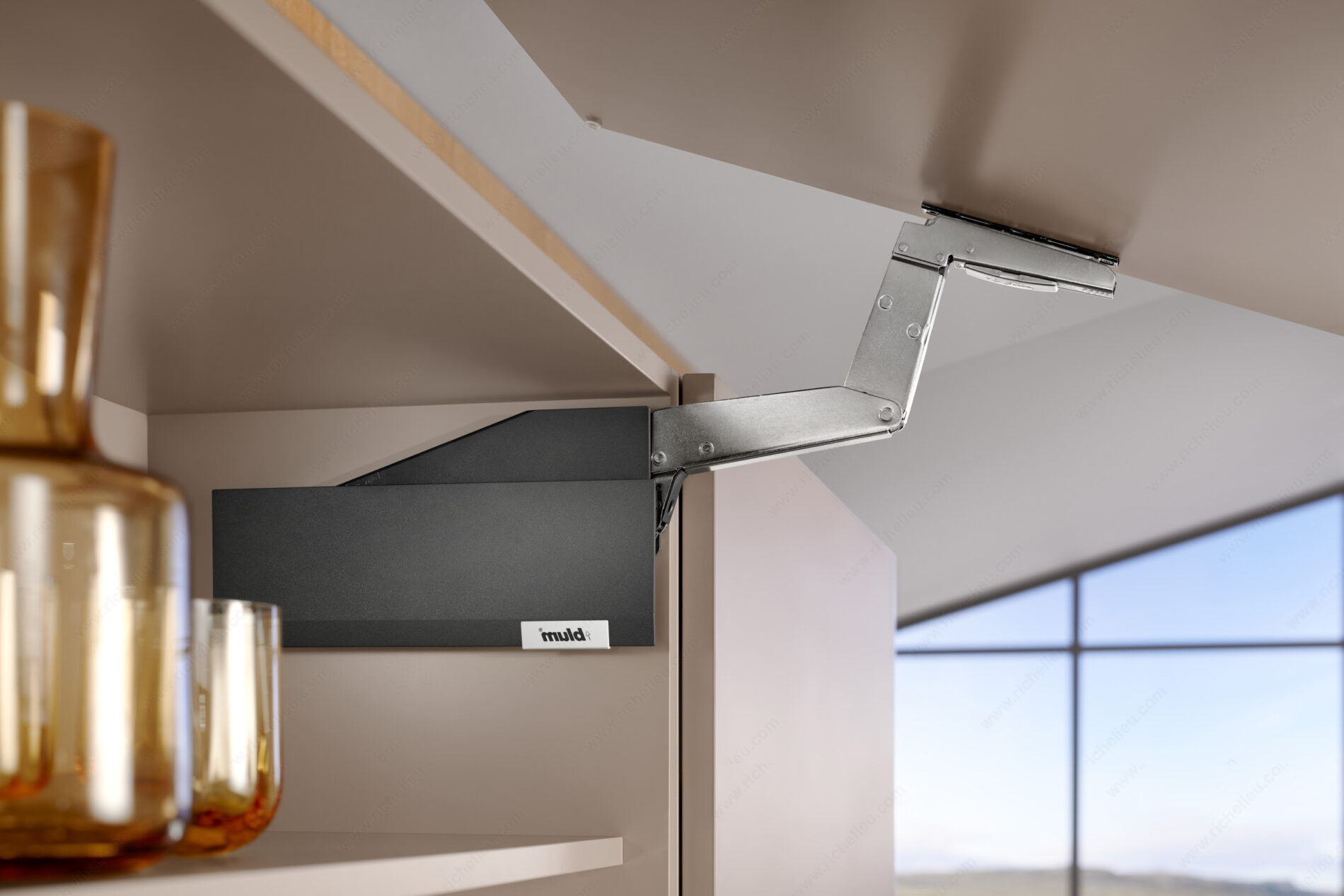

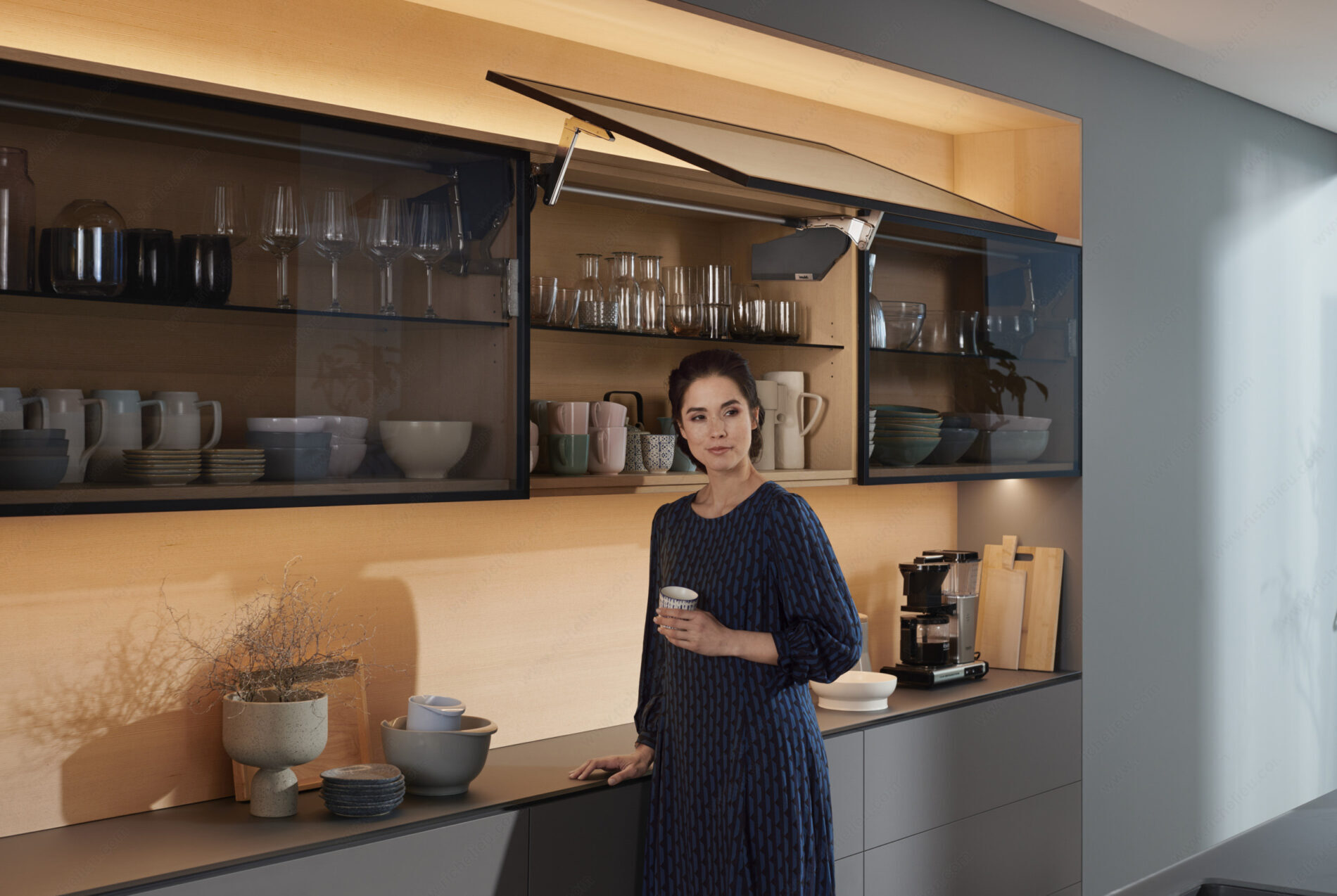

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 17 3/4 to 21 1/4 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 5.51 to 27.6 lb*
Finish: Dark Gray
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249709
Screw/ Nail: Wood Screw (Included)
