Richelieu WEBKIT1249714 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249714 kits AVENTOS HS top -Canad offers a compact and functional solution designed specifically for large, single-piece facades. This innovative system ensures a smooth and effortless opening, allowing the door to tilt gracefully above the cabinet, creating a weightless sensation that enhances user experience and accessibility. Ideal for cabinet heights ranging from 350 mm to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), the AVENTOS HS top accommodates a variety of design needs. It requires a minimum interior depth of 264 mm (10 3/8 in) and supports doors weighing between 6.06 to 33.6 lb. The integrated BLUMOTION damper adjustment ensures minimal resistance forces, while the continuous stop feature provides stability during operation. Tool-free assembly simplifies installation, and the system offers two types of force reservoir mounting along with 3-dimensional face adjustment for precise alignment. With no cross stabilizer needed, this solution maximizes storage capacity and integrates seamlessly into modern designs, enhancing both aesthetics and ergonomics. For thin facades, consider pairing with the 20S42T1 front attachment, available among suggested products. Elevate your cabinetry with Richelieu's AVENTOS HS top for a refined and functional space.
kits AVENTOS HS top -Canad -

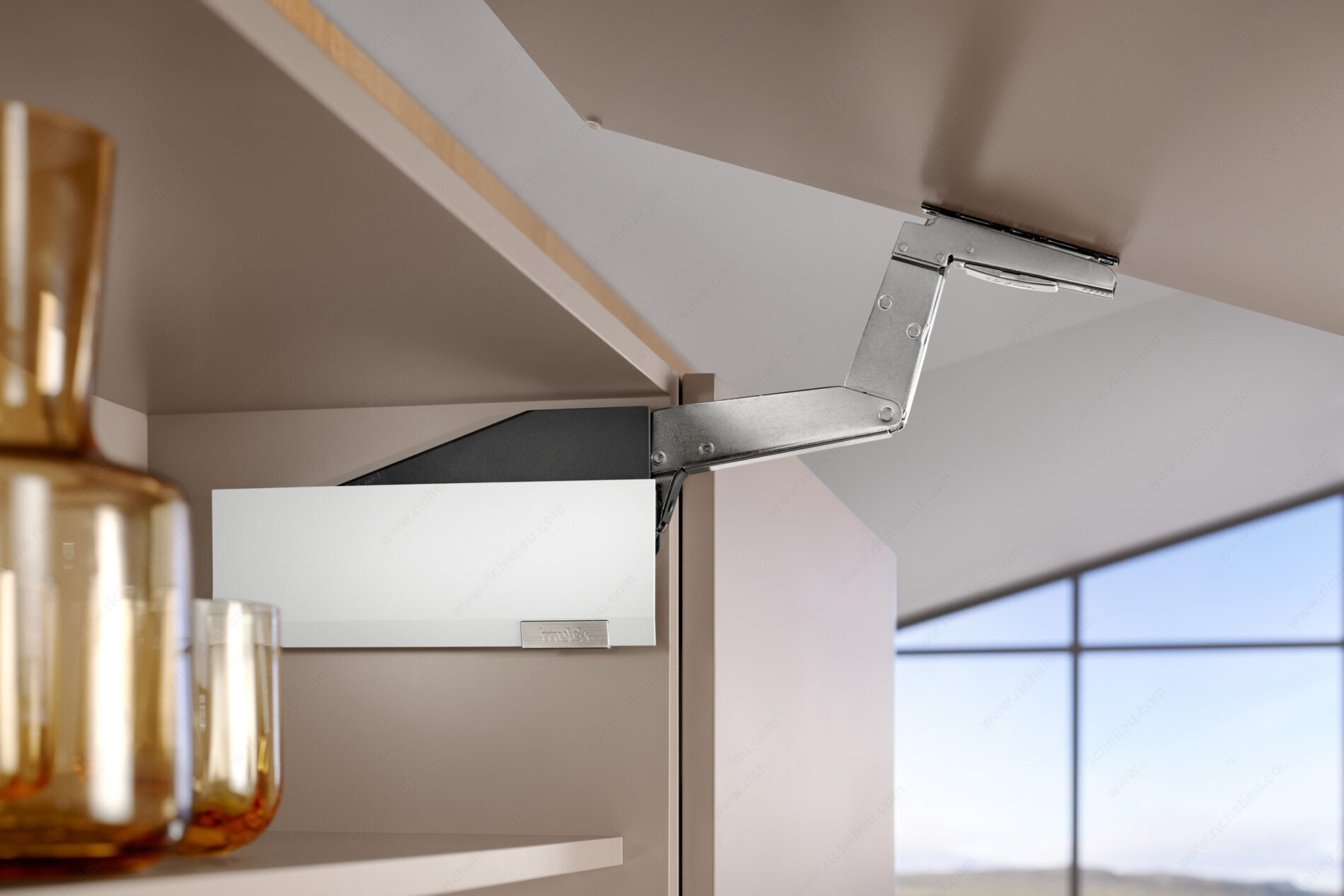

A compact and functional solution for large doors
Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 18 7/8 to 26 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 6.06 to 33.6 lb*
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249714
Screw/ Nail: Wood Screw (Included)
