Richelieu WEBKIT1249734 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249734 kits AVENTOS HS top -Canad offers a compact and functional solution tailored for large, single-piece facades. This innovative system ensures a smooth and effortless opening of doors, tilting gently above the cabinet to provide a weightless sensation and unmatched freedom of movement. Designed for cabinet heights ranging from 350 to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), the AVENTOS HS top accommodates various configurations while maximizing storage capacity. With a minimum interior depth of 264 mm (10 3/8 in), it integrates seamlessly into your designs, enhancing both functionality and aesthetics. The integrated BLUMOTION damper adjustment guarantees minimal resistance forces and a continuous stop, allowing for smooth operation. Tool-free assembly and two types of force reservoir mounting simplify installation, while the 3-dimensional face adjustment ensures a precise fit. Thanks to its design, which opens outside the movement range, access to the cabinet interior is unobstructed, preserving valuable workspace. For projects that feature thin facades, the use of the 20S42T1 front attachment is recommended for optimal results. Upgrade your cabinetry with Richelieu’s AVENTOS HS top for a refined blend of utility and elegance.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

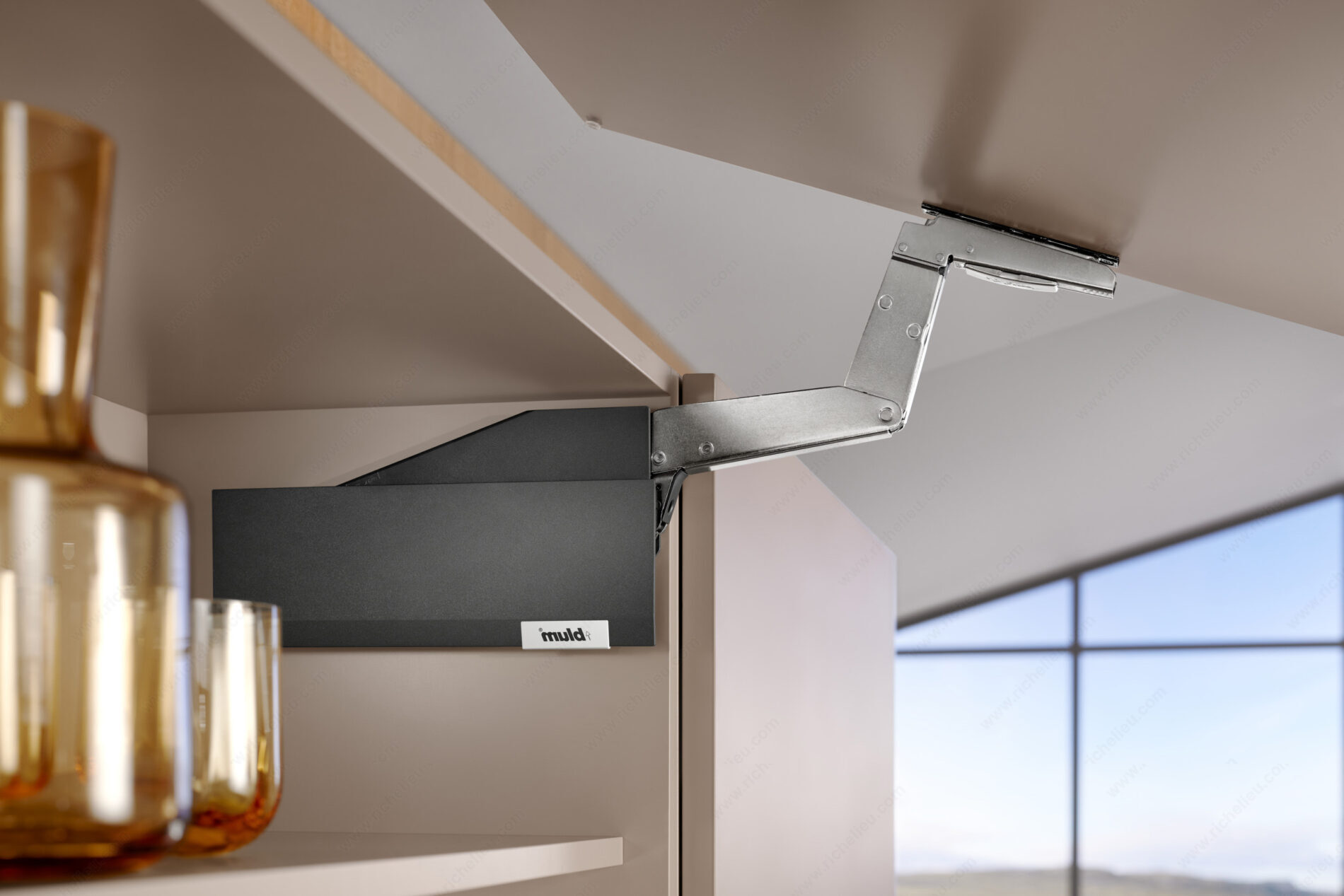

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment

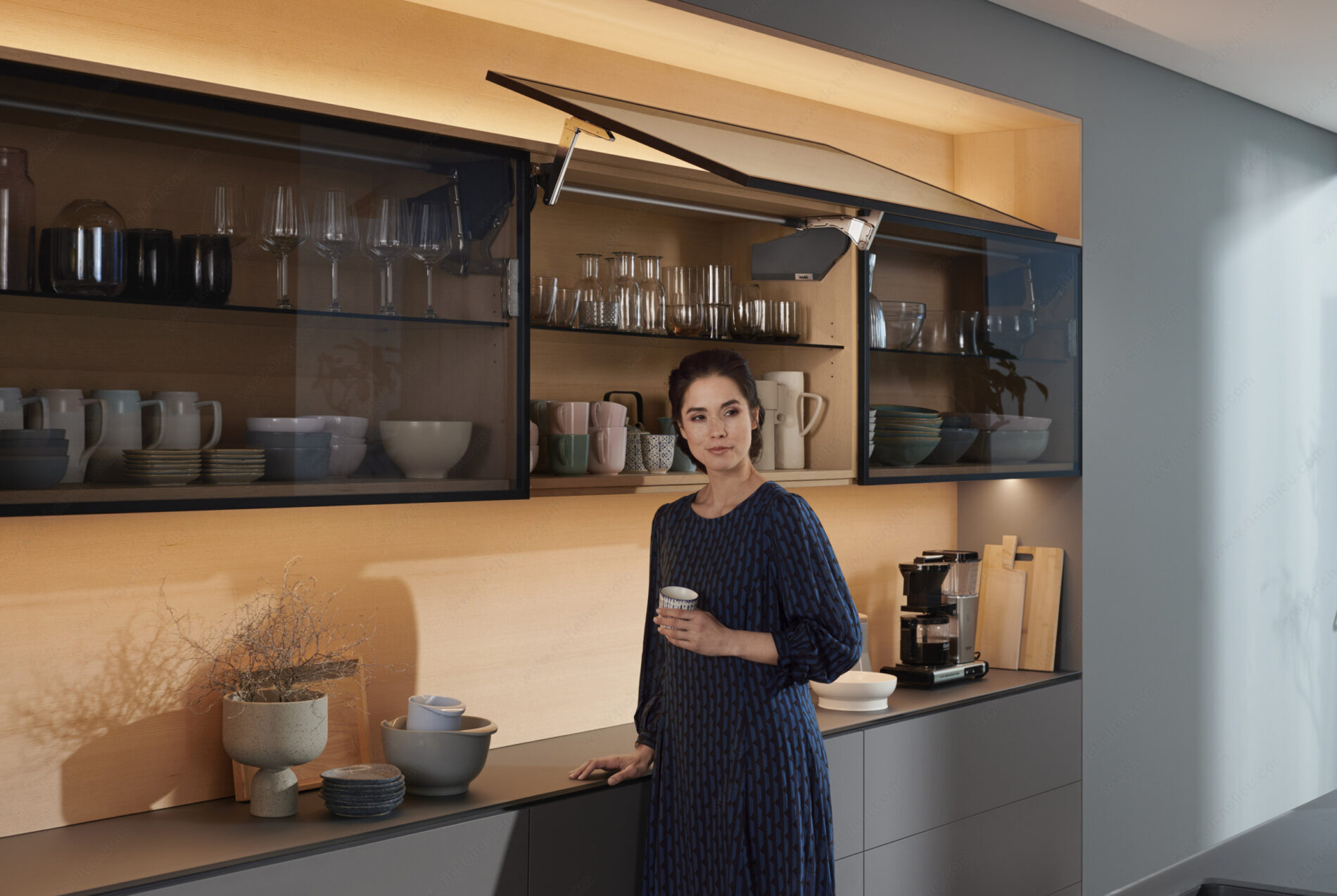

Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 18 7/8 to 26 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 6.06 to 33.6 lb*
Finish: Dark Gray
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249734
Screw/ Nail: Pre-Mounted Euro Screw
