Richelieu WEBKIT1249738 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249738 kits AVENTOS HS top offers a compact and functional solution for large, single-piece facades, ensuring smooth and effortless operation. Designed specifically for cabinet heights ranging from 350 mm to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), this system allows for a remarkable weightless sensation as the door tilts gently above the cabinet. One of the standout features of the AVENTOS HS top is its integrated BLUMOTION damper adjustment, providing minimal resistance forces and continuous stop capability. This system is engineered for tool-free assembly, simplifying installation with two types of force reservoir mounting options. The symmetrical force reservoirs and arms ensure balanced operation, while the 3-dimensional face adjustment allows for precise alignment. With its unique opening mechanism that does not encroach on workspace, this system maximizes storage capacity and integrates seamlessly into various designs. Additionally, for applications requiring thin facades, the compatible 20S42T1 front attachment is available among suggested products. Ideal for narrow aluminum-framed doors, the AVENTOS HS top is a reliable choice for modern cabinetry solutions, accommodating door weights from 6.06 to 33.6 lb.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors
Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment

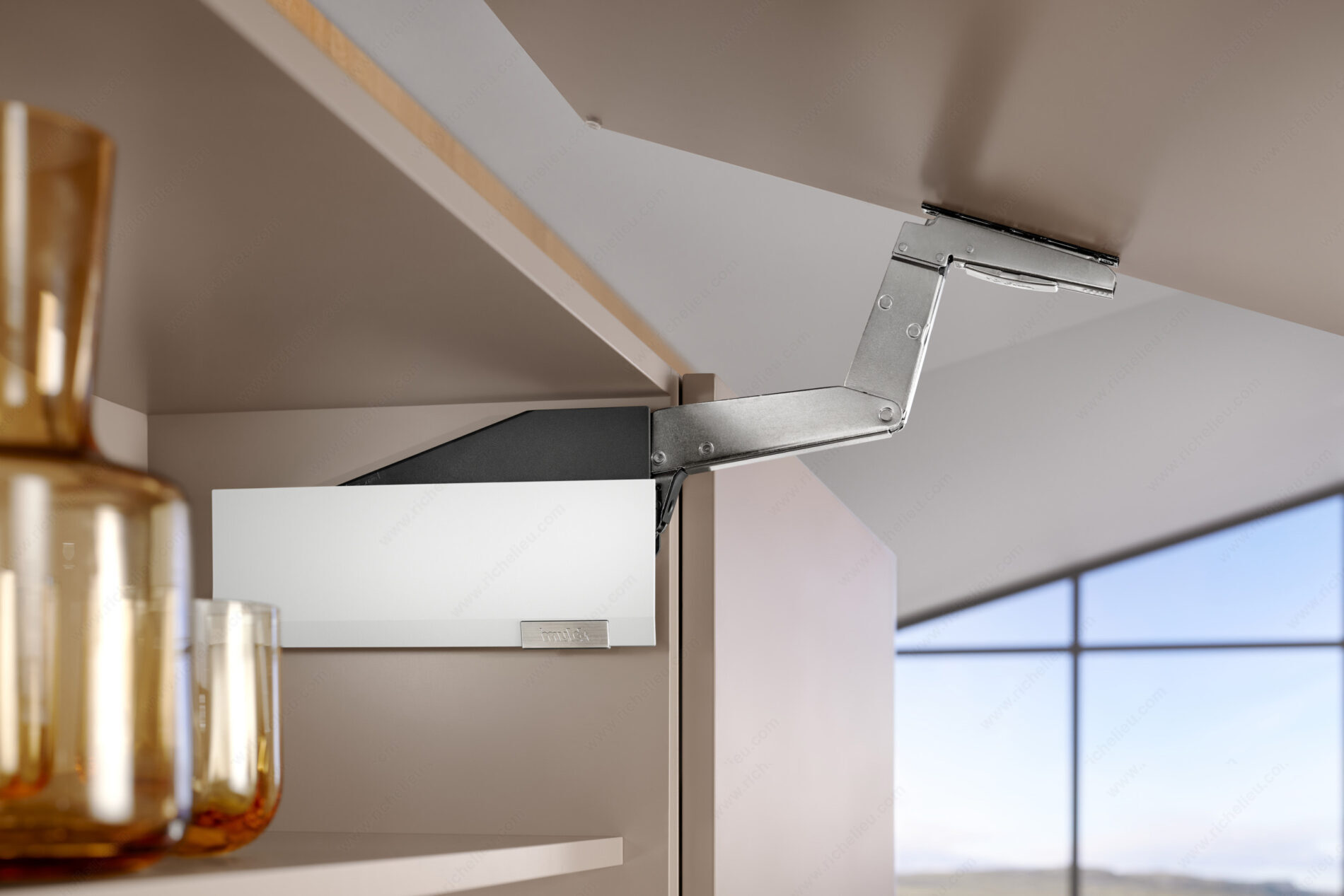

- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 18 7/8 to 26 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 6.06 to 33.6 lb*
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249738
Screw/ Nail: Pre-Mounted Euro Screw
