Richelieu WEBKIT1249739 AVENTOS HS Top Kit - CanadaRichelieu WEBKIT1249739 kits AVENTOS HS top -Canad offers a compact and functional solution for handling large, single-piece facades. Designed to enhance accessibility, this system allows doors to tilt gently above the cabinet, delivering a weightless opening experience that promotes unparalleled freedom of movement. Ideal for cabinet heights ranging from 350 to 800 mm (13 3/4 in - 31 1/2 in) and widths up to 1,800 mm (70 7/8 in), the AVENTOS HS top accommodates substantial door weights between 7.72 to 40.8 lb, making it a versatile choice for various applications. The integrated BLUMOTION damper ensures smooth operation with minimal resistance forces, while the continuous stop feature allows for precise positioning. Tool-free assembly and two types of force reservoir mounting simplify installation, and the 3-dimensional face adjustment adds to the system's flexibility. With a minimum internal depth of 264 mm (10 3/8 in), this system maximizes storage capacity without a cross stabilizer, seamlessly integrating into your design for optimized space and ergonomic control. For particularly thin facades, consider the 20S42T1 front attachment, available among the suggested products. The AVENTOS HS top is a perfect blend of functionality and stylish design.
kits AVENTOS HS top -Canad -
A compact and functional solution for large doors

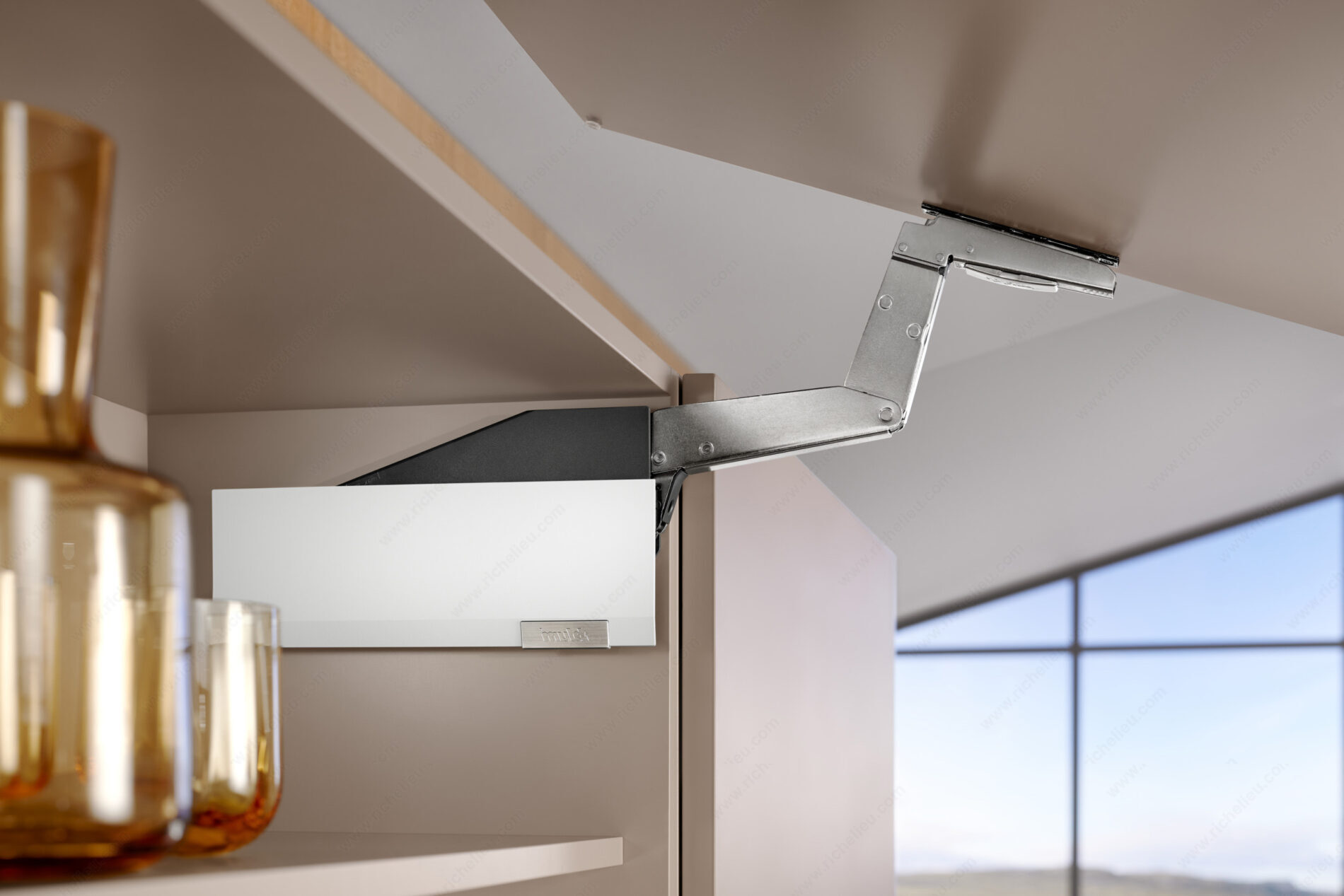

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large single-piece facades
- Cabinet height from 350 to 800 mm (13 3/4 in - 31 1/2 in)
- Cabinet width up to 1,800 mm (70 7/8 in)
- Minimum interior depth of cabinet body: 264 mm (10 3/8 in)
- Integrated BLUMOTION damper adjustment
- Minimal resistance forces
- Continuous stop
- Fixed position for the force reservoir and front attachment
- Symmetrical force reservoirs and arms
- Tool-free assembly
- Two types of force reservoir mounting
- 3-dimensional face adjustment
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Compatible with aluminum frame doors: Yes
Door Height: 25 5/8 to 31 1/2 in*
Door Length: Max. 70 7/8 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 7.72 to 40.8 lb*
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Model: Aventos HS Top
Opening Types: Up and Over Opening
Product #: WEBKIT1249739
Screw/ Nail: Pre-Mounted Euro Screw
