Richelieu WEBKIT1249750 AVENTOS HS Top Kit - USARichelieu WEBKIT1249750 kits AVENTOS HS top -USA - offer a compact and functional solution for large doors, designed specifically for single-piece facades. This innovative system ensures smooth, effortless opening, allowing the door to tilt gently above the cabinet, providing a weightless sensation and exceptional freedom of movement. The AVENTOS HS top is ideal for large, one-part doors with cabinet heights ranging from 350 mm (13-3/4 in) to 800 mm (31-1/2 in) and widths up to 1828 mm (72 in), accommodating a minimum internal depth of 264 mm (10-3/8 in). Featuring integrated BLUMOTION technology, it allows for soft and effortless closing, while light operating forces enhance usability. The system includes a variable stop, symmetrical levers, and tool-free assembly for convenient installation. With two lift mechanism fixing methods and 3-dimensional door adjustment, this system maximizes storage capacity without a cross stabilizer, seamlessly integrating into designs for optimized space and controlled ergonomics. To complement thin facades, the 20S42T1 front attachment is available as a suggested product. Elevate your cabinetry with the Richelieu AVENTOS HS top and experience the perfect blend of functionality and design.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors

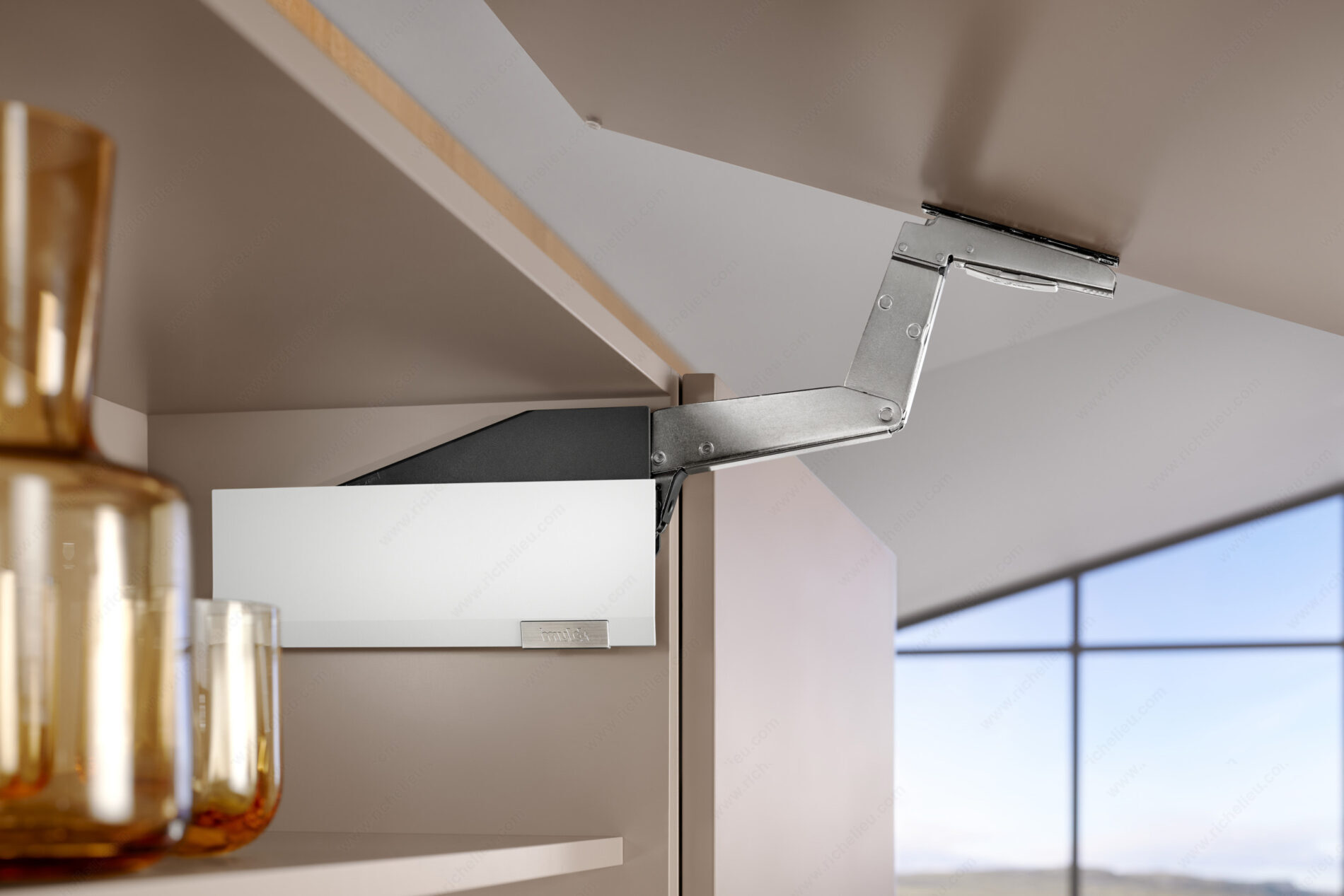

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 18 7/8 to 25 7/8 in
Door Length: Max. 72 in*
Door Type: Wood Door / Wide Aluminum-Framed Door
Door Weight: 6.06 to 33.63 lb
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249750
Screw/ Nail: Wood Screw (Included)
