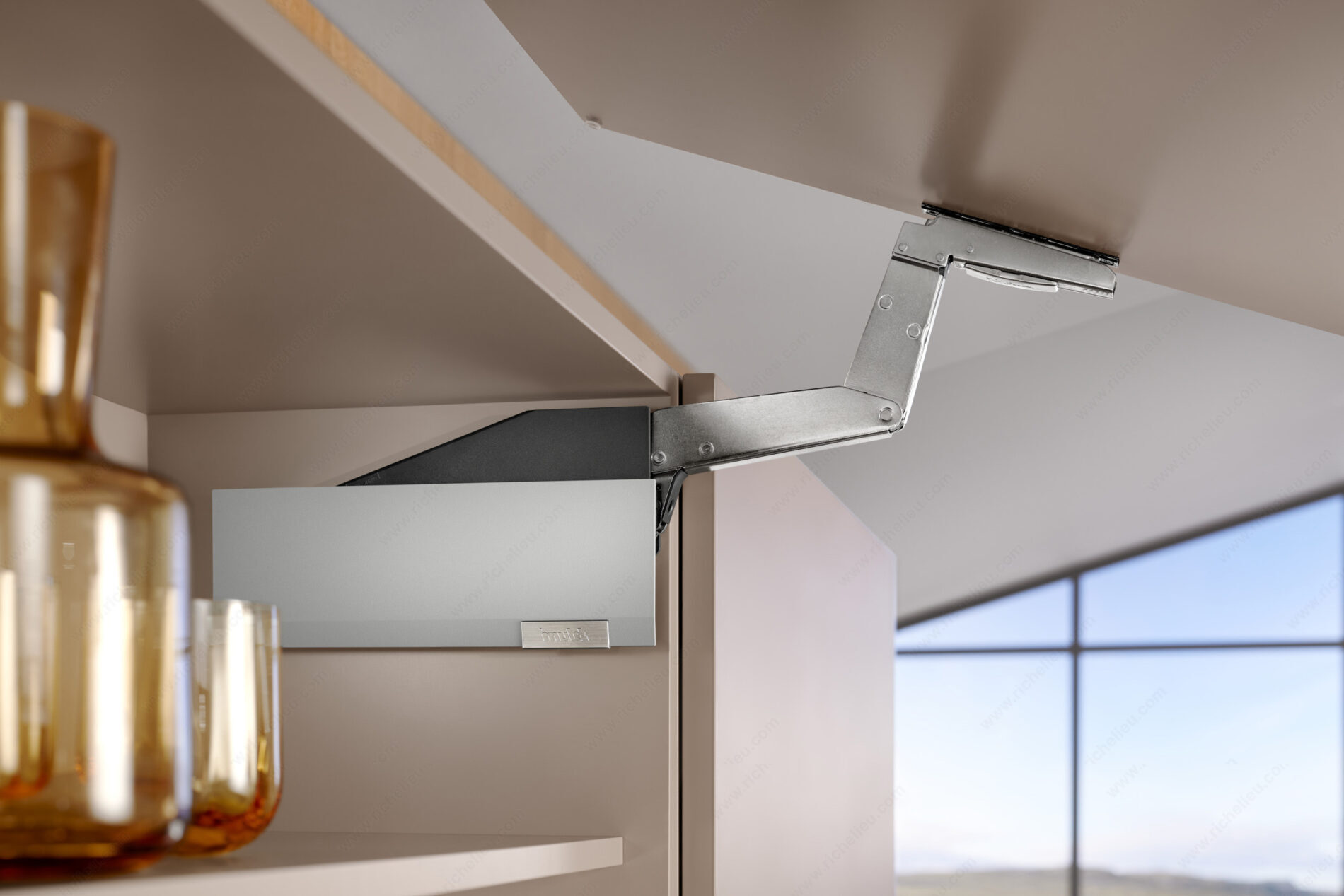

Richelieu WEBKIT1249753 AVENTOS HS Top Kit - USARichelieu WEBKIT1249753 kits AVENTOS HS top -USA - offers a compact and functional solution tailored for large, single-piece facades. This innovative system ensures smooth and effortless door operation, allowing the door to tilt gently above the cabinet. This design provides a weightless sensation and freedom of movement that enhances user experience. Ideal for cabinet heights ranging from 350 mm (13-3/4 in) to 800 mm (31-1/2 in) and widths up to 1828 mm (72 in), the AVENTOS HS top accommodates various configurations. With an inside depth requirement of at least 264 mm (10-3/8 in), it also integrates the BLUMOTION feature for soft and effortless closing. The system boasts light operating forces, a variable stop, and a fixed position for the lift mechanism and door mounting plate for added convenience. Designed without a cross stabilizer, the AVENTOS HS maximizes storage capacity while maintaining a seamless integration into your design, optimizing space and ergonomics. For thin facades, pairing with the 20S42T1 front attachment is recommended. Assembly is tool-free, and the lift mechanism allows for 3-dimensional adjustment, making it an excellent choice for modern cabinetry.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors
Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 17 5/8 to 21 1/4 in
Door Length: Max. 72 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 5.5 to 27.56 lb
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249753
Screw/ Nail: Wood Screw (Included)
