Richelieu WEBKIT1249755 AVENTOS HS Top Kit - USARichelieu WEBKIT1249755 kits AVENTOS HS top -USA - offers a compact and functional solution for large doors, making it the perfect choice for single-piece facades. Designed to accommodate cabinet heights ranging from 350 mm (13-3/4 in) to 800 mm (31-1/2 in) and widths up to 1828 mm (72 in), this innovative system provides effortless opening with a gentle tilt that gives a weightless sensation during use. The integrated BLUMOTION feature ensures a soft and quiet closing action, while the light operating forces enhance user experience. With variable stops and a fixed position for both the lift mechanism and door mounting plate, adjusting to your needs is straightforward. The symmetrical levers and tool-free assembly simplify installation, and there are two fixing methods for the lift mechanism, allowing versatility in application. This system maximizes storage capacity without relying on a cross stabilizer, seamlessly integrating into your design for optimized space and controlled ergonomics. For narrow aluminum-framed doors (20 mm or less), the recommended 20S42T1 front attachment enhances functionality. With a finish in pale grey, the AVENTOS HS top not only performs well but also complements contemporary aesthetics beautifully.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors

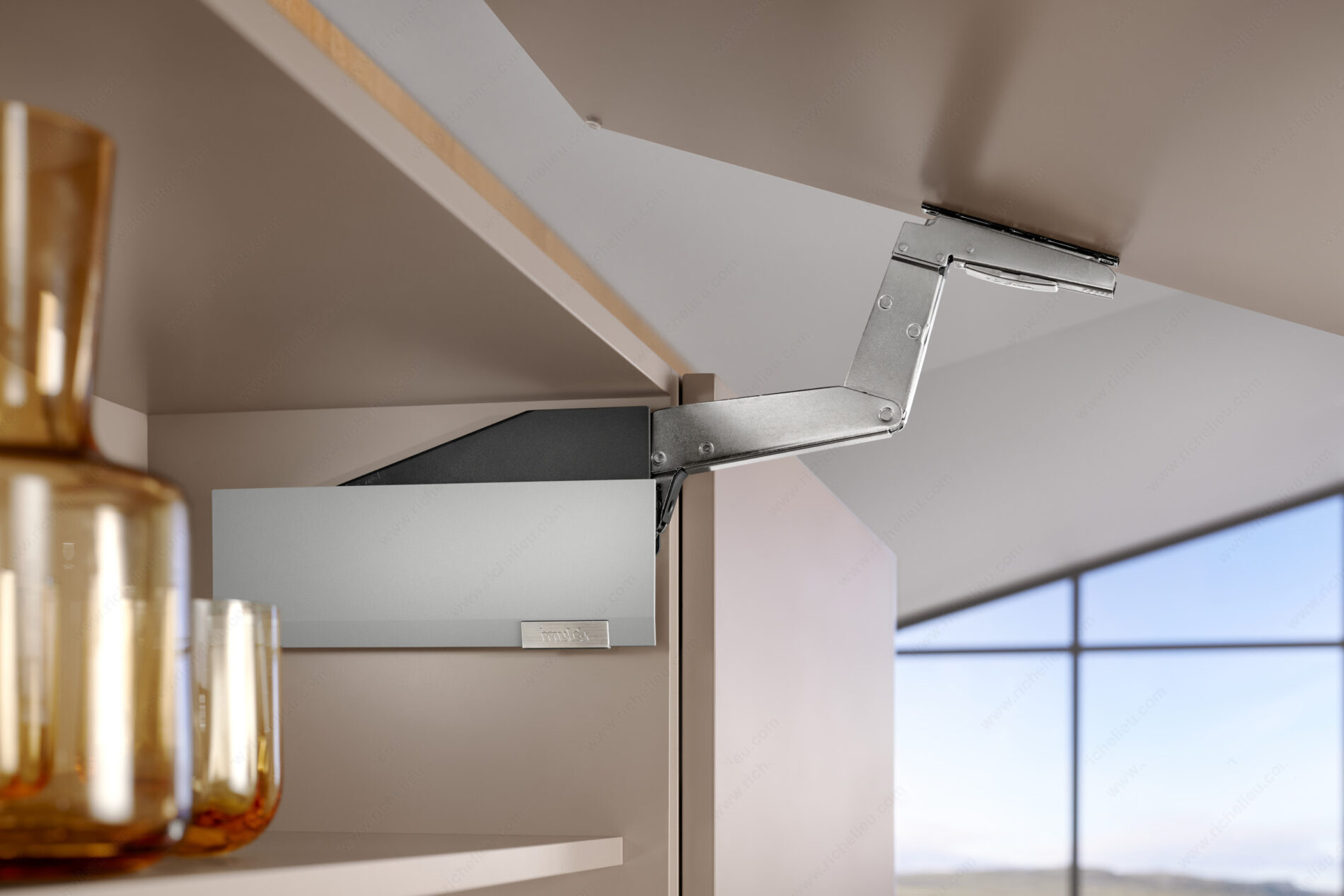

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 25 1/2 to 31 3/8 in
Door Length: Max. 72 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 7.69 to 40.81 lb
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249755
Screw/ Nail: Wood Screw (Included)
