Richelieu WEBKIT1249778 AVENTOS HS Top Kit - USARichelieu WEBKIT1249778 kits AVENTOS HS top -USA - offers a compact and functional solution for large, single-piece doors, ensuring a smooth and effortless opening experience. This innovative system allows the door to tilt gracefully above the cabinet, providing a weightless sensation and unmatched freedom of movement. Designed for cabinets with heights ranging from 350 mm (13-3/4 in) to 800 mm (31-1/2 in) and widths up to 1828 mm (72 in), this product is perfect for narrow aluminum-framed doors. The AVENTOS HS top features integrated BLUMOTION technology for soft and effortless closing, along with light operating forces that enhance usability. Its variable stop and fixed positions for the lift mechanism and door mounting plate ensure reliable performance, while the symmetrical levers and tool-free assembly simplify installation. With an internal depth requirement of just 264 mm (10-3/8 in), this system maximizes storage capacity without compromising workspace. The door opens outside of the movement range, providing complete access to the interior. For thin facades, consider the 20S42T1 front attachment for optimal integration. Elevate your cabinet design with Richelieu’s AVENTOS HS top, where functionality meets elegance.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors

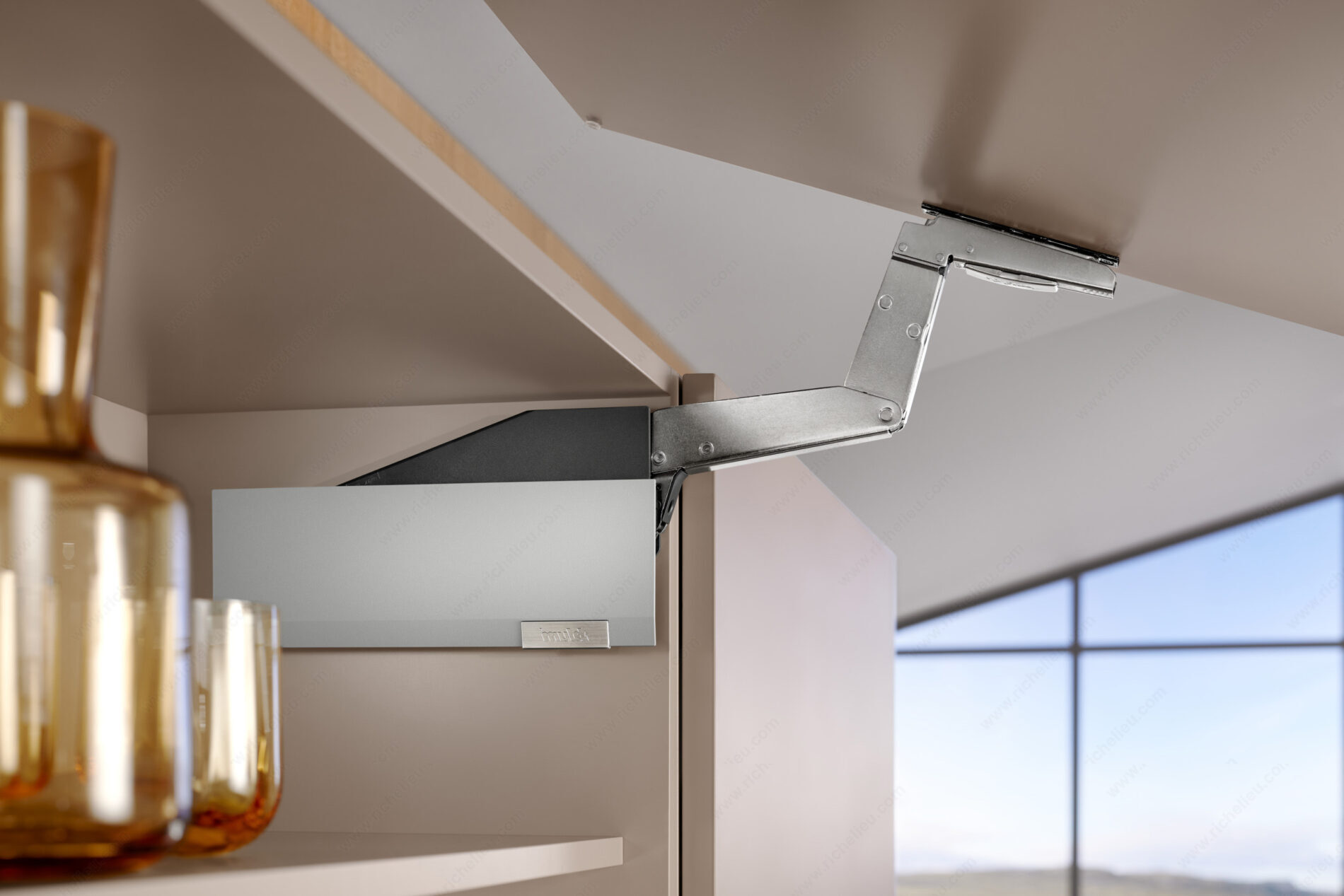

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 18 7/8 to 25 7/8 in
Door Length: Max. 72 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 6.06 to 33.63 lb
Finish: Pale Grey
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249778
Screw/ Nail: Pre-Mounted Euro Screw
