Richelieu WEBKIT1249786 AVENTOS HS Top Kit - USARichelieu WEBKIT1249786 kits AVENTOS HS top -USA - offers a compact and functional solution tailored for large, single-piece facades. This innovative system allows for smooth and effortless opening, as the door tilts gently above the cabinet, providing a weightless sensation and exceptional freedom of movement. Ideal for doors measuring between 18 7/8 to 25 7/8 inches in height and up to 72 inches in length, it accommodates varying cabinet sizes with ease. Designed for cabinets with a height between 350 mm (13-3/4 in) and 800 mm (31-1/2 in) and a minimum internal depth of 264 mm (10-3/8 in), the AVENTOS HS top includes integrated BLUMOTION for soft and effortless closing, ensuring a quiet and seamless experience. Its light operating forces and variable stop enhance usability, while the fixed position of the lift mechanism and door mounting plate adds stability. With tool-free assembly and two fixing methods for the lift mechanism, installation is straightforward. The symmetrical levers and 3-dimensional adjustment of the door further promote precision. The design maximizes storage capacity without a cross stabilizer, making it perfect for optimizing space and ergonomics in modern cabinetry. For thinner facades, consider the compatible 20S42T1 front attachment.
kits AVENTOS HS top -USA -
A compact and functional solution for large doors

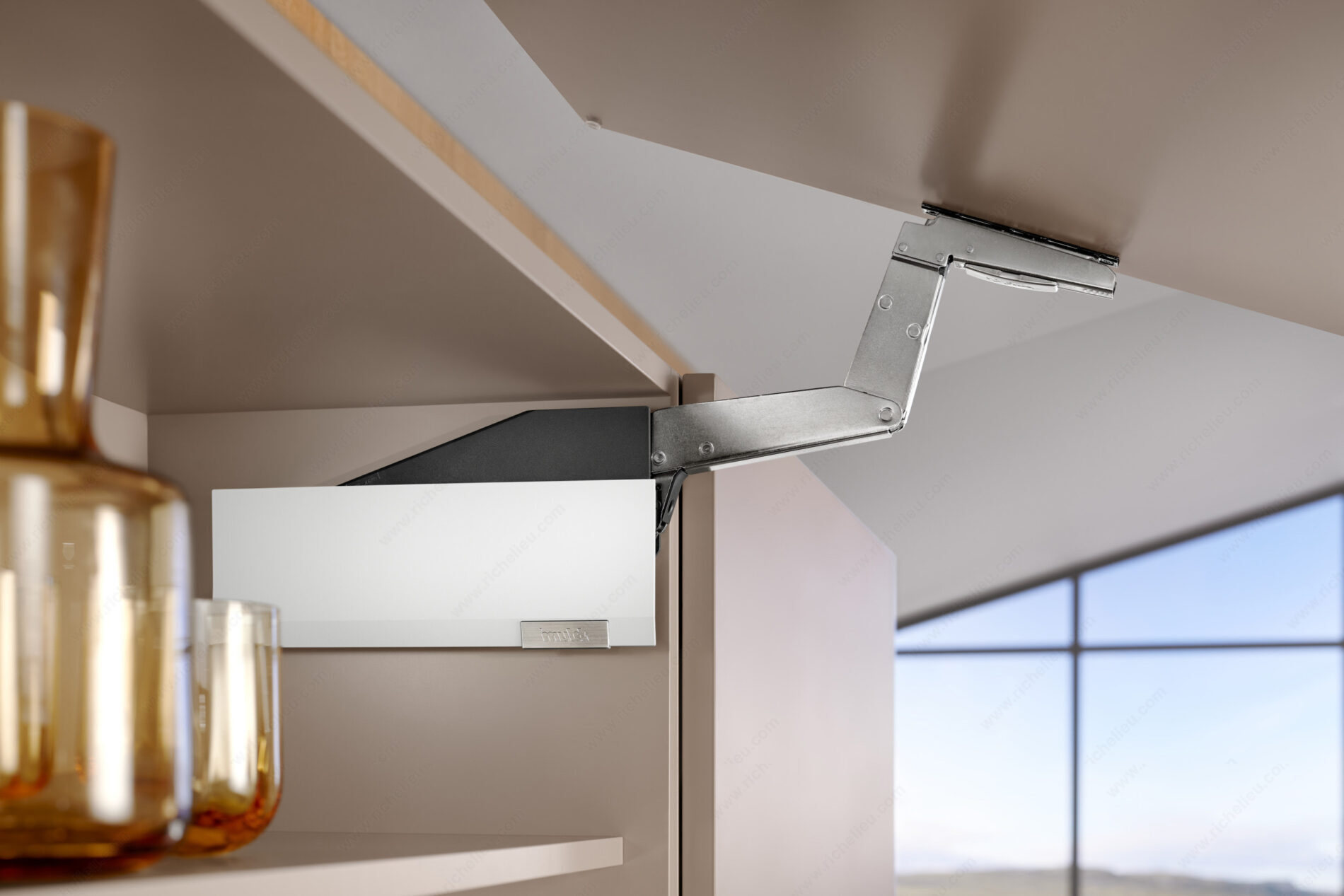

Designed for large, single-piece facades, AVENTOS HS top ensures smooth and effortless opening. The door tilts gently above the cabinet, offering a weightless sensation and unparalleled freedom of movement.
Product highlights:
- Ideal for large, one-part doors
- Cabinet height 350 (13-3/4 in) to 800 (31-1/2 in)
- Cabinet width up to 1828 (72 in)
- Inside depth of at least 264 (10-3/8 in)
- Integrated BLUMOTION for soft and effortless closing
- Light operating forces
- Variable stop
- Fixed position of the lift mechanism and door mounting plate
- Symmetrical levers
- Tool-free assembly
- Two lift mechanism fixing methods
- 3-dimensional adjustment of the door
Thanks to its opening outside of the movement range, access to the interior is complete, without encroaching on workspace. Without a cross stabilizer, it maximizes storage capacity while seamlessly integrating into designs for optimized space and controlled ergonomics.
For thin facades, use the 20S42T1 front attachment, which can be found among the suggested products.
Attributes
Brand: Blum
Door Height: 18 7/8 to 25 7/8 in
Door Length: Max. 72 in*
Door Type: Narrow Aluminum-Framed Door (20 mm and Less)
Door Weight: 6.06 to 33.63 lb
Finish: Silk White
Minimum internal depth of the enclosure: Min. 10 3/8 in*
Opening Types: Up and Over Opening
Product #: WEBKIT1249786
Screw/ Nail: Pre-Mounted Euro Screw
