Richelieu WEBKIT1257074 HAWA JUNIOR 100B System

Richelieu WEBKIT1257074 HAWA JUNIOR 100B System

Richelieu WEBKIT1257074 HAWA JUNIOR 100 B System is engineered for sliding wood doors weighing up to 100 kg (220 lb), providing a robust solution for various applications. This top-hung sliding system features a recessed suspension plate, allowing for minimal clearance between the door and track, ensuring a sleek and unobtrusive design. Designed to accommodate door thicknesses ranging from 35 mm to 80 mm (1-3/8" to 3-1/8"), it offers flexibility for various installation requirements. The system includes options for ceiling mount or wall mount configurations, with the ability to add clip-on fascia and end caps for a polished finish. For enhanced functionality, opt for the SoftMove magnetic soft-close mechanism, which operates with a gentle pull force of less than 22 N, ensuring smooth and quiet door movement. Track stoppers with dampers and adjustable retention springs prevent bounce-back, contributing to a seamless experience. This system is ideal for residential, commercial, and institutional projects, including kitchens, offices, and medical clinics. With a factory performance guarantee of 15 years for residential use and 7 years for commercial applications, the Richelieu HAWA JUNIOR 100 B System combines durability with innovative design, making it a reliable choice for any sliding door solution.

HAWA JUNIOR 100 B System

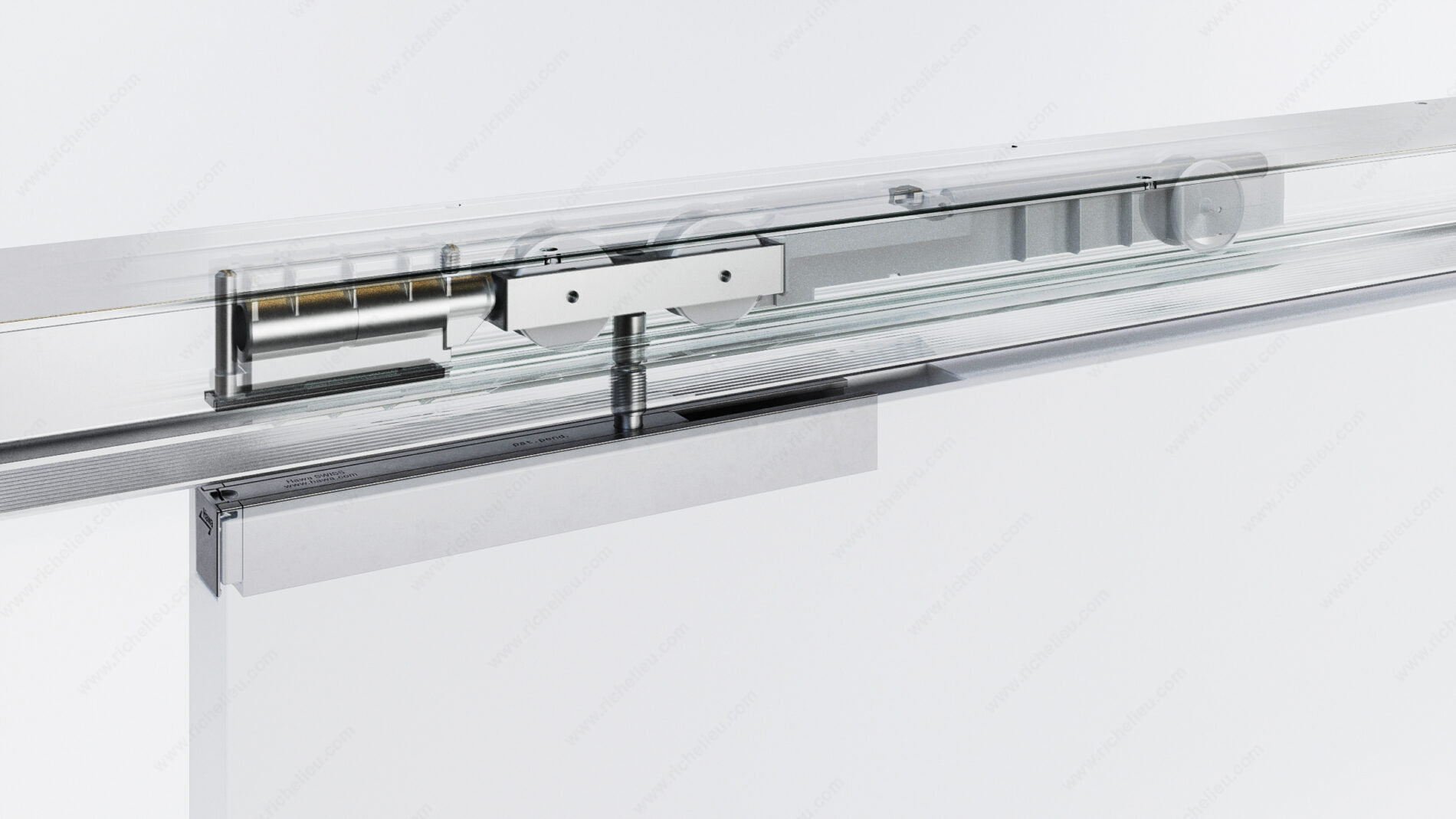

Designed for sliding wood doors weighing up to 100 kg (220 lb) each, the HAWA JUNIOR 100 B System is a top-hung sliding system equipped with a recessed suspension plate mounted to the top of the door for minimal clearance between the door and the track. Opt for the standard hardware set with stoppers or upgrade to the innovative SoftMove magnetic soft-close mechanism with low opening forces of less than 22 N.

Features:
- For a door thickness of 35 mm to 80 mm (1-3/8" to 3-1/8")

Track options:
- Ceiling track for surface and recess mount
- Wall mount with and without spacer; option to add clip-on fascia and end caps that can be trimmed to fit
- Removable track profile for pocket door applications. Door width must be less than the door height

Track stopper with damper and adjustable retention spring resists door bounce-back

SoftMove magnetic soft close mechanism with less than 22 N pull force is available.

Minimum door width: 800 mm (31-1/2 in) for soft close in both directions; can be used for pocket doors.

Covered by a factory performance guarantee of 15 years for private residential use and 7 years for commercial use (reference terms and conditions for more information).

A spring-loaded stopper is available to push open pocket doors.

This is an ideal solution for residential, commercial, and institutional projects. It is suitable for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms, and washrooms.

IMPORTANT: Use metric dimensions for greater accuracy during installation.
A groove must be machined into the bottom of the door for a rattle-free floor guide.
