Richelieu WEBKIT1257100 HAWA JUNIOR 160A SystemRichelieu WEBKIT1257100 HAWA JUNIOR 160 A System is expertly designed to accommodate heavy sliding wood doors weighing up to 160 kg (352 lb). This top-hung sliding system features a robust suspension plate at the top, ensuring smooth operation and reliable performance in various settings, from residential to commercial and institutional projects. The system supports door thicknesses ranging from 35 to 80 mm (1-3/8" to 3-1/8") and is equipped with an anodized upper track that can be either surface mounted or recessed into the ceiling, providing flexibility in installation. For longer lengths, the upper track can be seamlessly joined using connecting pins (8921347140). Enhanced with a track stopper featuring a damper and adjustable retention spring, it minimizes door bounce-back, ensuring a safe and quiet operation. Designed for biparting door movement, the system accommodates door heights from 70 7/8 to 157 inches and widths from 47 1/4 to 118 inches. A groove must be machined into the bottom of the door for a rattle-free floor guide, with specific groove dimensions of 1 3/32 inches in depth and 21/32 inches in width. For optimal accuracy during installation, it's essential to use metric measurements. The Richelieu HAWA JUNIOR 160 A System is the ideal choice for those seeking a durable and stylish sliding door solution.
HAWA JUNIOR 160 A System

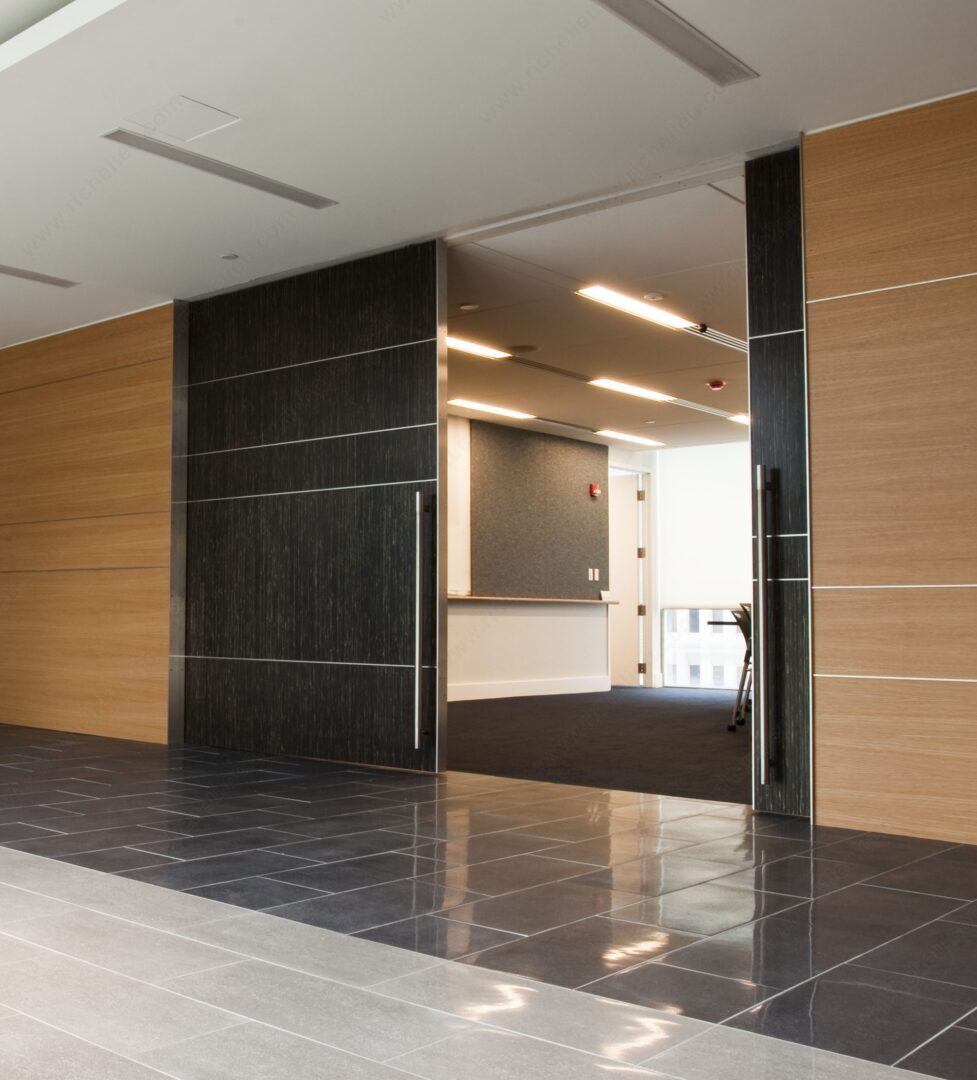

Designed for heavy sliding wood doors weighing up to 160 kg (352 lb) each, the HAWA JUNIOR 160 A System is a top-hung sliding system equipped with a suspension plate at the top of the door.
Features:
- For door thickness of 35 to 80 mm (1-3/8" to 3-1/8")
- Anodized upper track can be surface mounted or recessed into the ceiling
- Upper track can be joined with connecting pins 8921347140 for long lengths
- Track stopper with damper and adjustable retention spring resists door bounce-back
This is an ideal solution for residential, commercial, and institutional projects.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
A groove must be machined into the bottom of the door for a rattle-free floor guide.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Application: Sliding Wall, Standard Access Door
Detailed Door Movement: Biparting
Door Height: 70 7/8 to 157 in*
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 9/16 to 3 5/32 in*
Door Width: 47 1/4 to 118 in*
Groove Depth: 1 3/32 in*
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 21/32 in*
Load Capacity: 265 to 353 lb*
Number of Doors: 2
Overall Length: 19 ft 8 in*
Product #: WEBKIT1257100
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Track Mounting: Ceiling Mount
Track type: Box Track
