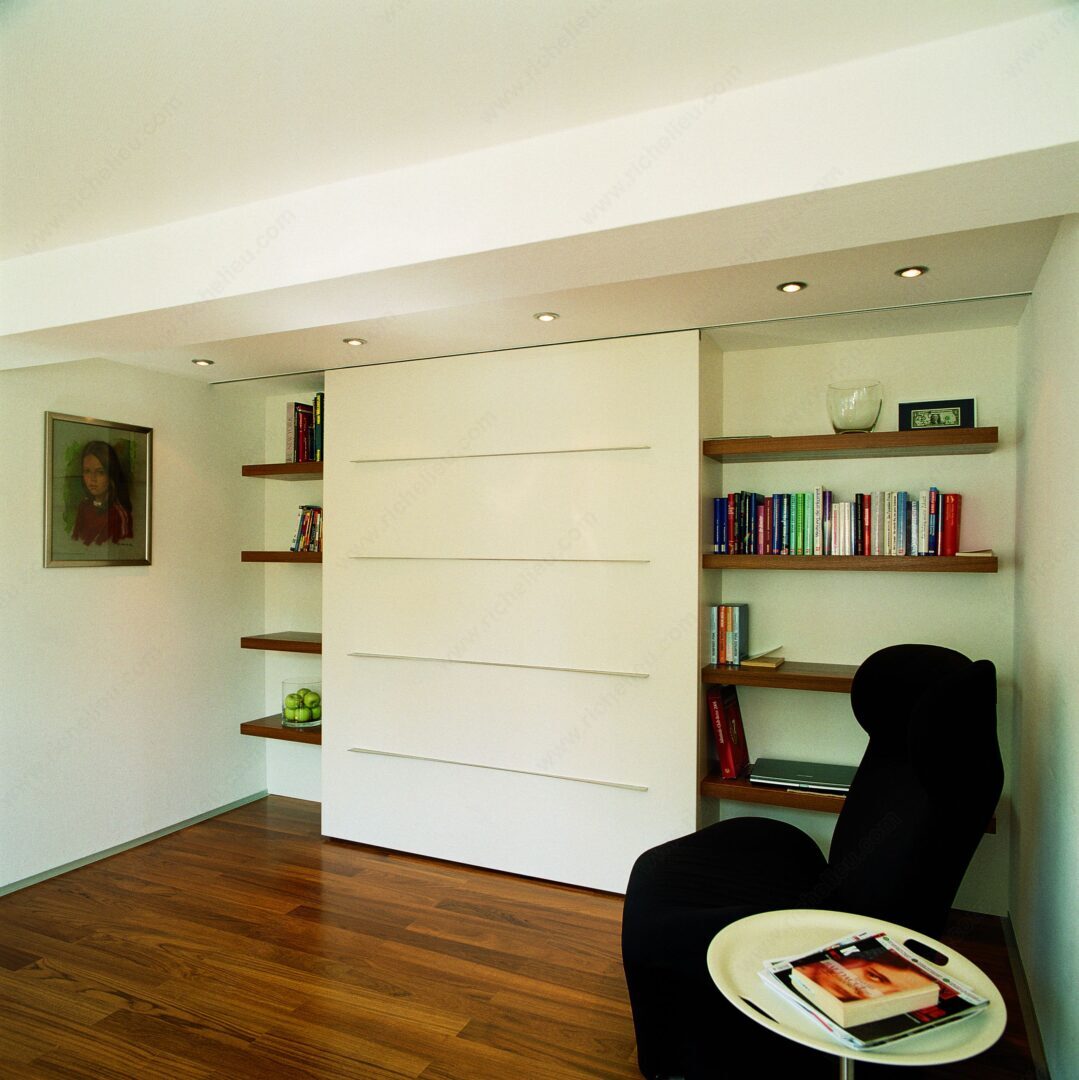

Richelieu WEBKIT1257122 HAWA JUNIOR 40Z System InstructionsRichelieu WEBKIT1257122 HAWA JUNIOR 40 Z System is expertly designed for sliding wood doors weighing up to 40 kg (88 lb) each, making it an ideal choice for a variety of settings, including residential, commercial, and institutional projects. This suspended sliding system features a two-way suspension plate at the top of the door, ensuring smooth operation. The system accommodates door thicknesses ranging from 35 to 80 mm (1-3/8" to 3-1/8") and offers a clear anodized upper track for a sleek appearance. For enhanced functionality, choose the standard hardware set with stoppers, or upgrade to the robust soft-close mechanism, which is particularly suited for commercial applications. With a minimum door width of 830 mm (32-5/8 in) for soft close in both directions, this system is versatile enough for kitchens, offices, medical clinics, bedrooms, and more. Important installation notes include using metric dimensions for accuracy and machining a groove in the bottom of the door for a rattle-free floor guide. For doors wider than 1500 mm (59 in), a floor guide is recommended for added stability. Designed for top-hung installation, the HAWA JUNIOR 40 Z System is a reliable choice that combines practicality and elegance.
HAWA JUNIOR 40 Z System
Designed for sliding wood doors weighing up to 40 kg (88 lb) each, the HAWA JUNIOR 40 Z System is a suspended sliding system equipped with a two-way suspension plate at the top of the door. Opt for the standard hardware set with stoppers or upgrade to the robust soft-close mechanism.
Features:
- For door thickness of 35 to 80 mm (1-3/8" to 3-1/8")
- Clear anodized upper track
- Track stopper with adjustable retention spring resists door bounce-back.
- Robust soft close mechanism for commercial applications.
Minimum door width: 830 mm (32-5/8 in) for soft close in both directions.
This is an ideal solution for residential, commercial, and institutional projects. It is suitable for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms, and washrooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
A groove must be machined into the bottom of the door for a rattle-free floor guide.
For door width greater than 1500 mm (59 in), add a floor guide for greater stability.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable: Yes
Detailed Door Movement: Biparting
Door Height: 11 3/4 to 35 3/8 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 2 3/8 in*
Door Width: 32 5/8 to 39 3/8 in*
Groove Depth: 25/32 in*
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 15/32 in*
Load Capacity: 33.1 to 88.2 lb*
Overall Length: 13 ft 1 in*
Product #: WEBKIT1257122
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Stopper: Two
Track Mounting: Ceiling Mount
