Richelieu WEBKIT1257126 HAWA JUNIOR 80Z Sliding SystemRichelieu WEBKIT1257126 HAWA JUNIOR 80 Z System offers a sophisticated solution for sliding wood doors weighing up to 80 kg (176 lb). This top-hung system features a two-way suspension plate, ensuring smooth and reliable operation. Designed for door thicknesses ranging from 35 to 80 mm (1-3/8" to 3-1/8"), it caters to various applications, including residential, commercial, and institutional environments. Choose between a standard hardware set with stoppers or enhance functionality with the robust soft-close mechanism, ideal for high-traffic areas. The system supports multiple track options, including a standard ceiling track for surface and recessed mounting, as well as a removable profile for pocket door applications. A track stopper with a damper and adjustable retention spring effectively reduces door bounce-back, ensuring a seamless user experience. For optimal performance, a groove must be machined into the door's bottom for a rattle-free floor guide, and for wider doors exceeding 1500 mm (59 in), adding a floor guide enhances stability. With a minimum door width of 1030 mm (40 1/2 in) for soft-close functionality in both directions, the HAWA JUNIOR 80 Z System is perfect for kitchens, offices, medical clinics, meeting rooms, and more. Prioritize precision by using metric measurements during installation for best results.
HAWA JUNIOR 80 Z System

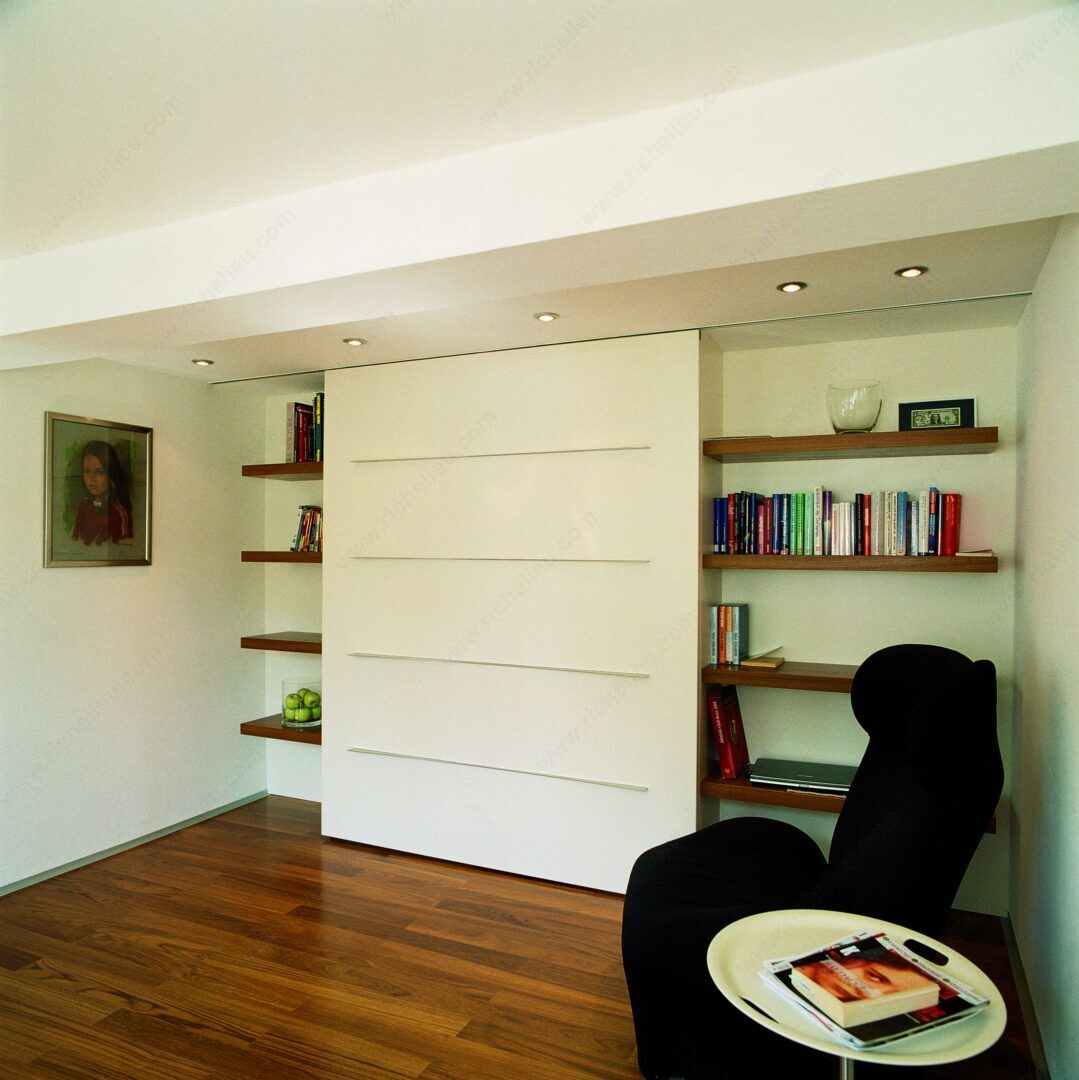

Designed for sliding wood doors weighing up to 80 kg (176 lb) each, the HAWA JUNIOR 80 Z System is a suspended sliding system equipped with a two-way suspension plate at the top of the door. Opt for the standard hardware set with stoppers or upgrade to the robust soft-close mechanism.
Features:
- For door thickness of 35 to 80 mm (1-3/8" to 3-1/8")
Track options:
- Standard ceiling track for surface and recessed mount
- Removable track profile for pocket door applications
- Ceiling mount track for clip-on fascia
- Wall mount for clip-on fascia
Track stopper with damper and adjustable retention spring resists door bounce-back.
Robust soft close mechanism for commercial applications.
Minimum door width: 1030 mm (40 1/2 in) for soft close in both directions; can be used for pocket doors.
This is an ideal solution for residential, commercial, and institutional projects. It is suitable for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms, and washrooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
A groove must be machined into the bottom of the door for a rattle-free floor guide.
For door width greater than 1500 mm (59 in), add a floor guide for greater stability.
Attributes
Detailed Door Movement: Pocket door
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 3 5/32 in*
Groove Depth: 25/32 in*
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 15/32 in*
Load Capacity: 88.2 to 176 lb*
Overall Length: 80 1/8 in*
Product #: WEBKIT1257126
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: Yes
Stopper: One
Track Mounting: Recessed - Inside Ceiling
