Richelieu WEBKIT1257146 HAWA JUNIOR 80 B System InstructionsRichelieu WEBKIT1257146 HAWA JUNIOR 80 B System is expertly designed for sliding wood doors weighing up to 80 kg (176 lb) each. This top-hung sliding system features a recessed suspension plate, allowing for minimal clearance between the door and the track, making it an unobtrusive addition to any space. Suitable for door thicknesses ranging from 35 mm to 80 mm (1-3/8" to 3-1/8"), it provides flexibility in design and application. The system offers various track options, including ceiling tracks for both surface and recess mounts, as well as removable track profiles for pocket door applications. A soft-stop track stopper with a damper and adjustable retention spring prevents bounce-back, enhancing user experience. The minimum door width required for soft close functionality in both directions is 1030 mm (40-1/2 in), and a spring-loaded stopper is available for pocket door operation. Ideal for residential, commercial, and institutional projects, this system suits a range of environments, from kitchens and offices to medical clinics and meeting rooms. Note that a groove must be machined into the bottom of the door for a rattle-free floor guide, ensuring optimal performance. Trust the HAWA JUNIOR 80 B System for your next project, combining functionality with sleek design.
HAWA JUNIOR 80 B System
Designed for sliding wood doors weighing up to 80 kg (176 lb) each, the HAWA JUNIOR 80 B System is a top-hung sliding system equipped with a recessed suspension plate mounted to the top of the door for minimal clearance between the door and the track. Opt for the standard hardware set with stoppers or upgrade to the soft-close mechanism.
Features:
- For a door thickness of 35 mm to 80 mm (1-3/8" to 3-1/8")
Track options:
- Ceiling track for surface and recess mount
- Removable track profile for pocket door applications. Door width must be less than the door height
- Ceiling mount track for clip-on fascia
- Wall mount for clip-on for wood fascia
SoftStop track stopper with damper and adjustable retention spring resists door bounce-back
Minimum door width: 1030 mm (40-1/2 in) for soft close in both directions; can be used for pocket doors.
A spring-loaded stopper is available to push open pocket doors.

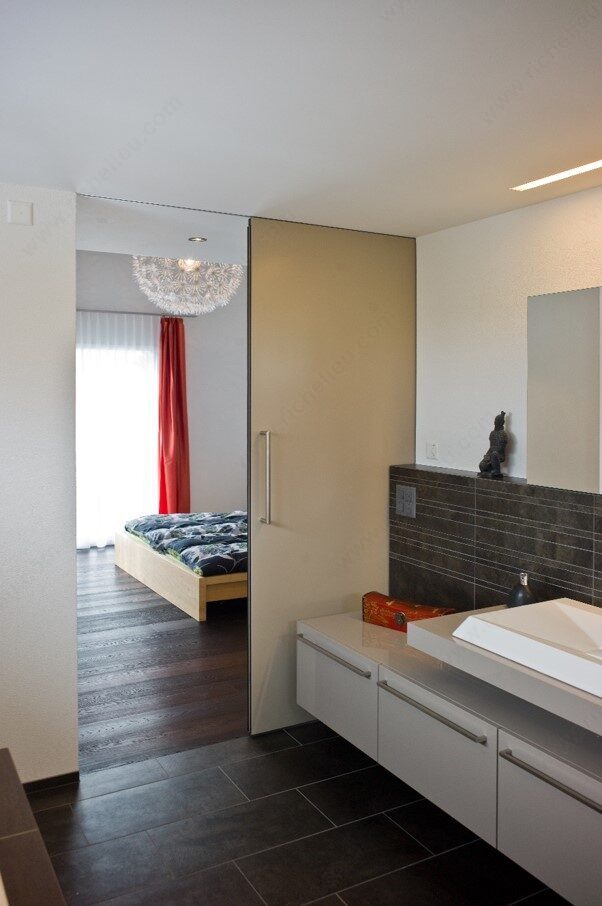

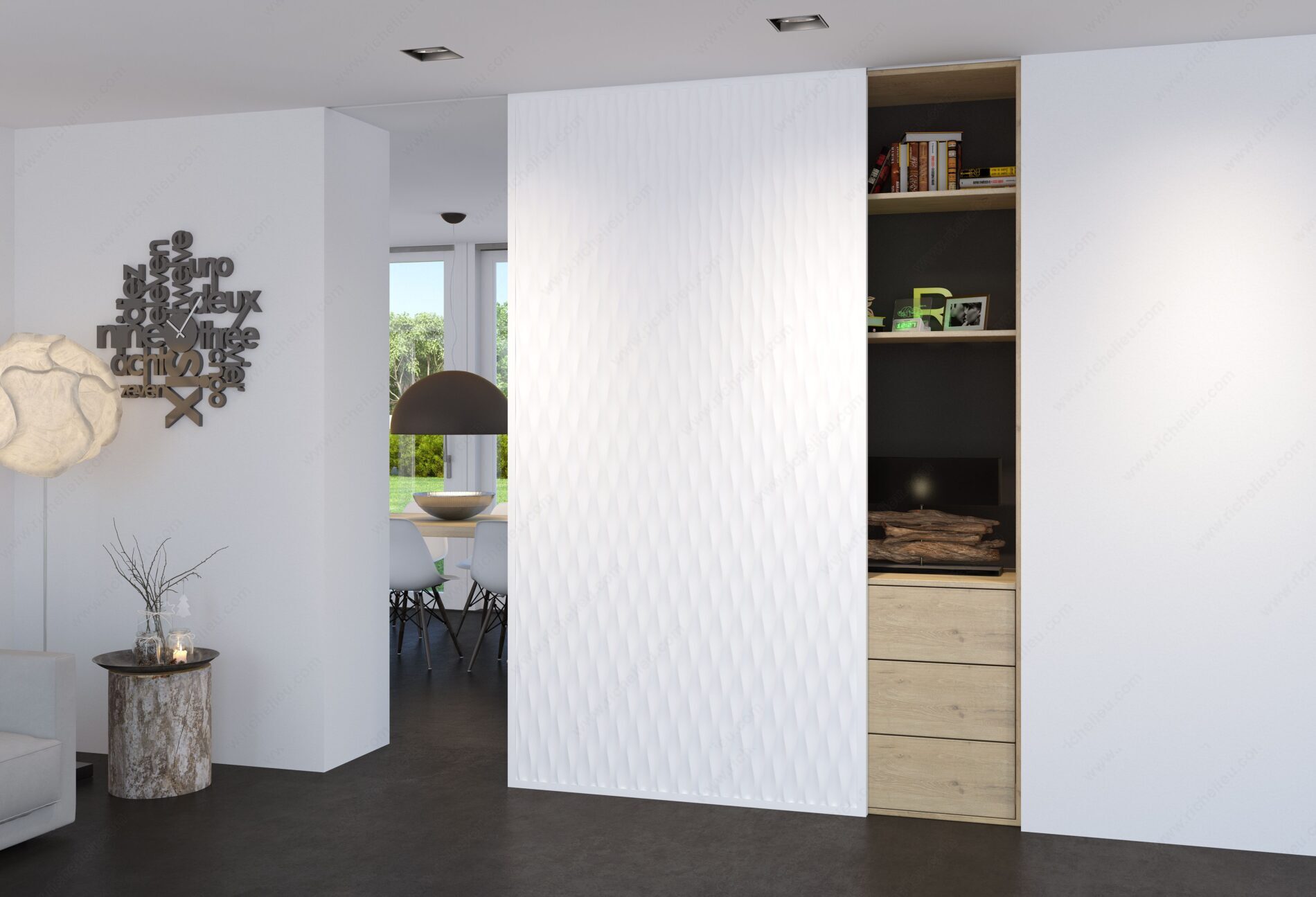

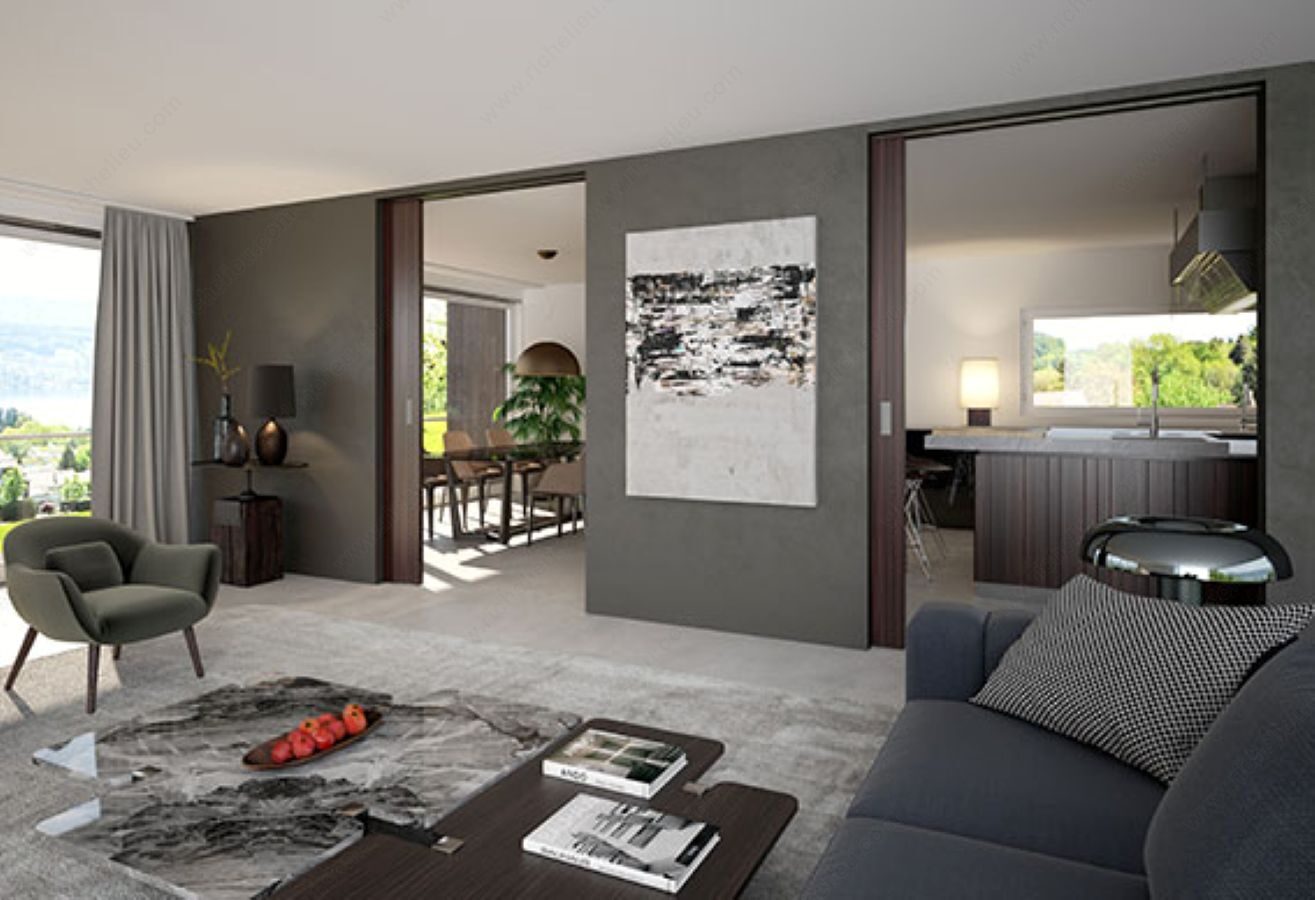

This is an ideal solution for residential, commercial, and institutional projects. It is suitable for kitchens, offices, examination and consultation rooms in medical clinics, meeting rooms, bedrooms, and washrooms.
IMPORTANT: Use metric dimensions for greater accuracy during installation.
A groove must be machined into the bottom of the door for a rattle-free floor guide.
Attributes
Ship via: No UPS - Common Carrier Only
Detailed Door Movement: Pocket door
Door Height: 35 3/8 to 157 in*
Door Installation: Top Hung
Door Material: Wood
Door Movement: Straight Sliding
Door Thickness: 1 3/8 to 3 5/32 in*
Groove Depth: 25/32 in*
Groove Needed for Guiding System: Yes
Groove Width at the Bottom of Door: 15/32 in*
Load Capacity: 88.2 to 176 lb*
Overall Length: 99 3/4 in*
Product #: WEBKIT1257146
Roller Position: Upper
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Soft- Closing: No
Stopper: Two
Track Mounting: Recessed - Inside Ceiling
