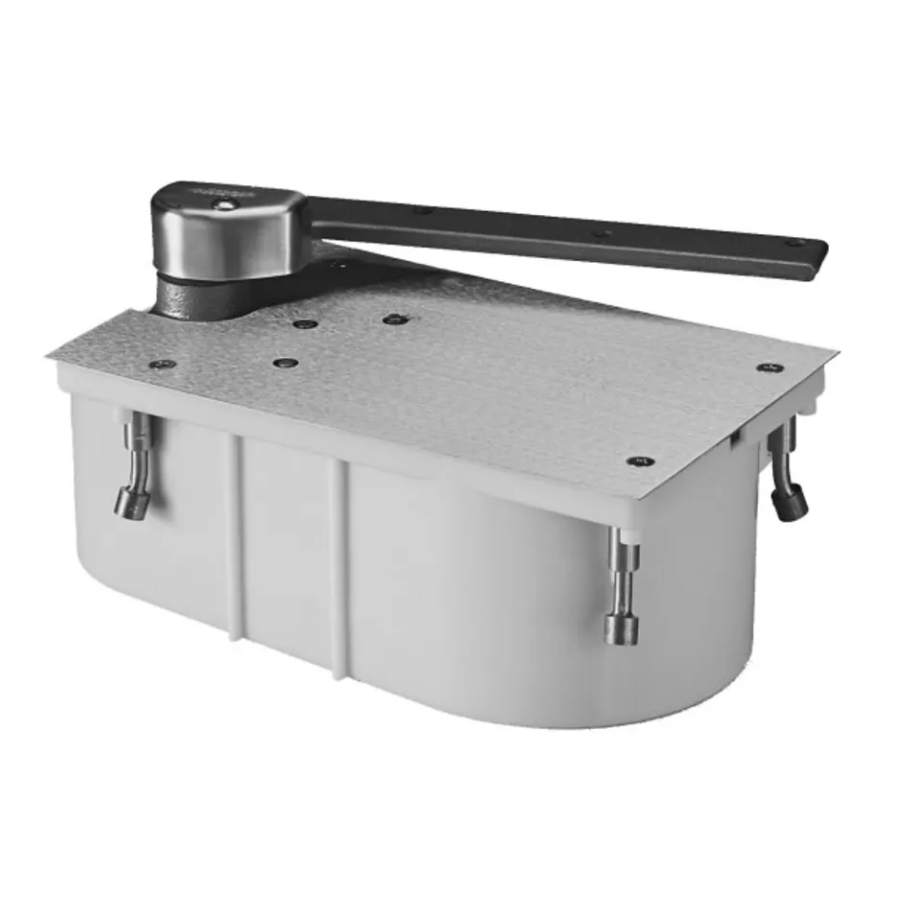

Rixson 27-105NHO RH LAP Heavy Duty Floor Closer, 3/4in Offset, 27 Series, Non-Hold Open, Right Hand

Rixson 27-105NHO RH LAP Heavy Duty Floor Closer is engineered for robust performance, accommodating doors weighing up to 450 lbs and measuring up to 48 inches in width. This single-acting, right-hand closer is designed for both interior and exterior applications, making it a versatile choice for any building project. The 27 series features a 3/4" offset design, ensuring seamless installation within standard door frames. A built-in positive dead stop allows you to specify the maximum opening degree-choose from 85°, 90°, 95°, or 105°-to prevent door damage and ensure controlled access. The closer also includes independent valves for precise adjustment of closing speed, latch speed, and backcheck, allowing for tailored operation. Constructed with a heavy-duty hardened one-piece steel spindle, this closer supports high traffic environments while maintaining long-lasting functionality. Available with aesthetic finishes including bright brass and satin bronze, it not only performs well but also enhances the visual appeal of any entrance. For doors ranging from 60" to 90" in height, one intermediate pivot is recommended, with additional pivots needed for taller doors. With a 10-year limited warranty, the Rixson 27-105NHO is a dependable and durable solution for effective door control.

Heavy Duty Floor Closer, 3/4in Offset, 27 Series, 105 Degree, Non-Hold Open, Right Hand, Single Acting. Exterior or Interior Doors up to 450lbs, up to 48in, Closer Body Only

The 27 is a 3/4" offset-hung floor closer designed for standard door frame installation for interior or exterior doors weighing up to 450lbs.

Features:

• Single acting, handed
• Exterior or interior doors
• 180 top pivot included
• M19 intermediate pivots required (order separately)
• Available non-hold open (N) or selective hold open (S) at same degree as dead stop
• Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95° or 105°
• Separate independent valves for closing speed, latch speed, and backcheck
• Vertical door adjustment
• Available with floor plate or threshold installation
• Cycolac, rust-proof cement case
• Doors 60" to 90" in height should use one intermediate pivot - each additional 30" warrants another intermediate pivot
• Extended spindles available in 1/2" increments up to 2" longer than standard
• Available 1-1/2" offset, for doors with 3/4" cladding or frames with applied molding (max door weight 250lbs.)
• Door width up to 4' 0"
• Door weight up to 450lbs.
• Aesthetically appealing way to support and control the door
• Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
• Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
• Built-in positive dead stop prevents door from swinging beyond the desired opening degree
• Multiple valves provide precision adjustment and enhanced control
• Weight of door is supported by floor closer

Specifications:

• Closer Type: Floor
• Maximum Door Weight: 450 lbs
• Traffic Rating: High traffic
• Warranty: 10-year limited warranty

Finishes:

• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
