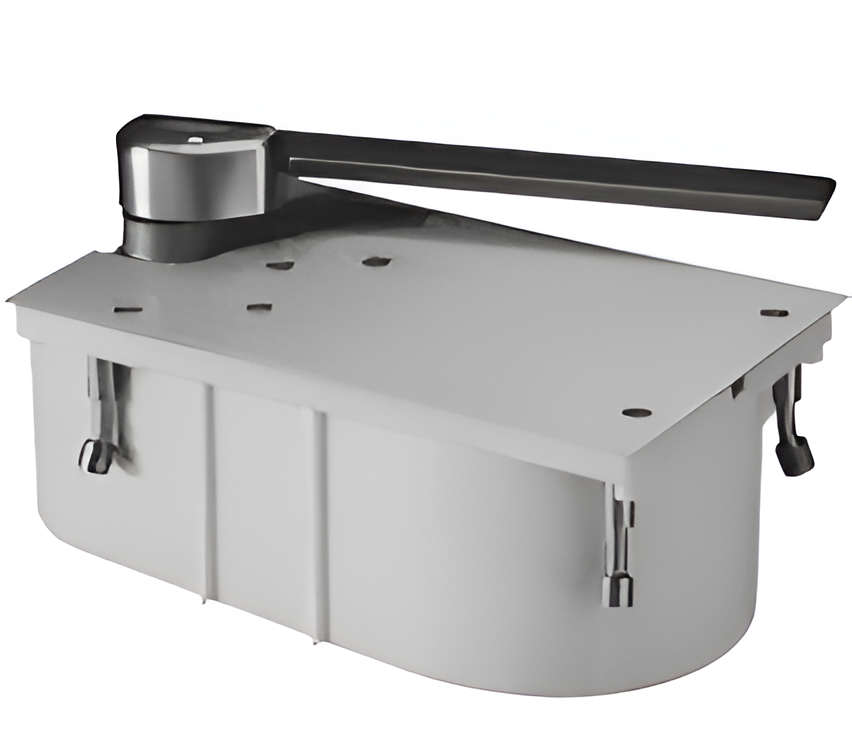

Rixson 27-90SHO LH LAP Heavy Duty Floor Closer, 3/4in Offset, 27 Series, 90 Hold Open, Left Hand

Rixson 27-90SHO LH LAP Heavy Duty Floor Closer is designed for seamless integration into both interior and exterior door applications, accommodating doors weighing up to 450 lbs and measuring up to 48 inches wide. This robust, single-acting closer features a 3/4-inch offset and offers a choice between selective hold open (HO) or non-hold open (NHO) functionality, ensuring versatility in various environments. Engineered for high traffic areas, the Rixson 27 series boasts a built-in positive dead stop to restrict the door's swing to a specified angle of 85°, 90°, 95°, or 105°. Enhanced control is provided through separate independent valves that adjust closing speed, latch speed, and backcheck, while vertical door adjustment allows for precise alignment. The closer's heavy-duty construction, featuring a hardened one-piece steel spindle, guarantees durability and consistent operation. Available in a variety of finishes, including bright brass, satin nickel, and flat black, this closer can complement any decor. With a comprehensive 10-year limited warranty, the Rixson 27-90SHO LH LAP Heavy Duty Floor Closer is the ideal choice for professionals seeking reliability and performance in their security hardware solutions.

Heavy Duty Floor Closer, 3/4in Offset, 27 Series, 90 Degree, Selective Hold Open(HO) or Non-Hold Open(NHO), Left Hand, Single Acting. Exterior or Interior Doors up to 450lbs, up to 48in, Closer Body Only

The 27 is a 3/4" offset-hung floor closer designed for standard door frame installation for interior or exterior doors weighing up to 450lbs.

Features:

• Single acting, handed
• Exterior or interior doors
• 180 top pivot included
• M19 intermediate pivots required (order separately)
• Available non-hold open (N) or selective hold open (S) at same degree as dead stop
• Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95° or 105°
• Separate independent valves for closing speed, latch speed, and backcheck
• Vertical door adjustment
• Available with floor plate or threshold installation
• Cycolac, rust-proof cement case
• Doors 60" to 90" in height should use one intermediate pivot - each additional 30" warrants another intermediate pivot
• Extended spindles available in 1/2" increments up to 2" longer than standard
• Available 1-1/2" offset, for doors with 3/4" cladding or frames with applied molding (max door weight 250lbs.)
• Door width up to 4' 0"
• Door weight up to 450lbs.
• Aesthetically appealing way to support and control the door
• Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
• Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
• Built-in positive dead stop prevents door from swinging beyond the desired opening degree
• Multiple valves provide precision adjustment and enhanced control
• Weight of door is supported by floor closer

Specifications:

• Closer Type: Floor
• Maximum Door Weight: 450 lbs
• Traffic Rating: High traffic
• Warranty: 10-year limited warranty

Finishes:

• 605/US3 - Bright brass, clear coated
• 606/US4 - Satin brass, clear coated
• 611/US9 - Bright bronze, clear coated
• 612/US10 - Satin bronze, clear coated
• 613/US10B - Antique bronze
• 613E/US10BE - Dark oxidized satin bronze-equivalent coated
• 618/US14 - Bright nickel plated, clear coated
• 619/US15 - Satin nickel plated, clear coated
• 622/US19 - Flat black coated
• 625/US26 - Bright plated chrome
• 626/US26D - Satin plated chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
