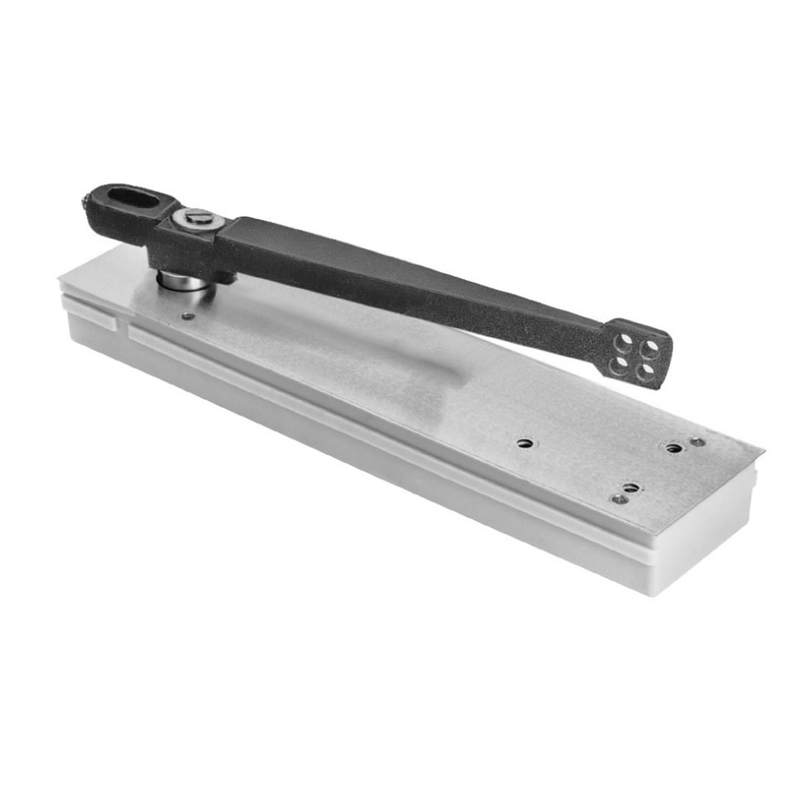

Rixson 5023ABC90 626 Shallow Depth Floor Closer

Rixson 5023ABC90 626 Floor Closer - Shallow Depth is a standard duty, double acting floor closer designed for center hung installations. This model features a shallow depth design, making it ideal for various commercial applications. With a size 3 spring, it accommodates door openings up to 36 inches and supports interior doors weighing as much as 250 lbs. The maximum door size is 4 feet by 8 feet, ensuring versatility for larger entryways. A notable feature of this closer is its 90-degree hold open function, which allows doors to remain securely in place when needed, enhancing convenience for users. The unit is finished in satin chromium plating (626/US26D), offering a modern, matte silver look that complements any commercial setting. Installation is straightforward, as the closer is designed for floor mounting with a center hung style. Its adjustable centering arm provides easy customization to meet specific door needs. Additionally, Rixson backs this product with a two-year limited warranty, ensuring quality and reliability. Whether for new construction or renovations, the Rixson 5023ABC90 is an excellent choice for enhancing door functionality and accessibility in commercial environments.

Floor Closer - Shallow Depth

Standard Duty Shallow Depth Center Hung Double Acting Floor Closer, 90 Degree Hold Open, Size 3 Spring, Double Acting, Satin Chromium Plated

Double acting, non-handed, center hung shallow depth floor closer. Size 3 for 36 In. door opening. For interior doors weighing up to 250 lbs. Max door size 4 Ft. 0 In. x 8 Ft. 0 In. Centering arm with adjustment screw in face of door.

Resources

• 2023 Rixson Price Book (effective 4.17.2023)
• 2024 Rixson Price Book (effective 3.1.2024)
• Rixson/Dorma Cross Reference Sheet
• Shallow Depth Floor Closers
