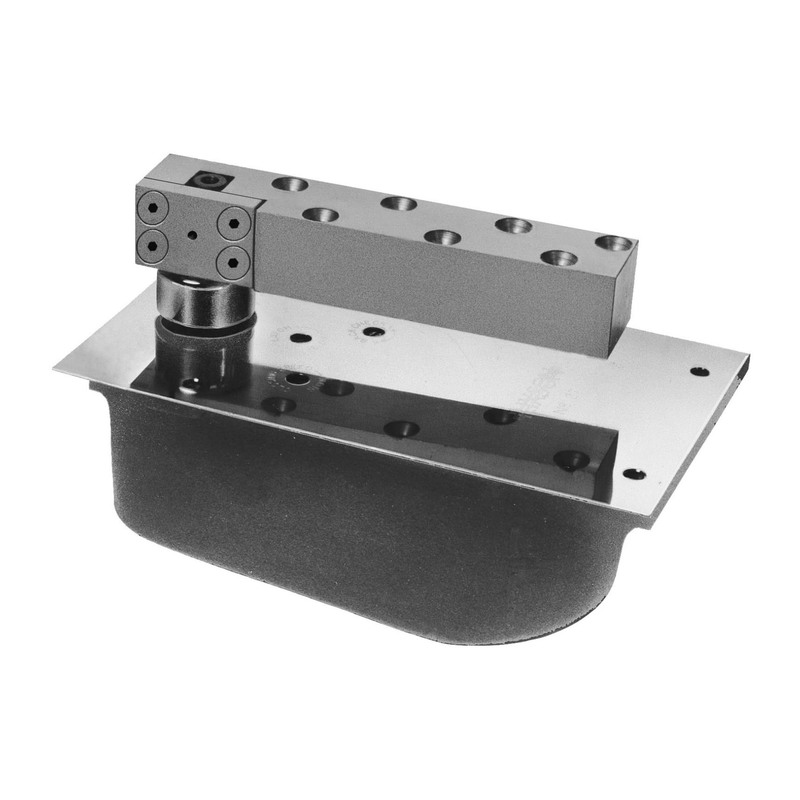

Rixson H28105N X 587 RH 626 Center Hung Floor Closer offers an extra heavy-duty solution for high-traffic environments. Designed for center hung applications, this concealed floor closer supports single-acting doors and features a right-hand configuration with a satin chromium plated finish. With a robust construction, it accommodates doors weighing up to 1,000 lbs and sizes up to 4 ft. wide by 8 ft. 6 in. tall, making it ideal for both commercial and residential settings. The special side load arm enables the pivot point to be positioned away from the edge of the door, facilitating a minimum backset of 2-3/4 inches. This versatility allows for seamless installation in various door types, ensuring durability and reliability. Notably, the H28105N model does not have a hold-open feature, making it perfect for applications where continuous operation is desired without the risk of doors remaining ajar. Constructed from high-quality brass or bronze, this floor closer not only promises longevity but also aesthetic appeal with its matte silver finish. Backed by a 10-year limited warranty, the Rixson H28105N X 587 RH 626 Center Hung Floor Closer is a dependable choice for enhancing door functionality and security.
Center Hung Floor Closer
Extra Heavy Duty Center Hung Concealed Floor Closer, 105 Degree, No Hold Open, H Arm, Right Hand, Satin Chromium Plated
Heavy duty, high traffic center hung floor closer. Single acting. Handed. Special side load arm for 1-3/4 In. thick doors. Allows pivot point to be moved away from pivot edge of door _ minimum 2-3/4 In. backset. For interior or exterior doors. Max door weight 1000 lbs. Max door size 4 Ft. 0 In.x8 Ft. 6 In.
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Hold Open: No
Installation: Commercial
Limited Warranty: 10 Years
Mounting Location: Floor
Mounting Style: Center Hung
Pack Qty: 1
Pbs Options: 5923690
Series: Rixson Heavy Duty Single Acting Center Hung Floor Closers
Subtype: Floor Closers
Type: Concealed Floor
Unit of Measure: Each
