Rixson H40A X 587 626 Center Hung Floor Closer offers an exceptional solution for heavy-duty double acting door operations. Designed for both commercial and residential applications, this floor closer features a robust H arm and a special side load arm, accommodating doors that are 1-3/4 inches thick. With a maximum door weight capacity of 1,000 lbs and a size allowance of up to 4 feet by 8 feet 6 inches, this closer ensures reliable performance under demanding conditions. Constructed from high-quality brass or bronze and finished in a sleek satin chromium plating (626/US26D), the Rixson H40A combines durability with a modern aesthetic. Its non-handed design allows for versatile installation on interior or exterior doors, making it a flexible choice for various settings. The closer includes a hold-open feature, allowing doors to remain ajar as needed, while its maximum opening angle of 103 degrees provides easy access. With a limited 10-year warranty, you can trust in the longevity and reliability of this concealed floor closer. Whether you're upgrading existing hardware or specifying new installations, the Rixson H40A X 587 626 Center Hung Floor Closer is a top-tier choice for durability and ease of use.

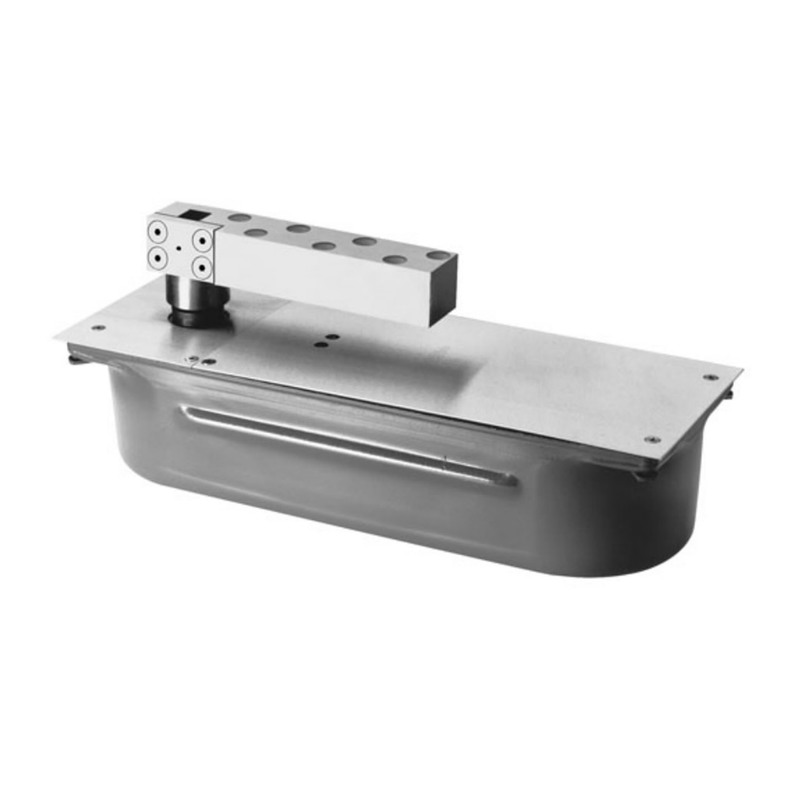

Center Hung Floor Closer
Extra Heavy Duty Double Acting Closers, H Arm, Double Acting, Satin Chromium Plated
Heavy duty, center hung double acting floor closer. Special side load arm for 1-3/4 In. thick doors. Allows pivot point to be moved away from pivot edge of door. Minimum 2-3/4 In. backset. Non-handed. For interior or exterior doors. Max door weight 1000 lbs. Max door size 4 Ft. 0 In. x 8 Ft. 6 In. Max door opening 103 degrees.
Base Material: Brass or Bronze
Commercial Residential: Commercial
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Hold Open: Yes
Installation: Commercial
Limited Warranty: 10 Years
Mounting Location: Floor
Mounting Style: Center Hung
Pack Qty: 1
Series: Rixson Heavy Duty Double Acting Center Hung Floor Closers
Subtype: Floor Closers
Type: Concealed Floor
Unit of Measure: Each
