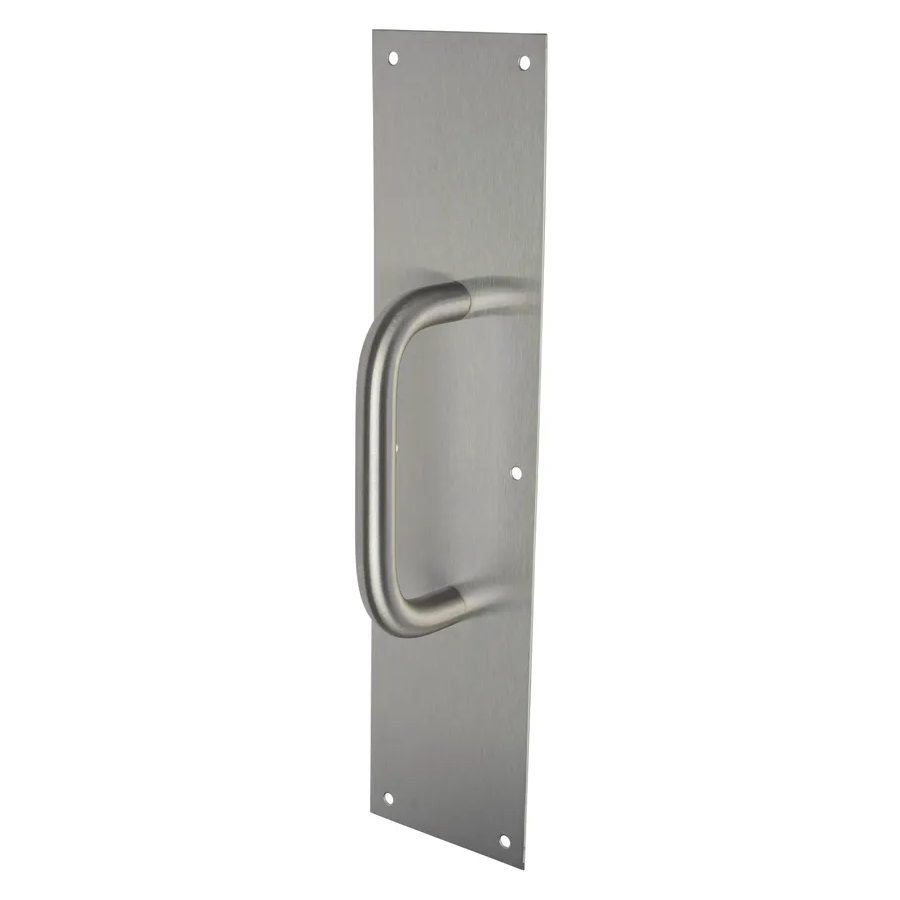

Rockwood 105X70C US28 4"x16" Pull Plate, 3/4" Dia x 5-1/2" CTC, Satin Aluminum, 628/US28

Rockwood Manufacturing Co 105X70C US28 Pull Plate is a robust and stylish solution designed for enhancing door functionality while maintaining aesthetic appeal. Measuring 4 inches by 16 inches, this pull plate features a sleek satin aluminum finish that complements a variety of architectural styles. Constructed from high-quality materials such as aluminum, brass, bronze, or stainless steel, the pull plate ensures durability and longevity. Its pull size measures ¾ inch in diameter with a center-to-center (CTC) mounting of 5½ inches, making it easy to grip and operate. The plate weighs 2.1 lbs, providing a solid feel without compromising ease of installation. Installation is made simple with included fasteners: six 5/8-inch oval head sheet metal screws and a ¼"-20 x 2¼" thru bolt with a finish washer, designed for standard 1¾" doors. For those needing barrier-free access, an option is available with 2½" clearance. Compliant with ANSI A156.6: J405 standards, the Rockwood 105X70C US28 Pull Plate is an ideal choice for both residential and commercial applications. Elevate your door hardware with this functional and elegant pull plate that combines quality materials and thoughtful design.

Pull Plate 4in x 16in, Pull Size 3/4in Diameter x 5-1/2in CTC Mounting, 628/US28 Satin Aluminum

Specifications:

• Material: Aluminum, brass, bronze, or stainless steel
• Fasteners: 6 x 5/8" Oval head sheet metal screws; 1/4"-20 x 2-1/4" thru bolt & finish washer (standard 1-3/4" door).
• Options: Barrier Free available in 2-1/2" clearance — use BF prefix when ordering (BF105 x 70B). Advise if door thickness is other than 1-3/4".
• Pull: Ø 3/4"
• Size: 3-1/2" x 15"
• CTC: 5-1/2"
• Plate: 70
• Weight: 2.1 lbs
• ANSI A156.6: J405

Finishes:

• US3/605 - Polished brass, clear coated
• US4/606 - Satin brass, clear coated
• US10/612 - Satin bronze, clear coated
• US10B/613 - Satin oxidized bronze, oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated brass
• US26D/626 - Satin chrome plated brass
• US28/628 - Clear anodized aluminum
• US32/629 - Polished stainless steel
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy stainless steel
• US32DMS - Satin MicroShield coated stainless steel

Features

• Fasteners: 6 x 5/8" Oval head sheet metal screws; 1/4"-20 x 2-1/4" thru bolt & finish washer (standard 1-3/4" door).
• Size: 3-1/2" x 15"
• Options: Barrier Free available in 2-1/2" clearance — use BF prefix when ordering (BF105 x 70B). Advise if door thickness is other than 1-3/4".
• CTC: 5-1/2"
• ANSI A156.6: J405
• Pull: Ø 3/4"
• Weight: 2.1 lbs
• Material: Aluminum, brass, bronze, or stainless steel
• Plate: 70

Resources

• Cut Sheet
