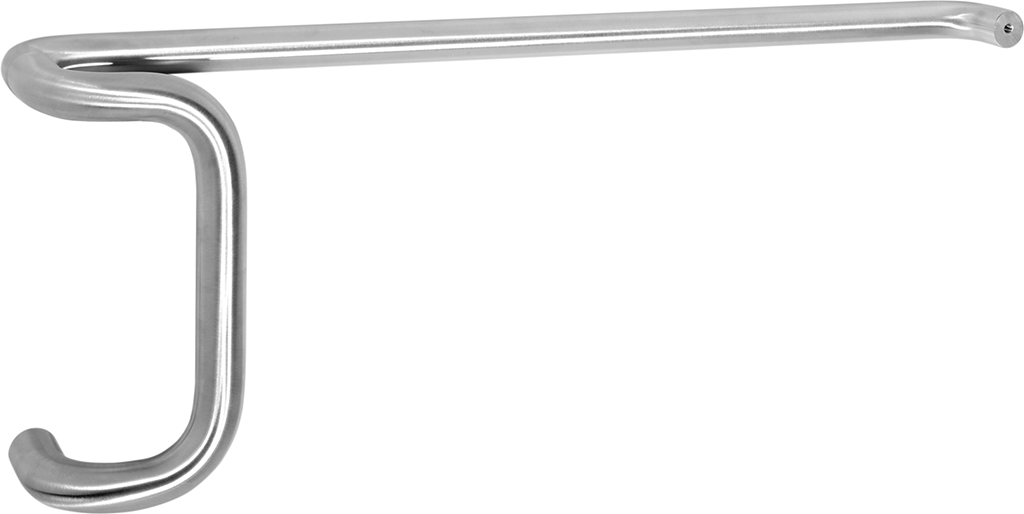

Rockwood BF15747 US32D T3 Offset Pull x Push Bar, 10in 33in CTC, 1in Dia, Back to Back, Stainless Steel

Rockwood Manufacturing Co BF15747 US32D T3 Offset Pull x Push Bar is designed for durability and functionality, making it an excellent choice for both metal and wood doors. With a 10-inch center-to-center (CTC) mounting and a robust 1-inch diameter, this offset pull offers a secure grip and smooth operation. The bar features a bent end shape and a round grip shape, ensuring comfort and ease of use. Constructed from high-quality satin stainless steel, the BF15747 not only provides a sleek aesthetic but also enhances resistance to corrosion and wear. The T3 mounting method guarantees a stable installation, with provisions for back-to-back and through-bolt fastening, making it versatile for various applications. Its push clearance of 1 3/4 inches and a projection of 3 1/2 inches further enhance its usability in high-traffic areas. This model is part of the Series 47, which offers options for optional engraving, base plates, and heavy-duty fastening types, allowing customization to meet specific needs. With a focus on both performance and style, the Rockwood BF15747 is an ideal solution for building professionals and discerning homeowners looking to enhance the accessibility and security of their entrances.

Offset Pull x Push Bar, 10in CTC x 33in CTC, 1in Diameter, Back to Back and Thru Bolt (T3), 630/US32D Stainless Steel

The BF15647 (8" CTC), BF15747 (10" CTC), BF15847 (12" CTC), BF15947 (18" CTC) Series 47 Offset Single Bar Sets feature optional engraving, base plates, and heavy duty fastening types.

Mountings:

• Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
• Metal: T4 Back to Back and Concealed; Pull Free End = 17, Push Free End = 17, Common End = 16
• Wood: T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
• Metal & Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
• Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
• T3 is the standard mounting method for Metal and Wood Doors.

Specifications:

• End Shape: Bent
• Grip Shape: Round
• Base Material: Aluminum, brass, bronze, stainless steel
• Door Material: Metal, wood
• Diameter: 1"
• Push Clearance: 1 3/4"
• Projection: 3 1/2"

Finishes:

• US3/605 - Polished clear coated
• US4/606 - Satin clear coated
• US10/612 - Satin clear coated
• US10B/613 - Satin oxidized oil rubbed
• US10BE/613E - Dark oxidized satin bronze, equivalent
• US26/625 - Polished chrome plated
• US26D/626 - Satin chrome plated
• US28/628 - Clear anodized
• US32/629 - Bright stainless steel
• US32316 - Polished 316 alloy
• US32D/630 - Satin stainless steel
• US32D316 - Satin 316 alloy
• US32DMS - Satin MicroShield coated
• 313/710 - Dark bronze anodized
• 314 - Extra dark bronze anodized
• 315/711 - Black anodized

Features

• Wood: T5 Back to Back and Concealed; Pull Free End = 8, Push Free End = 8, Common End = 5
• Metal and Wood: T3 Back to Back and Thru Bolt; Pull Free End = 1, Push Free End = 1, Common End = 5
• Metal & Wood: T1 Back to Back and Decorative Bolt; Pull Free End = 12, Push Free End = 12, Common End = 5
• Metal: T4 Back to Back and Concealed; Pull Free End = 17, Push Free End = 17, Common End = 16
• Glass: T2 Back to Back and Thru Bolt; Pull Free End = 15, Push Free End = 15; Common End = 13
• T3 is the standard mounting method for Metal and Wood Doors.

Resources

• Cut Sheet
