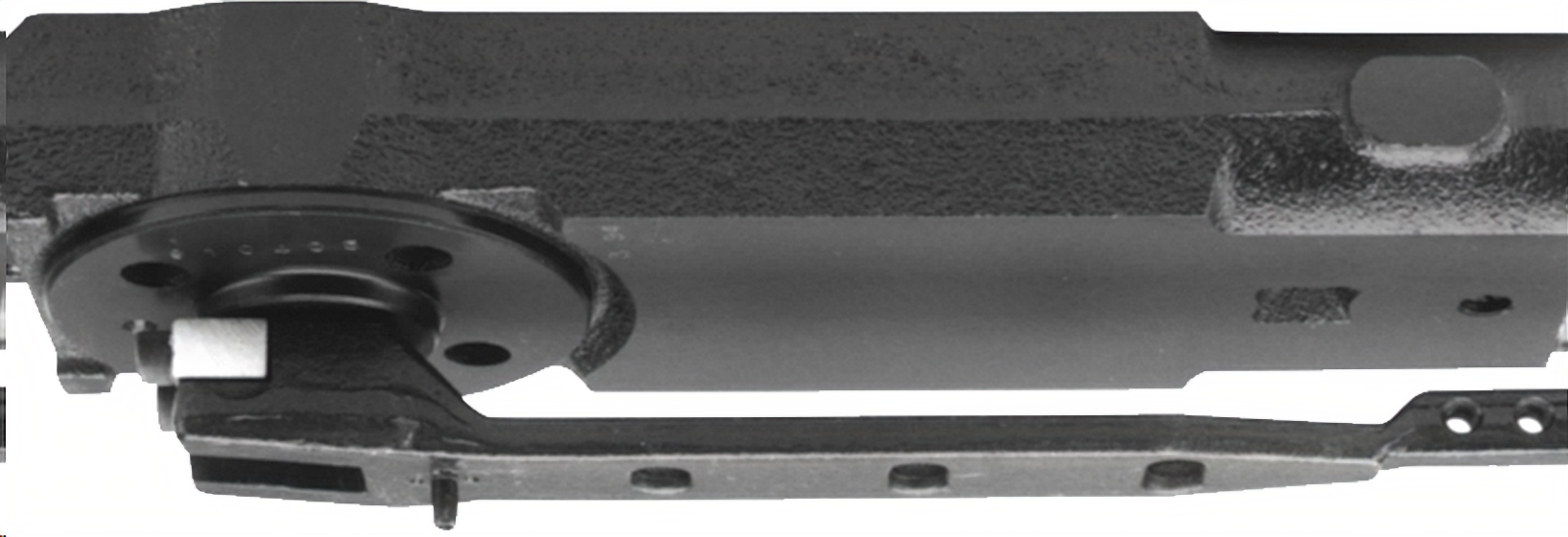

Rockwood OHC-609-105NHO 105 NHO (Non Hold Open) Overhead Concealed Closer, Body Only

Rockwood Manufacturing Co OHC-609-105NHO 105 NHO (Non Hold Open) Overhead Concealed Closer is engineered to provide dependable control for both interior and exterior doors while maintaining a sleek, unobtrusive design favored by leading architects and designers. Constructed from durable cast iron, this medium-duty closer fits seamlessly into a variety of applications, ensuring reliability and performance. One of the standout features of the OHC-609 is its adjustable spring size ranging from 1 to 3, allowing for customization of the closing force to match environmental conditions. The closer can accommodate doors up to 42 inches wide and supports a maximum door weight of 200 lbs., making it suitable for a range of commercial and residential uses. Additionally, the non-handed design allows installation on either left- or right-handed doors, while the double-acting mechanism permits doors to swing in both directions. With independent adjustments for closing and latching speeds, users gain enhanced control over door movement. The all-weather fluid ensures smooth operation in various climates, and the robust construction withstands substantial wear and tear. The Rockwood OHC-609-105NHO is both a practical and stylish solution for your door control needs, providing reliable operation without compromising aesthetics.

105 NHO (Non Hold Open) Overhead Concealed Closer, Body Only

The 609 overhead closer offers reliable control of interior and exterior doors, while offering the minimal appearance preferred by top designers. A compact, cast iron body makes the 609 an easy fit for a wide range of applications and a field adjustable spring to suit your environment.

Features:

• Medium-duty cast iron closer
• Optional hold open assembly built into closer
• 5 mm extended spindle
• Separate closing and latching valves
• All weather fluid
• Non-handed
• Adjustable spring size 1-3
• Double acting
• Center hung
• Slotted angle clip for adjustment in header
• Provides reliable control of interior and exterior doors
• Can be installed on either left- or right-handed doors
• End load arms provide better load distribution for smoother operation
• All weather fluid ensures closer operates smoothly across wide range of environments
• Adjustable spring size allows for customization of the closing force
• Allows door to swing in both directions
• Independent adjustment of closing and latching speeds
• Minimal appearance
• Able to withstand substantial abuse
• Hold open allows door to remain open at a set angle

Specifications:

• Closer: OHC-609
• Maximum Interior Door Width: 42"
• Maximum Exterior Door Width: 36"
• Base Material: Cast iron
• Dimensions: 11-3/4" x 3-3/4" x 1-1/2"
• Maximum Door Weight: 200lbs.

Options:

• 90° Back stop, non-hold open
• 90° Back stop, hold open
• 105° Back stop, non-hold open
• 105° Back stop, hold open
