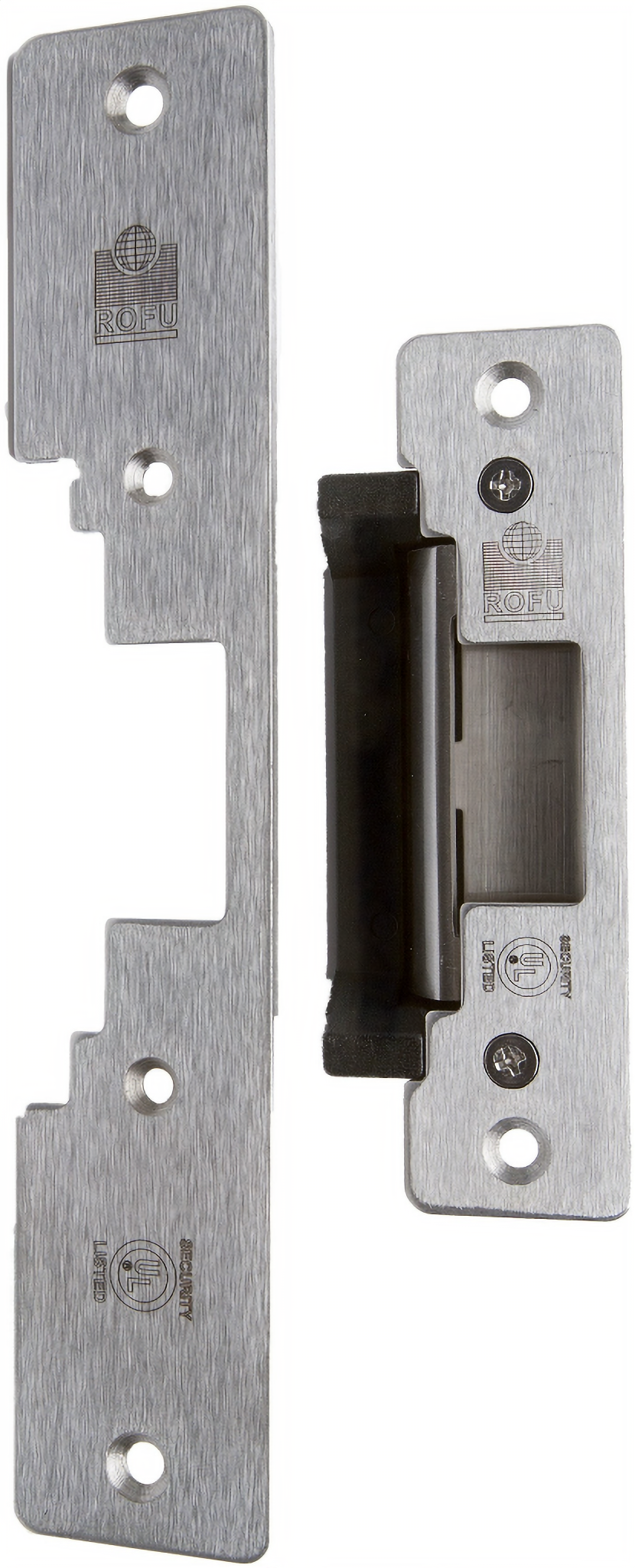

ROFU 2400US32D KIT Low Profile Strike 12/24V FS/FSE 2 Faceplate

Rofu Security International 2400US32D KIT Low Profile Strike offers an exceptional solution for enhancing access control with its universal, burglary-resistant design. This electric strike is compatible with various cylindrical locksets, making it a versatile choice for both residential and commercial applications. Featuring dual voltage options of 12/24 VDC, the 2400US32D KIT is field selectable for fail-safe or fail-secure operation, ensuring flexibility based on your security needs. Its non-handed, fully reversible design accommodates diverse installations, while its low profile of just 1 1/4" in depth allows for easy integration into existing door frames without sacrificing strength. This strike is built to last, having undergone rigorous testing to withstand 250,000 cycles, and is UL Listed for burglary resistance under file CVXY.BP3741. With a static strength of 1000 lbs and a dynamic strength of 50-ft-lbs, it provides robust security for any entry point. Included in the kit are two stainless steel faceplates, measuring 1 1/4" x 4 7/8" and 1 7/16" x 7 15/16", along with optional accessories like the 2402 jig for jamb preparation. The 2400US32D KIT is the ideal choice for professionals seeking reliable and adaptable security solutions.

Low Profile Strike 12/24V FS/FSE 2 Faceplate

2400 Kit is a universal, burglary-resistant electric strike, compatible with a wide range of cylindrical locksets. The kit includes two faceplates and is dual voltage and field reversible between fail-safe and fail-secure. Optional accessories are specifically designed for this universal electric strike, 2402 jig is a useful tool for jamb preparation while 1" and 2" lip extensions are also available.

Features:

• Dual voltage 12/24 VDC field selectable
• (VAC for intermittent duty), PoE friendly.
• Field reversible: fail-safe or fail-secure
• Non-handed, fully reversible
• Complete with two stainless faceplates: 1 1/4" x 4 7/8" (ANSI) and 1 7/16" x 7 15/16"
• Tested to 250,000 cycles (UL Certified)
• Low Profile: 1 1/4" depth overall
• UL Listed for burglary-resistant under file CVXY.BP3741

Specifications:

• Voltage: 12/24 VDC
• Current: 300 mA/12 VDC, 150 mA/24 VDC
• Static Strength: 1000 LB (454 KG)
• Dynamic Strength: 50-ft-lbs. (6.91 m-kgs)
• Dimension: 4 7/8" (L) x 1 1/4" (W) x 1 1/4" (D)
• Operating Temp: 32°F to 120°F (0°C~+49°C)
