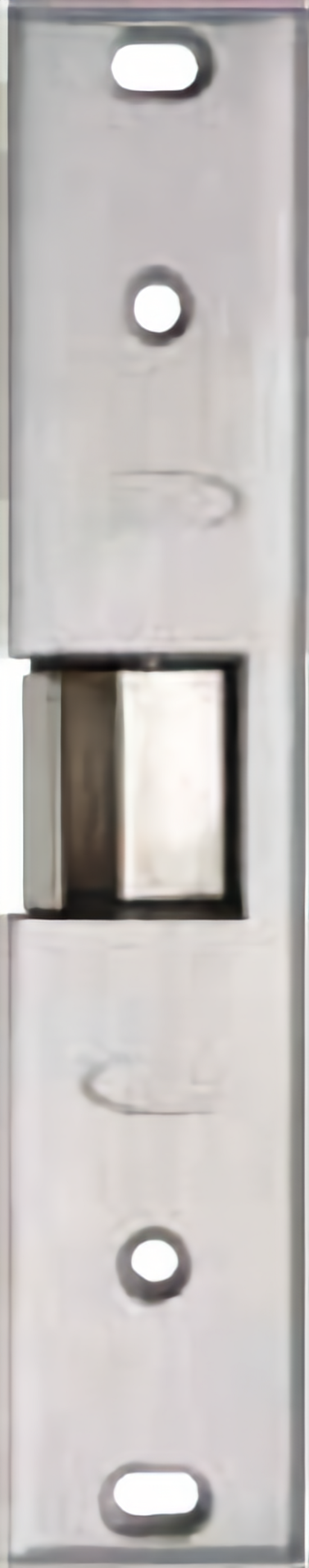

Rutherford Controls 0161-05-32D Electric Strike 3/4in for Rim Exit Device, Fail-Secure, Brushed Stainless Steel

Rutherford Controls 0161-05-32D Electric Strike is expertly engineered for seamless integration with pullman latch rim exit devices, making it an ideal choice for a variety of commercial applications. This 3/4" semi-mortise electric strike boasts a sleek brushed stainless steel finish (630/US32D), ensuring both durability and an attractive architectural appearance. Designed for easy installation, the strike features slotted horizontal holes on the faceplate that allow for precise alignment and secure mounting. Accommodating latch projections from 1/2" to 3/4" (13mm–19mm), it guarantees proper latch alignment through horizontal adjustments. With a holding force of 1,500 lbs for static loads and 70 ft-lb dynamic strength, this strike is built to withstand rigorous use, rated for 500,000 cycles of endurance. Operating at 200mA with a voltage of 12/24VAC/VDC, the fail-secure design enhances security by ensuring that the door remains locked without power. The 0161-05-32D is non-handed, providing flexibility in installation. Certified to ANSI/BHMA standard A156.31, grade 1, it is suitable for commercial centers, educational facilities, healthcare establishments, and more. Backed by a 5-year limited warranty, this electric strike offers a reliable and stylish solution for your access control needs.

Electric Strike 3/4in for Rim Exit Device, for Pullman Latches, Semi-Mortise Mounting, 12/24VAC/VDC, Fail-Secure, 630/US32D Brushed Stainless Steel

The 0161 is a 3/4" semi-mortise electric strike that is designed to operate with pullman latch rim exit devices. The stainless-steel finish creates a sleek attractive architectural appearance. The slotted horizontal holes on the faceplate allow for easy and secure mounting during installation and correct alignment with the exit device. It features a hazard-free radius design.

Features:

• Semi-mortise rim strike designed for use with pullman latch rim exit devices
• Accommodates 1/2" to 3/4" (13mm–19mm) latch projection
• Ensures proper latch alignment with horizontal adjustment
• Stainless steel ensures superior strength and creates a sleek aesthetic design
• Lockdown holes for secure mount
• Non-handed
• Energy: 200mA 12VAC/VDC Or 24VAC/VDC (max at 12VDC)
• Strength: 1,500lbf Static 70ft-lb dynamic
• Endurance: 500,000 Cycles
• Mode: Fail-secure
• 5 Year limited warranty
• Accessories: 0161DDH - Double door housing, SPC finish (SPC = silver powder coat)
• ​Note: UL 1034 Burglary-resistant listing does not apply with use of 0161DDH.

Technical Details:

• Dimensions: 1-3/4"W x 9"H x 1-5/8"D (45mm x 229mm x 41mm)
• Brushed stainless steel (32D) finish
• UL 1034 burglary-resistant listed
• Certified to ANSI/BHMA standard A156.31, grade 1

Applications:

• Commercial centers
• Industrial buildings
• Educational facilities
• Retail outlets
• Health care facilities
• Office complexes
