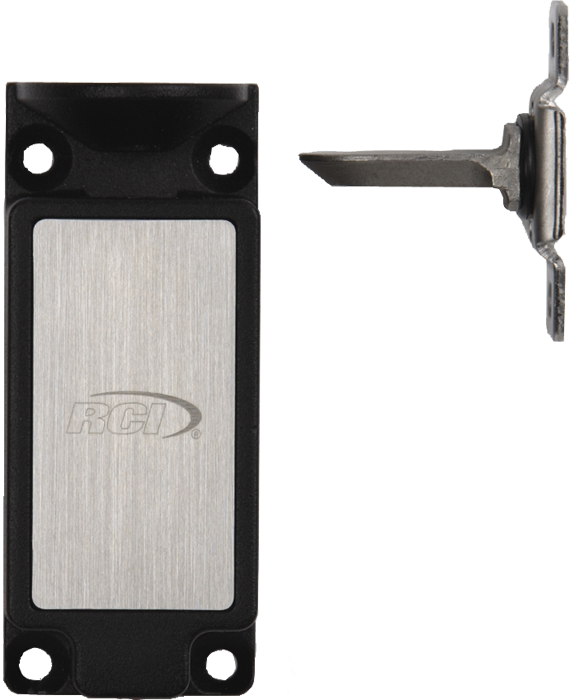

Rutherford Controls 3513B Electric Cabinet Lock 12/24VDC

Rutherford Controls 3513B Electric Cabinet Lock 12/24VDC provides a robust security solution for small enclosures where reliable access control is essential. This compact, surface-mounted electric lock is crafted from superior heavy-duty metal, ensuring longevity and resilience. Its versatile design allows for both side and top mounting, making it suitable for various applications such as filing cabinets, drug cabinets, jewelry cases, and vending machine covers. The 3513B operates on field-selectable 12/24VDC power, with a low energy consumption of just 200mA at 12VDC and 100mA at 24VDC. With an impressive 440lbf holding force, it provides peace of mind knowing your valuables are secured. The lock features a customizable solenoid positioning that allows you to select between fail-safe and fail-secure modes, catering to your specific security needs. Available in a sleek black finish, the Rutherford Controls 3513B is not only functional but also aesthetically pleasing. For added functionality, the optional 3513DM model includes dual monitoring features. Backed by a 3-year limited warranty, this electric cabinet lock is a reliable choice for both building professionals and knowledgeable homeowners looking to enhance their security systems.

Electric Cabinet Lock 12/24VDC

The 3513 & 3513DM cabinet locks are designed for small enclosures where power is available. These compact surface-mounted electric locks are versatile for side or top mounting. The RCI 3513DM adds an option for dual monitoring to the standard electromechanical RCI 3513 cabinet lock.

Features:

• Surface-mounted compact electric lock
• Superior heavy-duty metal construction
• Versatile side or top mounting
• Low energy consumption
• Positioning of the solenoid determines lock mode
• Black finish
• Energy: 200mA Field-Selectable 12/24VDC (max at 12VDC, 100mA at 24VDC)
• Strength: 440lbf holding force
• Field-selectable fail-safe & fail-secure
• Optional dual monitoring model available
• 3 Year Limited warranty

Technical Details:

• 3513: Dimensions: 1-3/16" W x 2-7/8" H x 1-1/8" D (30mm x 73mm x 29mm)
• 3513DM: Dimensions: 1-3/16" W x 3-11/16" H x 1-1/4" D (30mm x 94mm x 32mm)

Applications:

• Small interior enclosures
• Filing cabinets
• Drug cabinets
• Jewelry cases
• Showcases
• Key cabinets
• Desk drawers
• Cash drawers
• Machine access
• Vending machines covers

Resources

• Cut Sheet
