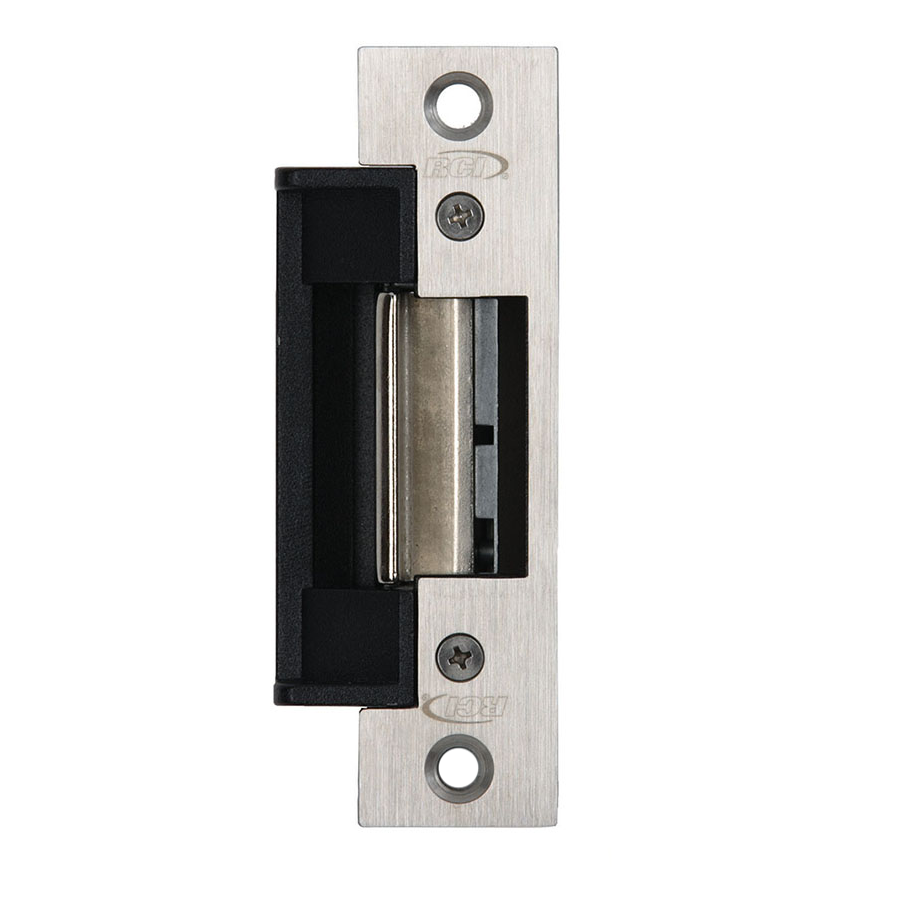

Rutherford Controls 4114-08-32D Electric Strike 24VAC/DC, Fail-Secure, 1-1/4in x 4-7/8in, Brushed Stainless Steel

Rutherford Controls 4114-08-32D Electric Strike is designed for versatility and security, featuring a fail-secure mechanism. This electric strike accommodates a 3/4" latch projection and fits a wide range of door thicknesses from 1-3/8" to 2-3/8". With a 1-1/2" cut-out depth, it is compatible with various door frame materials, making installation straightforward with standard mounting tabs and included fasteners. The brushed stainless steel finish (630/US32D) not only enhances durability but also provides an elegant touch suitable for commercial, industrial, and residential applications. It offers a strength rating of 1,500 lbf static and 70 ft-lb dynamic, ensuring robust security. This model is engineered for endurance, rated for up to 500,000 cycles for fire-rated options and 250,000 for standard models. Innovative features like non-polarity sensitive coils eliminate wiring concerns, while the included trim plate covers irregular frame cutouts for a polished look. Certified to ANSI/BHMA standard A156.31, grade 1, the 4114-08-32D Electric Strike is an excellent choice for commercial centers, educational facilities, healthcare environments, and more. With a five-year limited warranty, it promises reliability and peace of mind for your security needs.

Electric Strike 24VAC/DC, FSE Fail-Secure, 1-1/4in x 4-7/8in Square Corner, for Up to 3/4in Latch Throw, 630/US32D Brushed Stainless Steel

The 4 series centerline strike accommodates 3/4" latch projections. Its various faceplate options and 1-1/2" cut-out depth accommodates most door frame types and materials. Installation is simple with standard mounting tabs and included fasteners. Crossed wires are never a problem, as the coil is not polarity sensitive. The RCI 4 series centerline strikes are available with an optional 1-1/2 hour fire-rating. 41 Series depicts fail-secure and 43 series depicts fail-safe.

Features:

• Accommodates 3/4" (19mm) latch projection
• 1-1/2" (38mm) cut-out depth accommodates most door frame material types
• Use with wide range of door thicknesses, 1-3/8" to 2-3/8" (35mm-60mm)
• Standard mounting tabs and fasteners included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Energy: 200mA 11-16VAC, 12VAC/VDC, 24VAC/VDC (At 12VDC)
• Strength: 1,500lbf Static 2 70ft-lb dynamic (1,500lbf Static for fire-rated models, 1,000lbf for non-fire-rated 04 & 14 faceplates, 500lbf for 05, 07, 08 & 19 faceplates.)
• Endurance: 500,000 Cycles (fire-rated (F) models only, 250,000 for other models)
• Mode: Fail-secure & fail-safe
• Optional 1-1/2-hour models available (fire-rated (F) models only available in fail-secure mode with 04 & 14 faceplates)
• Warranty: 5 Year limited

Technical Details:

• Insert Depth: 1-1/2"D (38mm)
• Brushed Stainless Steel (32D) finish
• Certified to ANSI/BHMA standard A156.31, grade 1

Applications:

• Commercial centers
• Industrial buildings
• Educational facilities
• Retail outlets
• Health care facilities
• Office complexes

Resources

• Cut Sheet
