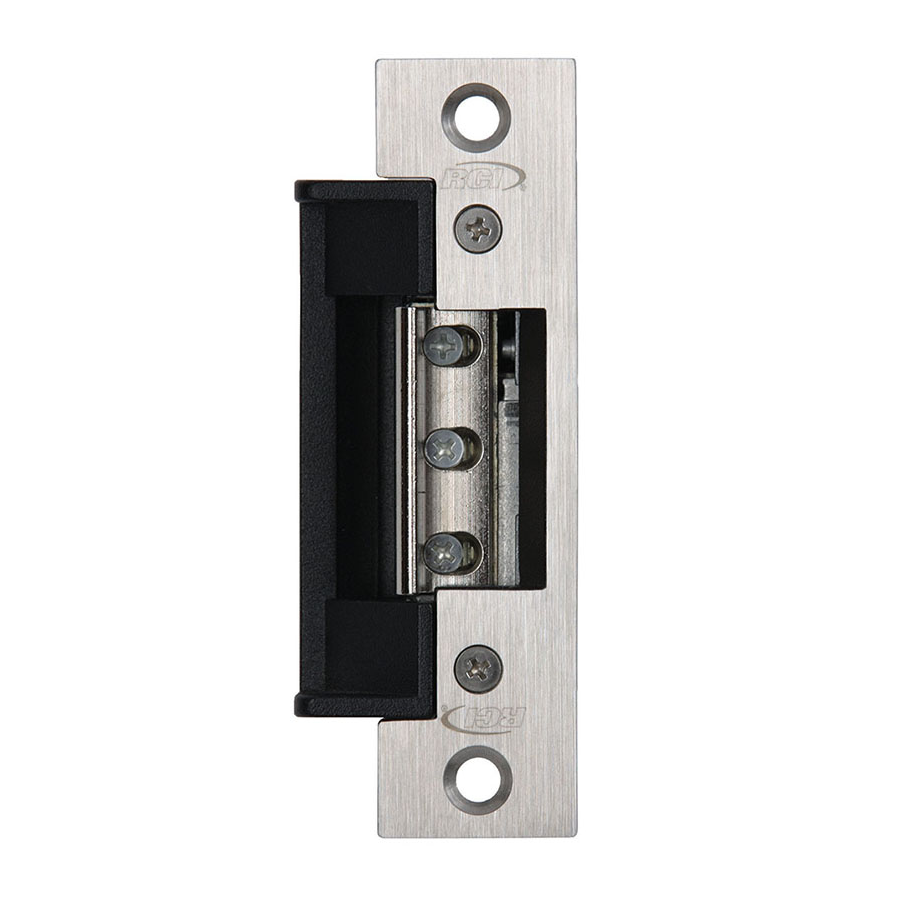

Rutherford Controls 7114-08D-32D Electric Strike 24VDC FSE

Rutherford Controls 7114-08D-32D Electric Strike 24VDC FSE is engineered for exceptional security in various applications, including commercial centers, industrial buildings, educational facilities, and healthcare establishments. This electric strike accommodates 5/8" latch projections, making it versatile for use with aluminum, cylindrical, centerline mortise locks, and exit devices. Designed with a 1-1/2" cut-out depth, this centerline strike fits door thicknesses ranging from 1-3/8" to 2-3/8", ensuring compatibility with a broad spectrum of door types. The strike features an adjustable pivot that allows for precise horizontal alignment of up to 1/8", simplifying installation. With a robust holding force of 1500 lbs and a dynamic strength of 70 ft-lb, it guarantees reliable performance under pressure. Constructed from durable brushed stainless steel (32D) and UL 1034 burglary-resistant listed, the 7114-08D-32D is designed for longevity, boasting an endurance rating of 250,000 cycles. Whether you require a fail-secure or fail-safe mode, this electric strike can meet your security needs, and all necessary mounting tabs, fasteners, and a trim plate are included for convenience. Backed by a 5-year limited warranty, it is a trusted choice for enhancing access control systems.

Electric Strike 24VDC FSE

The 7 series centerline strikes accommodate 5/8" latch projections with various faceplate options to match most frame types. The RCI 7 series centerline strikes are compatible with a large range of door thicknesses from 1-3/8"-2-3/8". These strikes function effectively with aluminum, cylindrical, centerline mortise locks, & exit devices. The RCI 7 series allows installers to adjust the strike pivot horizontally up to 1/8" for precise alignment.

Features:

• Accommodates 5/8" (16mm) latch projection
• 1/8" (3.2mm) horizontal adjustment
• 1-1/2" (38mm) cut-out depth
• Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm)
• Mounting tabs, fasteners and trim plate included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• Energy: 280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC)
• Strength: 500lbf Static 70ft-lb dynamic
• Endurance: 250,000 Cycles
• Mode: Available in fail-secure & fail-safe
• Warranty: 5 Year limited warranty

Technical Details:

• Insert Depth: 1-1/2"D (38mm)
• Brushed stainless steel (32D) finish
• UL 1034 burglary-resistant Listed

Applications:

• Commercial centers
• Industrial buildings
• Educational facilities
• Retail outlets
• Health care facilities
• Office complexes

Resources

• Cut Sheet
