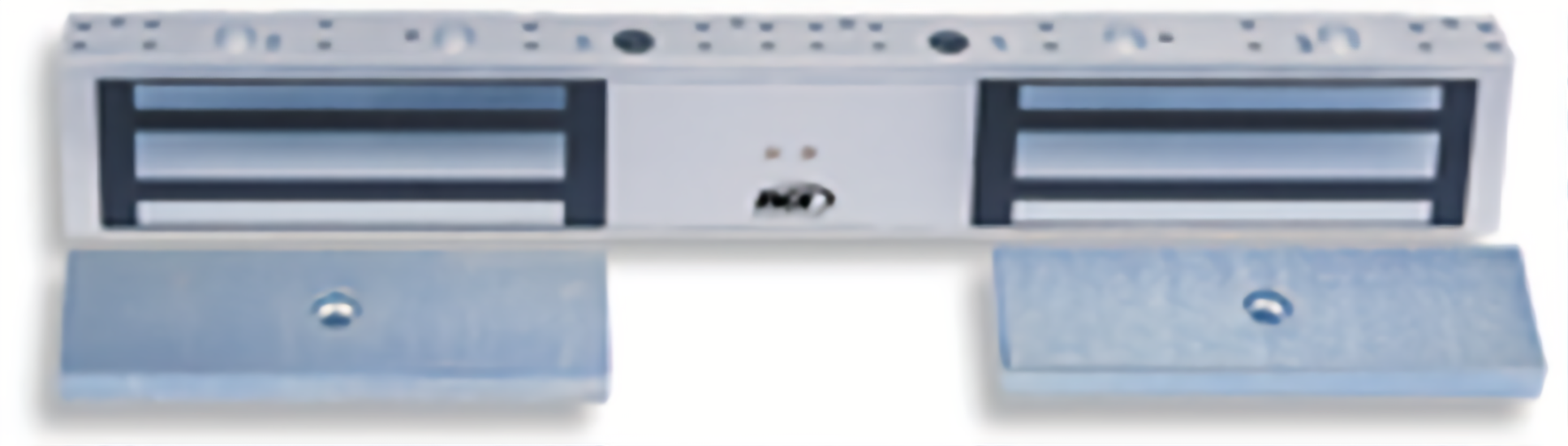

Rutherford Controls 8320-28 1500lbs EA Double MultiMag 12/24VDC Aluminum

Rutherford Controls 8320-28 1500lbs EA Double MultiMag 12/24VDC Aluminum offers an advanced solution for securing double outswinging doors, ensuring safety and reliability in various environments. With a robust holding force of up to 1,200 lbs per electromagnet, this electromagnetic lock is designed for high security while maintaining ease of installation. Its adjustable keyhole mounting feature simplifies the installation process, allowing for hands-free operation when affixing the magnet. Access to wiring is made straightforward with a removable cavity cover, and the convenient plug-in wiring terminals enhance user-friendliness. The built-in time delay, programmable from 0-35 seconds, along with surge protection, ensures optimal functionality and security. Crafted from brushed anodized aluminum, the 8320-28 is not only durable but also aesthetically pleasing. It meets stringent safety certifications, including UL 294 and California State Fire Marshal standards, making it suitable for diverse applications such as government facilities, office complexes, warehouses, and healthcare settings. With its fail-safe design and optional door status/security condition sensors available, the Rutherford Controls 8320-28 MultiMag is an ideal choice for building professionals and knowledgeable homeowners seeking reliable, high-quality access control solutions. Enjoy peace of mind knowing your premises are secured with a product backed by a lifetime limited warranty.

1500lbs EA Double MultiMag 12/24VDC Aluminum

The MultiMag series of electromagnetic locks are designed for easy installation and multi-purpose operation for interior or perimeter doors. The mounting bracket has keyhole mounting to support the magnet, freeing the installer's hands to affix the magnet mounting screws. The removable cavity cover offers quick, easy access to wiring. The RCI 8310 MultiMag applies to single outswinging doors, while the RCI 8320 MultiMag is for double outswinging doors. For additional security monitoring these electromagnetic locks offer optional door status & security condition sensors.

Features:

• Adjustable keyhole mounting
• Built-in time delay (instant release with adjustable relock, programmable from 0-35 seconds)
• Convenient plug-in wiring terminals
• Easy-access wiring cavity
• Surge protection
• Self-drilling Teks fasteners
• UL 294 Special locking arrangement component
• CAN/ULC S104
• UL 10C 3-Hours
• California state fire marshal listed (CSFM: 3774-2275:0500)
• 250mA Auto-sensing 12-24VDC (max at 12VDC for 8310, 500mA for 8320)
• Up to 1,200lbf holding force (each electromagnet)
• Fail-safe
• Optional door status sensor (DSS)/security condition sensor (SCS) available
• Lifetime limited warranty

Technical Details:

• Dimensions: 21-1/8"W x 2-7/8"H x 1-5/8"D (536mm x 73mm x 41mm) – Includes 1/4" (6mm) mounting bracket
• Armature Plate: 7-7/16"W x 2-3/8"H x 5/8"D (190mm x 61mm x 16mm) each
• Hardened steel armature nut
• Self-drilling Teks fasteners
• Includes 5/8" (16mm) armature plate, optional 3/8" (9.5mm) available
• Available in brushed anodized aluminum (28) or brushed anodized dark
• Bronze (40) finish

Applications:

• Pairs of outswinging doors without mullion
• Pairs of inswinging doors without mullion (use with Z brackets)
• Interior or perimeter doors
• Government facilities
• Office complexes
• Warehouses
• Retail
• Commercial
• Industrial
• Health care

Resources

• Cut Sheet
